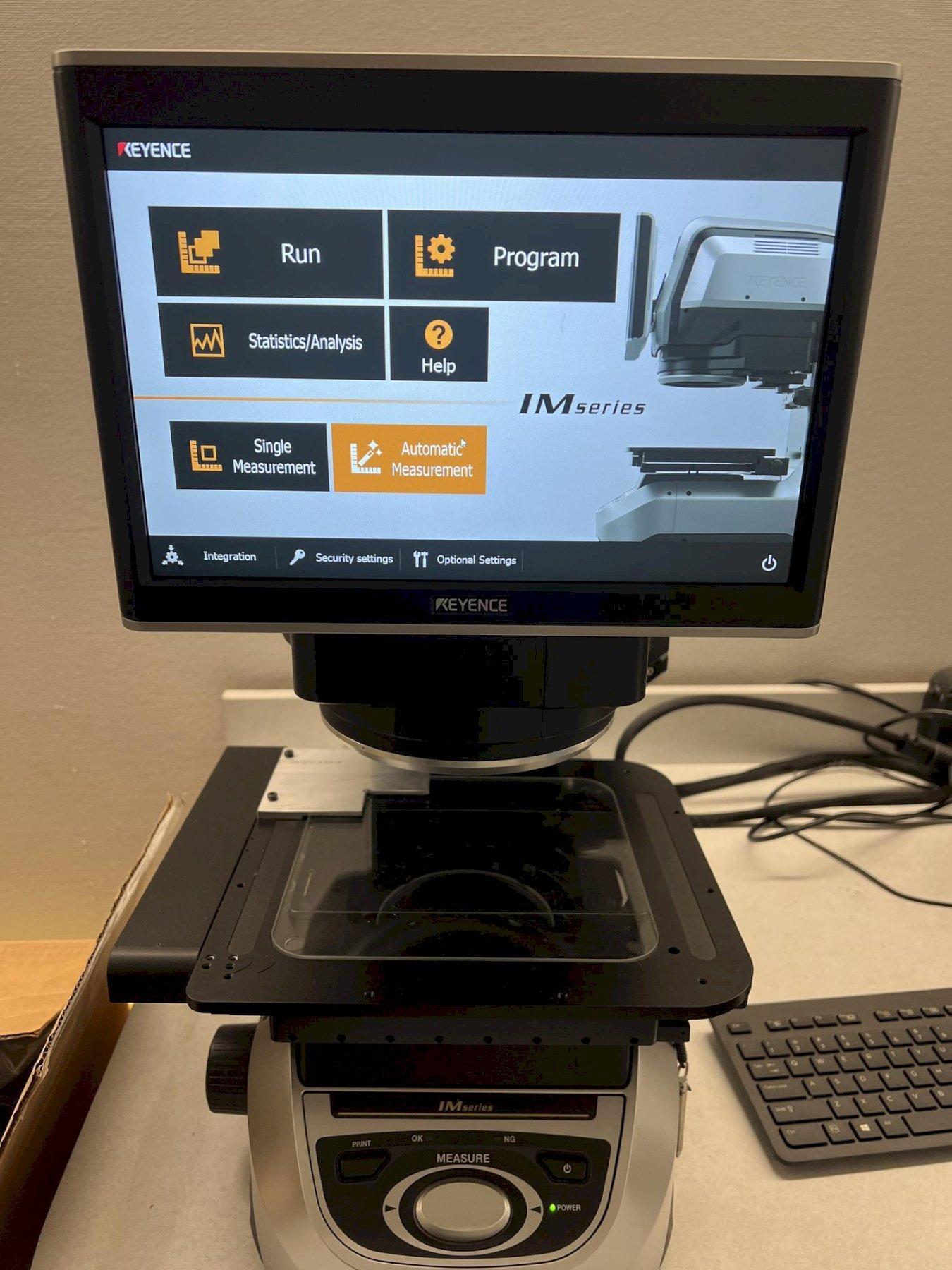

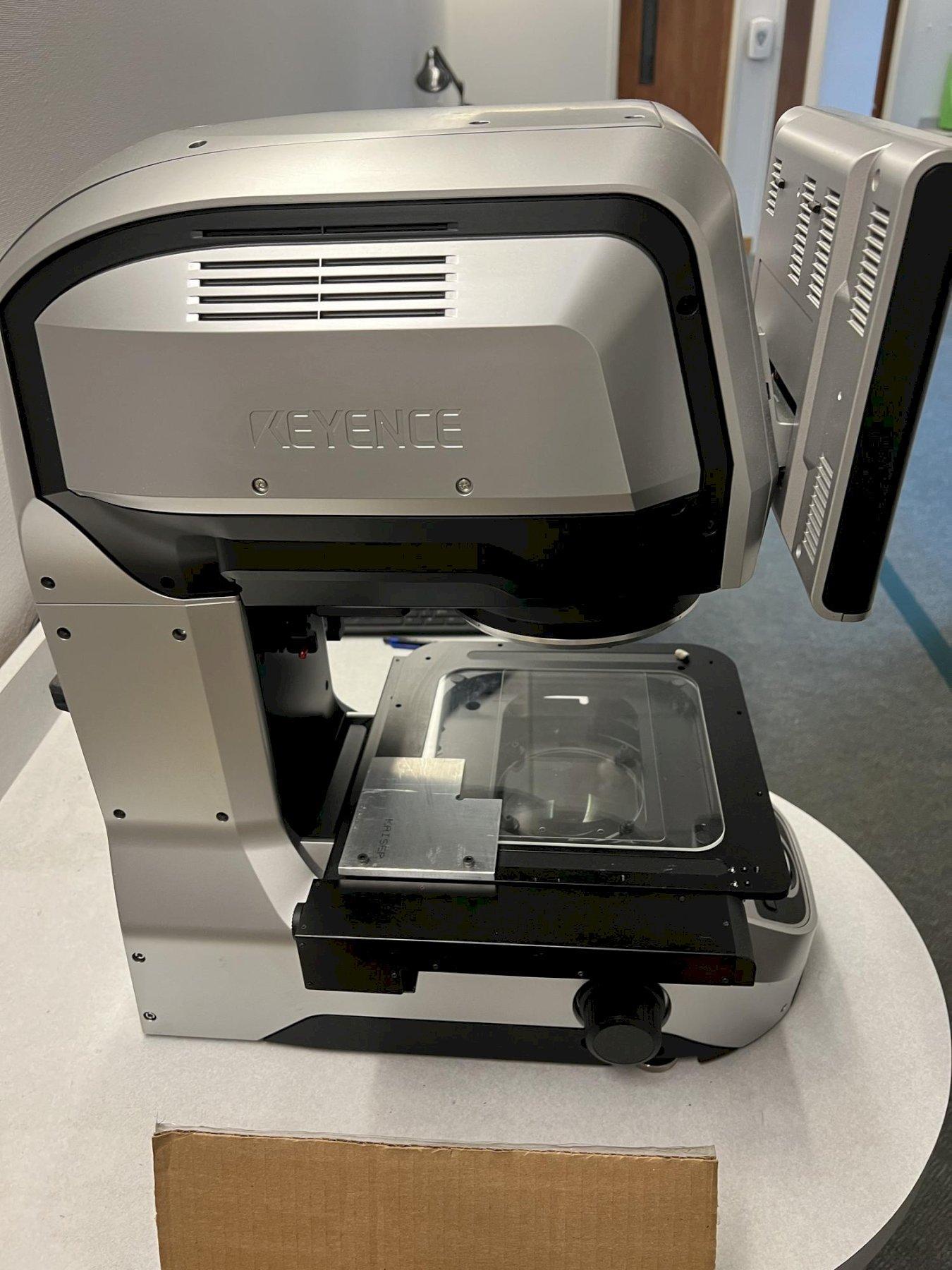

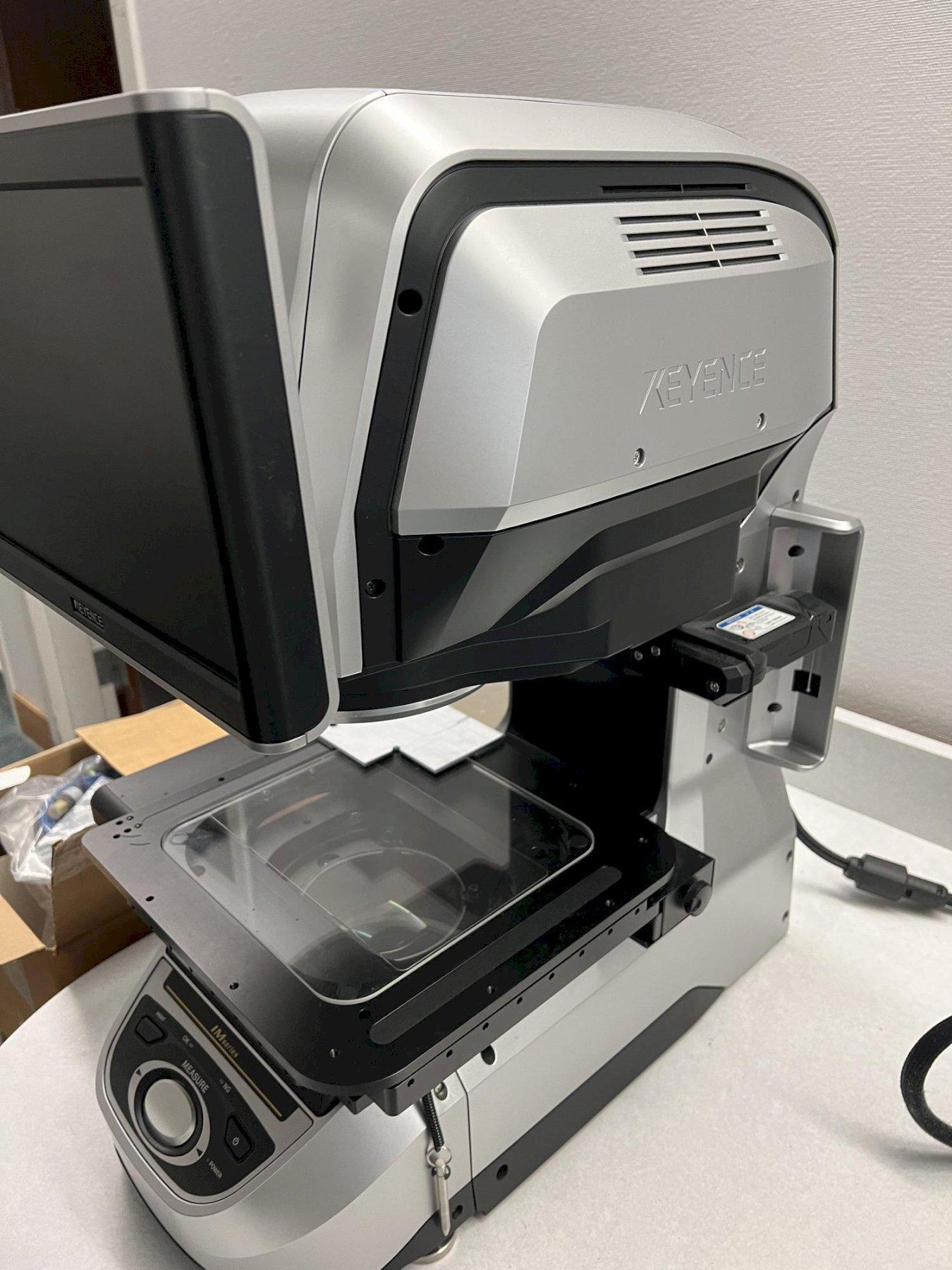

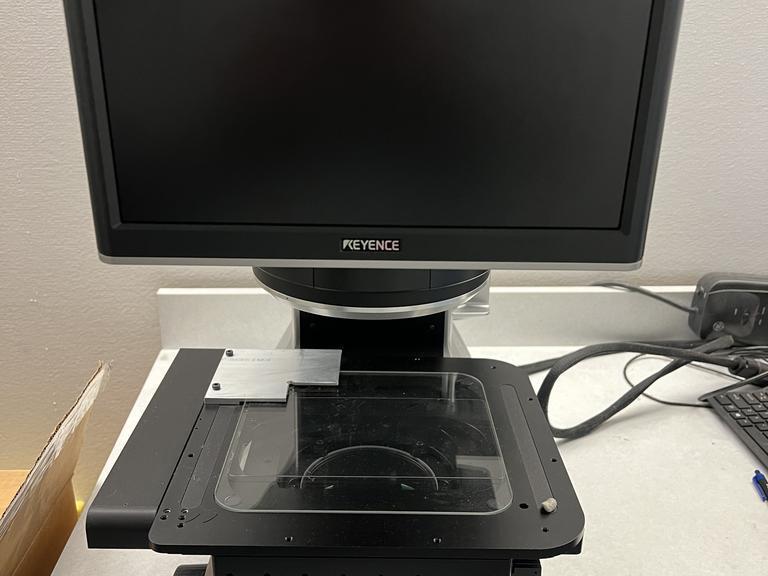

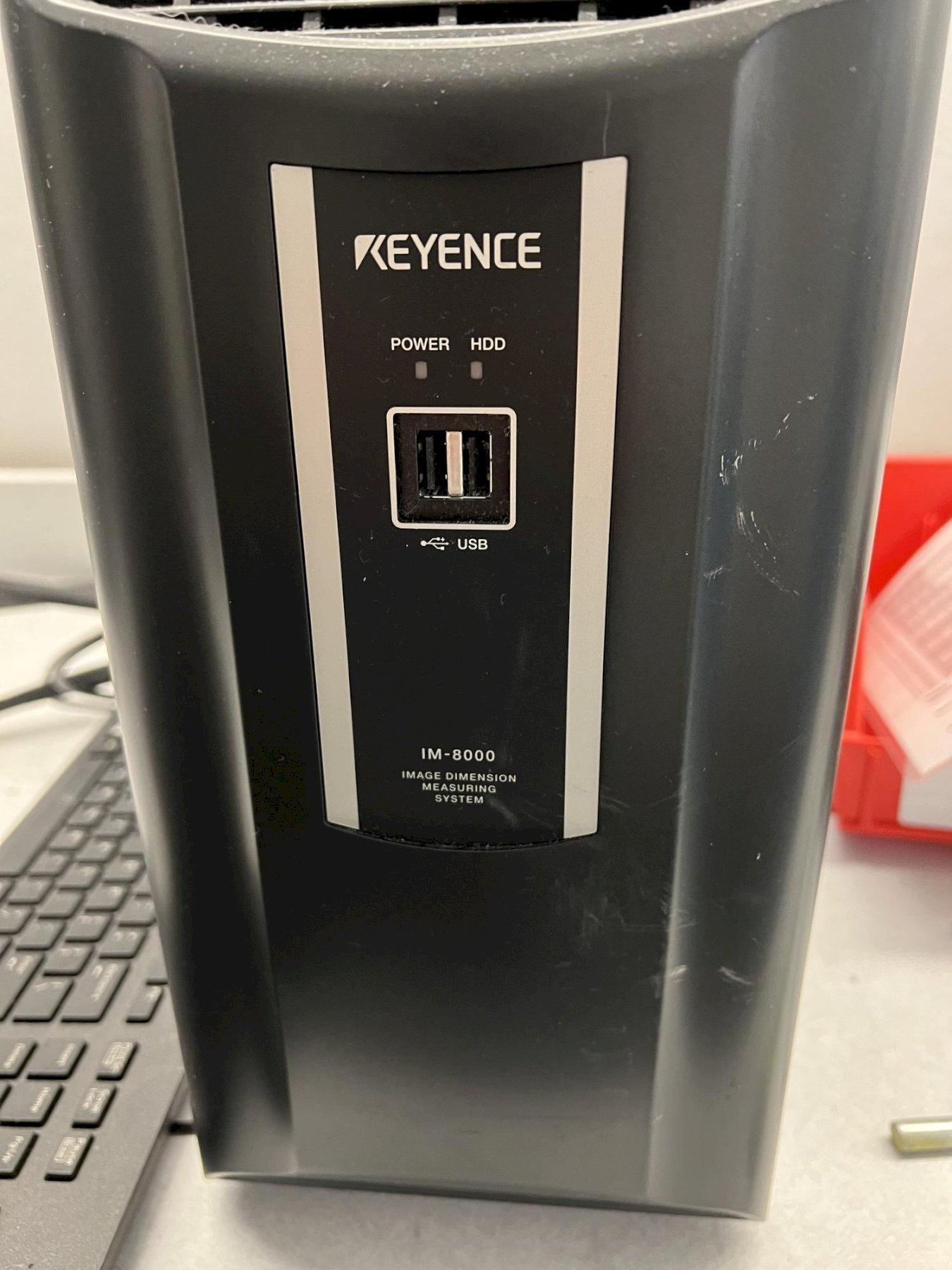

Keyence IM-8020 Image Dimension Measuring System with LCD Monitor, 360° Rotary Unit
Brand
Category
Type
Model
IM-8020
Stock #
Not specified
Year
2021
Condition
Not specified
Location
Not specified
|

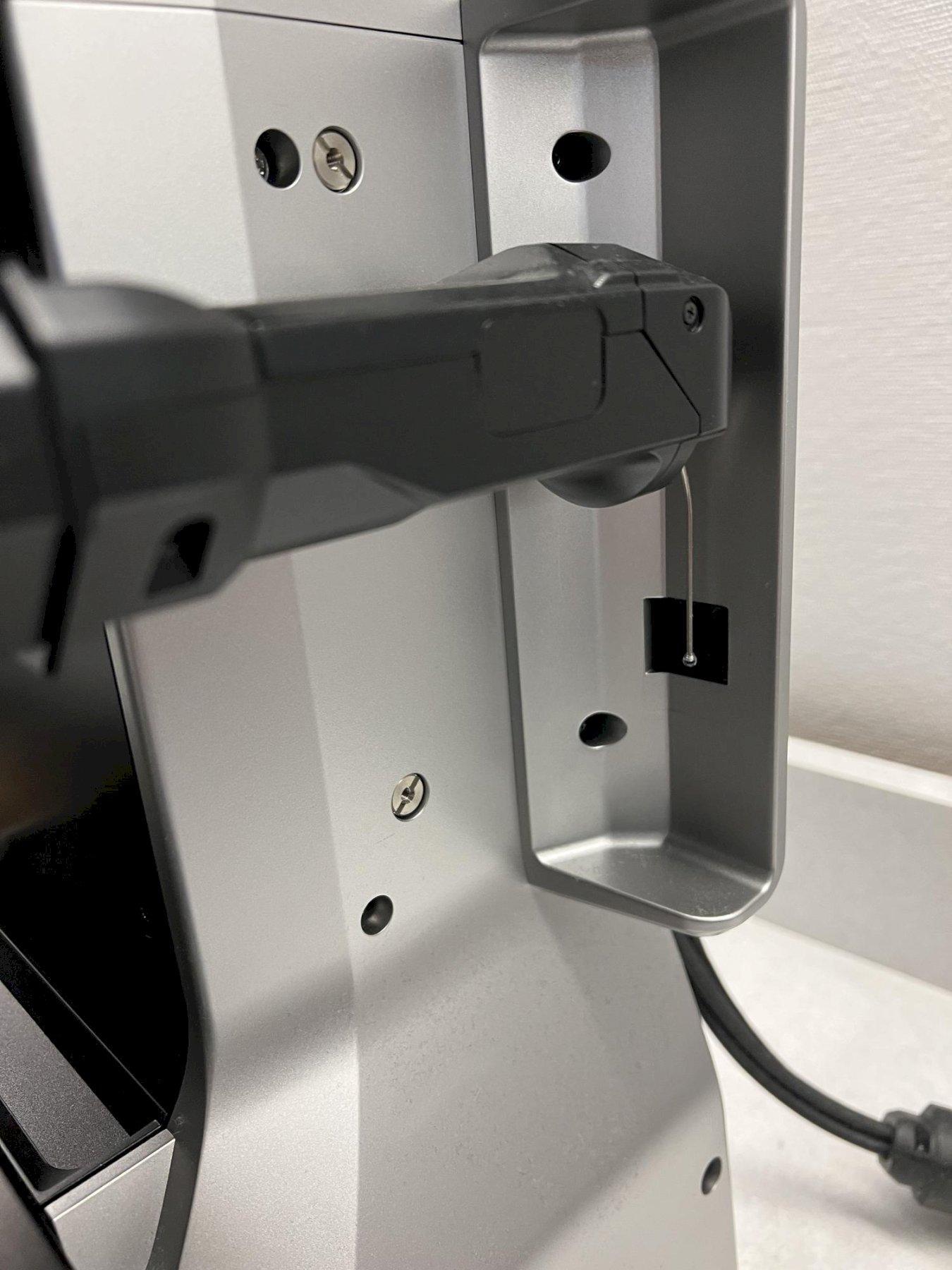

Display: 12.1" LCD Monitor Image Sensor: 1" 20-megapixel monochrome CMOS Image Measurement Range: Wide Field: (200 x 200 mm / 7.87" x 7.87") or High Precision Mode: (125 x 125 mm / 4.92" x 4.92") Stage Moving Range: XY: (100 x 100 mm / 3.94" x 3.94") Z: (75 mm / 2.95") Stage load capacity: 5 kg or 11.023 lbs Lens Power: Double Telecentric Lens Illumination Style: Transparent and Ring Light Probe Measurable Area: XY: (90 x 90 mm / 3.54" x 3.54") Light Probe Measurement Depth: 30 mm / 1.18" Light Probe Diameter: 3 mm / 0.12" Light Probe Measuring Force: 0.015 N Power Supply: 100 to 240 VAC Description: Capable of high-definition imaging, the IM-8000 Series Image Dimension Measurement System has triple the detection performance of conventional systems without sacrificing its simple operation; just place the part on the stage and press one button. With a 20-megapixel CMOS sensor and a new algorithm for stable edge detection, high-accuracy measurement on up to 300 features within seconds is now possible. A newly developed, optional automated rotary fixture allows for 360' multi-surface measurement on diverse part sizes and shapes. Achieve accurate and repeatable measurements instantly with its 'place and press' operation; this ensures consistent results regardless of operator experience. The fast, accurate, and easy-to-use interface of this product solve various measurement-related problems. Equipped With: 12.1" LCD Monitor, 1" 20-Megapixel Monochrome CMOS, Double Telecentric Lens, Light Probe Unit, 360° Multi-Surface Rotary Unit, Large High-Speed/High Precision Stage (11.81" x 7.87") Electrics: 100 to 240 VAC |
