Tornos Almac CU 2007 7-Axis CNC Vertical Machining Center with Part Loading and Parts Catcher System, Probing, 20K Spindle, Lehman 2-Axis Rotary Table, Back Operation Tilting Rotary Vise
Brand
Category
Type
Model
Almac CU 2007
Stock #
C1005
Year
2019
Condition
Not specified
Location
Not specified
|

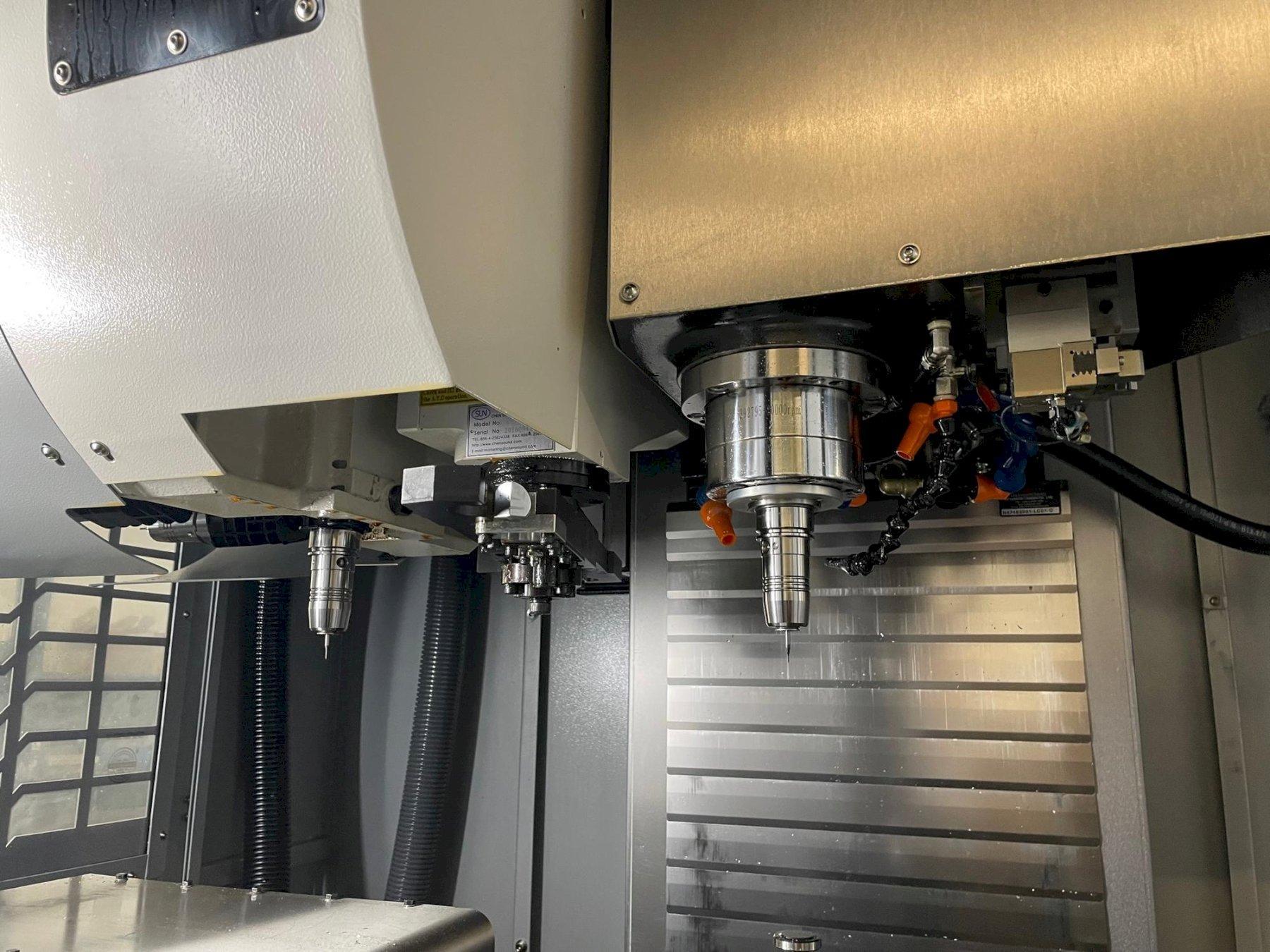

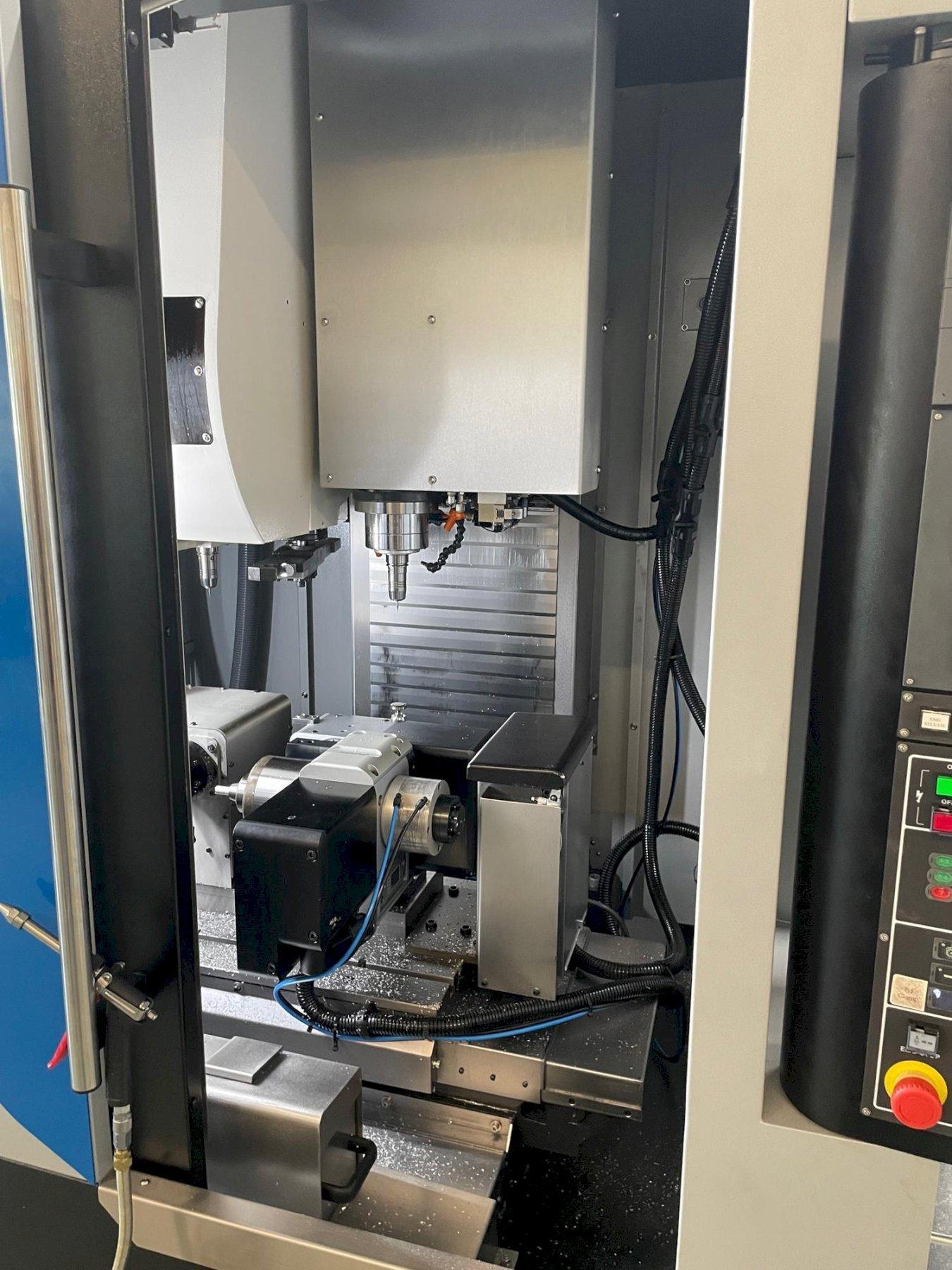

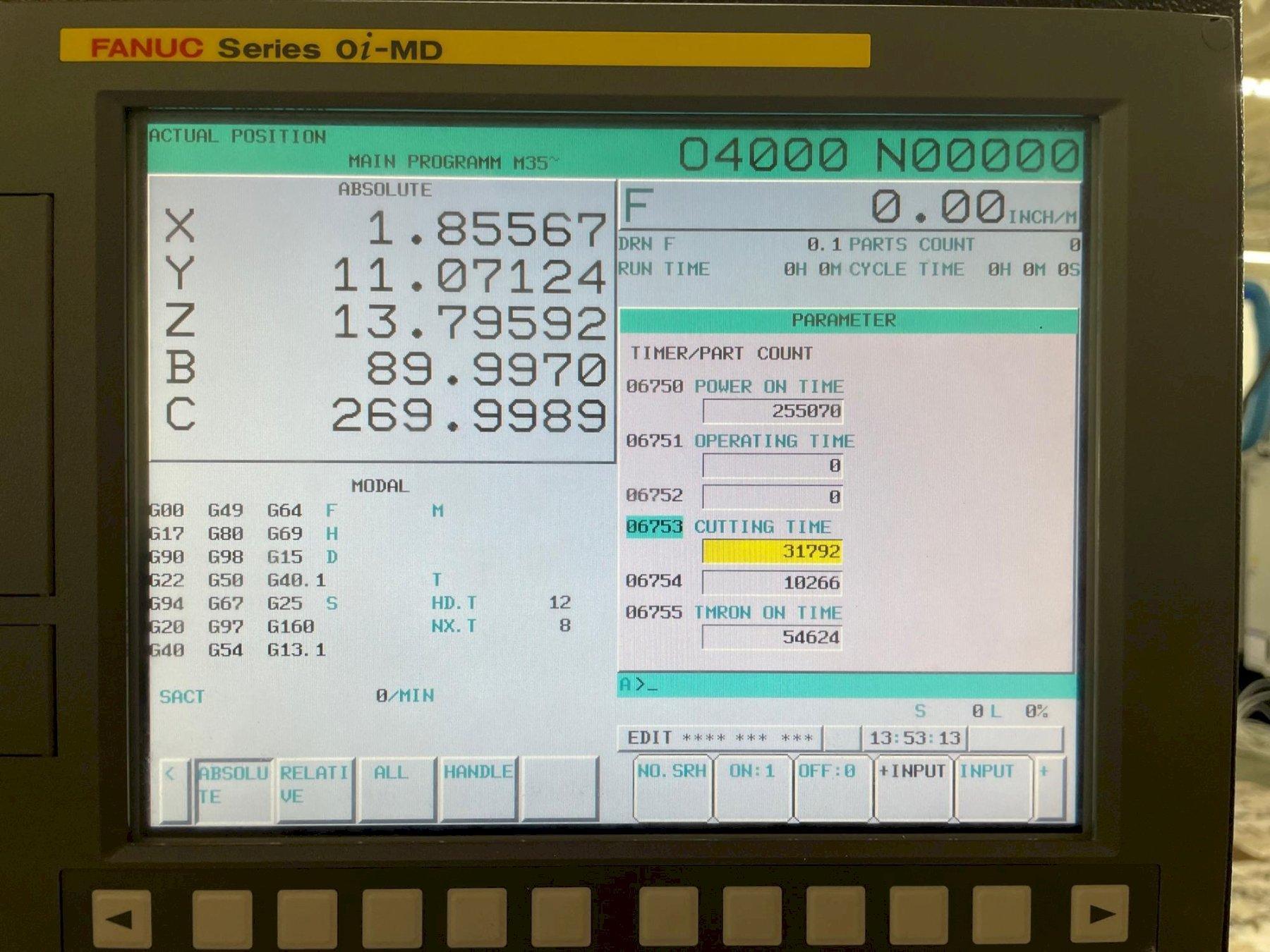

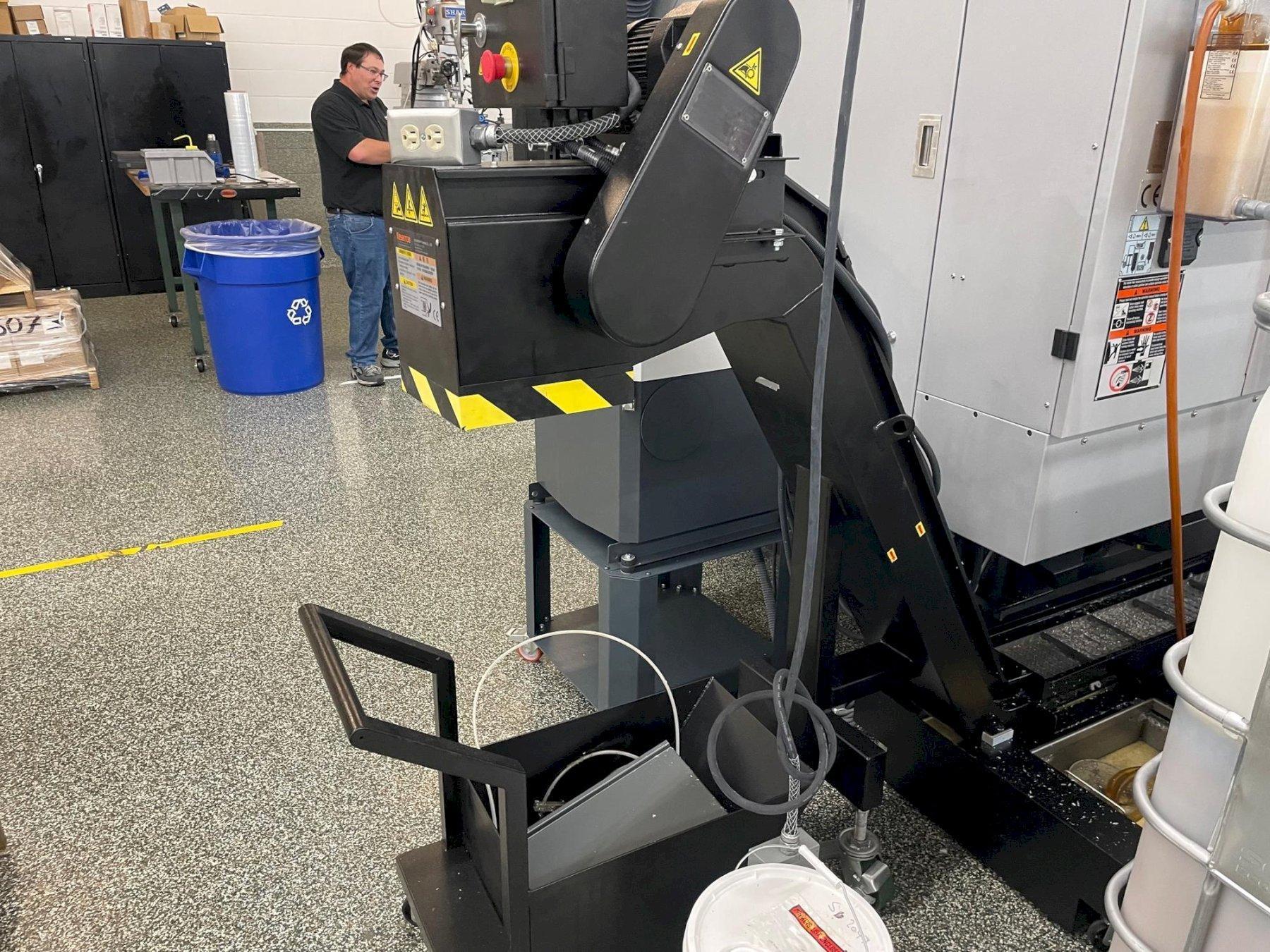

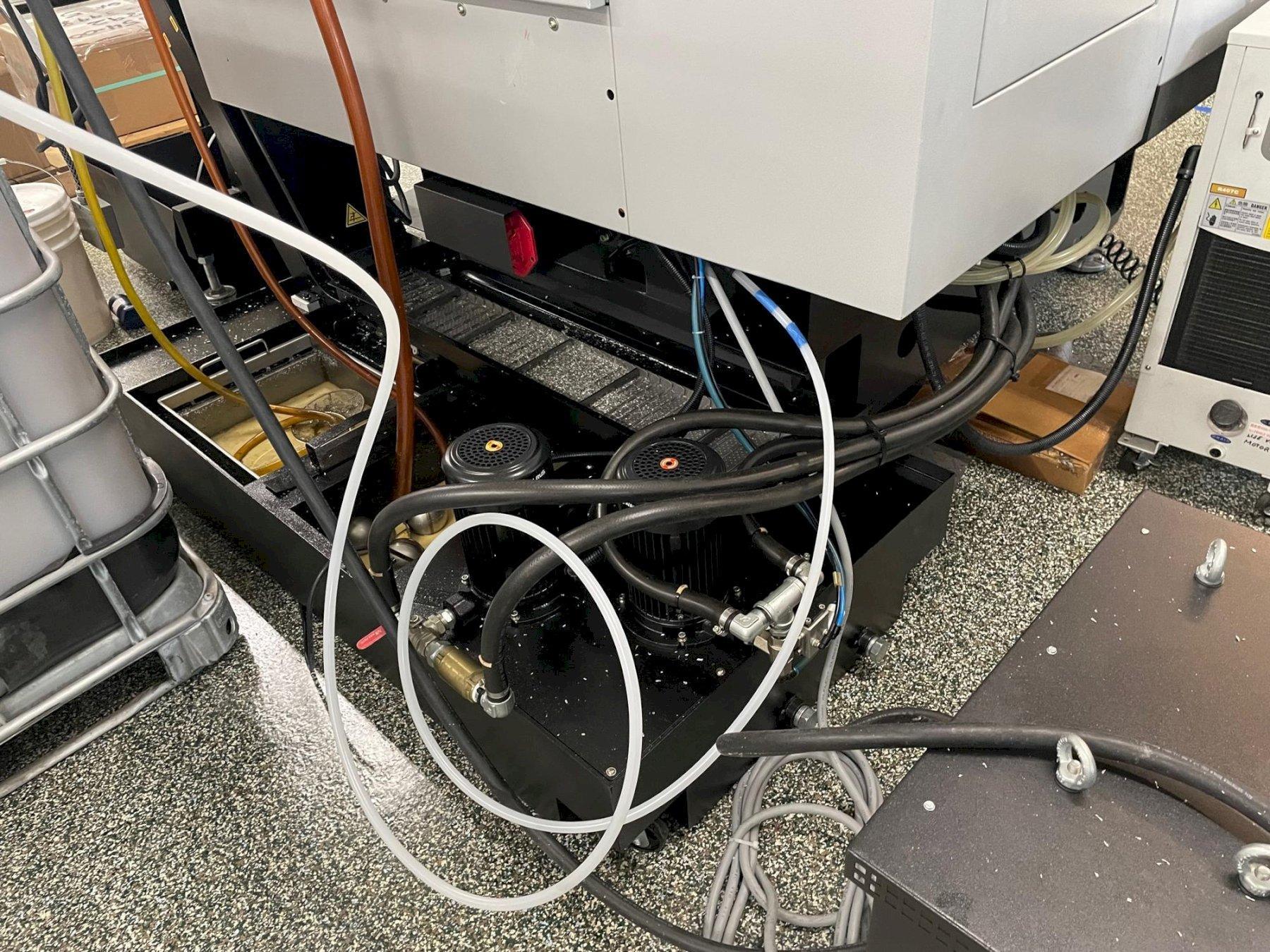

Machine Control: Fanuc Oi MD CNC Control Table Size: 650 x 400mm Machine Travels (X/Y/Z): 500 x 400 x 470mm Spindle To Table Distance: 150 - 620mm Table Capacity: 250 kg Spindle Taper: HSK E40 Spindle Speeds: 20,000 RPM Max Spindle Speed Rapid Traverse Rate (X/Y/Z): 60 m/min (Acceleration 1G) Tool Changer Style: Twin-Arm Tool Changer Capacity: 24 Station Automatic Tool Changer Tool Change Time: .8 Seconds Tool to Tool Max Tool Length: 200mm Max Tool Diameter: 60 mm / 110 mm w empty adjacent pockets Max Tool weight: 3kg Spindle Drive: 2.5 kW Equipped With: Fanuc 0iMB CNC Control, 7-Axis CNC Controls, Lehmann TF-510510 2- Axis Tilting Rotary Table, Back-Working Vise with Programmable Rotary-Axis and Tilt, Parts Loading and Parts Catcher, Pneumatic Part Clamping, 20,000 RPM Max Spindle Speed, HSK-E40 Spindle Taper, 24 Station Twin-Arm Automatic Tool Changer, Spindle Chiller, Chip Conveyor, Rigid Tapping, LNS Fox WS2 Mist Collector, AI Countour II, Tool Management, Blum Z-MT Tool Measurment Probe, Parts Probe, Coolant System, Manuals Electrics: 400 Volts, 60 Hertz, Comes with Transformer |
