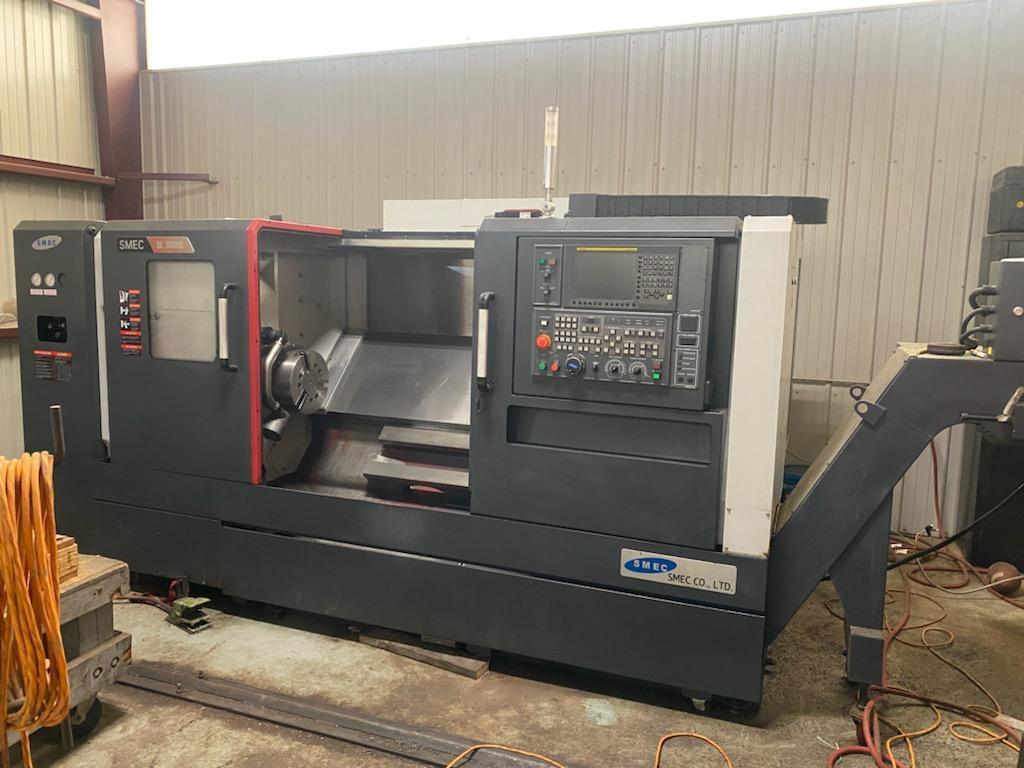

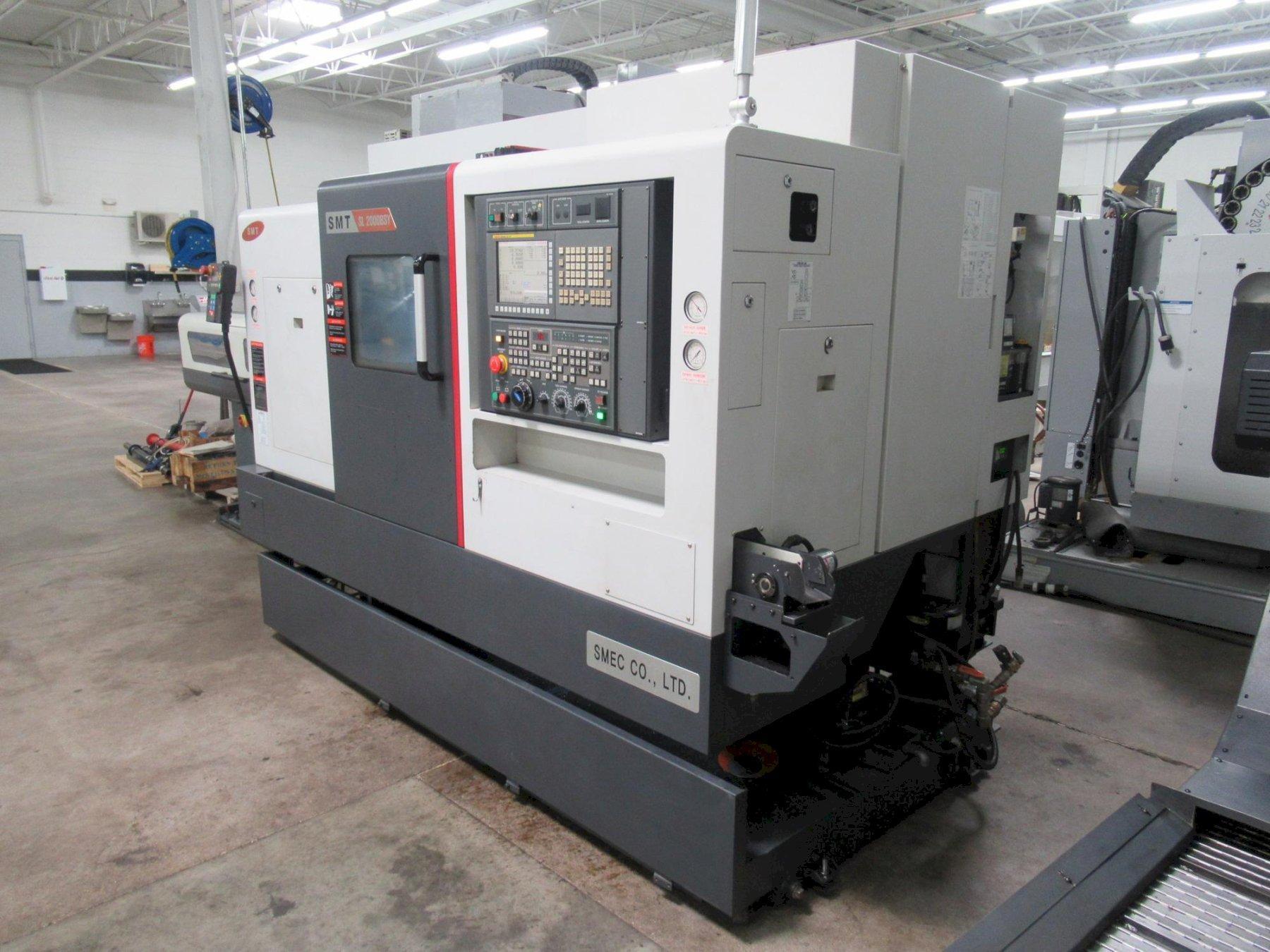

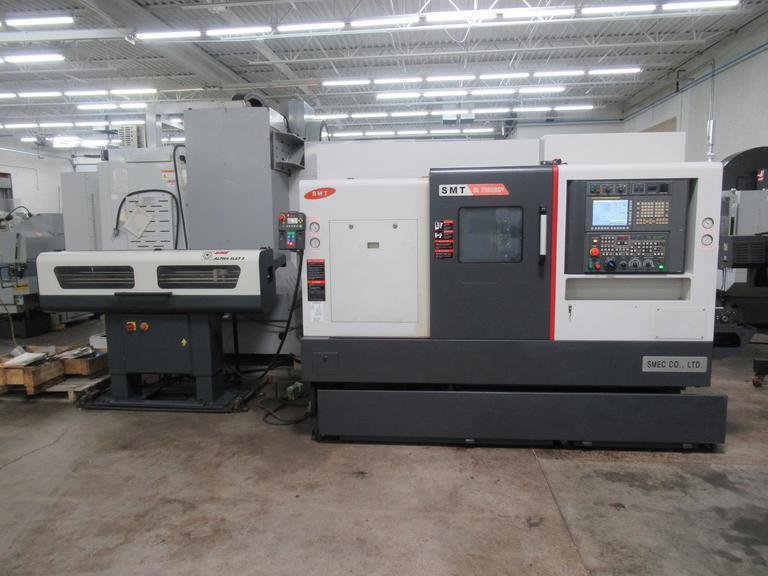

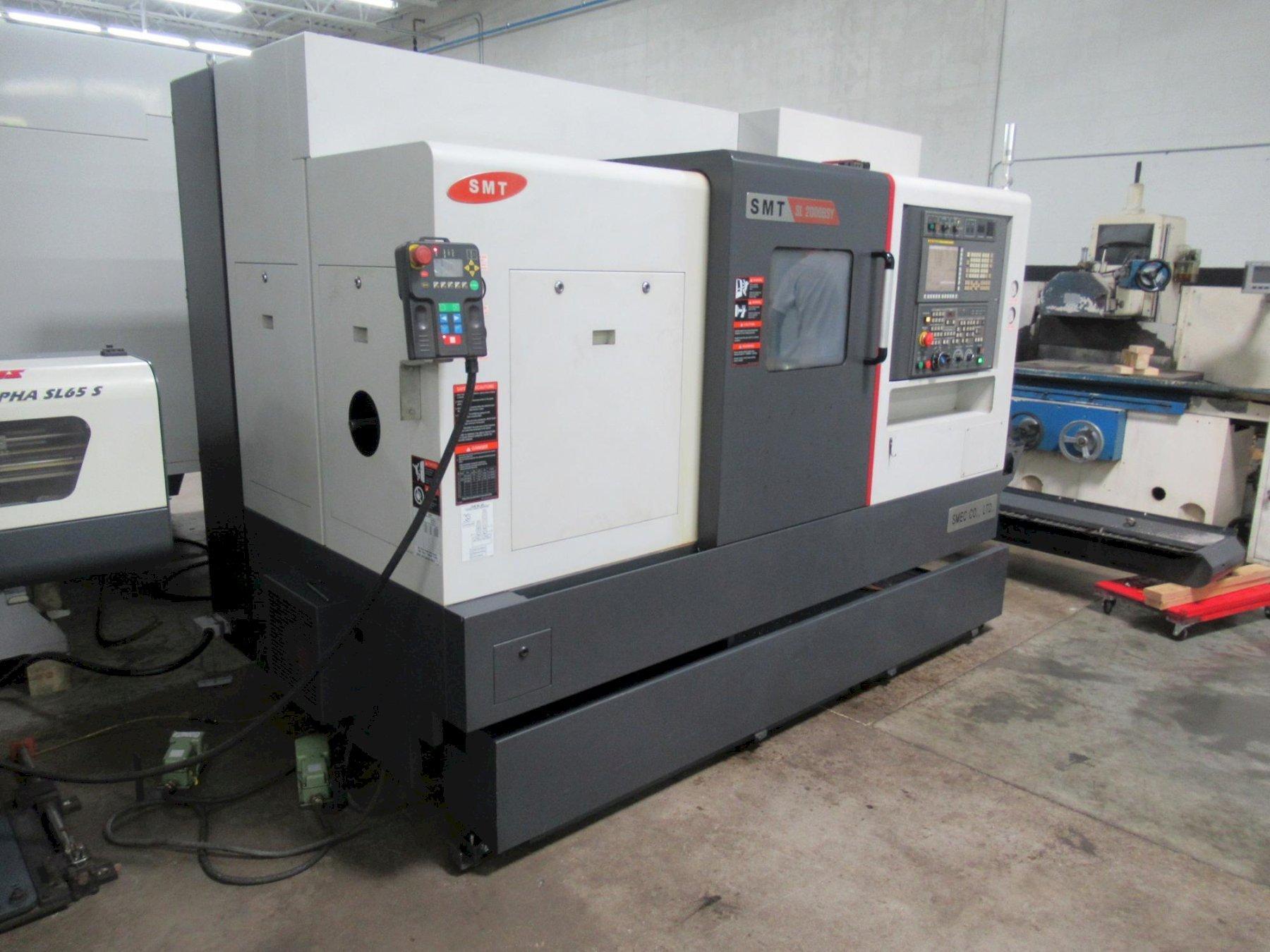

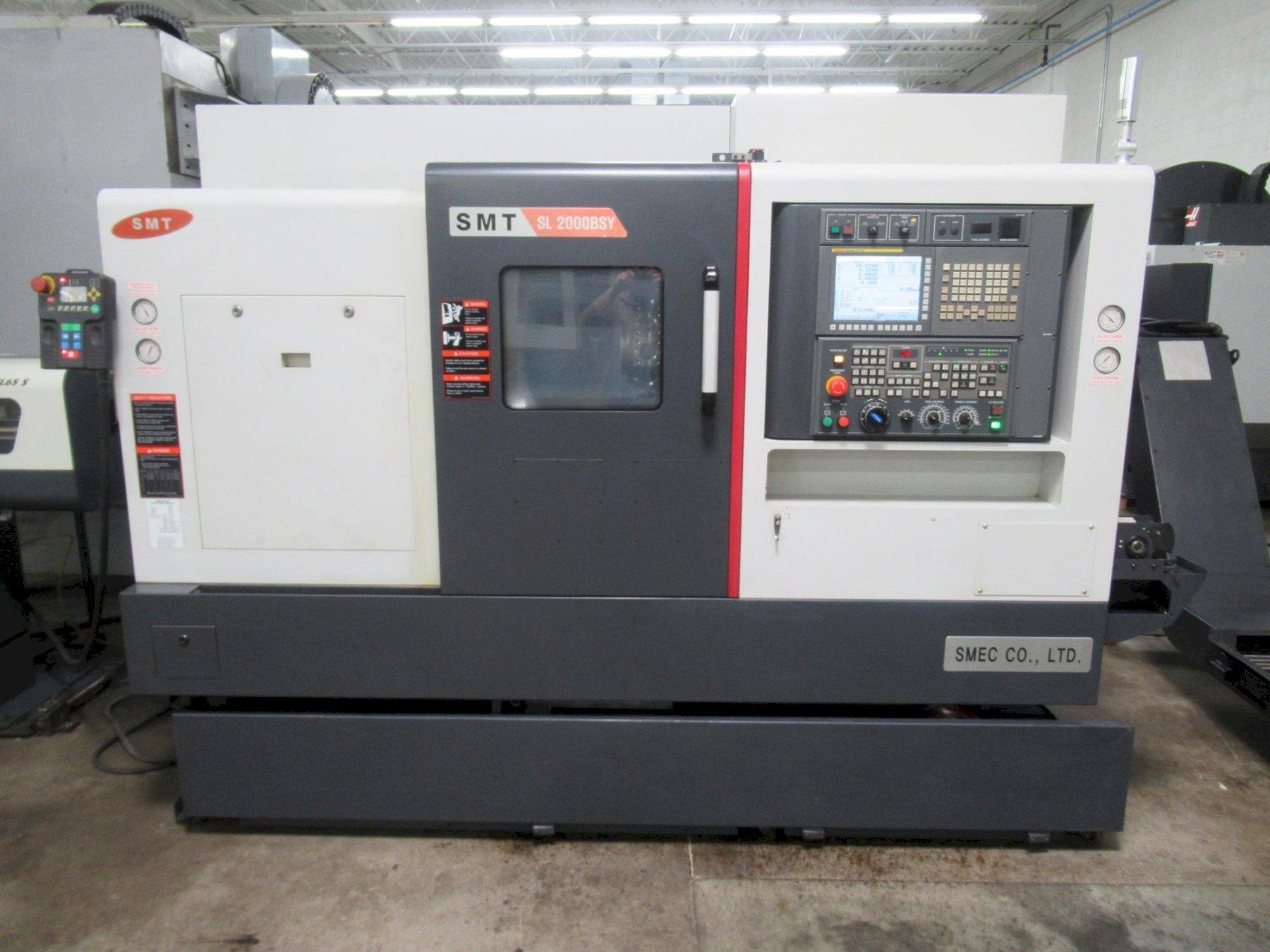

SMEC (Samsung) SL 2000BSY CNC Turning Center, Live Milling, Y-Axis, Sub Spindle, LNS Alpha Bar Feed
Brand
Category
Type
Model

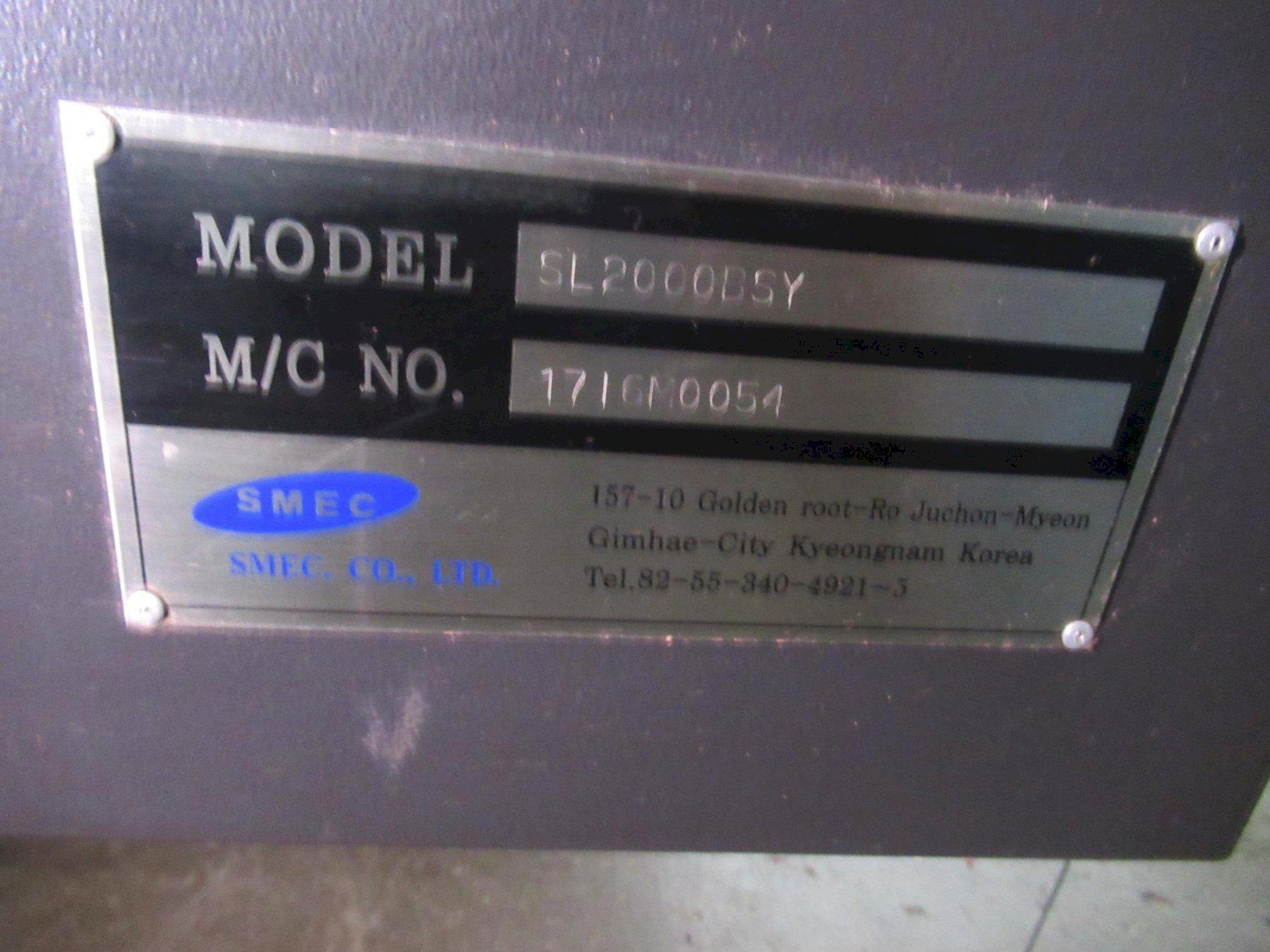

SL 2000BSY
Stock #
7239
Year
2017
Condition
Not specified
Location
Not specified
|

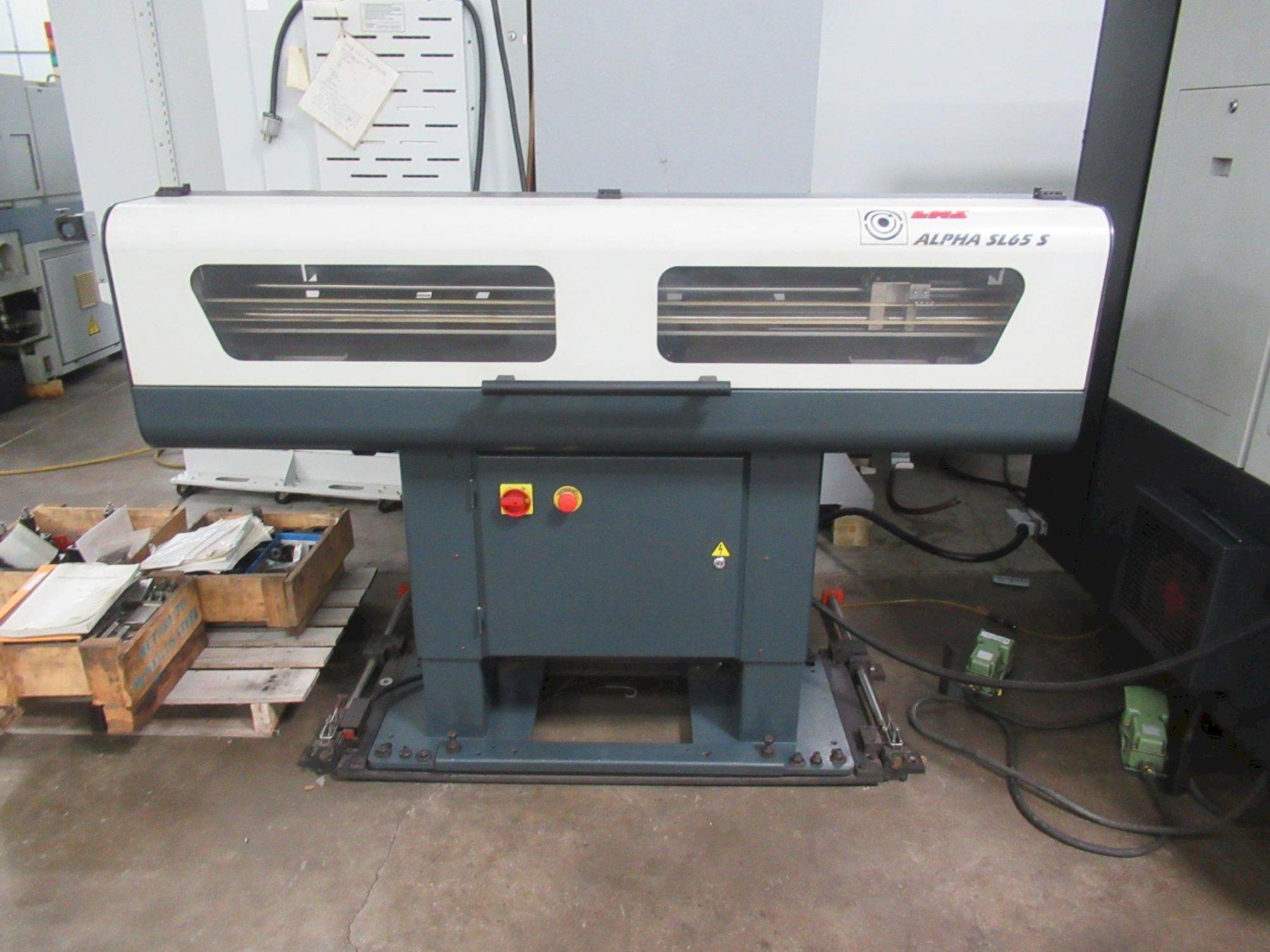

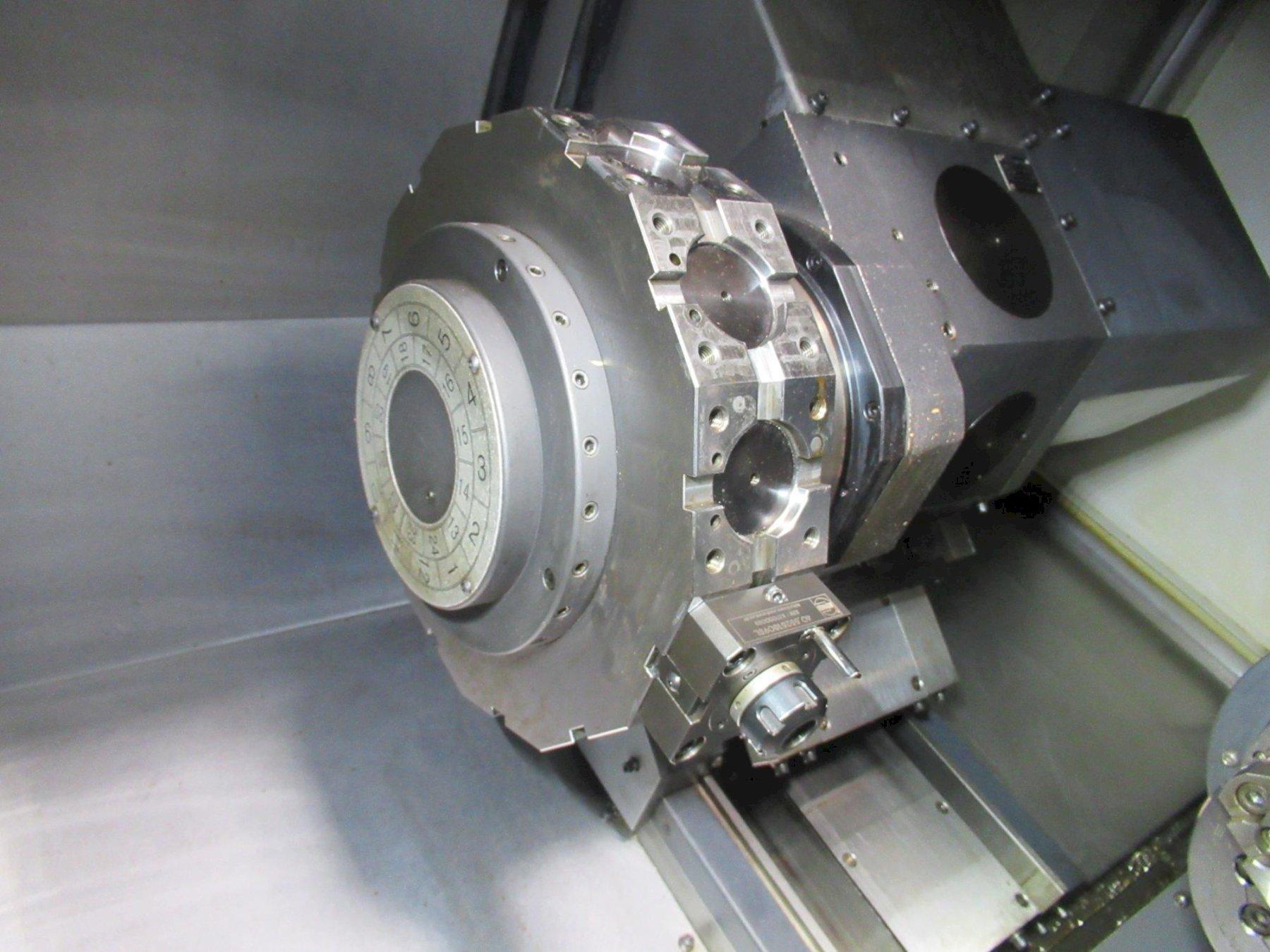

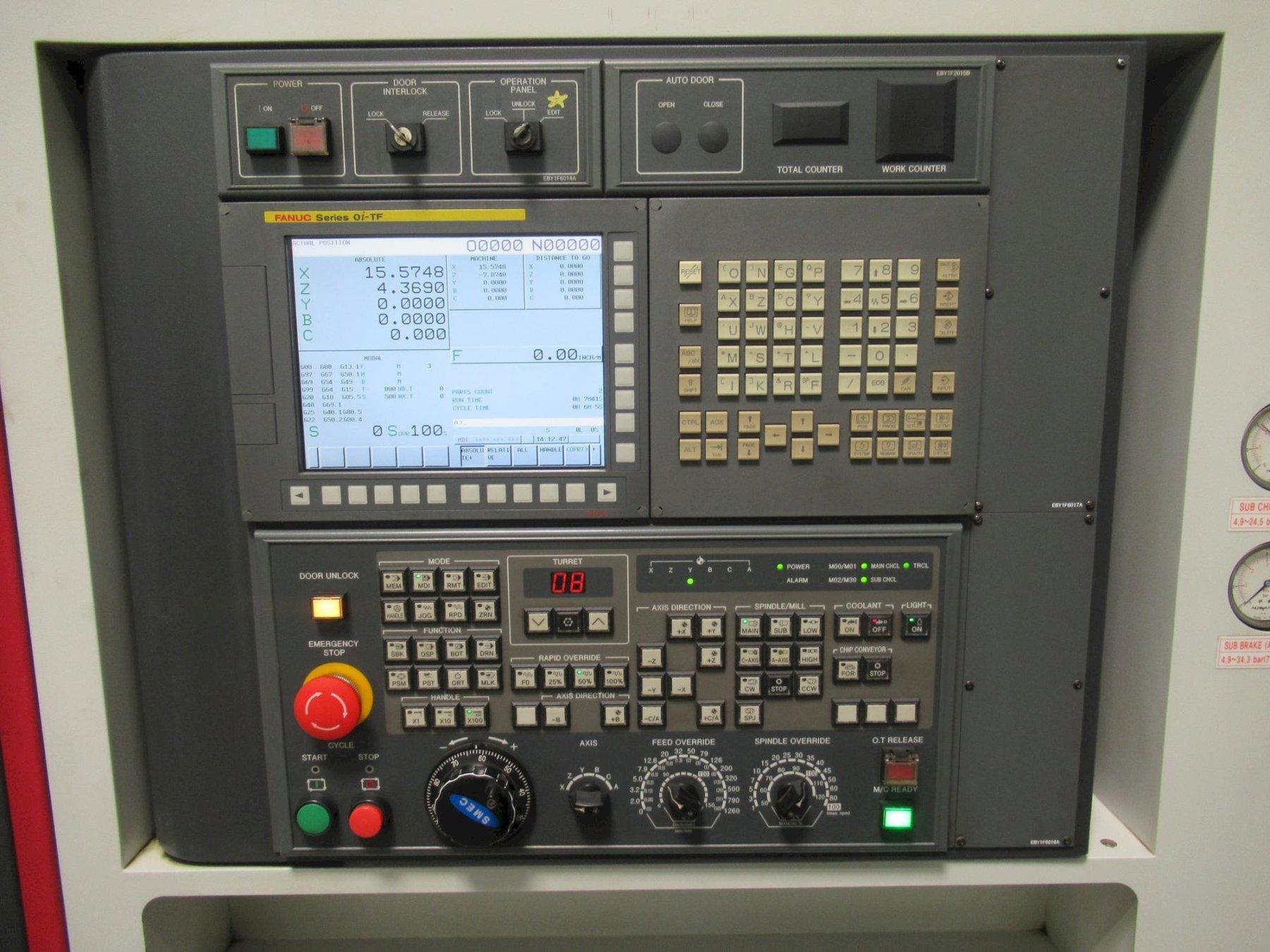

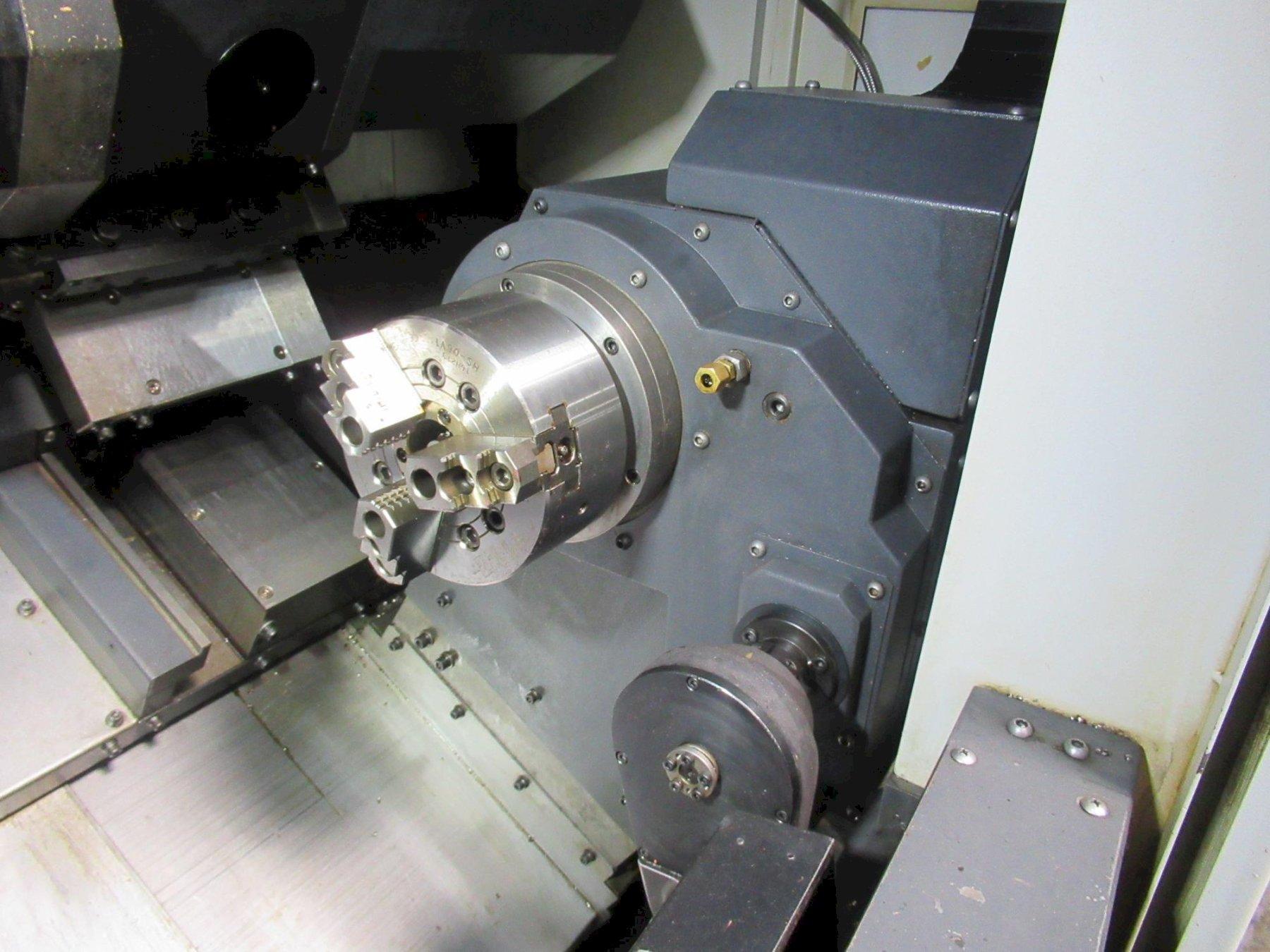

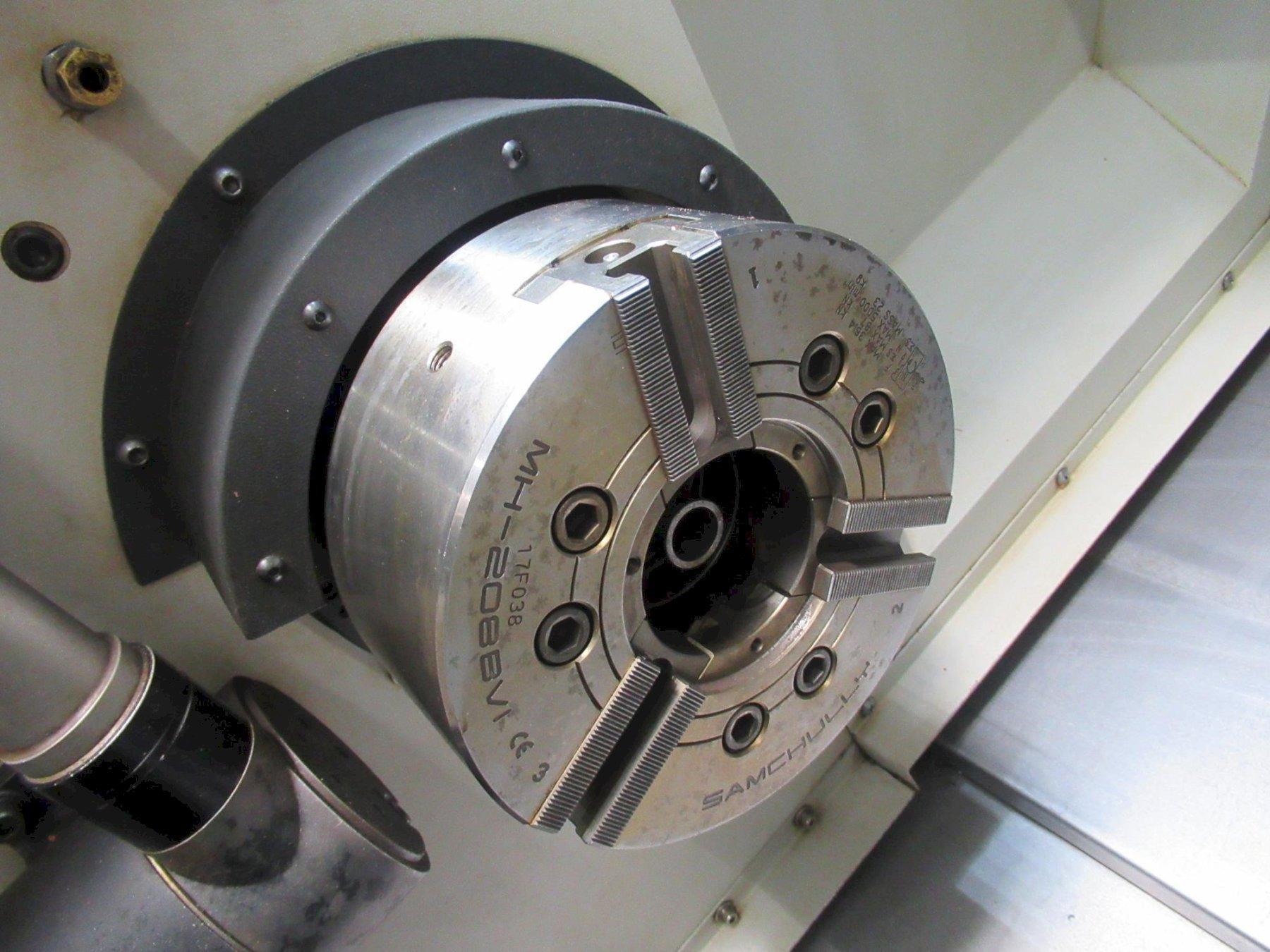

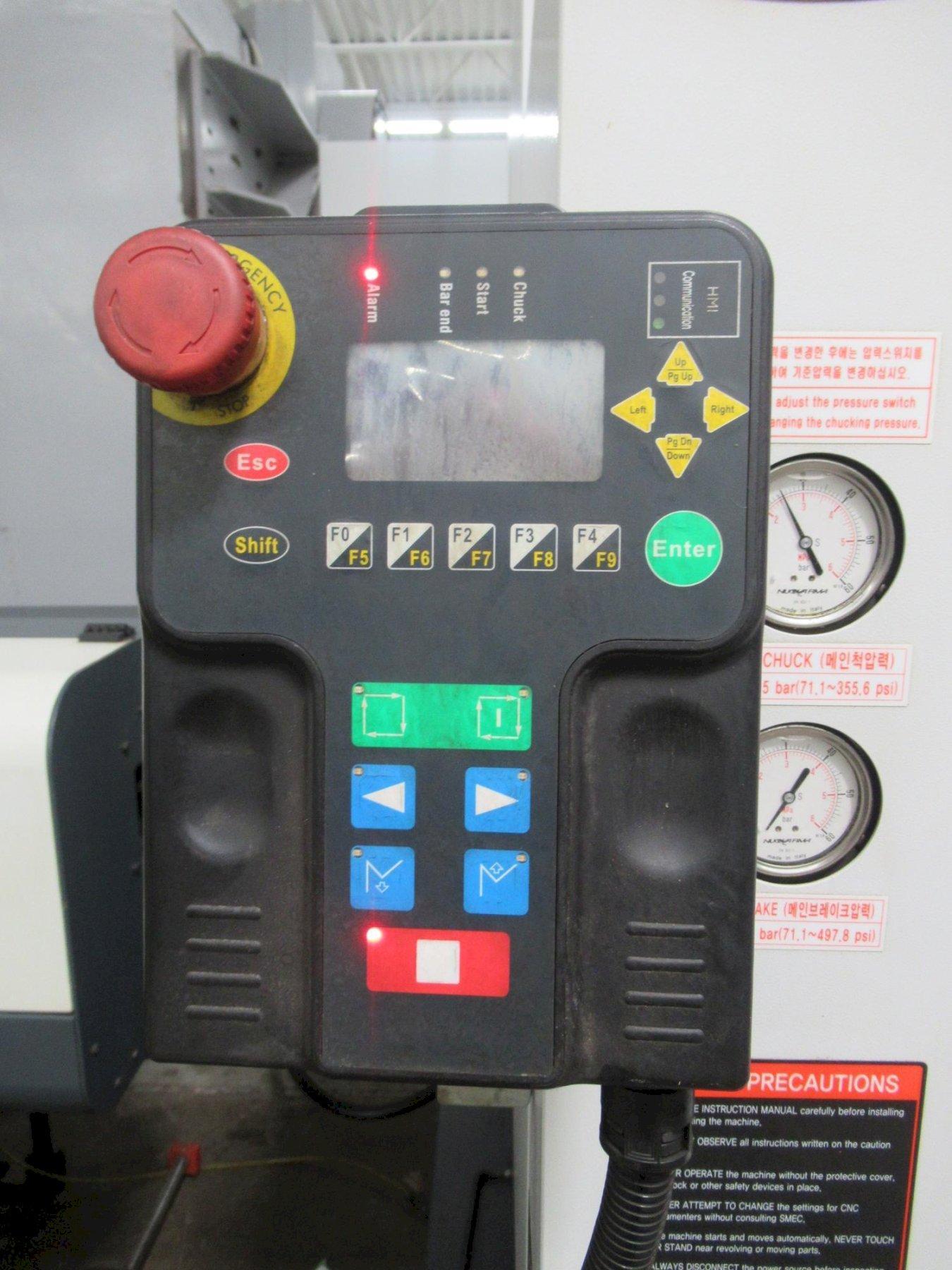

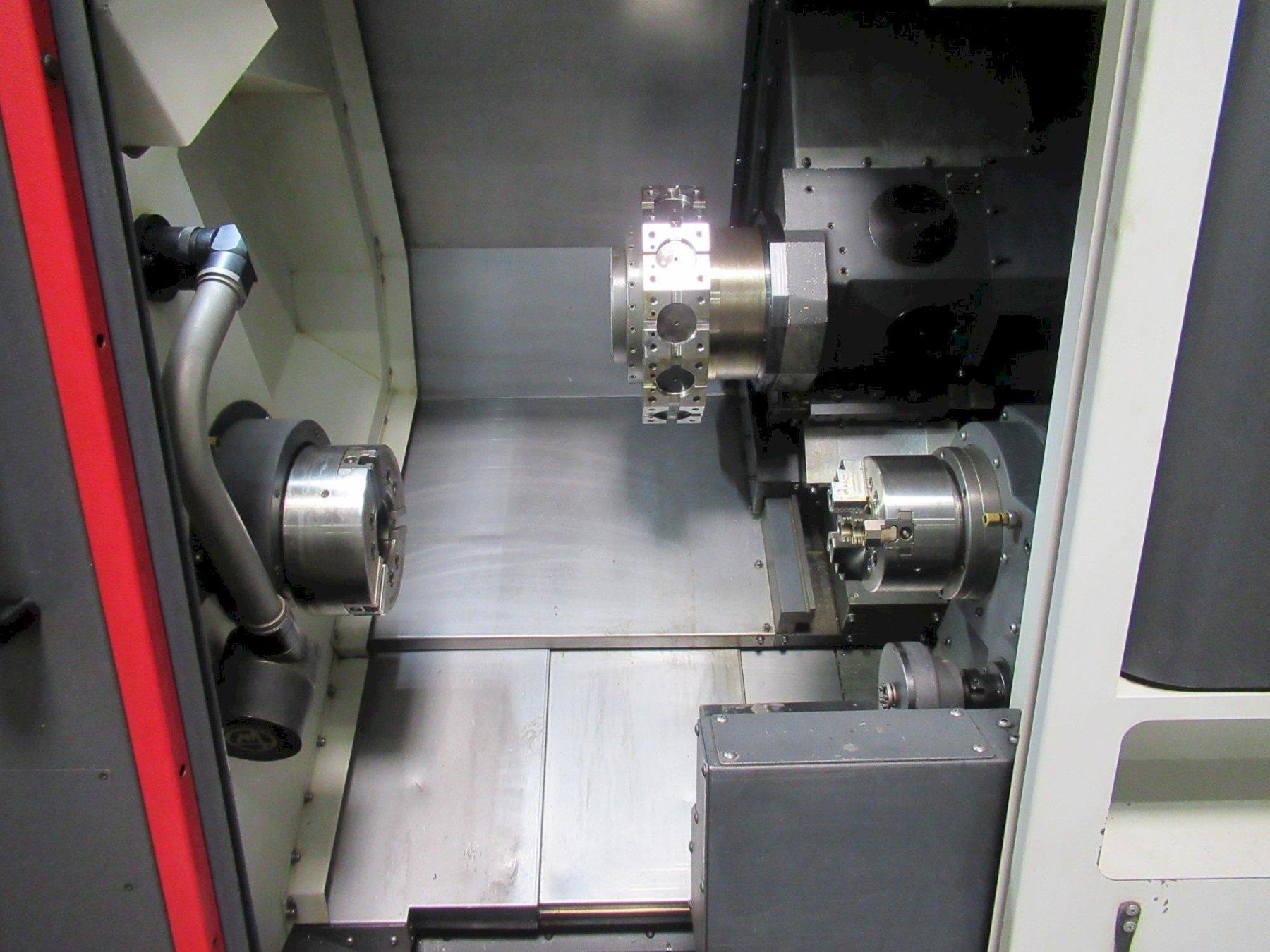

Control: Fanuc 0i-TF CNC COntrol Max Swing Over Bed: 25.59" Max Turning Diameter: 15.55" Sub-Spindle Travel: 22.83" Max Turning Length: 17.72" Spindle Nose: A2-6 Main Spindle / A2-5 Sub-Spindle Main Spindle Chuck Size: 8" Sub-SpindleChuck Size: 6" Max Distance Between Spindles: 33.46" Main Spindle Speeds : 4,500 Max RPM Sub-Spindle Speeds : 6,000 Max RPM Main Bar Capacity: 2.68" Sub-Spindle Bar Capacity: 1.42" Main Spindle Orientation: C-Axis Programmable Sub-Spindle Orientation: C-Axis Programmable Turret Capacity: 12 Station (BMT55) with Live Milling Rapids: X: 945 IPM / Z: 1,181 IPM / Y : 394 IPM Live Tool Speeds: 5,000 Max RPM Turret Travels (X/Z): 9.25" x 22.83" Main Spindle Drive: 25 / 15 HP Sub-Spindle Drive : 10 / 7.5 HP Live Tool Drive Motor: 7.5 / 5 HP Description: Explore the SMEC SL2000BSY CNC Lathe at Machinesused.com—featuring Y-axis, sub-spindle, and live tooling for versatile, high-precision machining. Ideal for complex parts and multi-axis operations. Equipped With: Fanuc 0i-TF CNC Control, Manual Guide I, 12-Station Turret with Live Milling, Y-axis Programmable, Sub-Spindle, C-axis Programmable Main and Sub-Spindles, LNS Alpha SL65S Servo Magazine Bar Loader (Bar Feeder Capacity 6mm-65mm Diameter x 1500mm Max Length), Chip Conveyor, Coolant System, Parts Cathcer and Parts Conveyor, Tool Presetter, Operators Manual, Electrical Schematics, LNS Manual, 8" 3-Jaw Chuck, 6" 3-Jaw Chuck, (2) Axial Live Tool Holders, (2) Radial Live Tool Holders (ER25 Collet Holders), Assorted Static Boring and Turning Turret Tool Holders, Spindle Liners, Chuck Jaws, (8) Machine Floor Pads NOTE: Fanuc Control shows Only 1,070 Cutting Hours on Machine Electrics: 220 Volt, 3 Phase, 47 kVA |
