Swing over bed - 14"

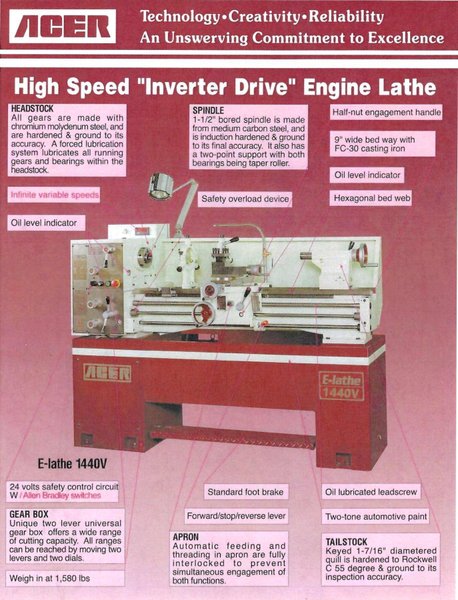

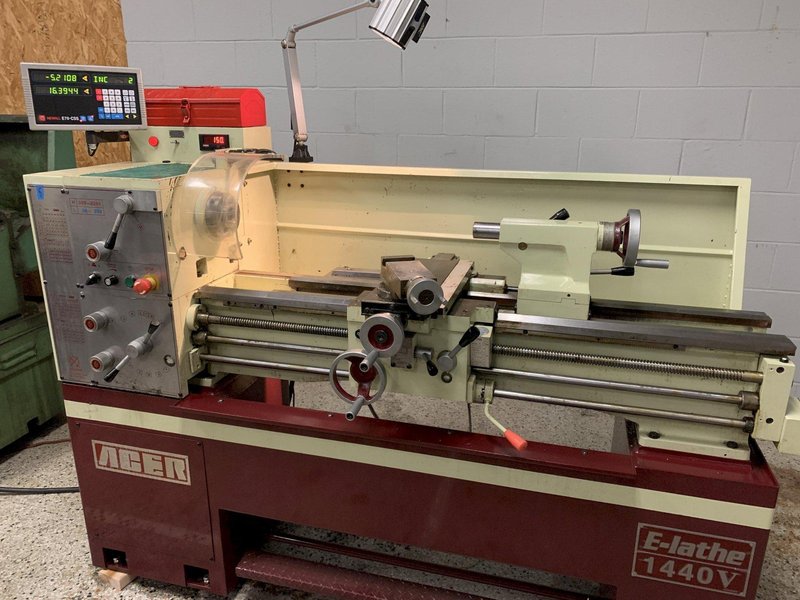

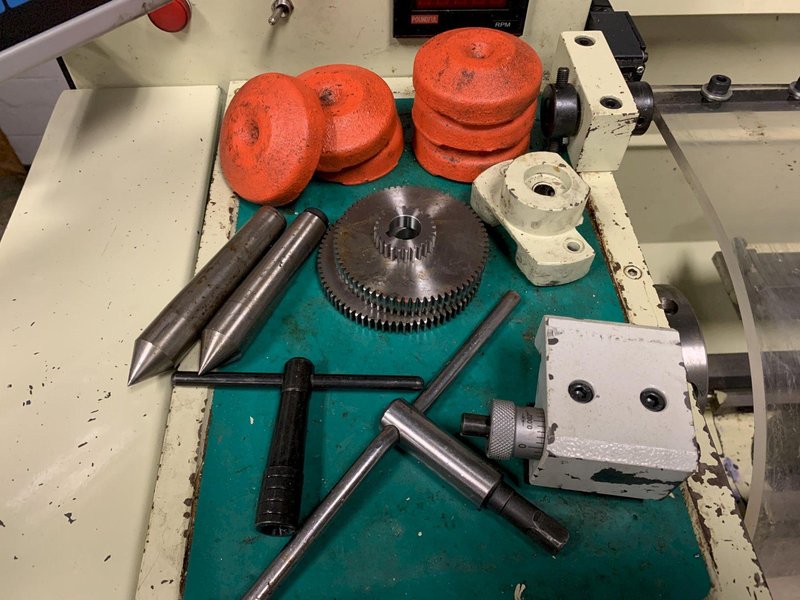

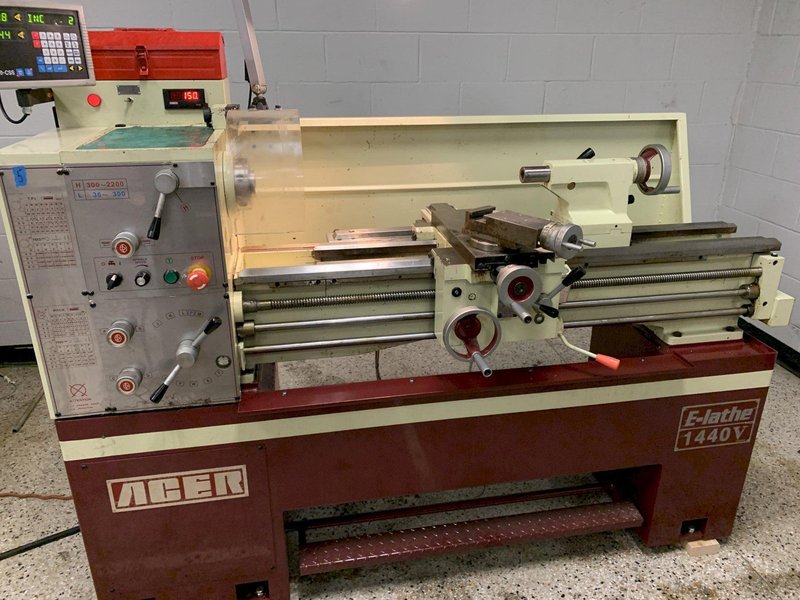

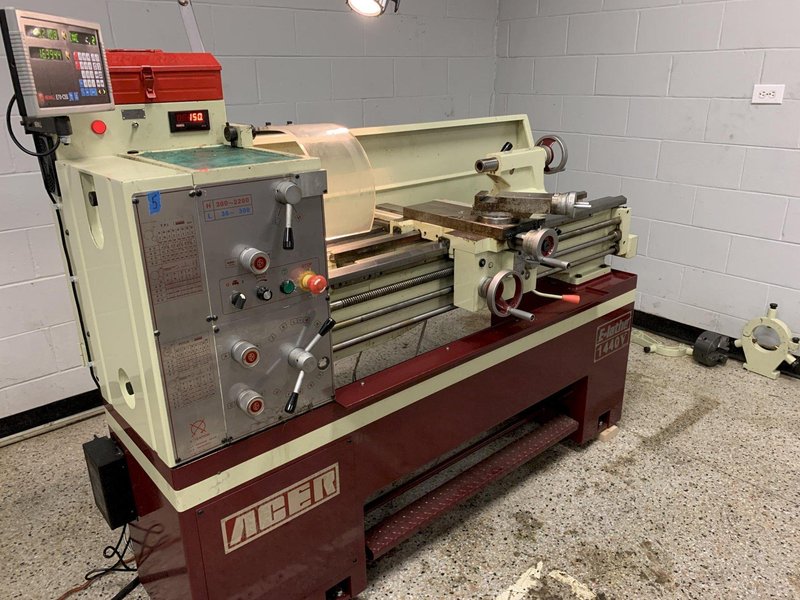

Swing over gap - 20.75" Swing over cross - 8.625" Center distance - 40" Spindle nose - D14 Spindle bore - 1.5" Spindle speeds (infinite) - 36 to 2200 rpm Cross slide travel - 8" Compound rest travel - 3.5" Tailstock spindle travel -4" Tailstock spindle taper - 3MT Bed length - 54" Bed width - 9" Width of gap - 8" Thread changes (32) - 4 to 56 tpi Longitudinal feeds - 0.0026" to 0.0368" per rev Cross feeds - 0.0008" to 0.0122" per rev Spindle motor - 3 HP Voltage - 3 ph, 230 volt (can be changed to single phase) Floor dimension - 70" x 32" Net Weight, approx - 1600 lbs. Crated Shipping Weight, approx 1950 lbs. Equipped with: Newall E70-CSS Digital Readout Inverter Drive Taper Attachment 3-Jaw Chuck Steady Rest Follow Rest Micrometer Carriage Stop Change Gears Thread Dial Foot Treadle Coolant Pump Back Splash Guard Work Light Operation Manual Acer E-Series Lathe video link * Notes: Machine was recently removed community college and looks to be in excellent condition. Specifications taken from sources deem reliable and subject to independent verification by the buyer. Seller can load by appointment. Skidding not included but available for extra $300 fee. Last remaining available machine out of 8. |
