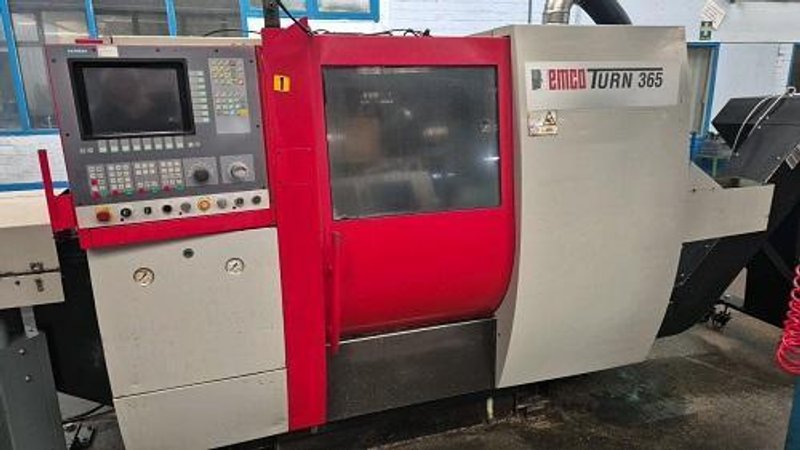

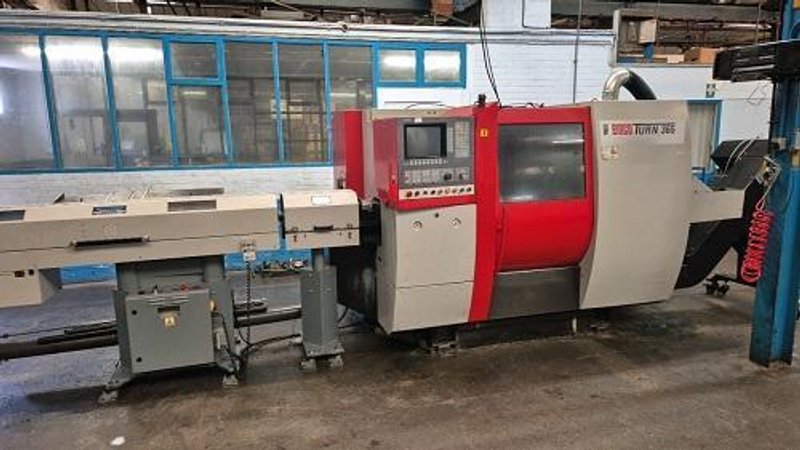

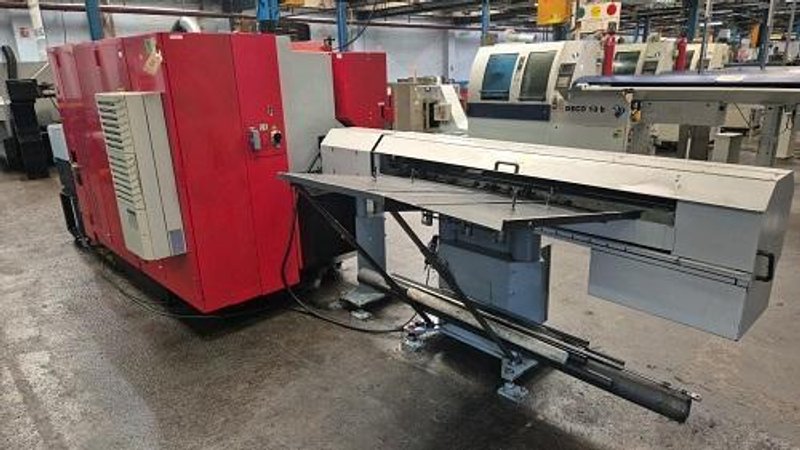

EMCO TURN 365 CNC LATHE
Brand
Category
Type
Model
Not specified
Stock #
116836
Year
Not specified
Condition
Not specified
Location
Not specified
|
TURNING LENGTH: 600 MM
GREATES PASS ROUND OVER BED: 600 MM
SWING DIAMETER OVER FACE SLIDE: 360 MM
MAX. TURNING DIAMETER: 420 MM
MAX. PARTS LENGTH: 520 MM
MAX. BAR DIAMETER: 65 MM
SLIDE TRAVEL X / Z: 210 / 610 MM
TURNING SPEED RANGE: 0 - 4200 U/MIN
MAX. TORQUE ON THE SPINDLE: 192 NM
SPINDLE BORE: 65,5 MM
DISTANCE SPINDLE-COUNTER SPINDLE: 760 MM
DISTANCE SPINDLE - TAILSTOCK: 805 MM
RAPID TRAVERSE X- AND Y-AXIS: 24 M/MIN
RESOLUTION OF C-AXIS: 0,001
SPINDLE INDEXING: 0,01
MAGAZINE PLACE: 12 STCK
POWER CAPACITY: 6,7 KW
TURNING SPEED RANGE: 0 - 4000 U/MIN
TRAVEL OF TAILSTOCK: 500 MM
MAX. CLAMPING FORCE: 8000 N
TRAVERSING SPEED: CA. 20 M/MIN
TOTAL POWER REQUIREMENT: 18 KW
MACHINE WEIGHT AB.: 3900 KG
DIMENSIONS OF THE MACHINE CA.: 3000 X 1910 X 1880 MM
|
