CHEVALIER KM-3VS Vertical Milling Machine 3 H.P. #7402
Brand
Category
Type
Model
KM-3VS
Stock #
7402
Year
Not specified
Condition
Not specified
Location
Not specified
|

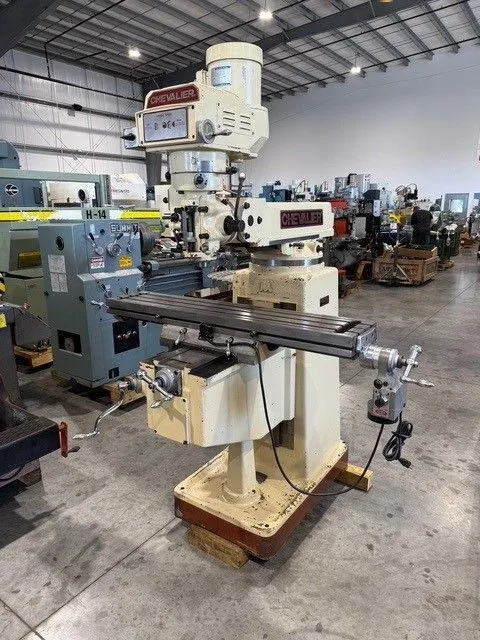

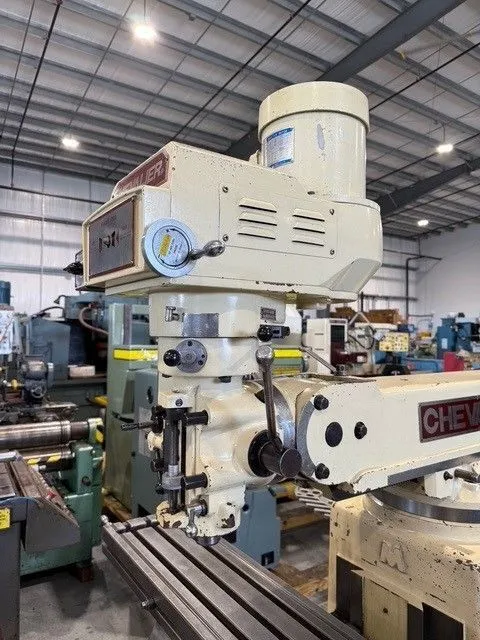

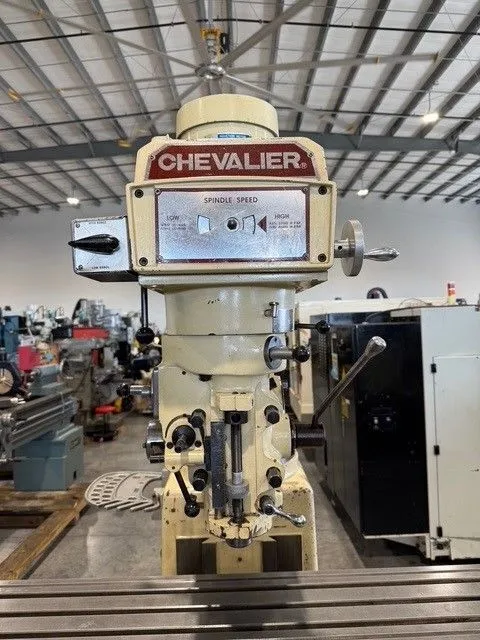

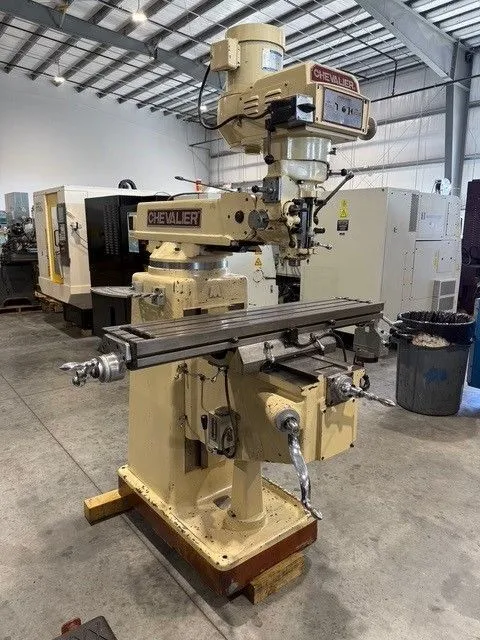

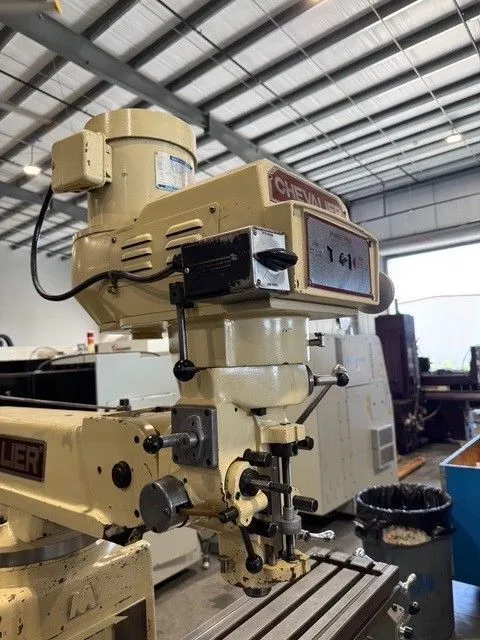

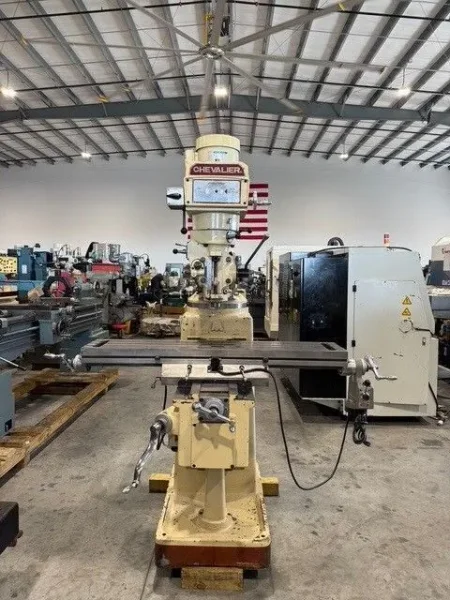

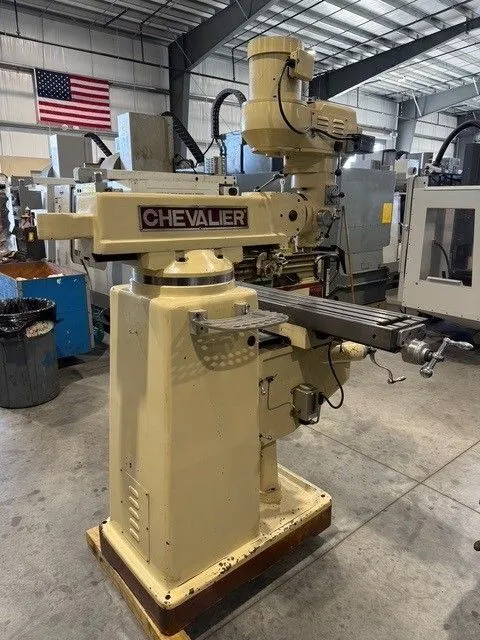

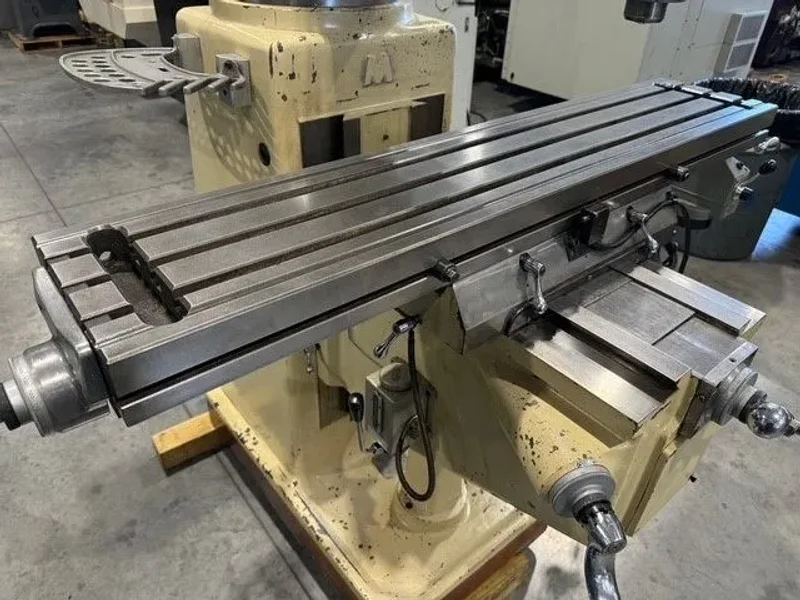

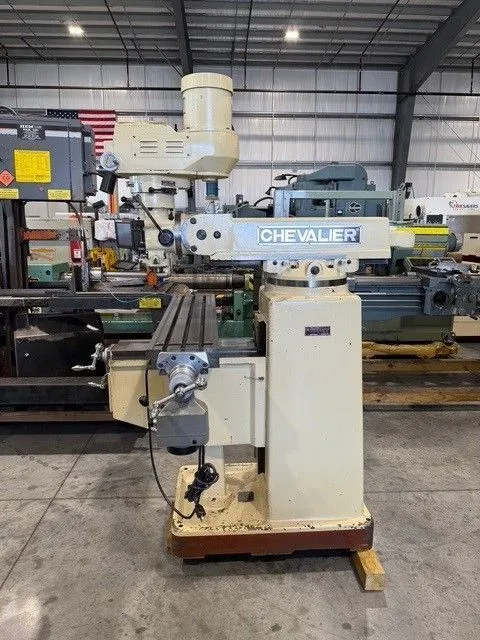

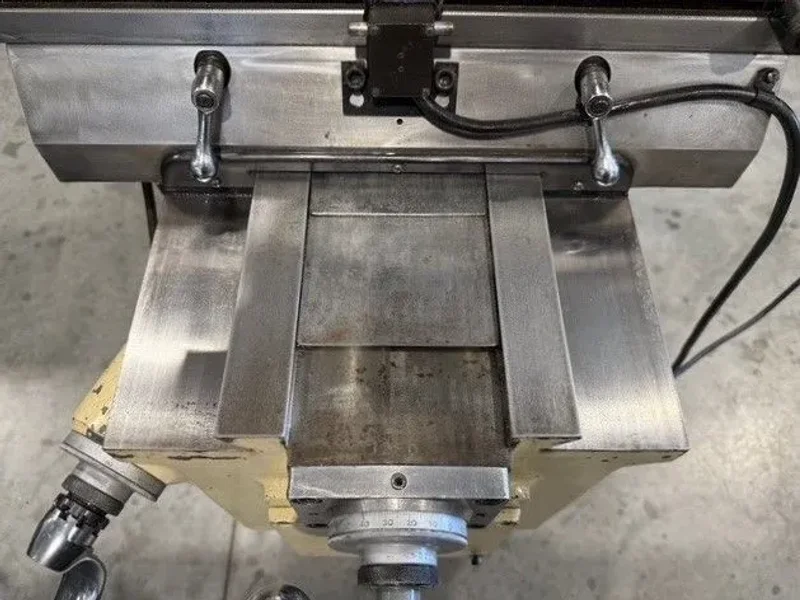

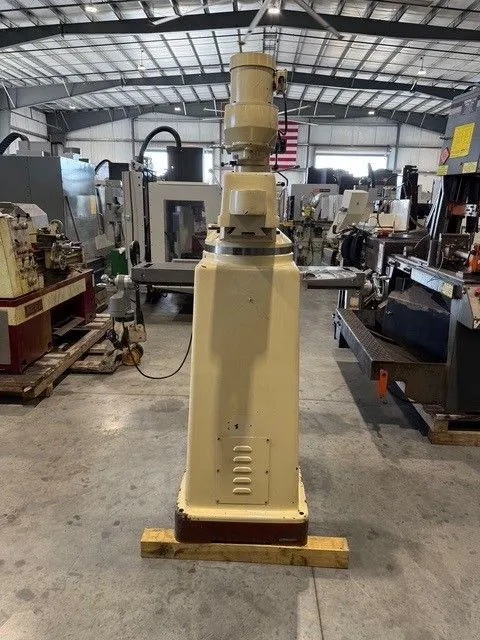

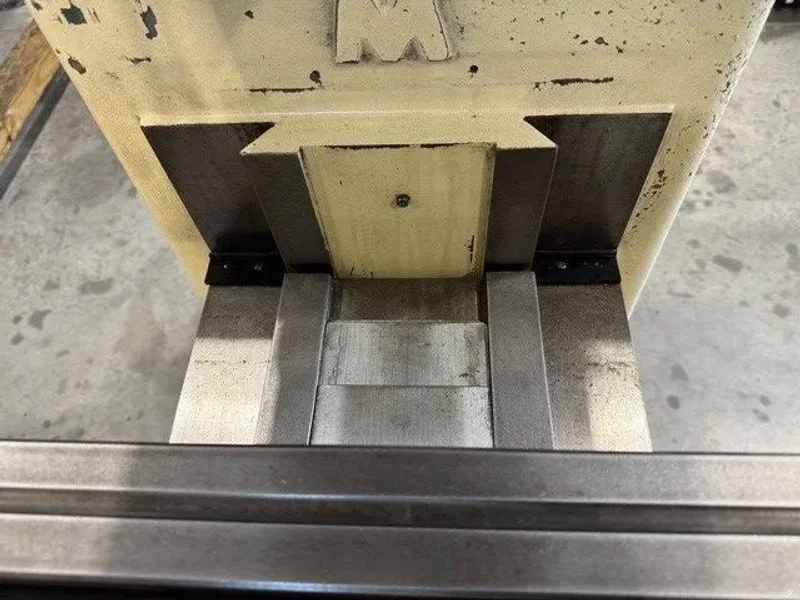

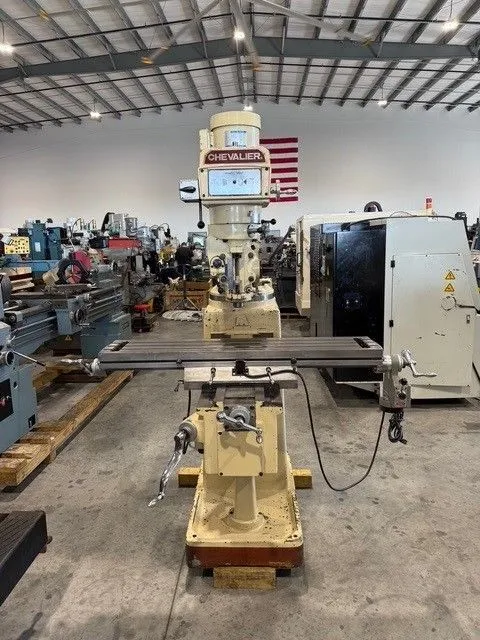

CHEVALIER KM-3VS Vertical Milling Machine 3 H.P. #7402

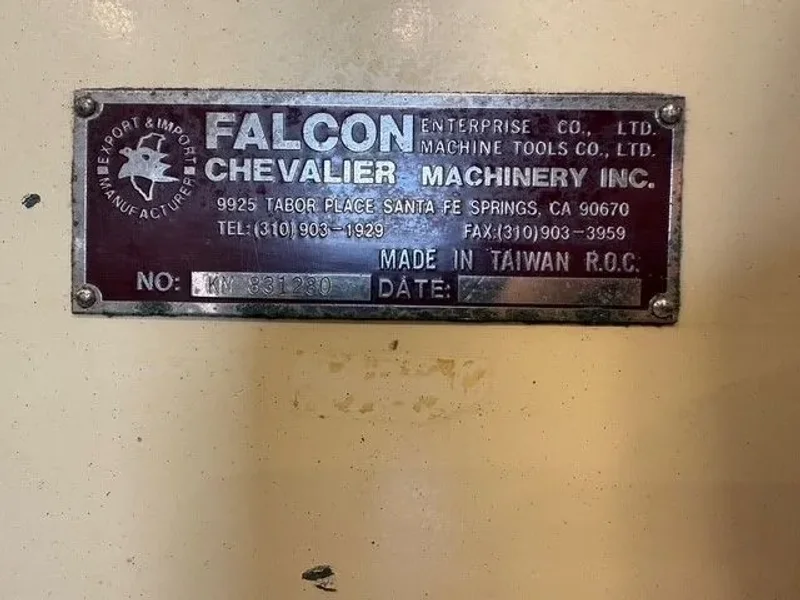

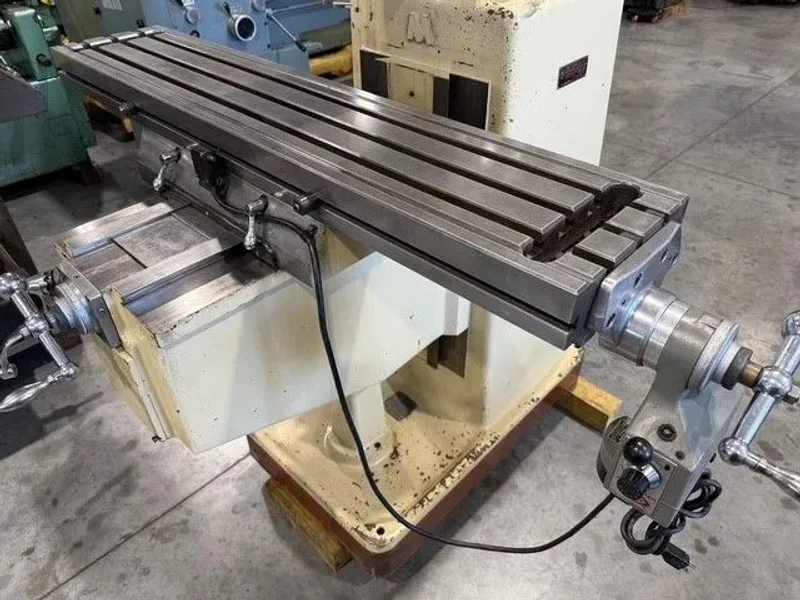

Model # KM-3VS Serial # KM-831280 Table working surface- 10“ x 50” Number of t-slots- 3 Ranges- Longitudinal- 33-1/2” Cross- 12” Vertical, knee- 16” Quill-5” Maximum/Minimum distance, spindle nose to top of table- 18.5"/2.5" Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75" Ram travel- 12” Head tilt, left & right- 90 degrees Head tilt, front to rear, each way- 45 degrees Turret rotation- 360 degrees (3) Power quill feeds- - .0015, .003, .006 I.P.R. Infinitely variable spindle speeds, two ranges- 60-4,200 R.P.M Spindle taper- R-8 Maximum collet capacity- ¾” |
