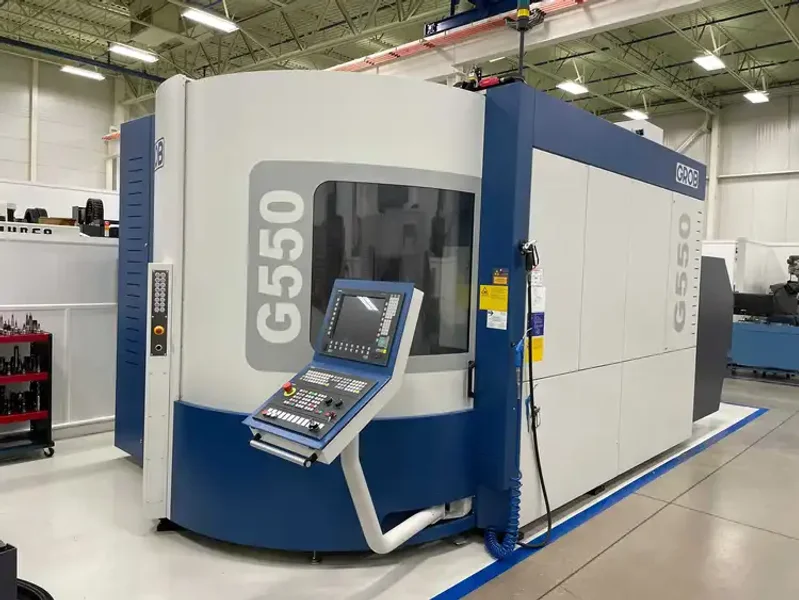

2016 GROB G550 | Machining Centers, Vertical, (5-Axis or More)

Grob G550-185 5-Axis Universal Machining Center
New: 2016

Specifications:
CONTROL Siemens 840D CNC
Table Size 24" x 24" 630 mm X 630 MM
X Travel 31.4" 800 mm
Y Travel 40.1" 1020 mm
Z Travel 40.1" 1020 mm
B-Axis Table Diameter 30.3"
C Axis Motion (Degrees) 360 Degrees
A-Axis Swivel Angle -180° / 45°
Max Table Load 1.543 lbs
Spindle RPM 16,000 RPM
Spindle Taper HSK 63A
Spindle Horse Power 54/71 HP
ATC Capacity 50 Position
Machine Weight 44,000 lbs

Equipped With:

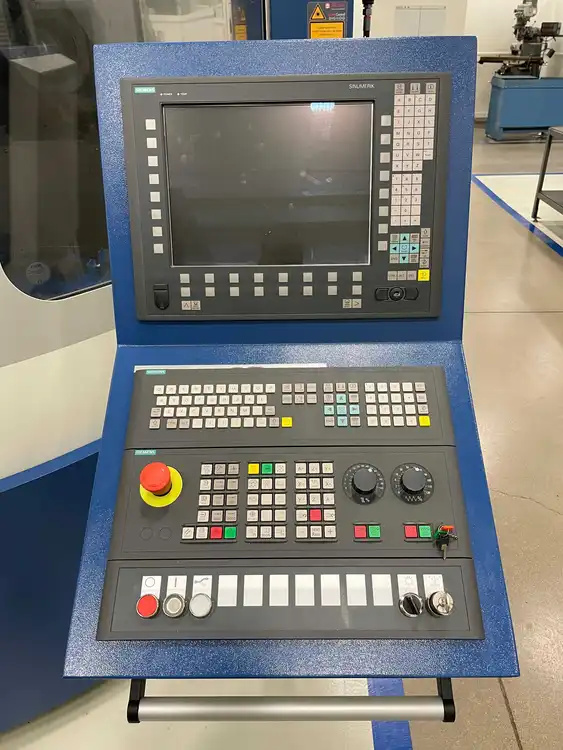

Siemens 840D CNC Control
High Pressure Coolant System
Compress Air Through Spindle
Renishaw Probe
Mist Collector
Oil Skimmer

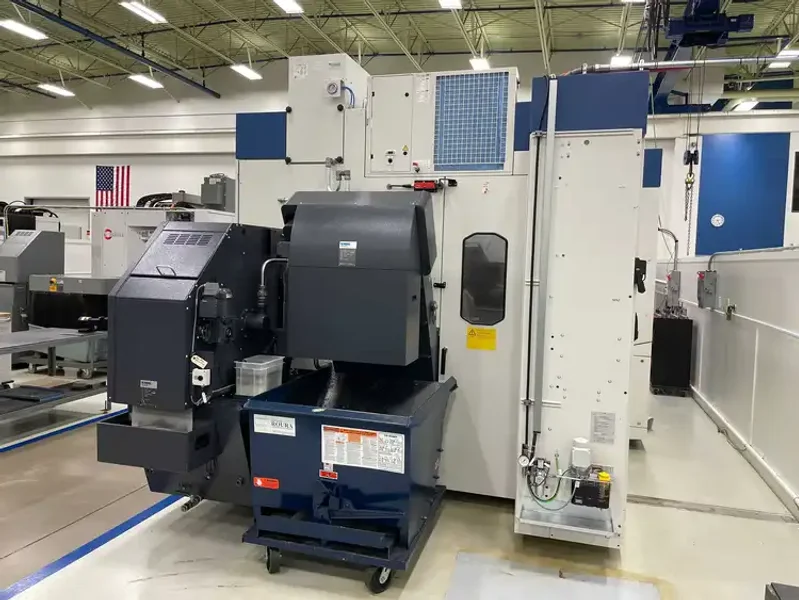

Chip Conveyor
Grid Hole Pattern Pallet Design (2nd Extra Pallet Included)
Haimer Shrink Fit Unit w/ Cart
Aluminum Square Block Risers
