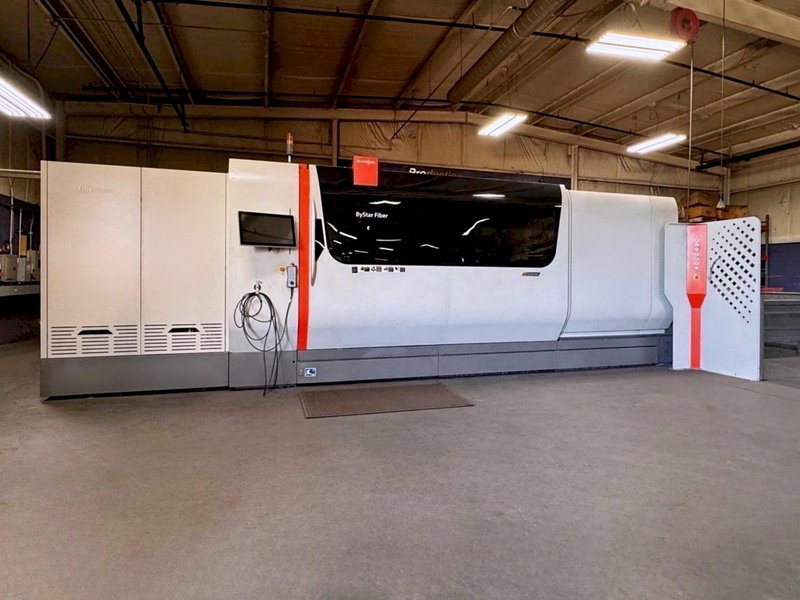

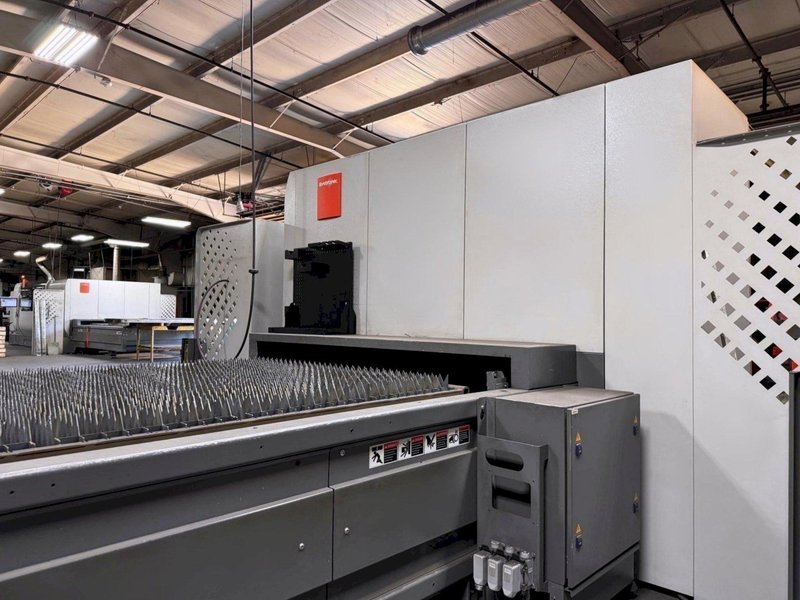

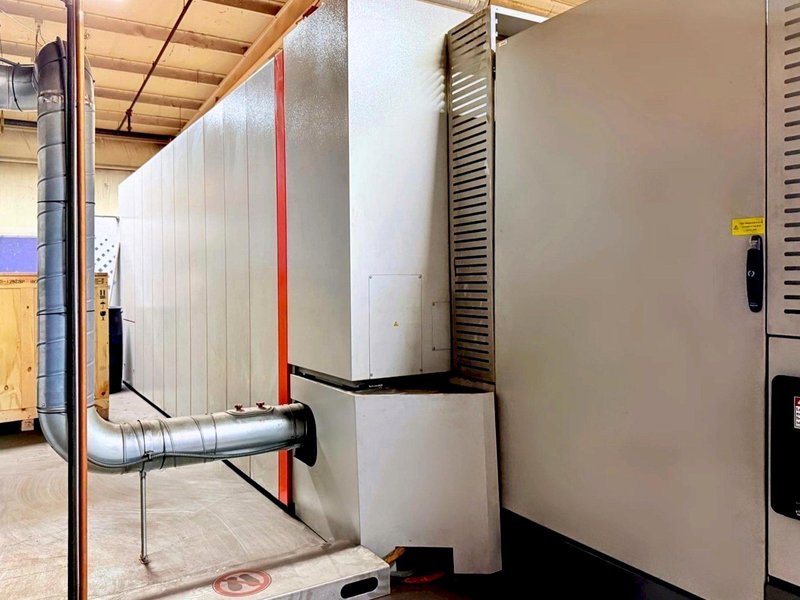

Bystronic ByStar Fiber 3015 10kW
Brand
Category
Type
Model
Bystar Fiber 3015
Stock #
100577
Year
2020
Condition
Excellent
Location
Not specified
| Control | ByVision CNC |
| Nominal Sheet Size (X) | 118.11” |
| Nominal Sheet Size (Y) | 59.05” |
| Cutting Area (X) | 122.04” |
| Cutting Area (Y) | 62.20” |
| Cutting Area (Z) | 3.93 |
| Max. Pos. Speed Parallel Axis X/Y | 4,724 IPM |
| Max. Simultaneous Pos. Speed | 6,692 IPM |
| Edge Detection Accuracy | (±) .01968” |
| Max. Workpiece Weight | 1,985 Lbs. |

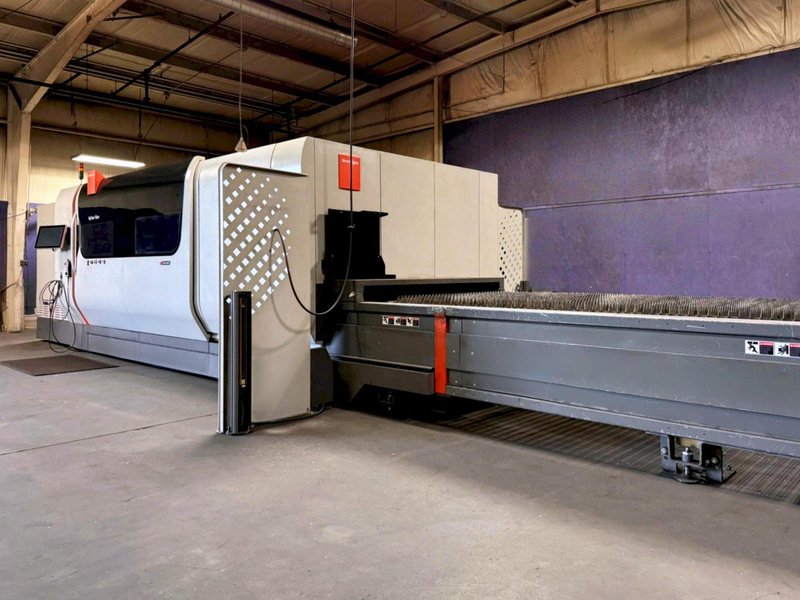

| Shuttle Table Changeover Time | 25 Sec. |
| Wavelength | Fiber |

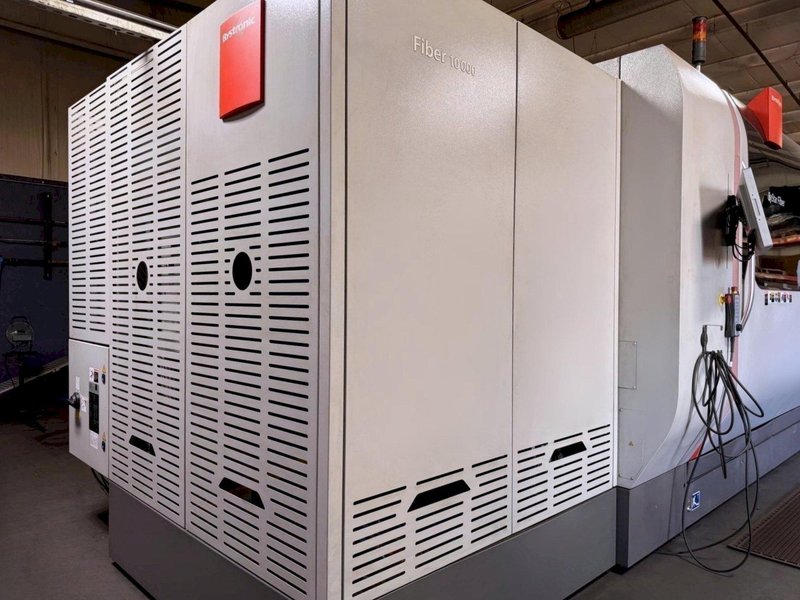

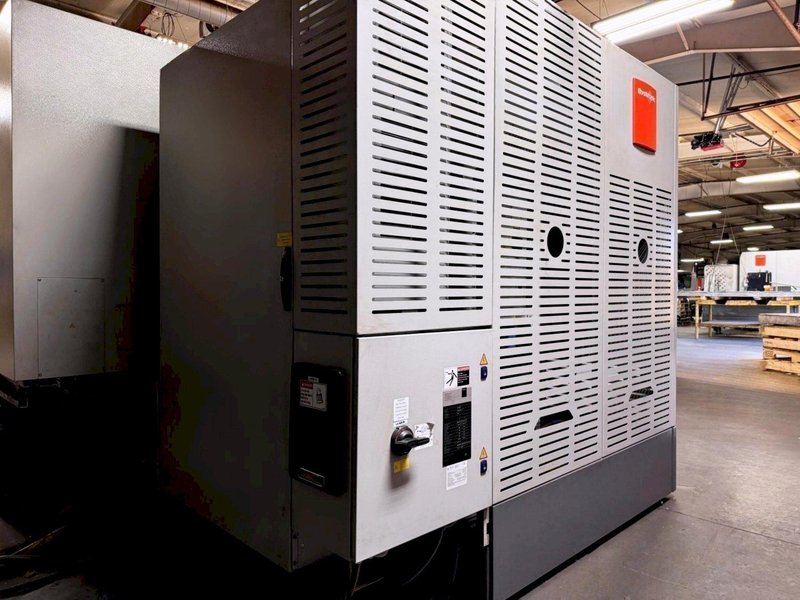

| Power Source | Fiber 10,000 |
| Power Output | 10,000 Watts |
| Range Of Adjustment | 1,000 W to 10,000 W |
| Max. Cut Mild Steel | .98”/1.18" |
| Max. Cut Stainless Steel | 1.18” |
| Max. Cut Aluminum | 1.18” |
| Max. Cut Brass | .59” |
| Max. Cut Copper | .47” |
| Total Electric Consumption | 22kw |
| Dimensions | L 468” x W 224” x H 126” |
| Machine Weight | 24,250 Lbs. |
|

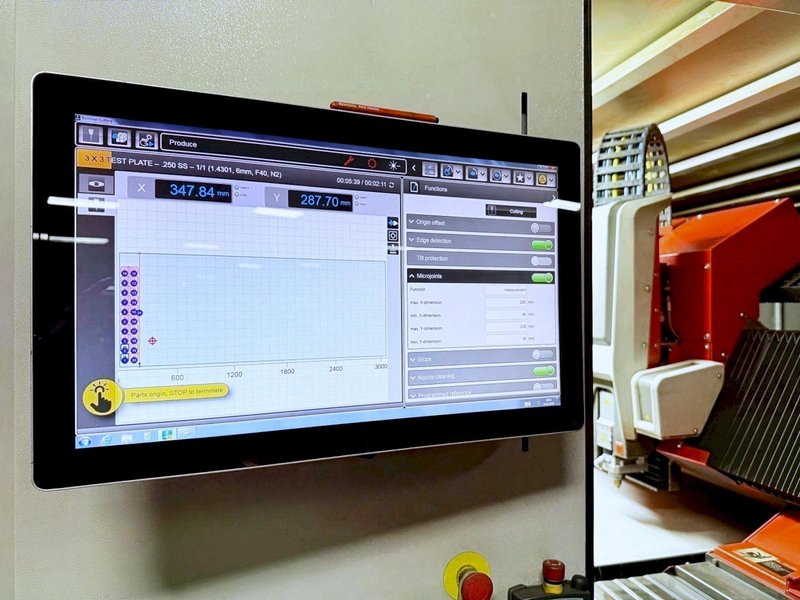

Equipped With: Byvision Touchscreen CNC Control Manual Control Unit New Bystronic IPG Fiber 10,000 Power Source Auto Nozzle Changer |
|
