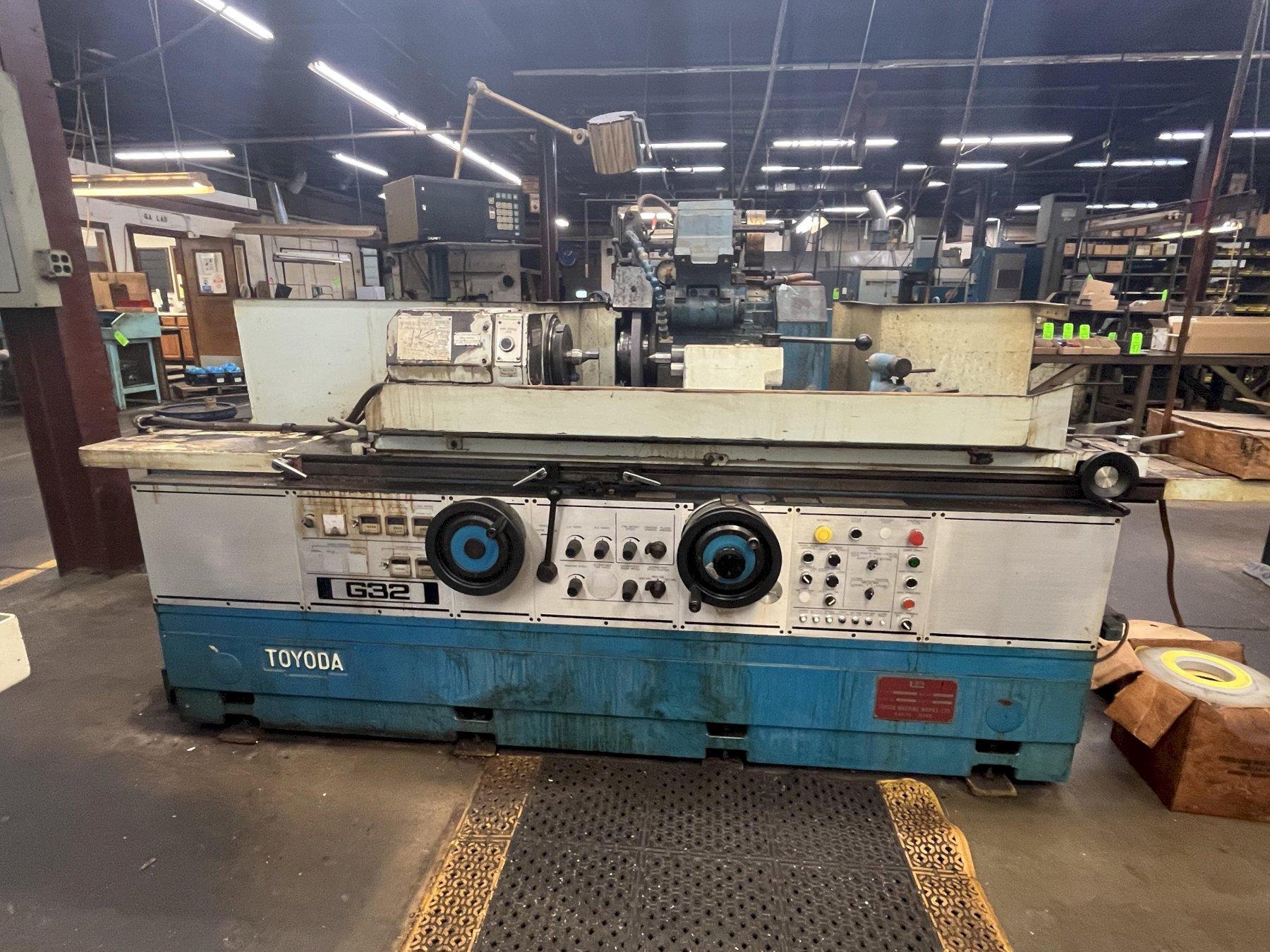

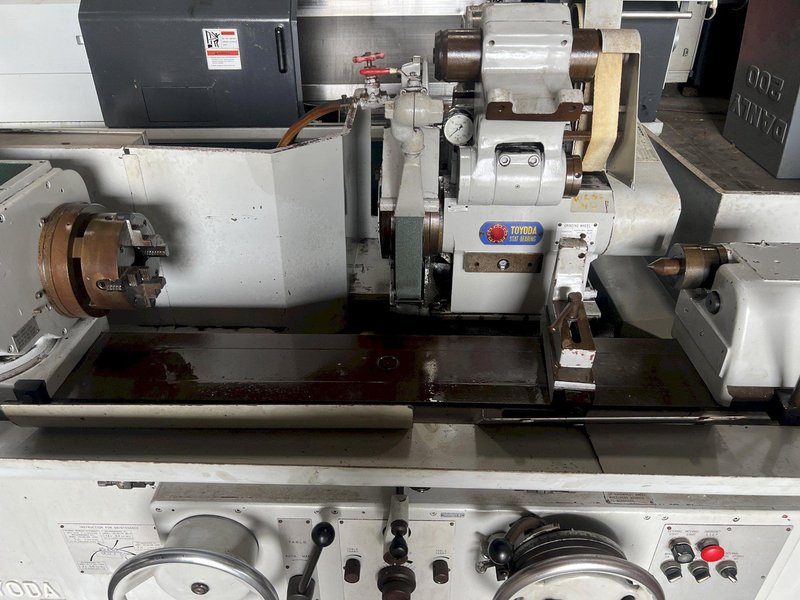

12" X 40" TOYODA UNIVERSAL GRINDER WITH INTERNAL SPINDLE, MODEL GUS 32 X 100

Name: 12" X 40" TOYODA UNIVERSAL GRINDER WITH INTERNAL SPINDLE, MODEL GUS 32 X 100
Brand: TOYODA
SKU: 11216
Availability: InStock

Brand

TOYODA

Wisconsin

Dimensions	12" X 39.6"
Workhead (Live / Dead)	LIVE/DEAD
Max Load Between Centers	330 pounds
Workhead Taper	4 MT
Z-Axis Travel	39.4 inches
X-Axis Travel	12.6 inches

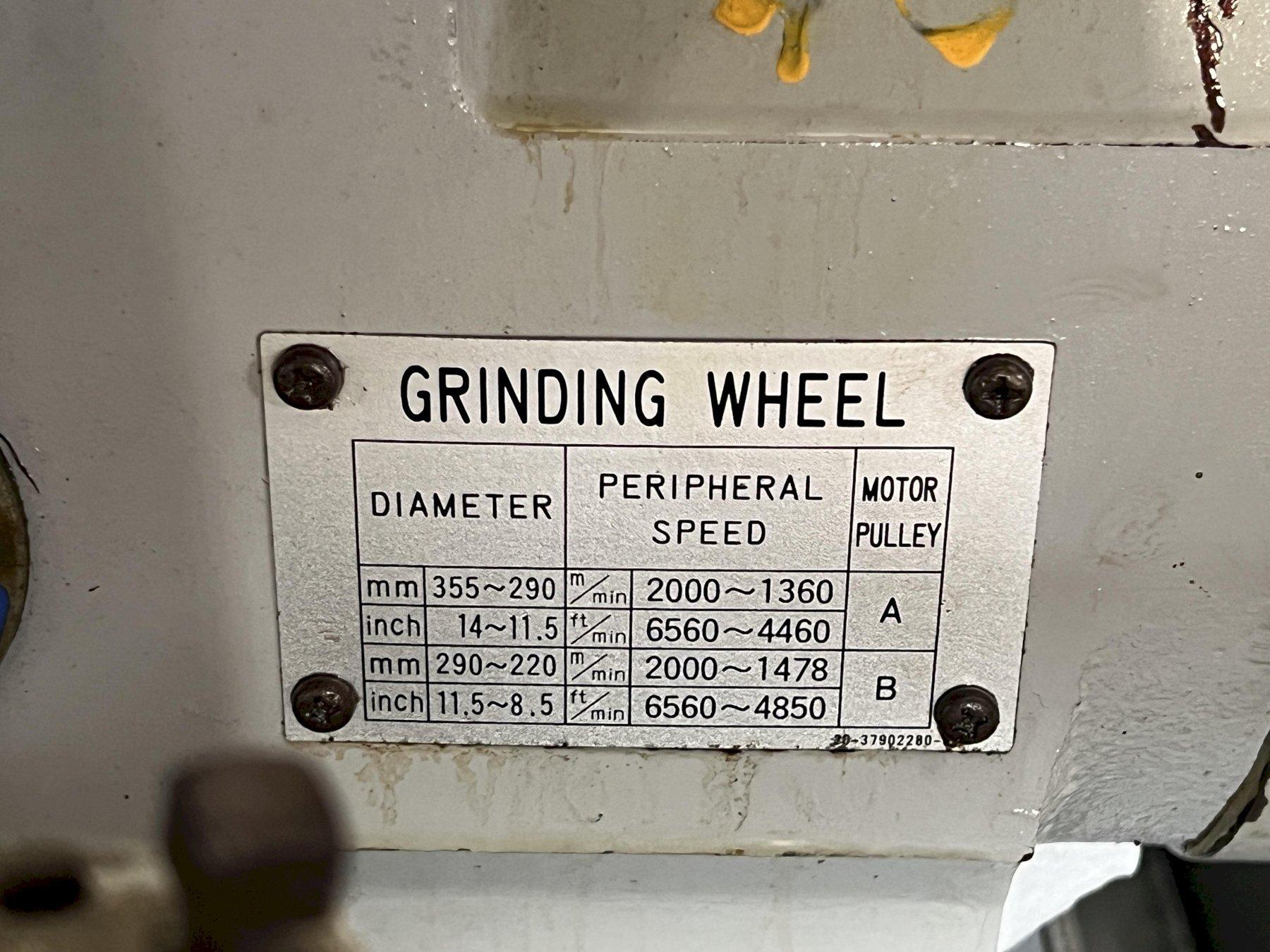

Grinding Wheel Speed RPM	2960
Wheelhead (Angle / Straight / Universal)	STRAIGHT
Internal Griding Attachment	yes
Weight	9000 pounds

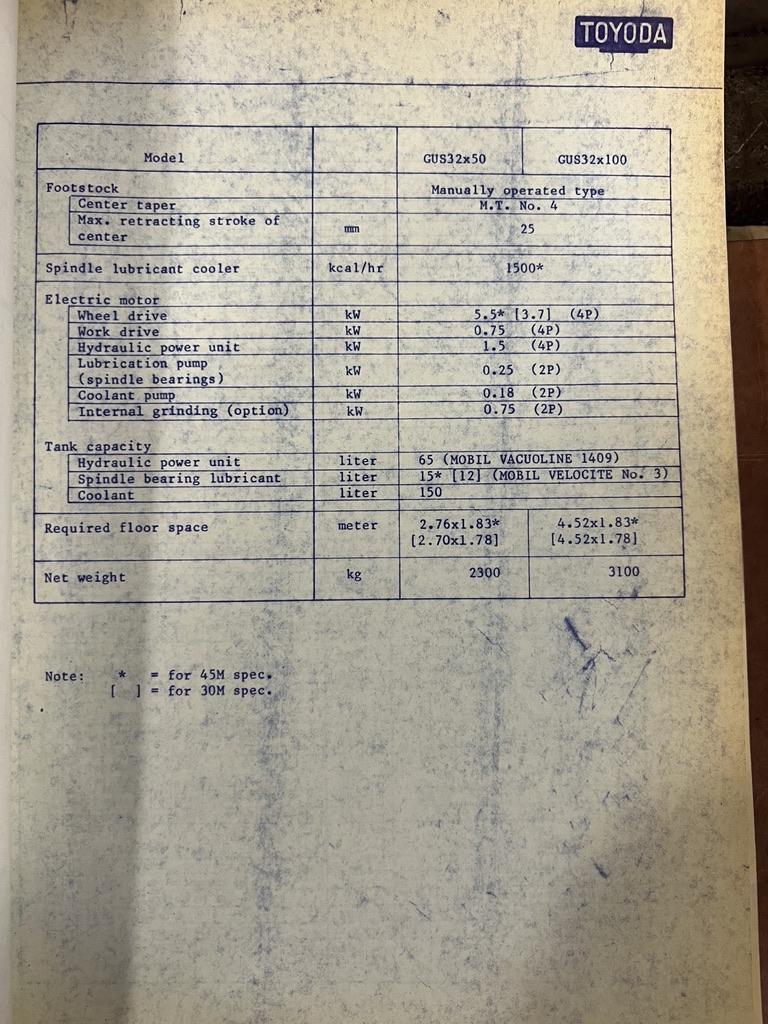

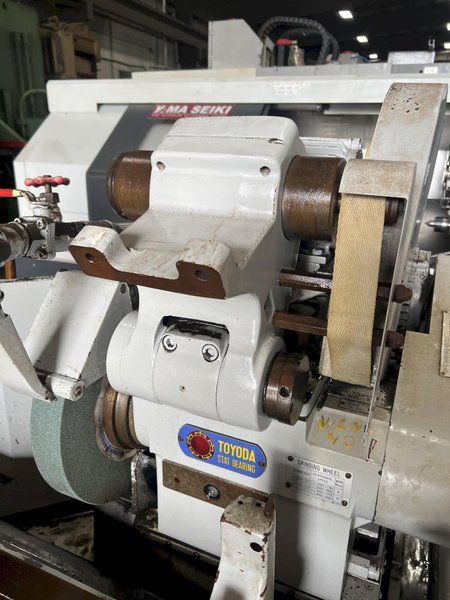

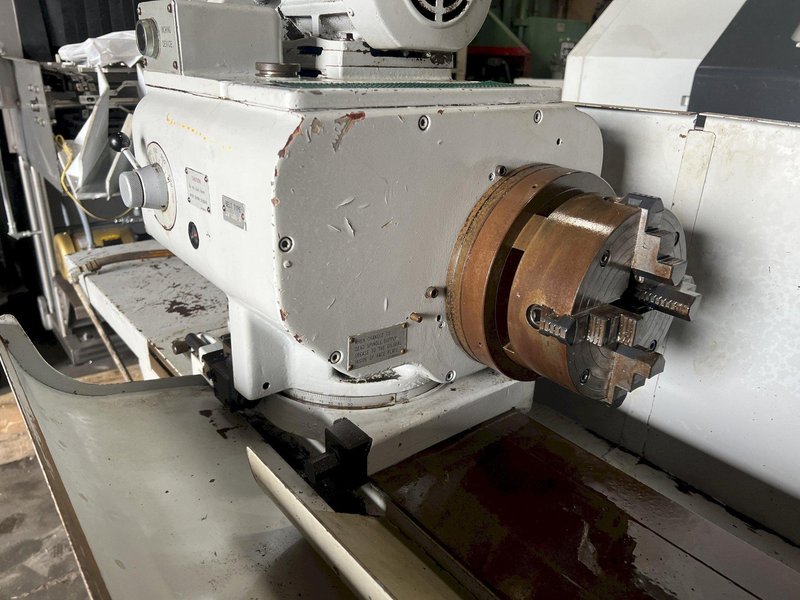

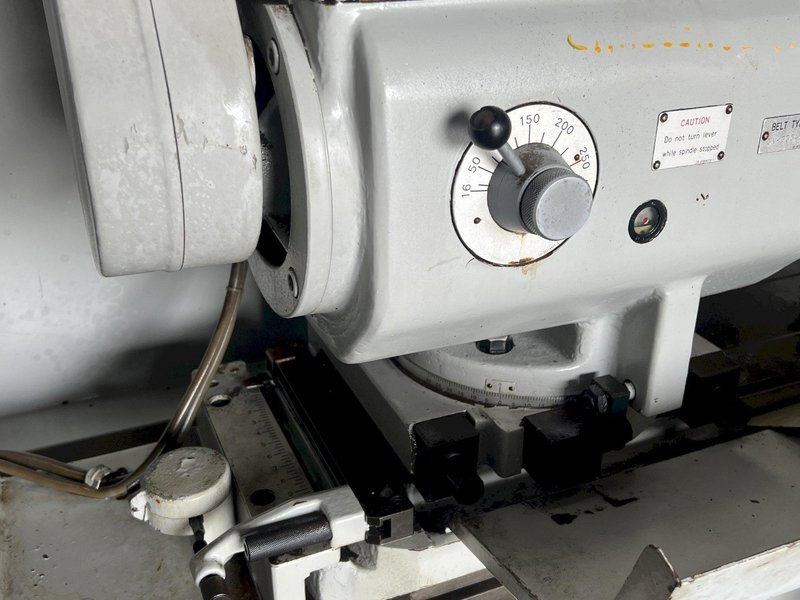

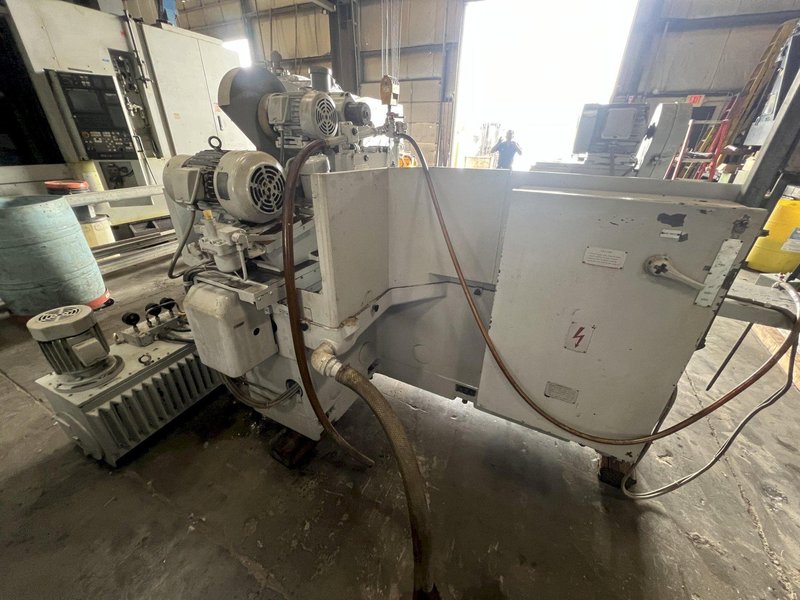

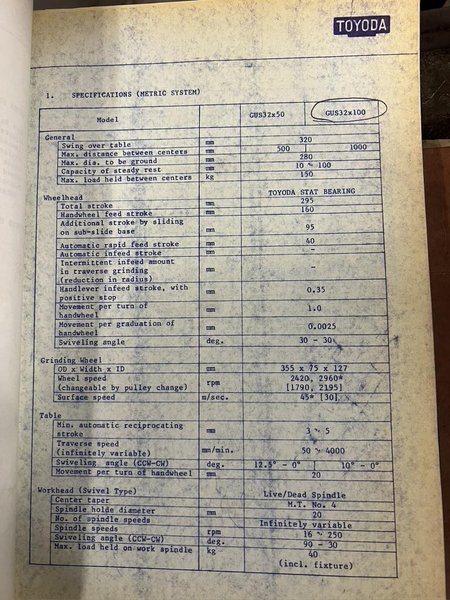

MANUFACTURER.................. TOYODA MODEL......................... GUS 32 X 100 AGE........................... 1983 SERIAL NUMBER................. RB5682 SWING......................... 12.6" CENTER DISTANCE............... 39.6" MAX. DIA. TO BE GROUND........ 11" MAX. LOAD BETWEEN CENTERS..... 330 LBS AUTO RAPID FEED STROKE........ 1.57" HAND WHEEL FEED STROKE........ 6.29" WHEELHEAD SWIVELING ANGLE..... 30 - 30 DEGREES GRINDING WHEEL SIZE........... 14" X 3" X 5" TABLE SWIVELING ANGLE............ 10 - 0 DEGREES TRAVERSE SPEED (INF. VARY). 2 - 157 IN./MIN. WORKHEAD (SWIVEL TYPE) SPINDLE.................... LIVE/DEAD SPINDLE HOLE DIAMETER...... 3/4" SPINDLE SPEED RANGE (VARY). 16 - 250 RPM SWIVELING ANGLE (CCW-CW)... 90 - 30 DEGREES MAX LOAD................... 88 LBS WEIGHT........................ 9,000 LBS. APPROX. EQUIPPED WITH: SWING DOWN INTERNAL SPINDLE EXTRA WHEEL WITH HUB MISC. MANUALS COOLANT SYSTEM VERY LIMITED USE
