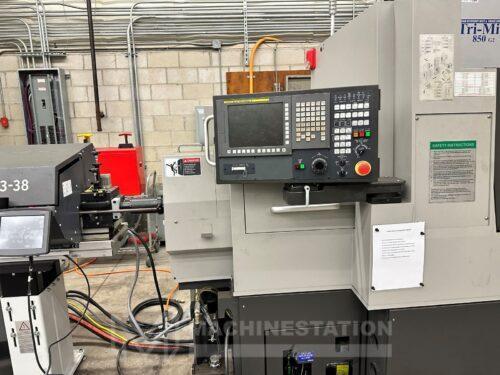

Name: Used TSUGAMI B0326-III For Sale 115063
Brand: TSUGAMI
SKU: 115063

Brand

TSUGAMI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make:	TSUGAMI
Model:	B0326-III
Year:	2024
Condition:	Almost New

Equipped With:

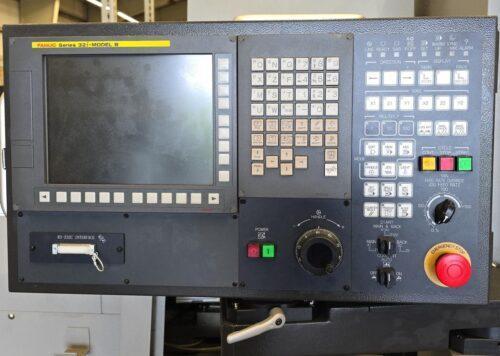

Fanuc 32i-MB CNC Control
Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2

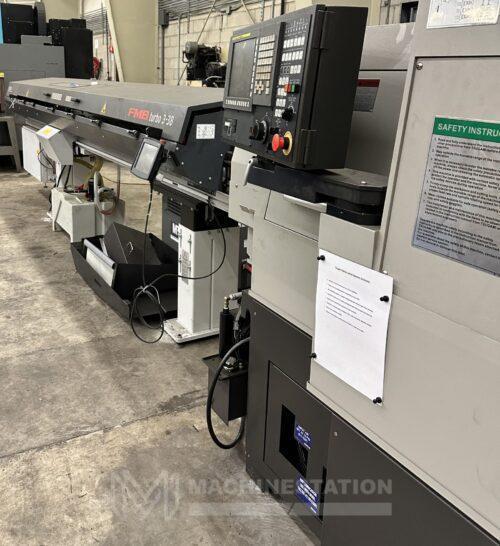

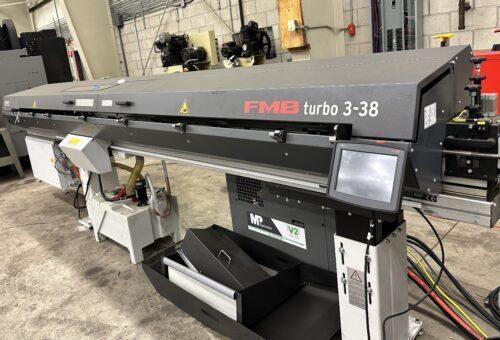

Comes with FMB Turbo 3-38 Bar Feeder (Upgraded $55,850 value Included)

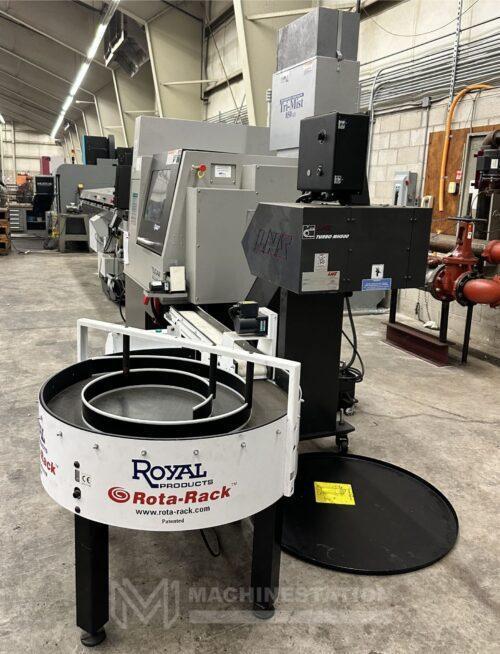

Royal Rota-Rack
Oscillation Cutting Function (X1/Z1 Axis) (Upgraded $15,000 value Included)
Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 1378 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Tri-Mist 850 G2 Mist Collector (Upgraded $3,600 value Included)
Hepa Filter (Upgraded $400 value Included)
Firetrace (Upgraded $6,990 value Included)
Red/Yellow/Green Patrol Light System (Upgraded $850 value Included)
MP 2000 PSI Coolant System W/8 Outs For Oil (Upgraded $16,600 value Included)
LNS Turbo MH-500 Chip Conveyor (Upgraded $12,100 value Included)

Capacity:

Max Machining Diameter : 1.26″ (32 mm)
Max Machining Length with Guide Bushing: 12.99″ (330mm)
Max Machining Length without Guide Bushing: 2.76″ (70mm)
Max Bar Capacity: 1.26″ (32 mm)
Max Tool Positions (Standard): 34
Max. Drilling Diameter: 0.47″ (12 mm)
Max. Tapping Diameter: M10
Max. Back Spindle Chucking Diameter: 1.26″ (32 mm)
Max. Back Spindle Drilling Diameter: 0.39″ (10 mm)
Max. Back Spindle Tapping Diameter: M8
Max. Tool Spindle Drilling Diameter: 0.31 ( 8 mm)
Max. Tool Spindle Tapping Diameter: M6 (Front) M8 (Rear)
Max. Tool Spindle Slotting Cutter Diameter: 1.77 (45 mm)

Spindle:
Main Spindle Indexing: 360° (Full C-Axis) Main Spindle Speed: 200 – 8,000 RPM Main Spindle Motor: 7.5 HP Back Spindle Indexing: 360° (Full C-Axis) Back Spindle Speed: 200 – 8,000 RPM Back Spindle Motor: 7.5 HP

Standard Tools:
Gang Tool Post (Turning): 7 Front Drilling: 5 Front Drilling Deep Hole: 2 Back Drilling: 13

Power Driven Tools Attachment:
Gang Tool Post (Live): 7 Driven Tool Speed: 200 – 6,000 RPM Driven Tool Motor: 1.87 HP

General:
Power Source: AC 200v / 3-Phase /60 Hz Power Requirement: 16.8 kva Overall Dimensions: 103.5″ X 50.4″ X 77.5″ High without Bar Feeder Weight: 8,267 lbs. Approx.
