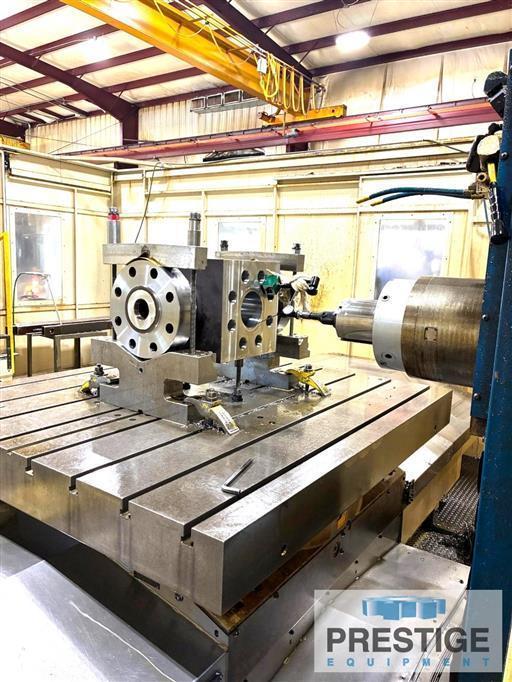

6.1" Giddings & Lewis RT1250 CNC Boring Mill

FEATURES
Fanuc 310i CNC Control
Built-In B-Axis Rotary Table
Thru-Spindle Coolant
Chip Conveyor
SPECIFICATIONS:
Spindle Diameter 6.1"
Taper In Spindle Cat 50
Vertical Head Travel, Y-Axis 82.7"
Vertical Head Travel, Above Table 78.7"
Table Cross Travel, X-Axis 98.42"
Saddle Travel, W-Axis 59.05"
Spindle Travel, Z-Axis 49.2"
Table Size, Built-In Rotary 62.99" x 70.86"
Table Rotation, B-Axis 360,000 Positions
Table Rotation 6 RPM
Table Load Capacity 33,100 Lbs
Spindle Speeds 1-3500 RPM
Speed Ranges 4
Spindle Motor 50 HP / 74 HP
Rapid Traverse 985 IPM
Floor Space W x D 240" x 300"
Overall Height 197"
Approximate Weight 70,000 Lbs



Equipped With:
Fanuc 310i CNC Control
Software for CH Facing Heads & Programmable Boring Bars
60 Station Automatic Tool Changer
Coolant-Thru Spindle
Remote Pendant
Manual Cam Lock Latch Coupler For Attachments
Full Coolant & Chip Enclosure
Steel Telescoping Way Covers
Chip Conveyor
50 HP / 74 HP Spindle Motor
