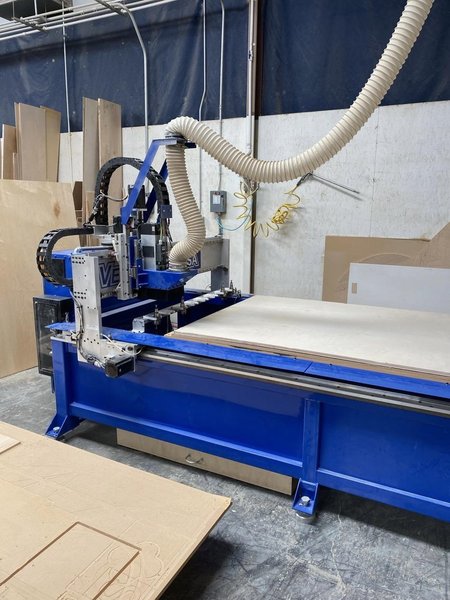

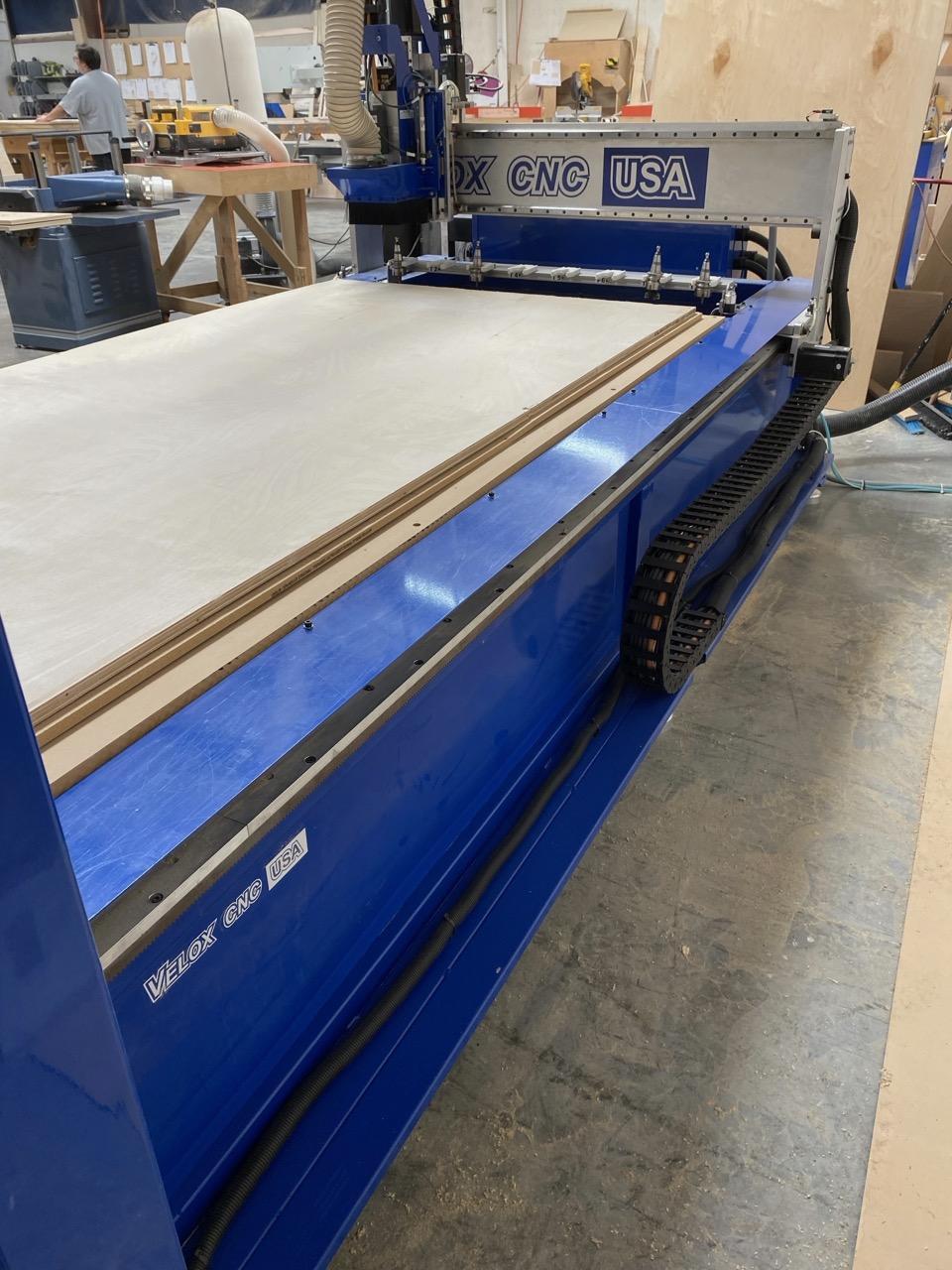

Table Size: 4′ x 8′ X Axis: 53″ Y Axis: 98″ Z Axis: 8″ Part Clearance: 60″x6″ Overall Foot Print: 69″x125″x33″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Rapid Speeds: X Axis: 900 ipm Y Axis: 900 ipm Z Axis: 200 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cut Speeds Foam 2″ deep, 1/2 Bit: X Axis: 600 ipm Y Axis: 600 ipm Z Axis: 100 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cut Speeds Wood .500″ deep, 1/2 Bit: X Axis: 200 ipm Y Axis: 200 ipm Z Axis: 100 ipm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Resolution: X Axis: 0.001″ Y Axis: 0.001″ Z Axis: 0.00035″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Repeatability: 0.003″ +/- Drive Mechanism: Rack and Pinion X & Y. Ballscrew on Z. Weight: Est. 2000 lbs

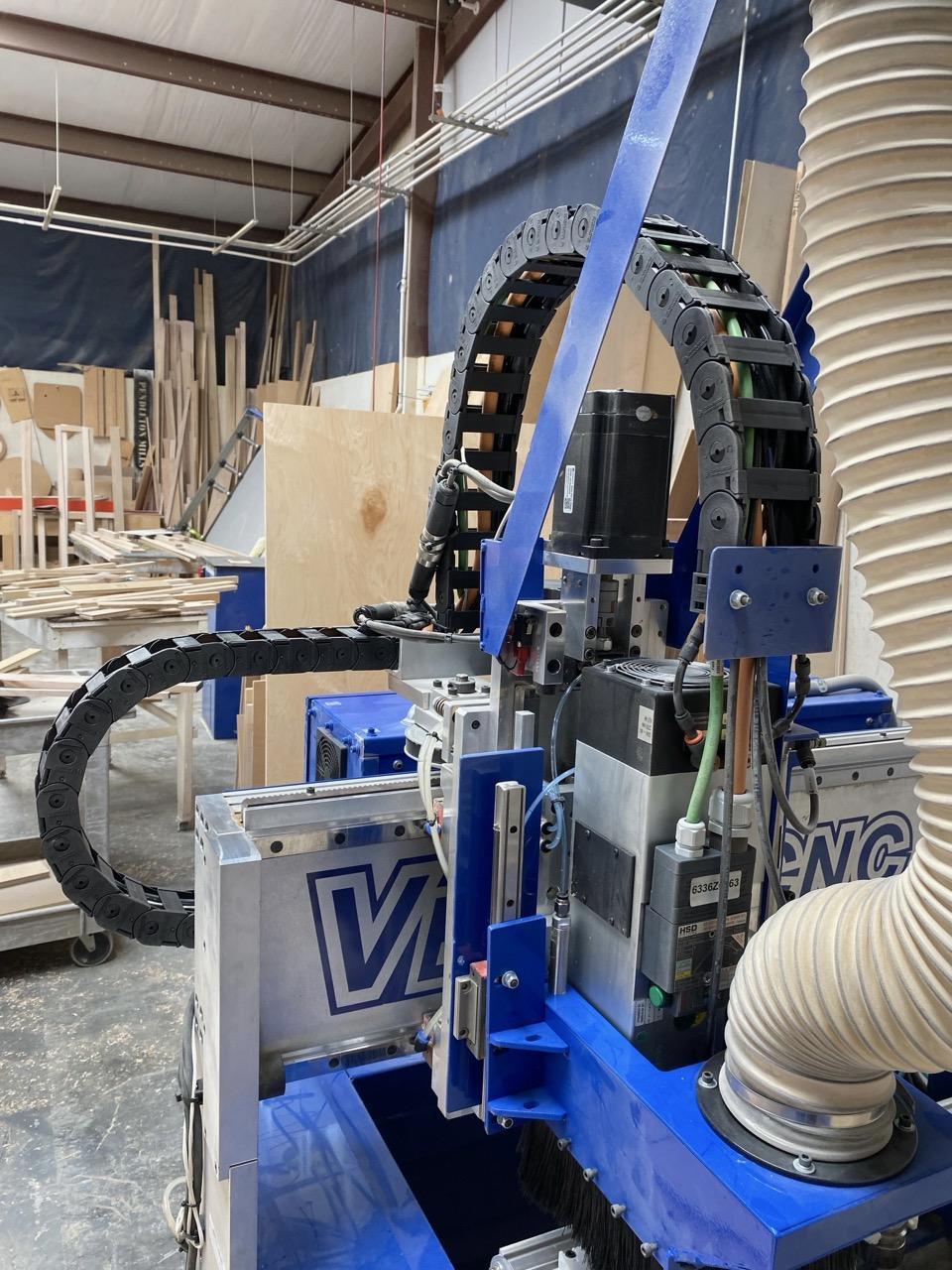

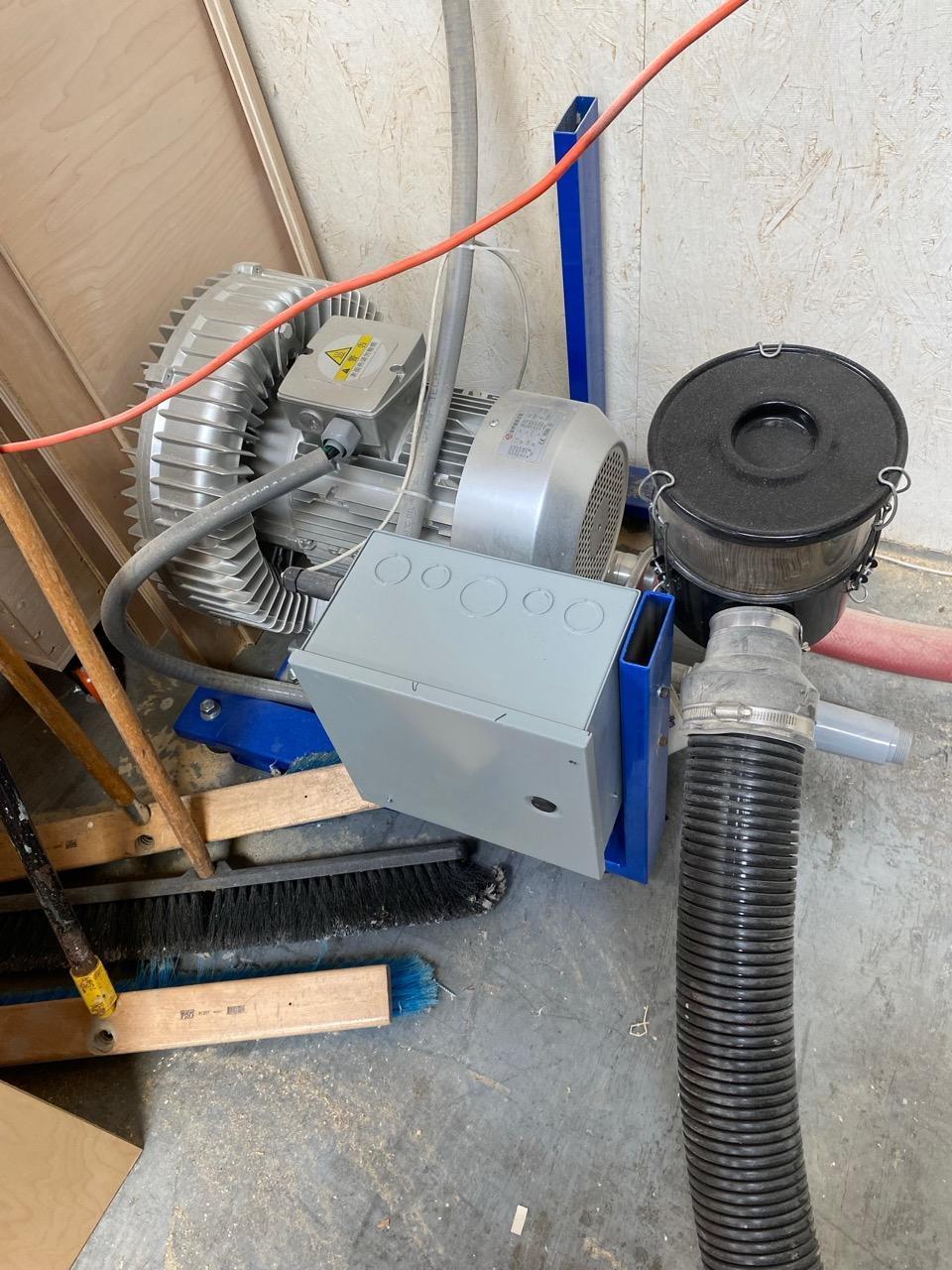

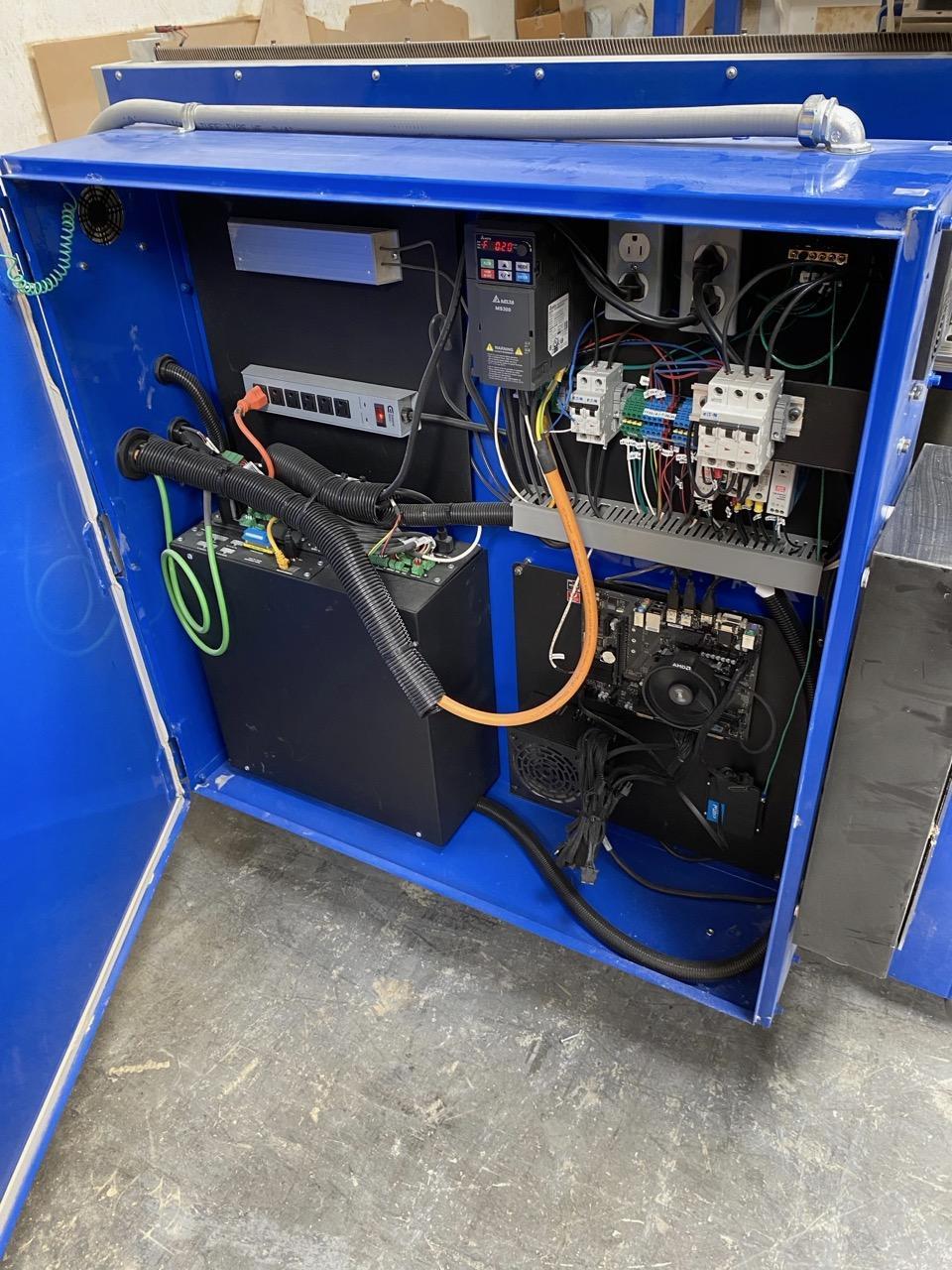

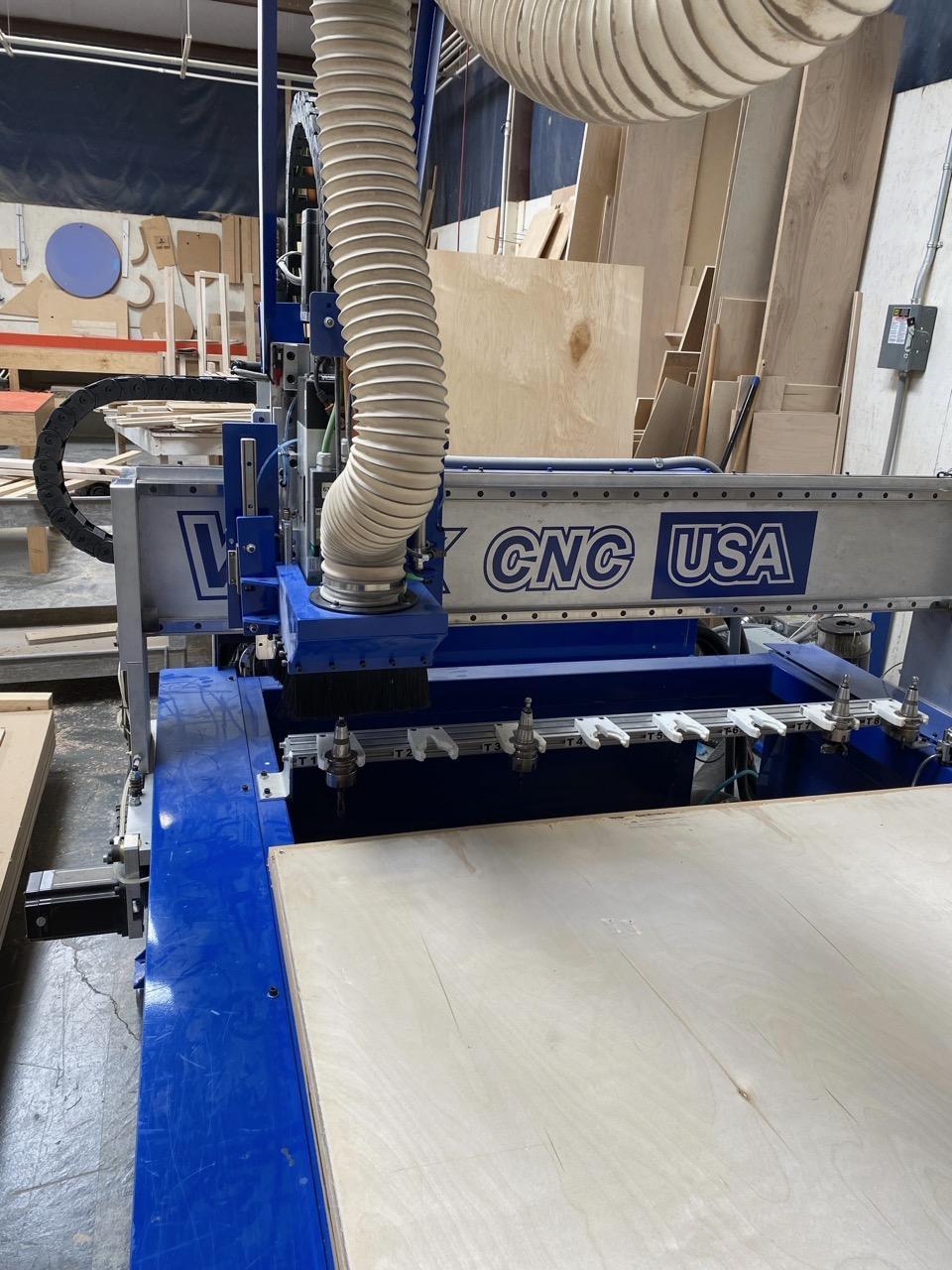

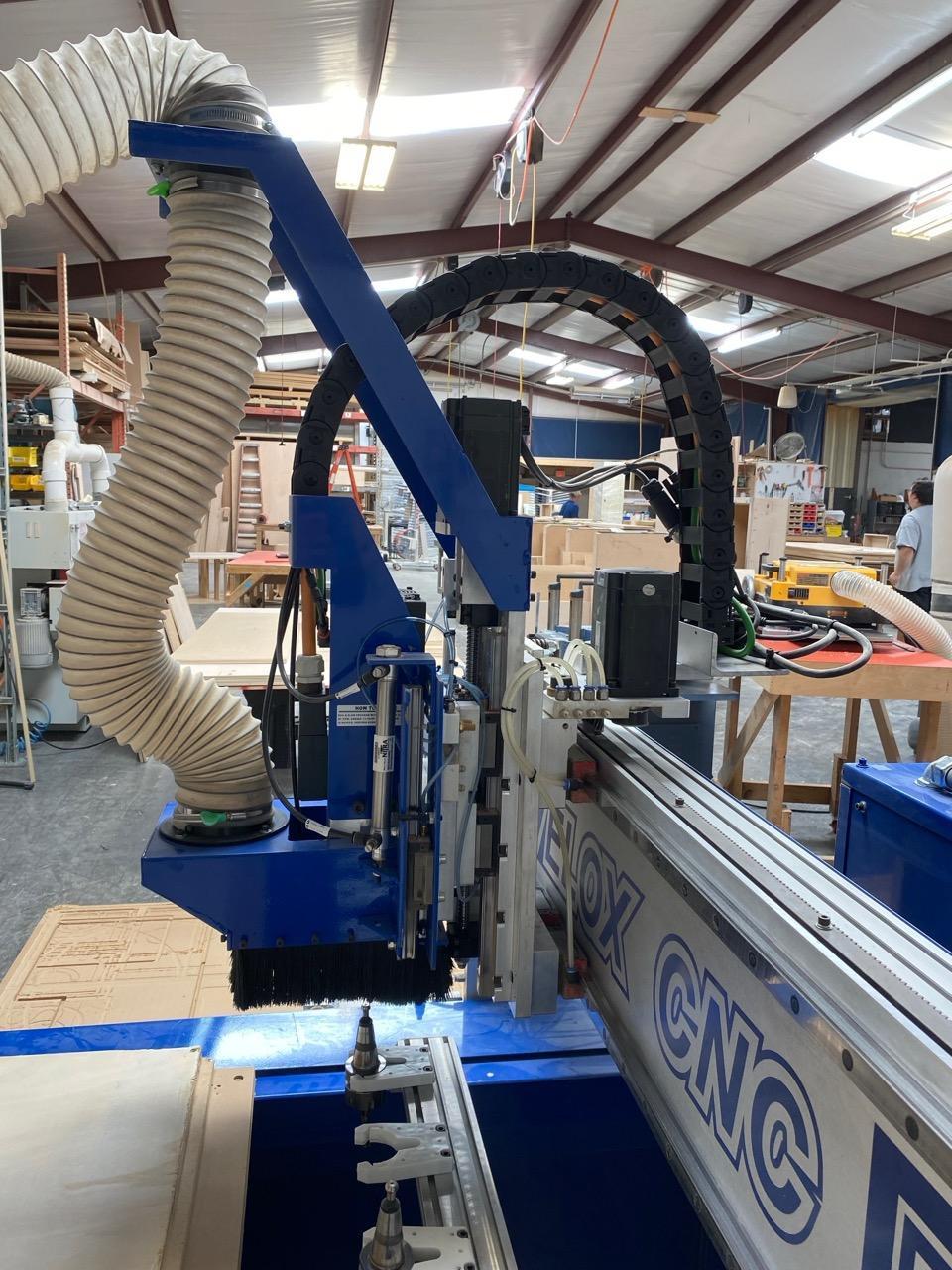

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: -5Hp HSD Auto tool change spindle, 220V, Single or three Phase, Italian -Delta VFD -Vacuum Table -11HP Vacuum -Remote vacuum on/off control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
