HURCO VM-10 3-AXIS CNC VERTICAL MACHINING CENTER
Brand
Category
Model
VM-10
Stock #
19798
Year
2011
Condition
Very Good
Location
Illinois
|
HURCO VM-10 3-AXIS CNC VERTICAL MACHINING CENTER

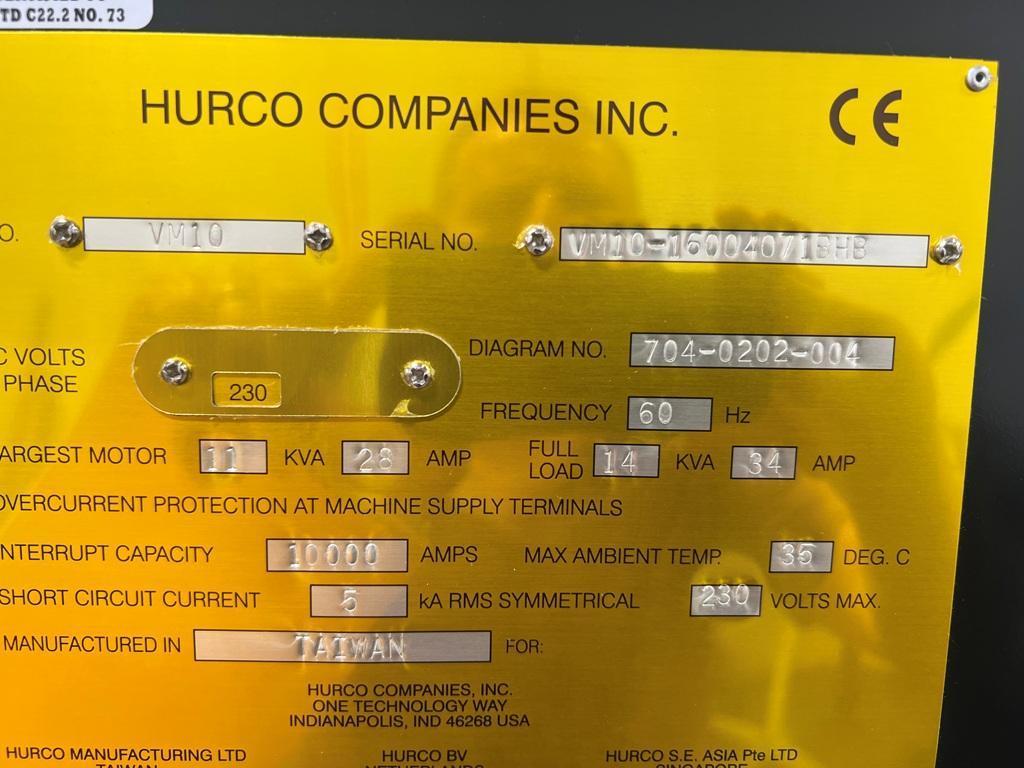

Serial No. VM10-160040718BHB New 2011 Motor Driven with 15 HP, 3-Phase, 60 CYcle, AC Spindle Drive EQUIPPED WITH: Hurco WinMax CNC Control 20 Station Automatic Tool Changer Side -Mount Swing-Arm Automatic Tool Changer Style Automatic Central Lubrication System Coolant System SPECIFICATIONS: Table Size 30" x 14" Table Load Capacity 750 Lbs. Travels X-Axis (Longitudinal) 26" Y-Axis (Cross) 16" Z-Axis (Vertical) 20" Rapid Traverse Rate (All Axes) 945 IPM Max. Spindle Speed 10,000 RPM Spindle Taper CAT 40 Torque Up To: 54 FT-LBS@1,450 RPM Automatic Tool Changer 20 Approximate Dimensions 95" x 118" x 100" H Approimate Weight 6,400 Lbs. |
Watch Watch This Machine Run
