HNK HPM-30M CNC Double Column 5-Face Machining Center

Brand
HNK
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
HPM-30M
Stock #
44093
Year
2014
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
X-Axis Travel 403.54"
Y-Axis Travel 196.85"
Z-Axis Ram Travel...................... 39.37" 39.37"
W-Axis Cross Rail Travel 98.42"
Ram Cross Section 15.74 x 15.74"
Distance Between Columns 157.48"
Distance Spindle to Table 139.76"
Maximum Spindle Speed 2500 RPM
Table Size ........ 393.70" x 118.11"
Maximum Table Load Capacity 110,000 Lbs
Spindle Motor 40/49 HP
Taper BT 50



Equipped With:

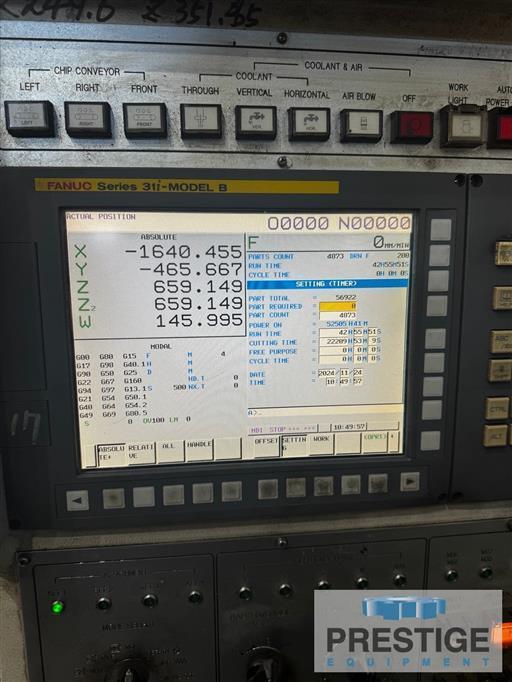

Fanuc 31iB CNC Control
90 Station Automatic Tool Changer
Thru Spindle Coolant
90 Degree Angle Head
Extension Head
Linear Scales on All Axes
Chip Conveyor
