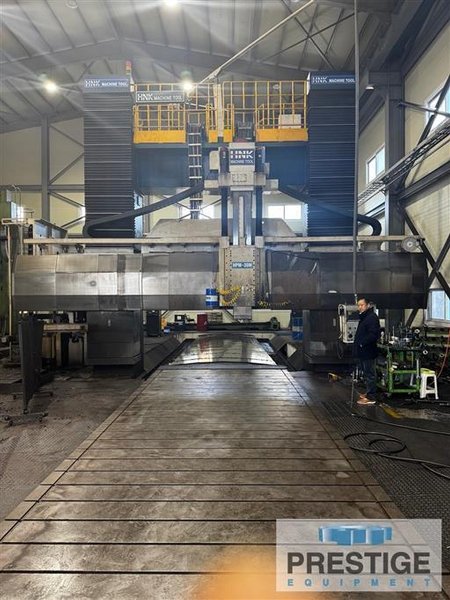

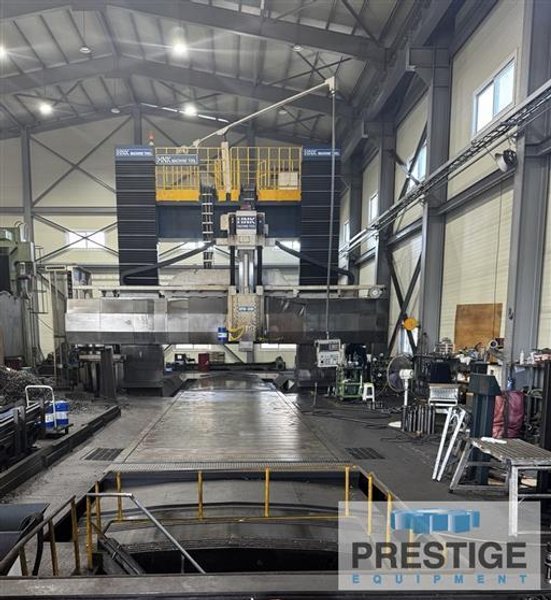

HNK HPM-30M CNC Double Column 5-Face Machining Center
Brand
Category
Model
HPM-30M
Stock #
44093
Year
2014
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:

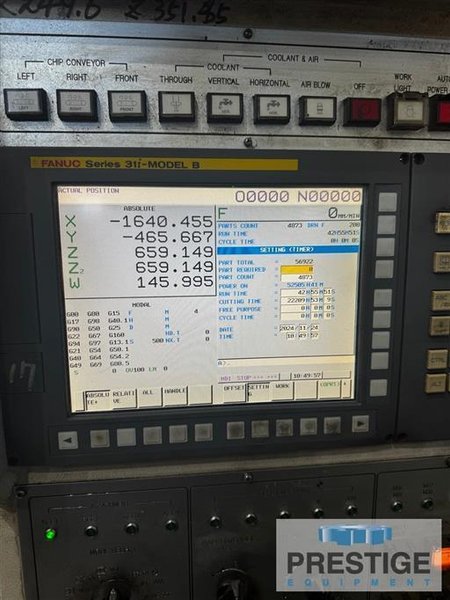

X-Axis Travel 403.54" Y-Axis Travel 196.85" Z-Axis Ram Travel...................... 39.37" 39.37" W-Axis Cross Rail Travel 98.42" Ram Cross Section 15.74 x 15.74" Distance Between Columns 157.48" Distance Spindle to Table 139.76" Maximum Spindle Speed 2500 RPM Table Size ........ 393.70" x 118.11" Maximum Table Load Capacity 110,000 Lbs Spindle Motor 40/49 HP Taper BT 50 Equipped With: Fanuc 31iB CNC Control 90 Station Automatic Tool Changer Thru Spindle Coolant 90 Degree Angle Head Extension Head Linear Scales on All Axes Chip Conveyor |
