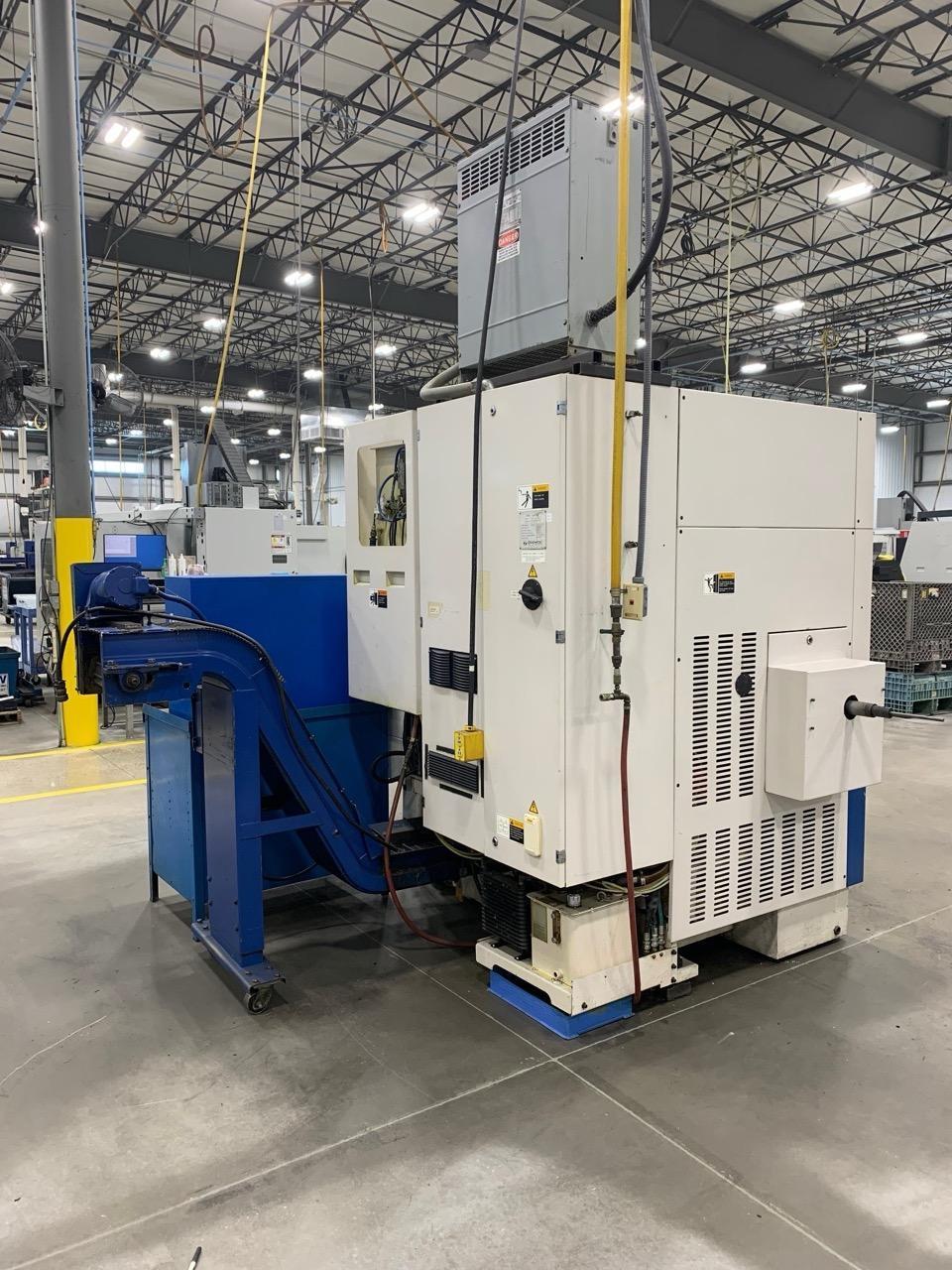

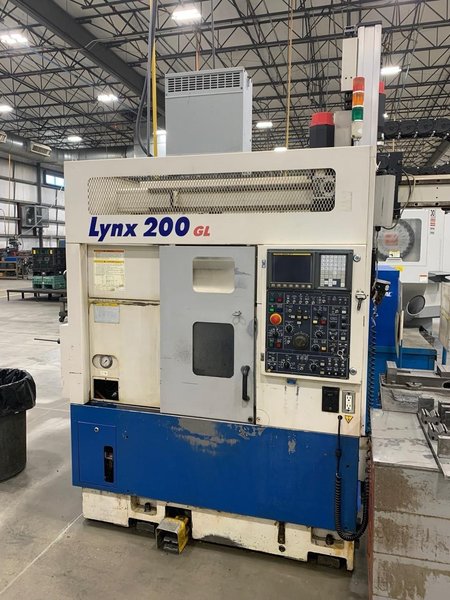

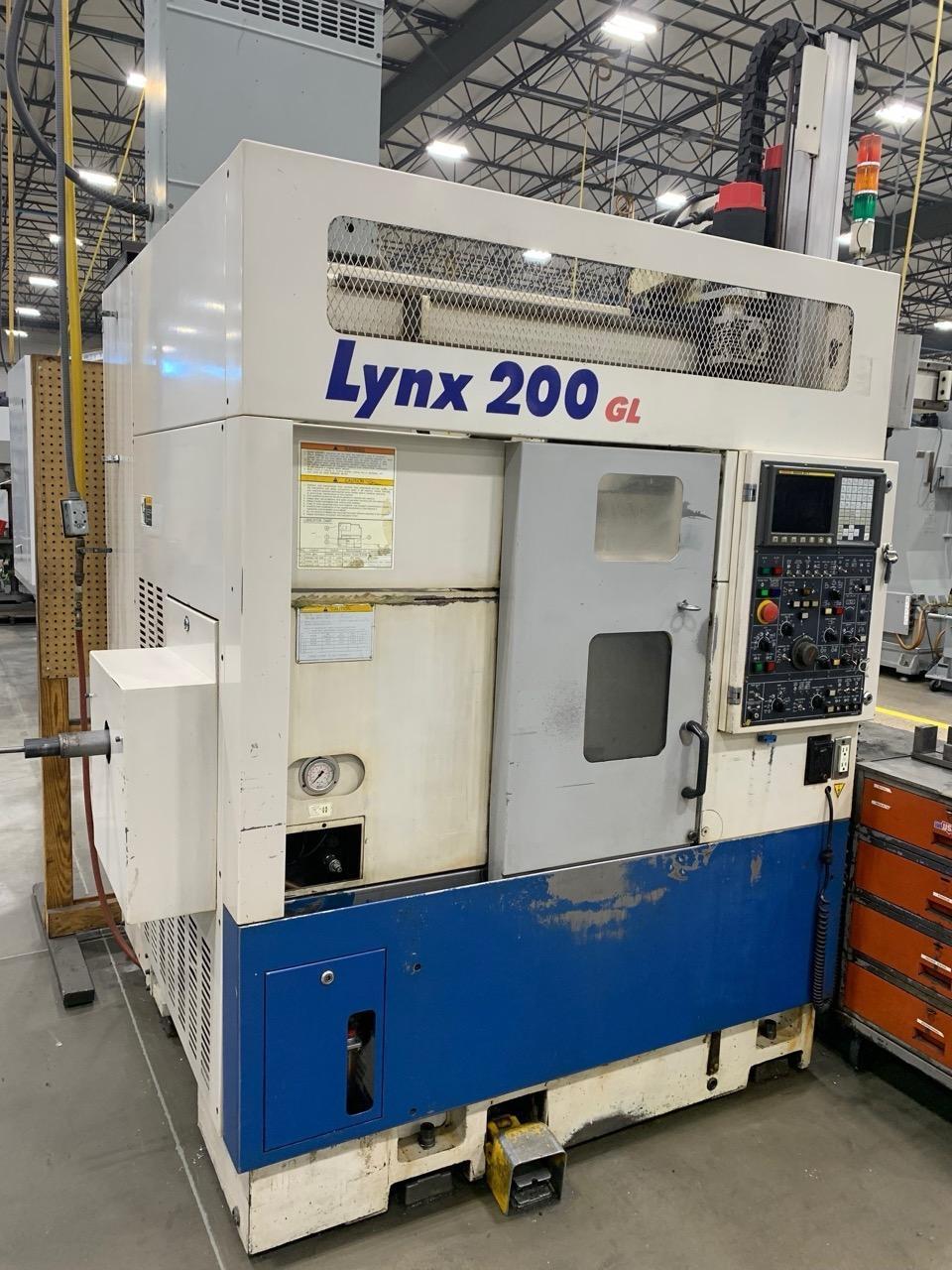

Daewoo Lynx 200GL CNC Lathe, 1999 – Parts Catcher, Tool Presetter, Chip Conveyor

Max Turning Diameter: 11.0″ Max Turning Length: 11.8″ Max Bar Capacity: 1.75″ Swing Over Bed: 18.0″ Distance Between Centers: 20.0” X Axis Travel: 6.3″ Z Axis Travel: 13.0″ Rapid Traverse X Axis: 787 IPM Rapid Traverse Z Axis: 945 IPM Spindle Nose: A2-5 Spindle Bore: 2.0″ Spindle Speed: 35 – 5000 RPM Spindle Motor: 15 HP Turret Capacity: 12 Stations Turret Index Time: 0.15 Second Overall Dimensions: 120” x 77” x 80” high Weight: 7,600 lbs.   Equipped With:

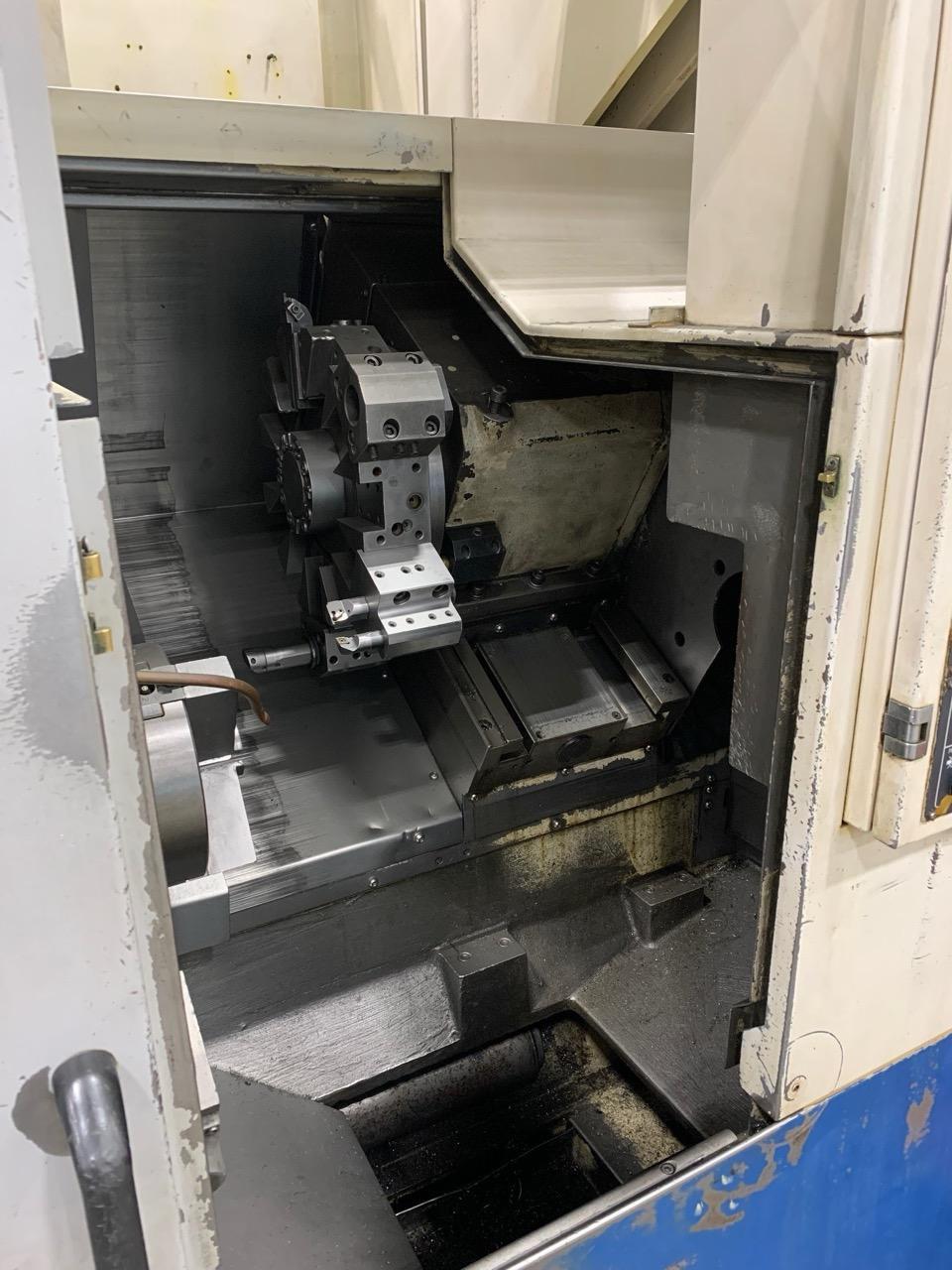

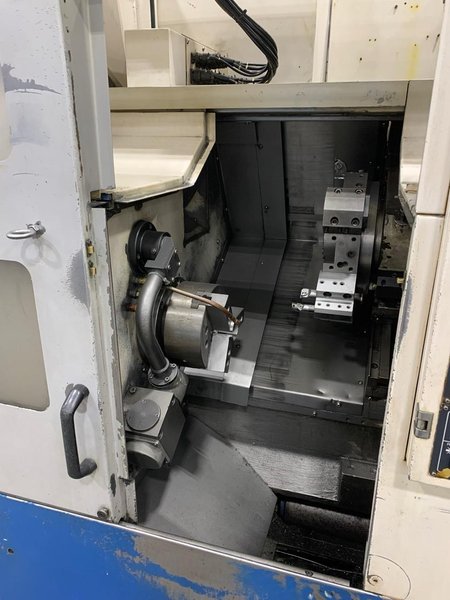

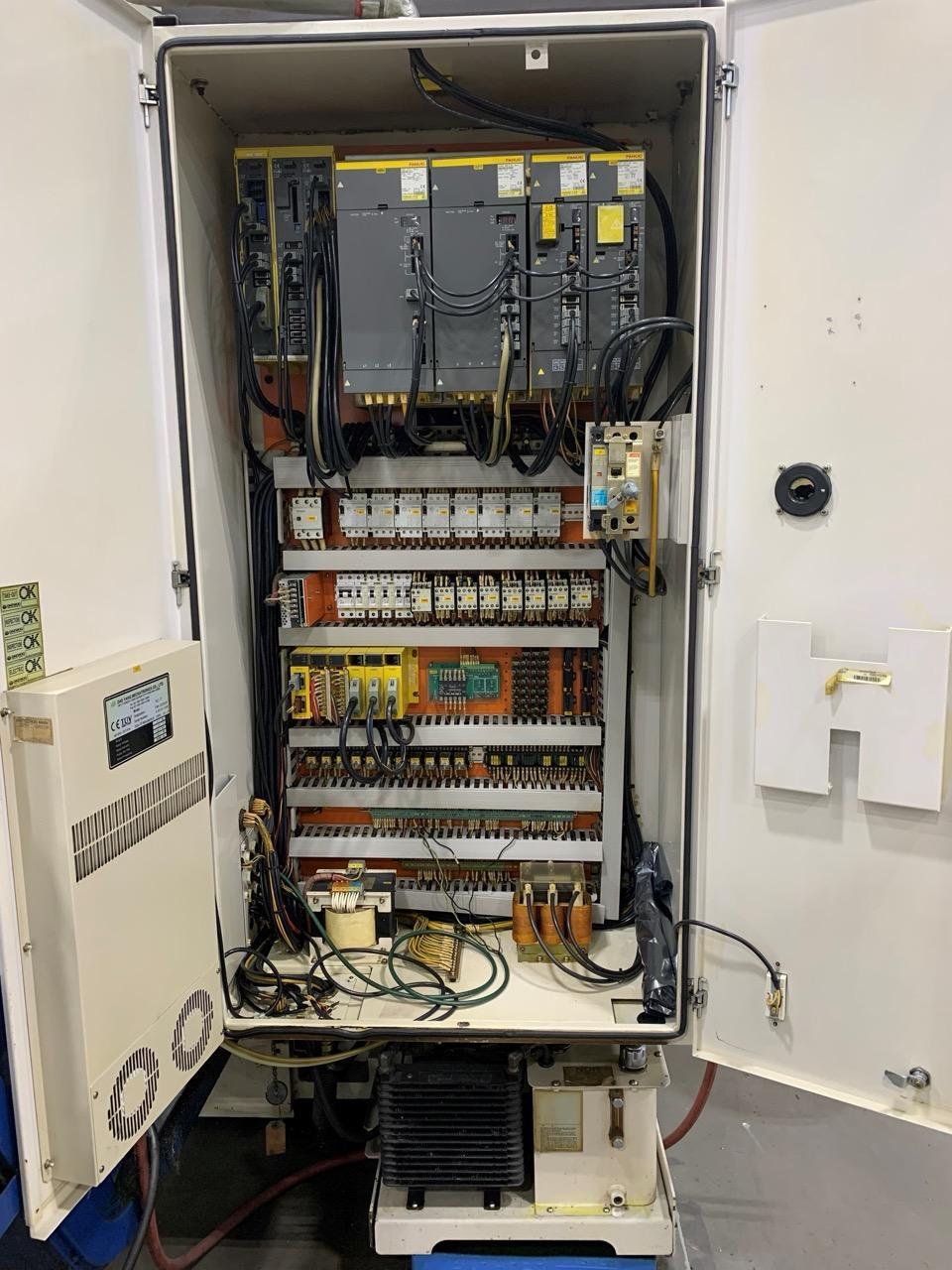

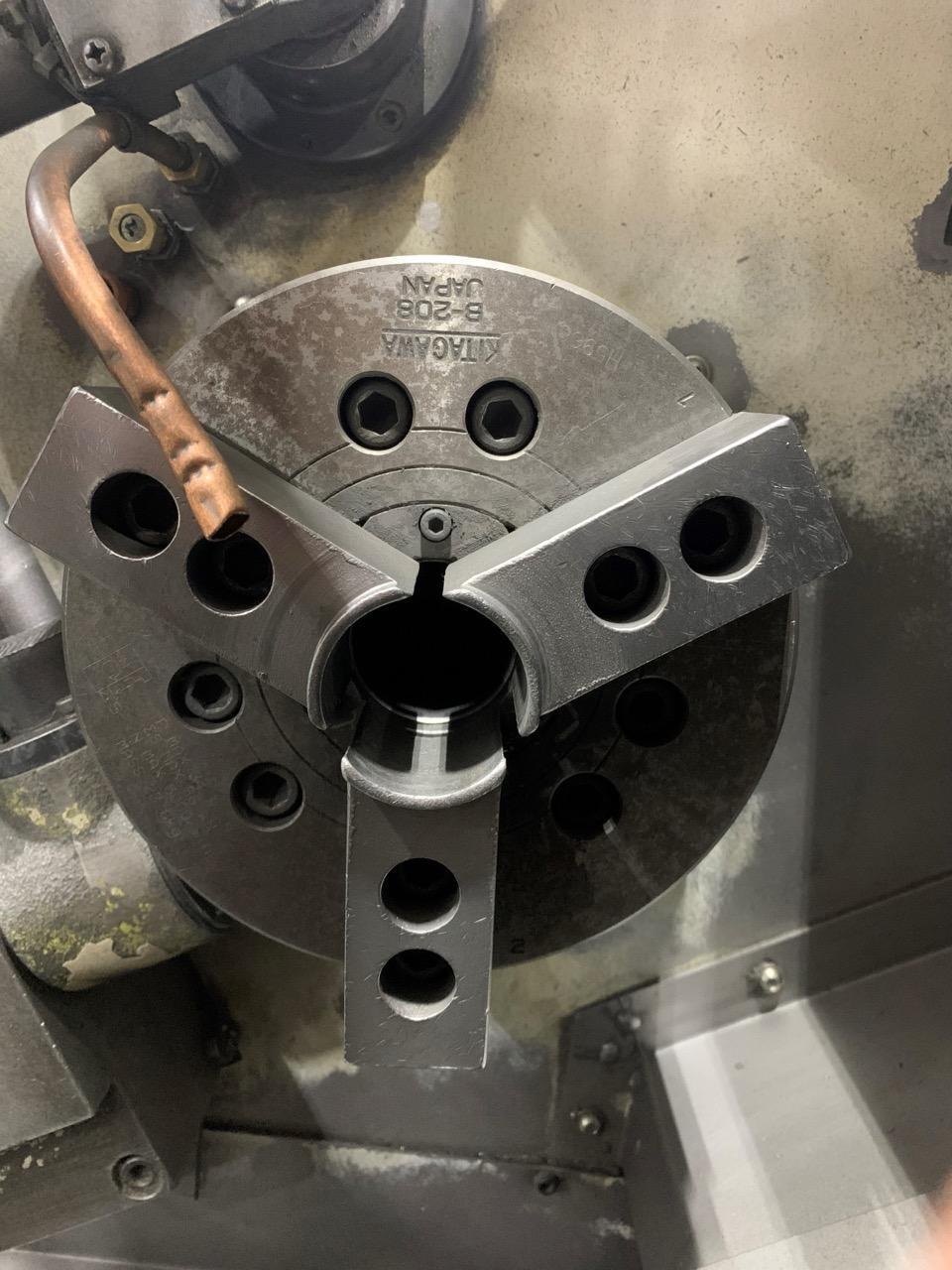

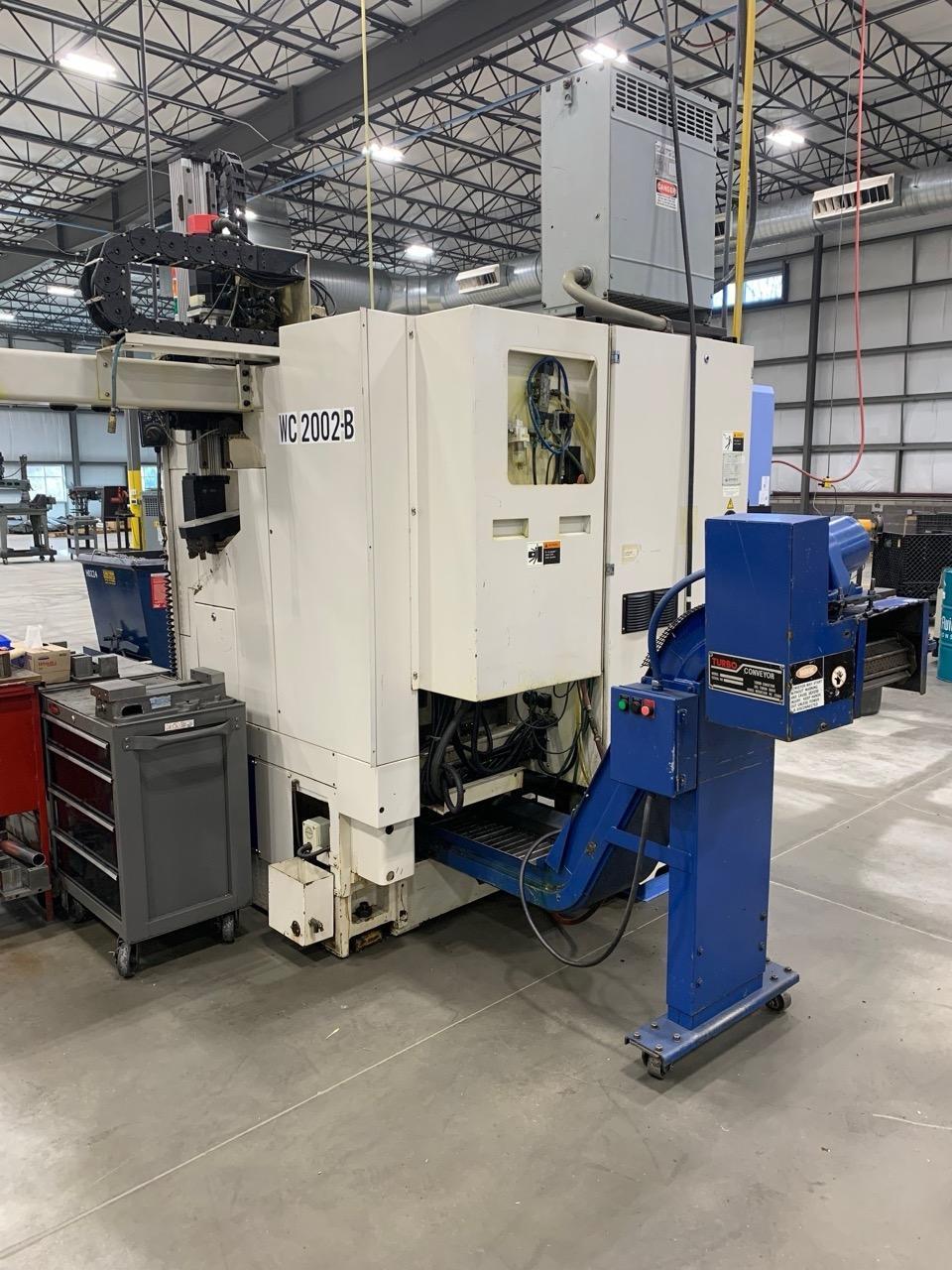

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc 21-T series CNC Control Rigid Tapping 8″ 3 Jaw Kitagawa Hydraulic Chuck Tool Presetter Parts Catcher RS-232 Coolant System Foot Switch Turbo Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
