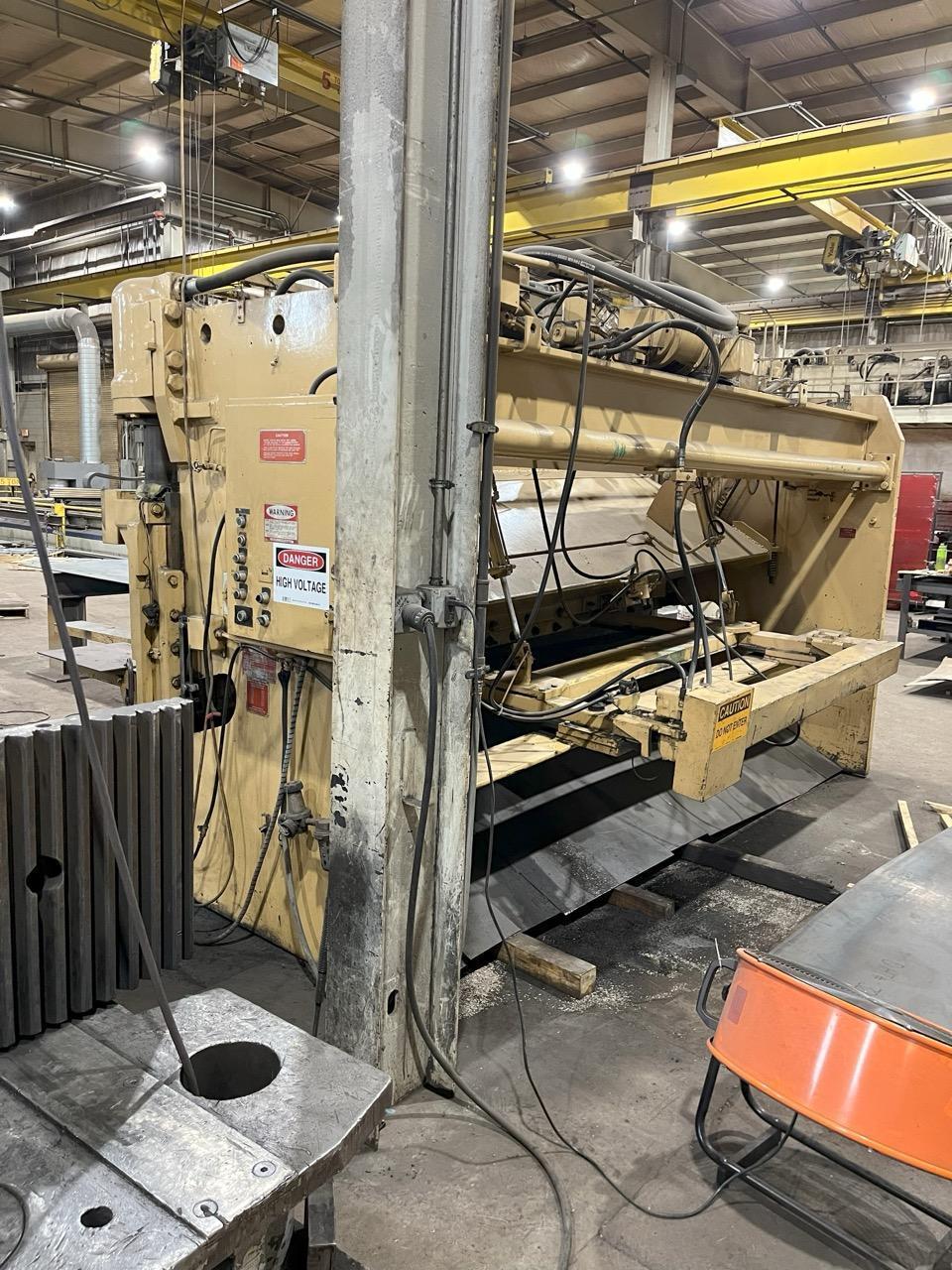

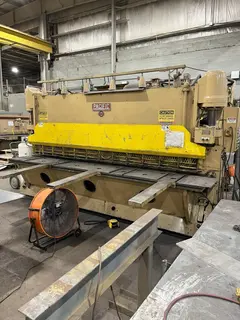

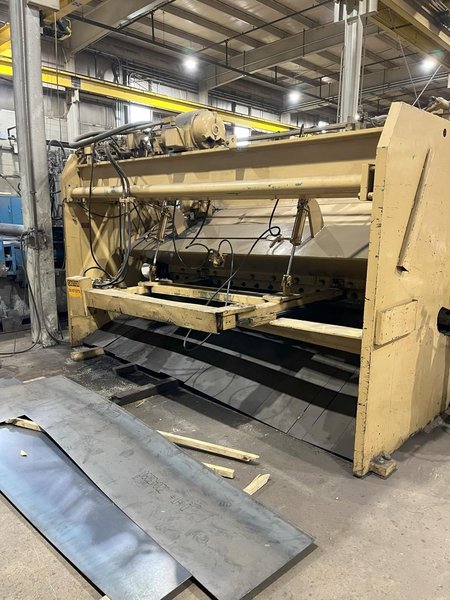

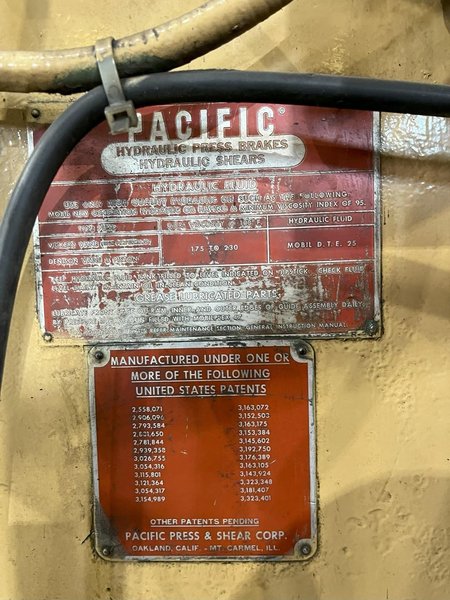

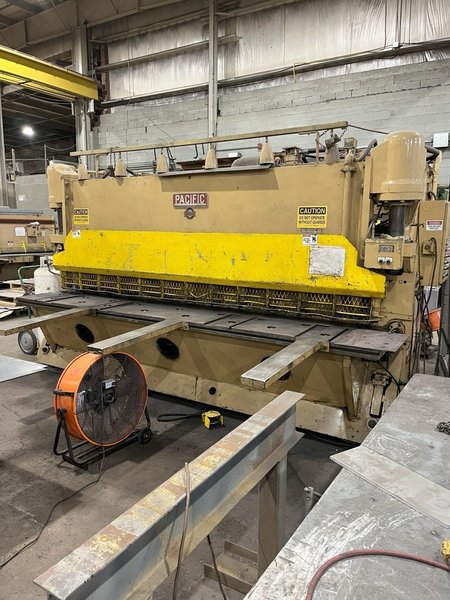

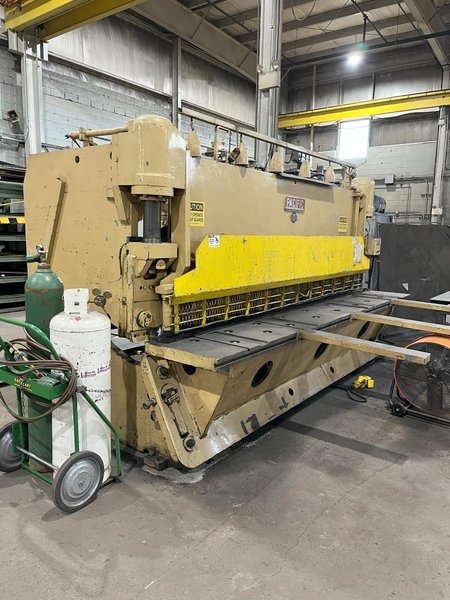

3/8” x 12’ Pacific Model 375R12 Hydraulic Power Squaring Shear, 1980
Brand
Category
Type
Model
375R12
Stock #
500108
Year
1980
Condition
Not specified
Location
Not specified
|
Rated Rake Angle: 5/16″/FT
Capacity @ Rated Rake (MS): 3/8″ X 12′
Max Rake Angle: 1/2″/FT
Capacity @ Max Rake (MS): 1/2″ X 12′
Distance Between Housings: 12’3″
Knife Size: 1″ X 4″ X 148″
Back Gauge Range: 36″
Hold Down Tonnage: 32
Strokes Per Minute: 14.5 – 42 SPM
Motor Horsepower: 25 HP
Approximate Overall Weight: 39,000 Lbs.
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Foot Pedal Front-Operated Power Backgauge All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
