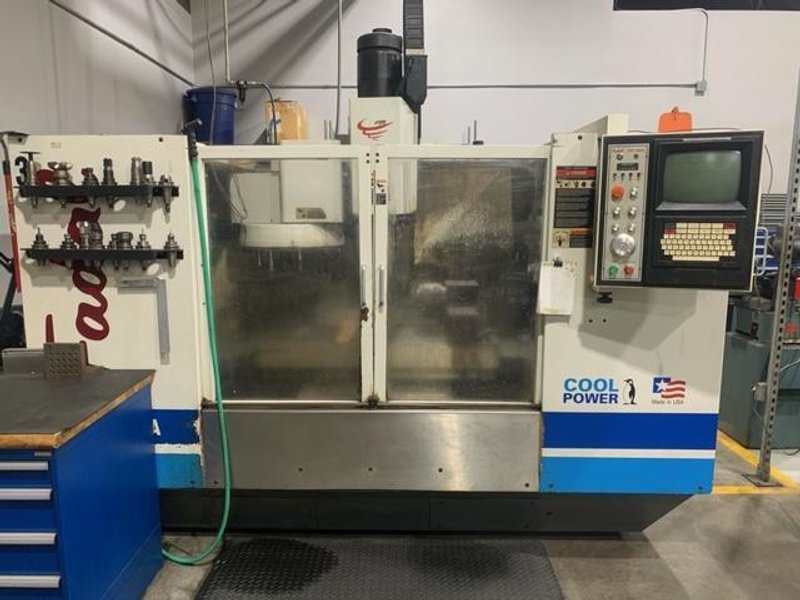

Fadal 4020AHT VMC, 1999 – 4th Axis Rotary
Brand
Category
Model
917-1
Stock #
882316
Year
1999
Condition
Not specified
Location
Not specified
|
X Axis Travel: 40″
Y Axis Travel: 20″
Z Axis Travel: 20″
Table Size: 40″ x 20″
Spindle Speed Range: 0 – 7,500 RPM
Spindle Taper: CT40
Spindle HP: 20 HP
Spindle Center to Column: 20″
Auto Tool Changer: 20 Positions

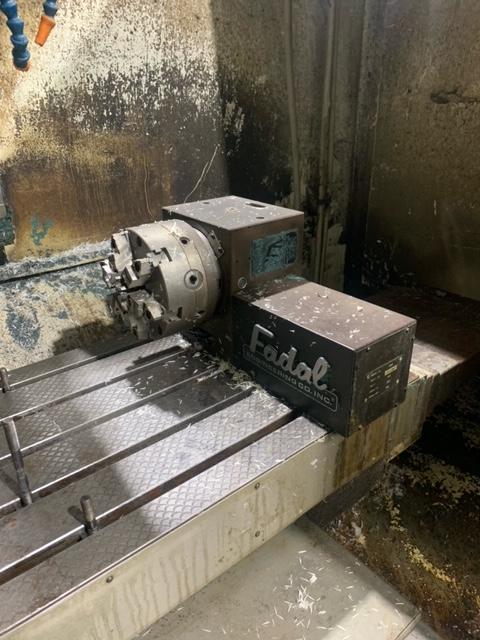

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrics: 230/440 V, 3 Ph, 60 Hz Amperage Rating: 40/20 Amp Dimensions: 116″ x 88″ x 104″ Weight: 11,000 Lbs All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Fadal CNC 88HS Control 4th Axis Rotary Table Adjustable Coolant Nozzle All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
