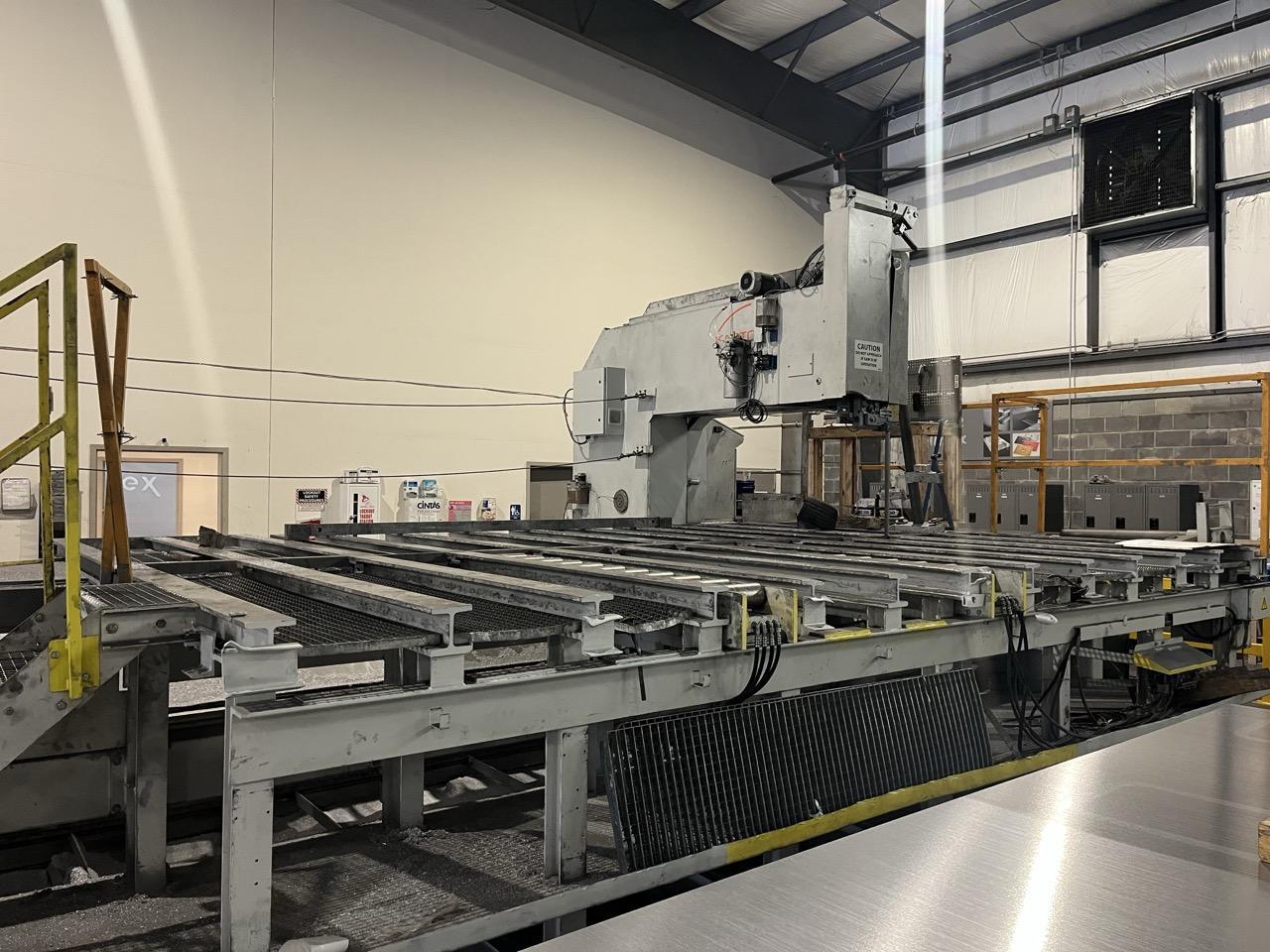

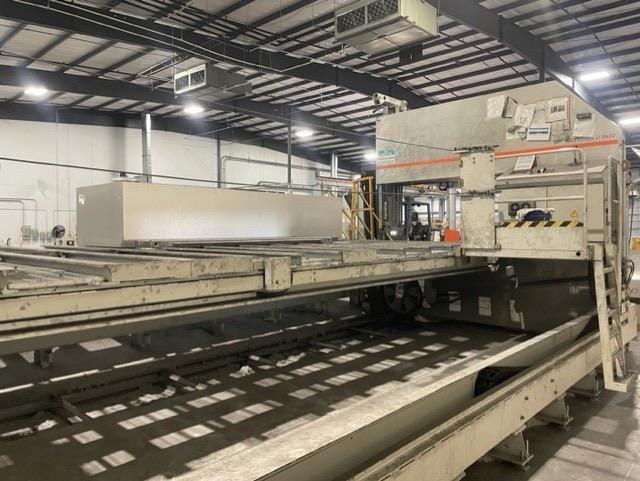

79″ x 220″ Kasto BBS U8x20 Semi-Automatic Vertical Bandsaw, 2016 – Infinitely Variable Bandsaw Blade Speed

Max cutting Thickness- 35″ Max cutting length- 220″ Smallest cut Width-.4″ Largest cut Width- 78.7″ Min/Max blade speed- 13-130m/min Min/Max feed Rate- 0.7-270mm/min Part adjustment roller capacity- 15tons Power supply 440V/80A/60Hz

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Standard Dimensions Width when protective cover is Open: 288.4” Height without line laser unit: 155.9” Height with line laser unit: 179.5” Height of material; support table: 61.0”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Cutting Ranges Maximum cutting height With band control: 33.9” Without bang control: 35.4” With pressure rollers: 30.7” Smallest cut-piece width: 0.4” Largest cut piece width With electro motive measuring stop: 78.7” With manual measuring stop: 70.9” Without measuring stop: 81.1”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Speeds Cutting speed: 13-130 m/min. Feed rate: 0.7 – 270 mm/min

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Saw Blade Standard: 384” x 2.1” x 0.06” As an alternative: 384” x 2.6” x 0.06” Tooth set width: 0.1” Saw blade guide: Carbide Saw blade back guide: Roller Saw blade clamping: Hydraulic Saw blade clamping pressure With saw blade width 54 mm: 40 With saw blade width 67 mm: 67 Saw blade cleaning: Plastic brush

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Measuring ranges for measuring stops Manually movable Range: 0 – 78.7” Motorized Range (a): 0 – 66.5” Range (b): 12.2” – 78.7” Drive capacity: 17.4” Saw motor: 10.1”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped with: Infinitely Variable Bandsaw Blade Speed Bi-Metal or Carbide Saw Blades Semi-Automatic Operation Vibration-Free Performance Space-Saving Design Set of Old flywheels 8 blades (Available for Extra Cost)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
