2019 HAAS VM-6 | Machining Centers, Vertical

Brand
HAAS
Category
Machining Centers
Type
Machining Centers, Vertical
Model
VM-6
Stock #
33862
Year
2019
Condition
Not specified

Location

Not specified
REQUEST FINANCING

2019/2020 Haas VM-6 CNC Vertical Machining Center with 5th Axis Trunnion Rotary Table
64" x 32" x 30", 12K RPM, 30 HP, HSK63, 1000 PSI, Tons of options!
TR200Y Dual Axis Trunnion Rotary Table

X-Axis64"1,625.6 mm
Y-Axis32"812.8 mm
Z-Axis30"762 mm
Power30 hp22.4 kW
RPM12,000 RPM12,000 RPM
# ATC3030
TaperHSK 63HSK 63
Table-W64"1,625.6 mm
Table-L28"711.2 mm
# Axis55

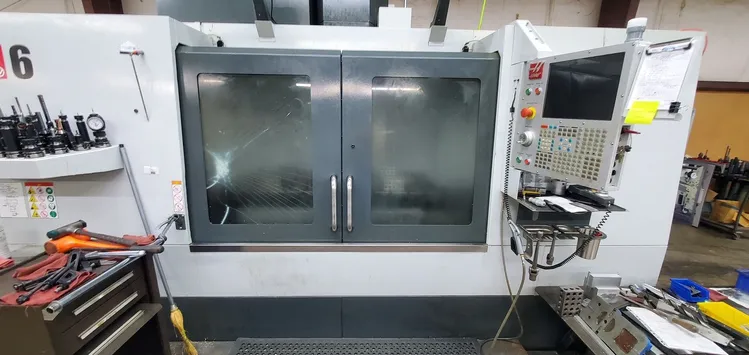

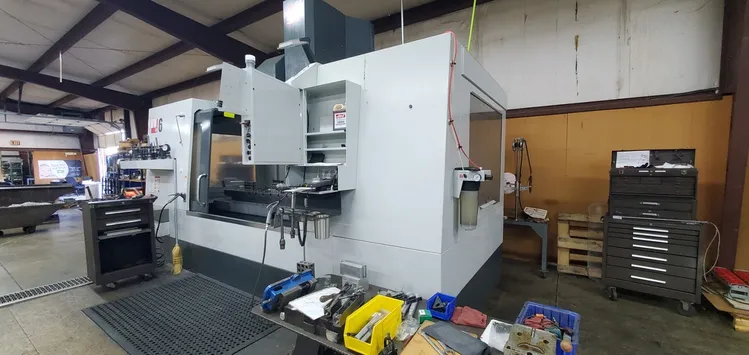

Haas VM-6 CNC Vertical Machining Center
New: 2019 (Installed 2020)

Specifications:
Travels:
X-Axis: 64.0"
Y-Axis: 32.0"
Z-Axis: 30.0"
Spindle Nose-Table: 4.0" - 34.0"
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: HSK 63

Equipped With:
Haas CNC Control
HSK-A63, 12K RPM Spindle
4th Axis and 5th Axis Drives and Wiring
Wireless Intuitive Probing System
Minimum Quantity Lubrication
Through Spindle Coolant, 1000 PSI
Through Tool Air Blast
Auxiliary Coolant Filter
Second Home Position
Dynamic Work Offsets & Tool Center Point Control
32GB Expanded Memory
Internal High-Voltage Isolated Transformer
High Intensity Lighting
WiFi Camera

Optional Equipped With:

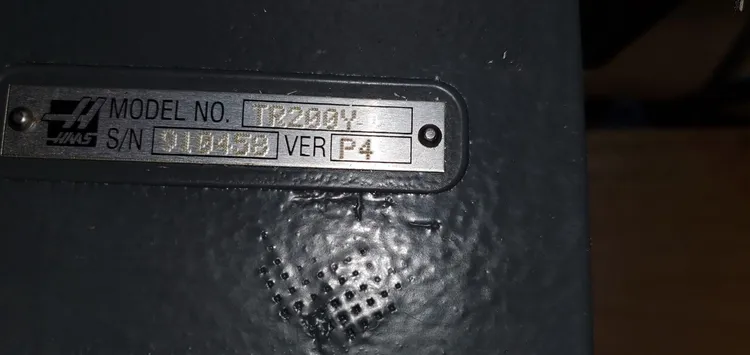

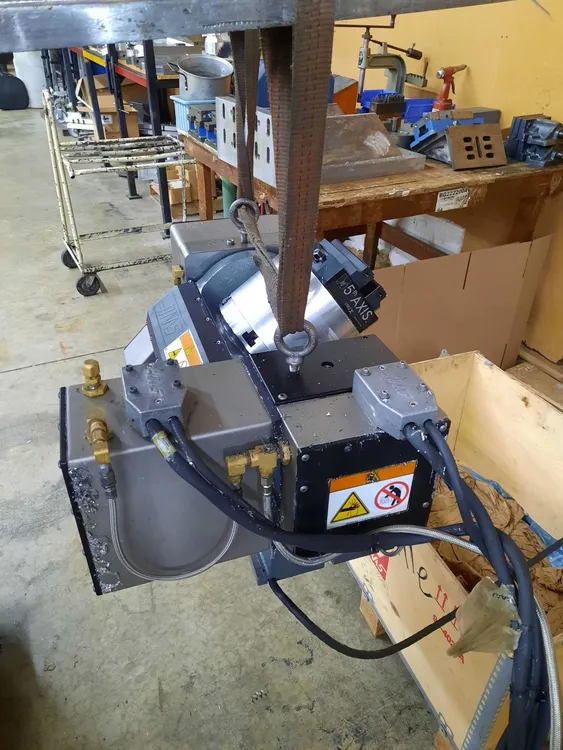

Haas TR200Y 200mm Dual Trunnion Rotary Table s/n 910458 - $41k New Price

Replacement Cost over $260,000!
