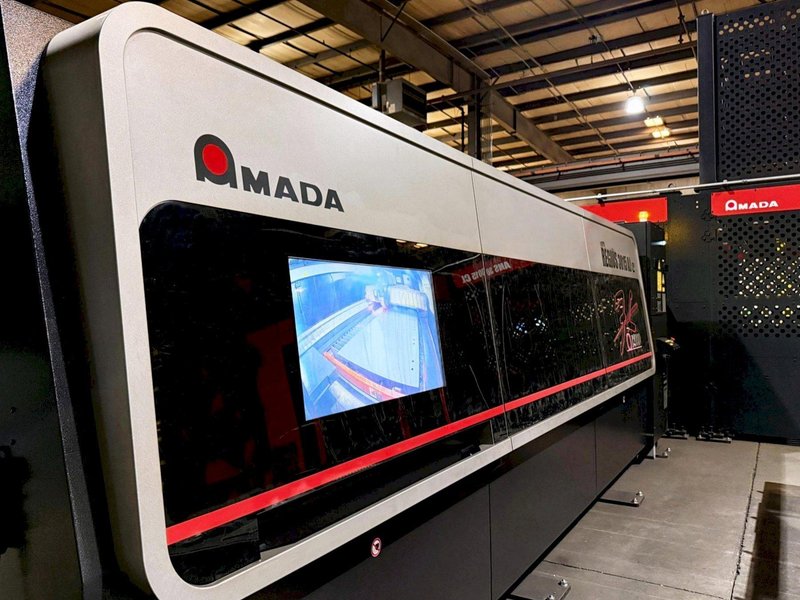

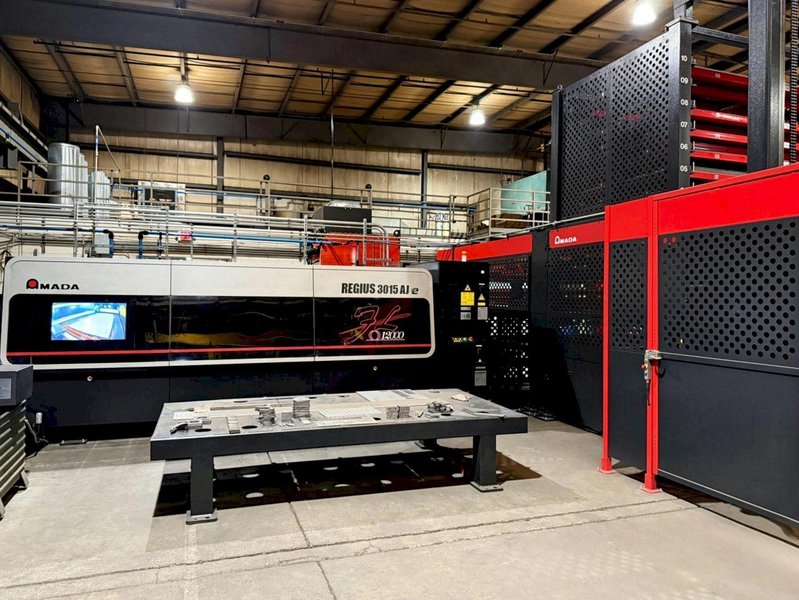

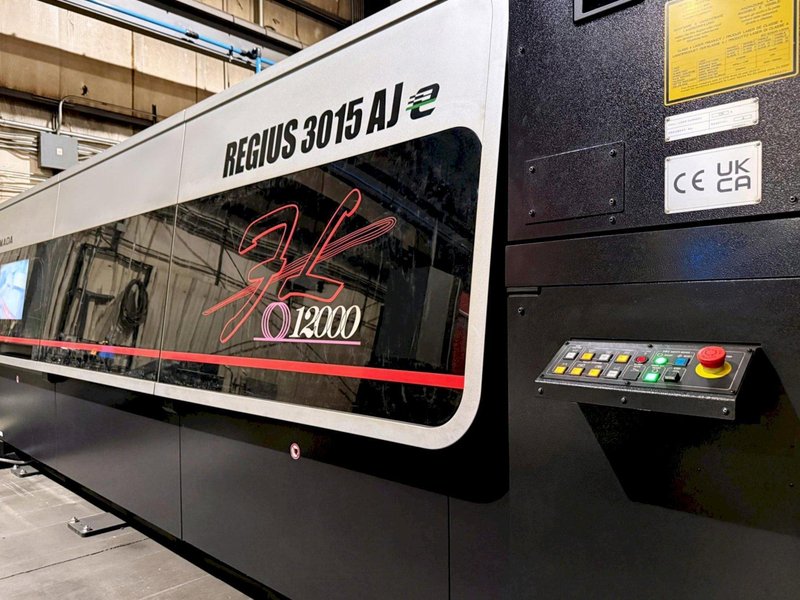

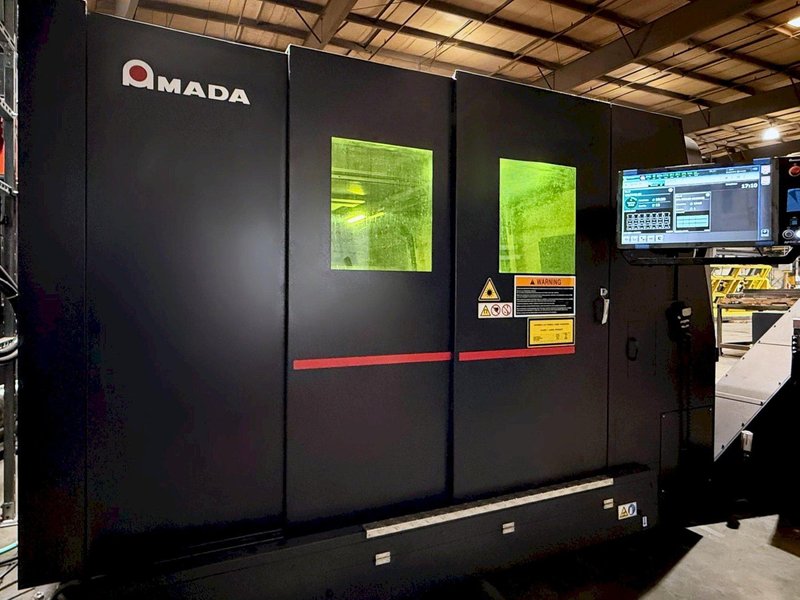

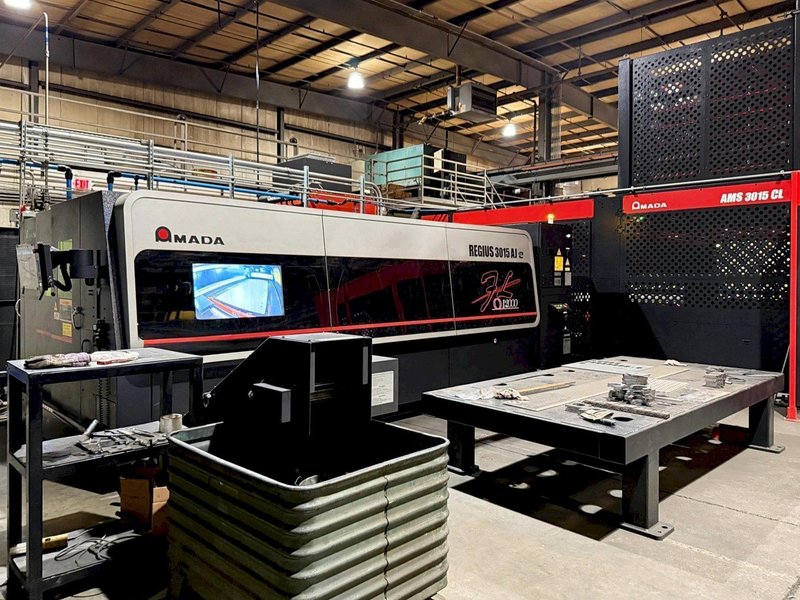

Amada Regius 3015 AJe 12KW Fiber
Brand
Category
Type
Model
Regius 3015 AJe Fiber
Stock #
100572
Year
2023
Condition
Like New
Location
Not specified

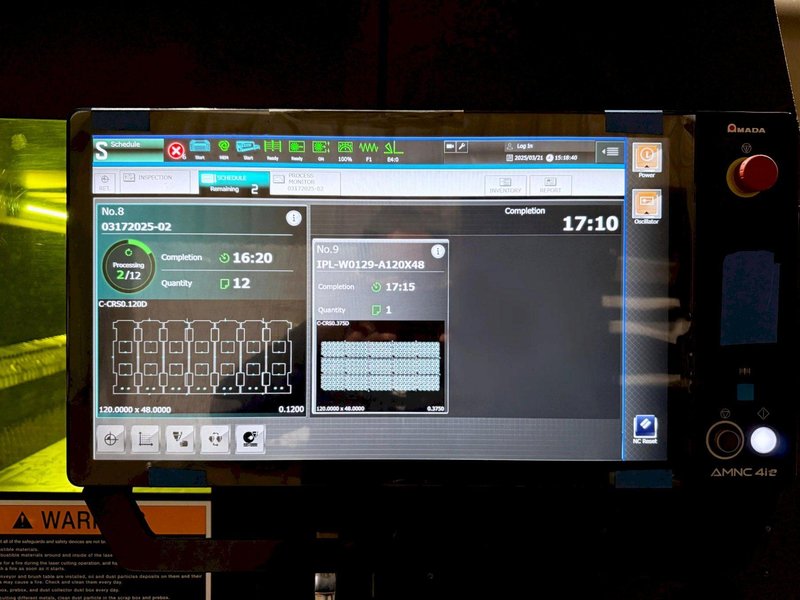

| Control | AMNC 4ie CNC |
| Display | Touchscreen Color LCD |
| Control Function X,Y,Z | Sim. Focus Lens B-Axis |
| Max. Sheet Size X,Y | 120" x 60" |
| Max. Axis Travel X,Y,Z | 121" x 61" x 3.93" |
| Travel Method | X,Y-Axis Stationary Table |
| Travel Method | Z-Axis Movement Cutting Head |
| Control Method X,Y,Z | Sim. 3-Axis Control |
| Drive Motors | Fanuc AC Servo Motors |
| Max. Axis Pos. Speed X,Y | 9,448"/min. Per Axis |
| Max. Axis Pos. Speed X,Y (45° 5G Acceleration) | 13,380"/min. |
| Max. Z-Axis Speed | 4,724"/min. |
| Repeatability | 0.00002" |

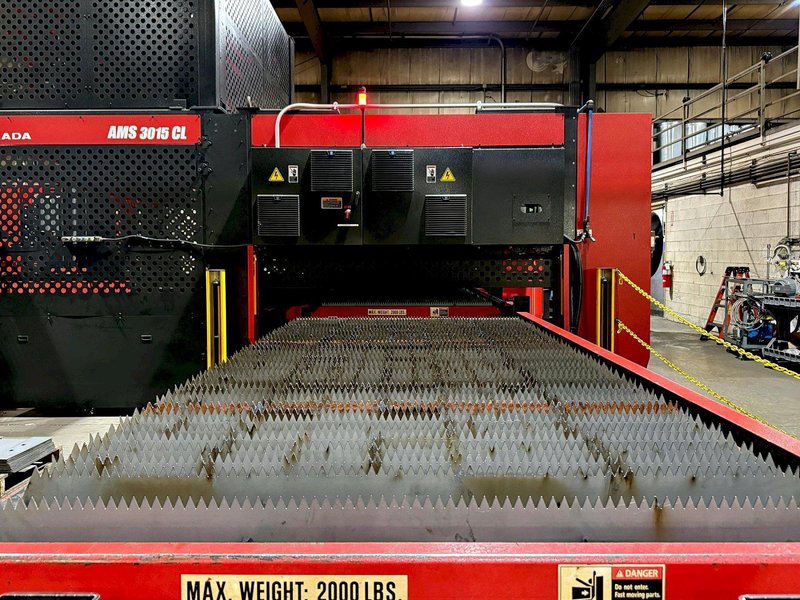

| Max. Material Weight | 2,000 lbs. |
| Data Storage | Compact Flash Drive |
| Resonator Type | Fiber |
| Resonator | LD Excited YB Fiber |
| Power Output | 12KW (12,000 Watts) |
| Laser Wavelength | 1.08 m |
| Power Stability | ±2% |
| Beam Divergence | < 3mm-mrad |
| Pulse Frequency | 1–10000Hz |
| Pulse Duty | 0–100% |
| Assist Gas | 3 Ports w/ NC Pressure Control |
| Laser Beam Mode Output | Multimode |
| Max Thickness Mild Steel | 1.00" |
| Max Thickness Aluminum | 1.00" |
| Max Thickness Stainless Steel | 1.00" |
| Electrical Req. | 208V, 3-Phase, 60Hz / 79kVA Max. |
|

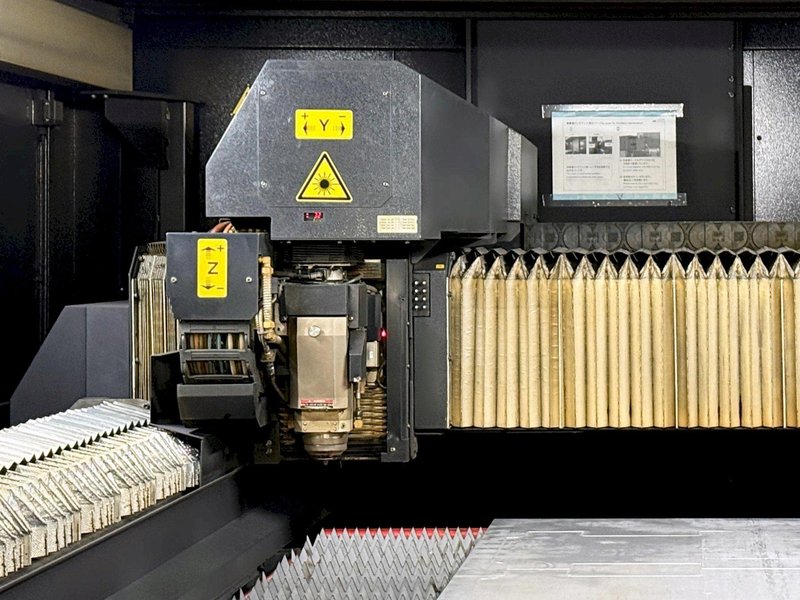

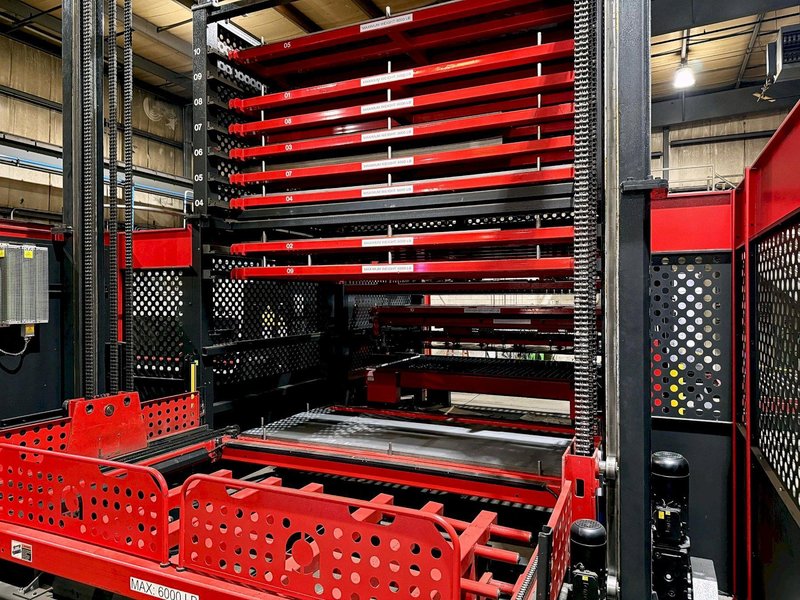

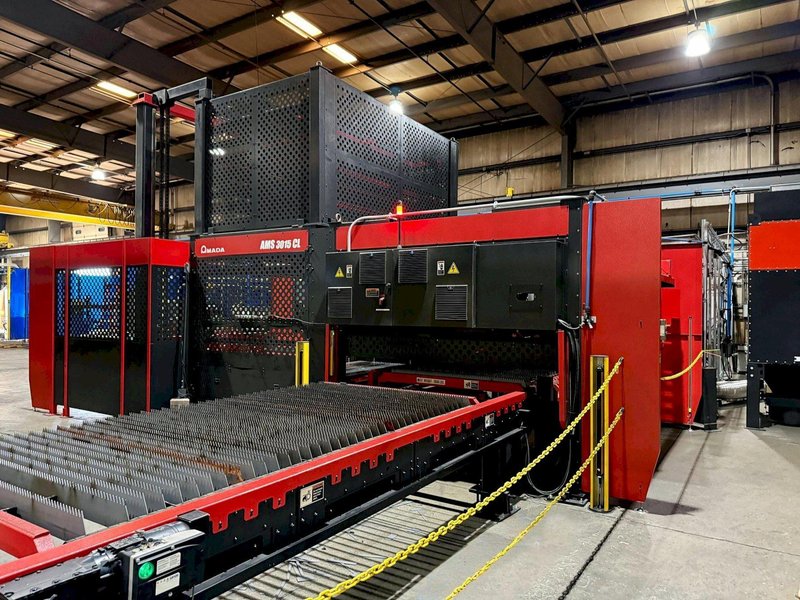

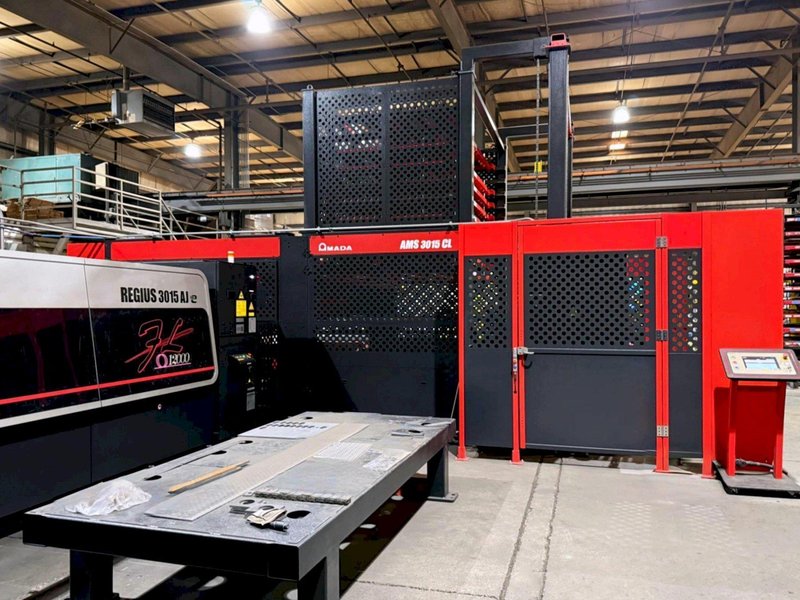

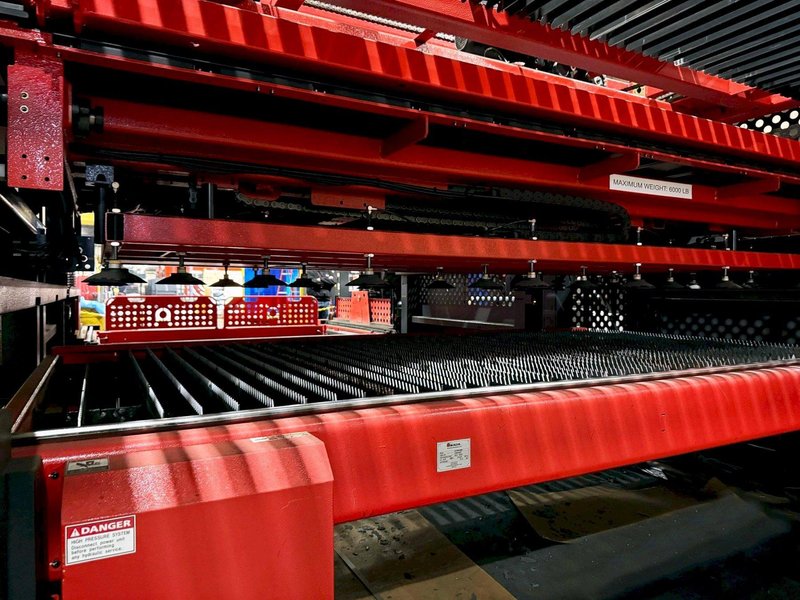

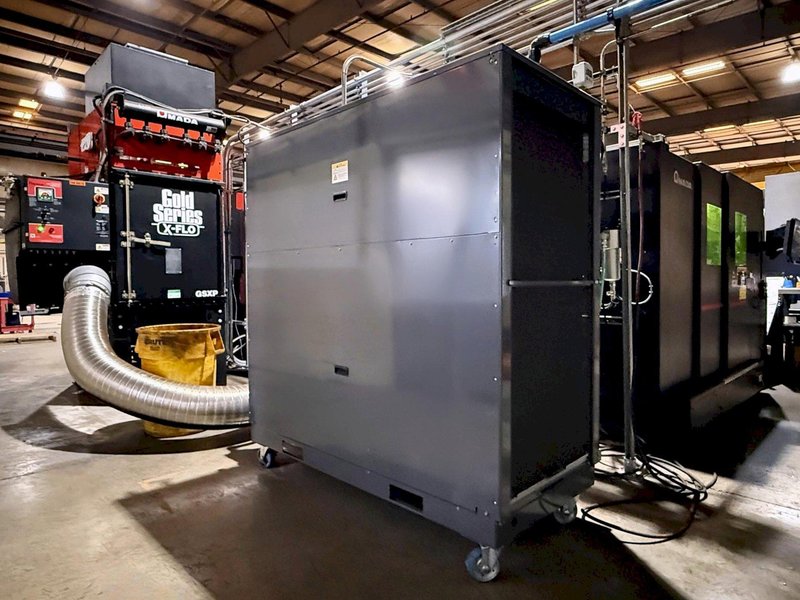

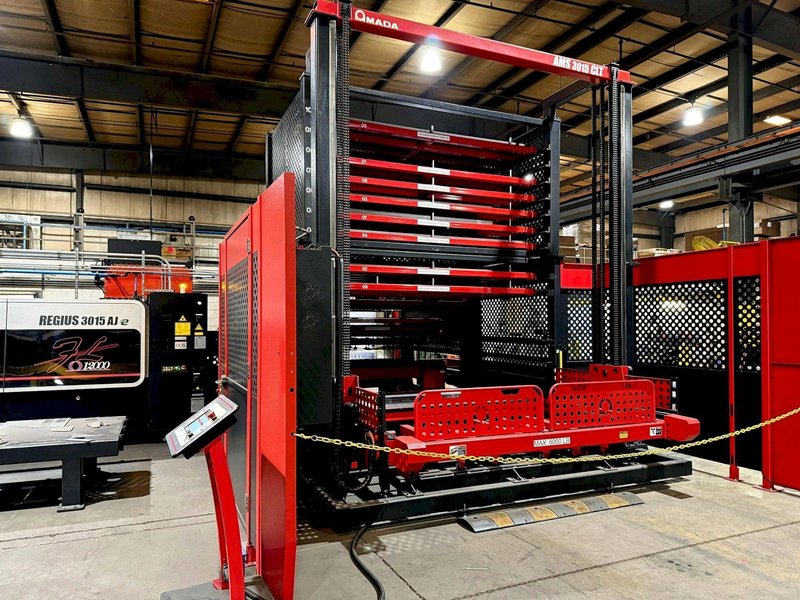

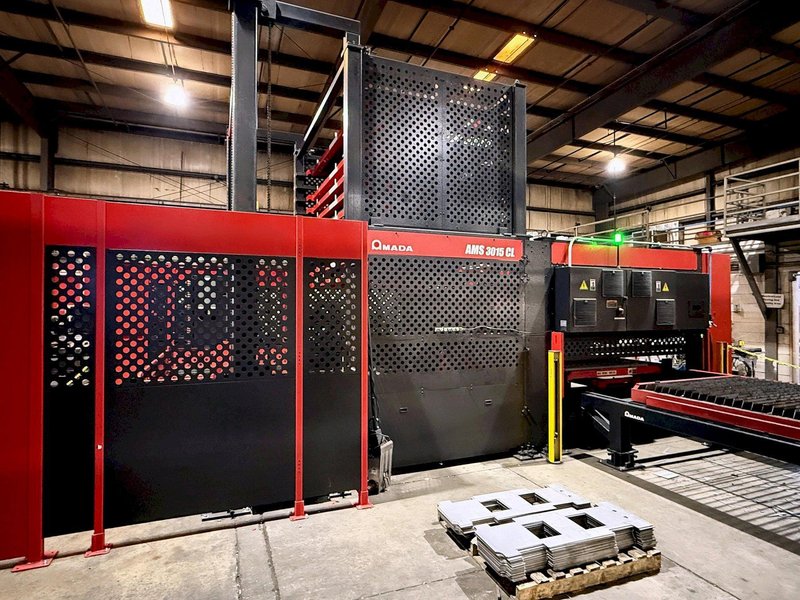

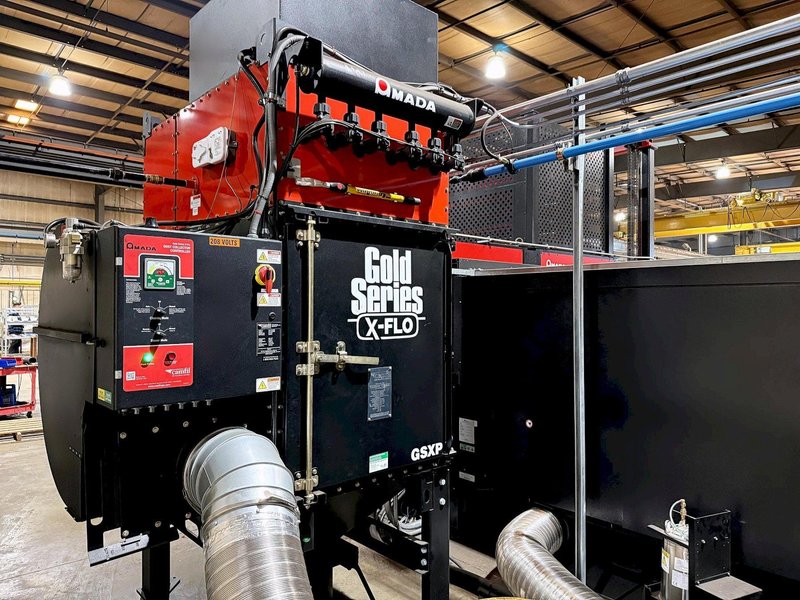

Equipped With: LD Excited YB 12kW Fiber Power Source Interlocked Enclosure i-Nozzle Checker i-Process Monitor i-Optic Sensor Automatic Collision Recovery i-Camera System Dual Gas System Automatic Nozzle Changer WACS II™ - (Water Assist Cutting System) Smart Edge NC Assist Gas B-Axis NC Focus Integrated Beam Purge High-Speed Cutting Head X and Y Scrao Conveyor Clean Cut™ Camfil Dust Collector Orion Chiller Unit AMS 3015 CL Sheet Load/Unload AMS CLT - Multi 10 Shelf Tower
|
|
