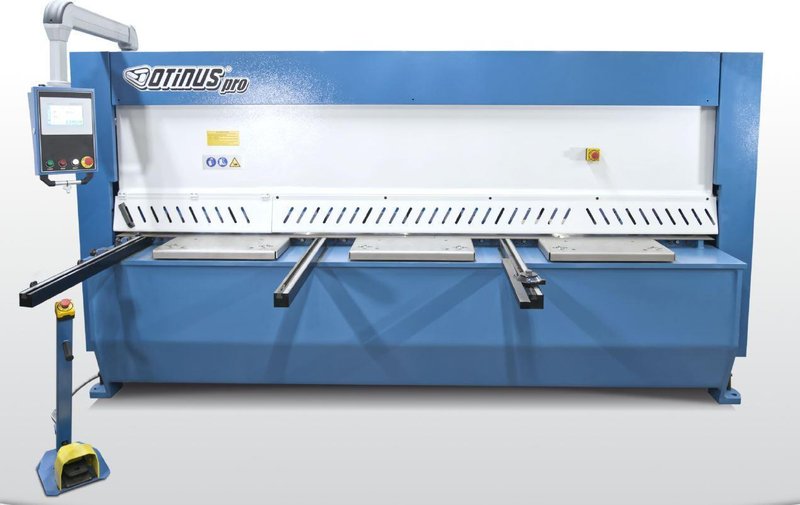

NEW 1/4" X 162" OTINUS PRO MODEL SMO-4106-PRO HYDRAULIC SHEAR
Brand
Category
Type
Model
SMO-4106-PRO
Stock #
19760
Year
Not specified
Condition
New
Location
Not specified
|
NEW 1/4" X 122" OTINUS PRO MODEL SMO-4106-PRO HYDRAULIC SHEAR
Specifications
Capacity ≤450 N/mm2 6 mm
Capacity ≤750 N/mm2 4 mm
Cutting Length 160"
Rake Angle 1.2 °
Motor Power 11.0 kW
Number of Holddowns 23 pcs.
Strokes Per Minute 12 cuts/min
Capcity of Oil Tank 42 gal
Backgauge Range 30"
Backgauge Motor 0.55 kW Approx. Weight 20,727 Lbs

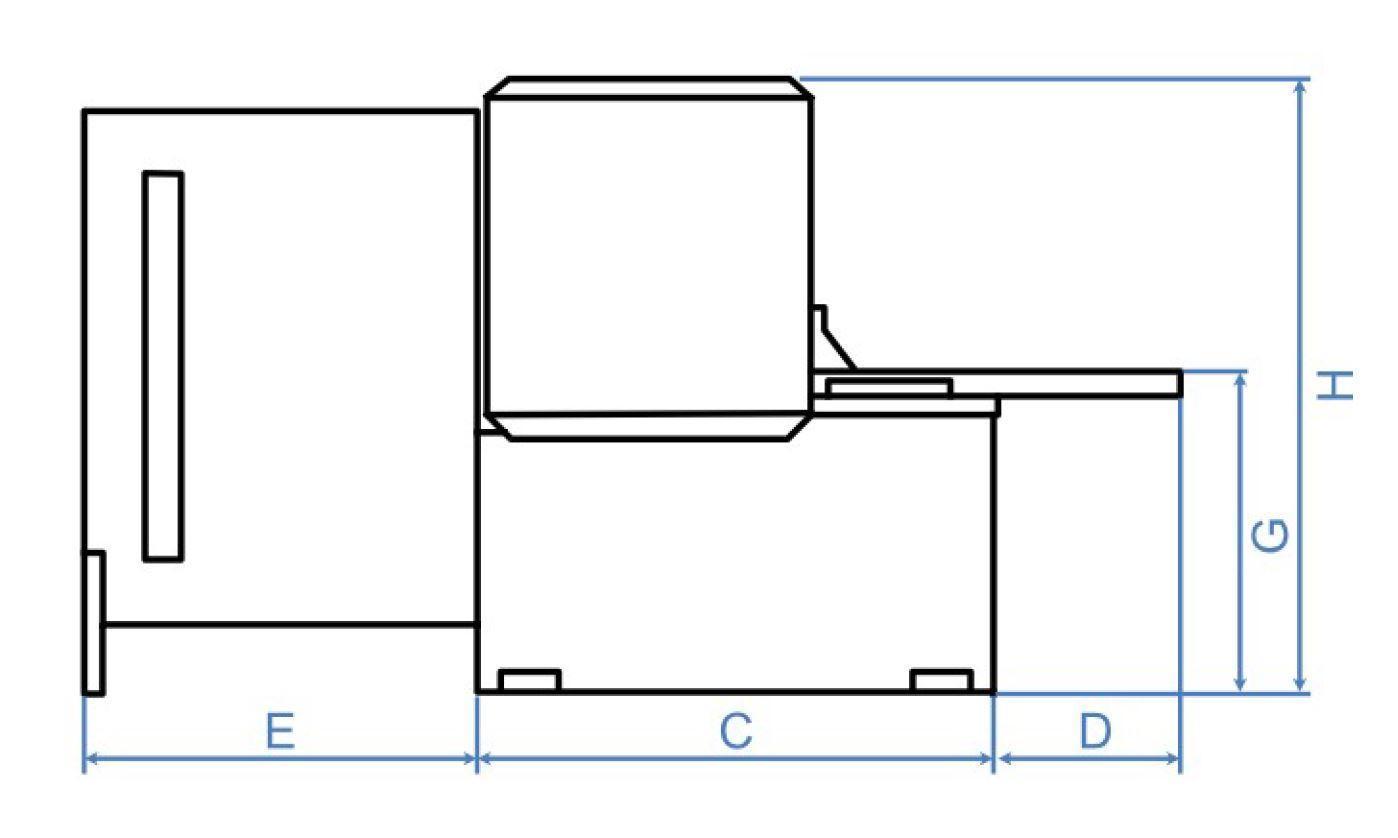

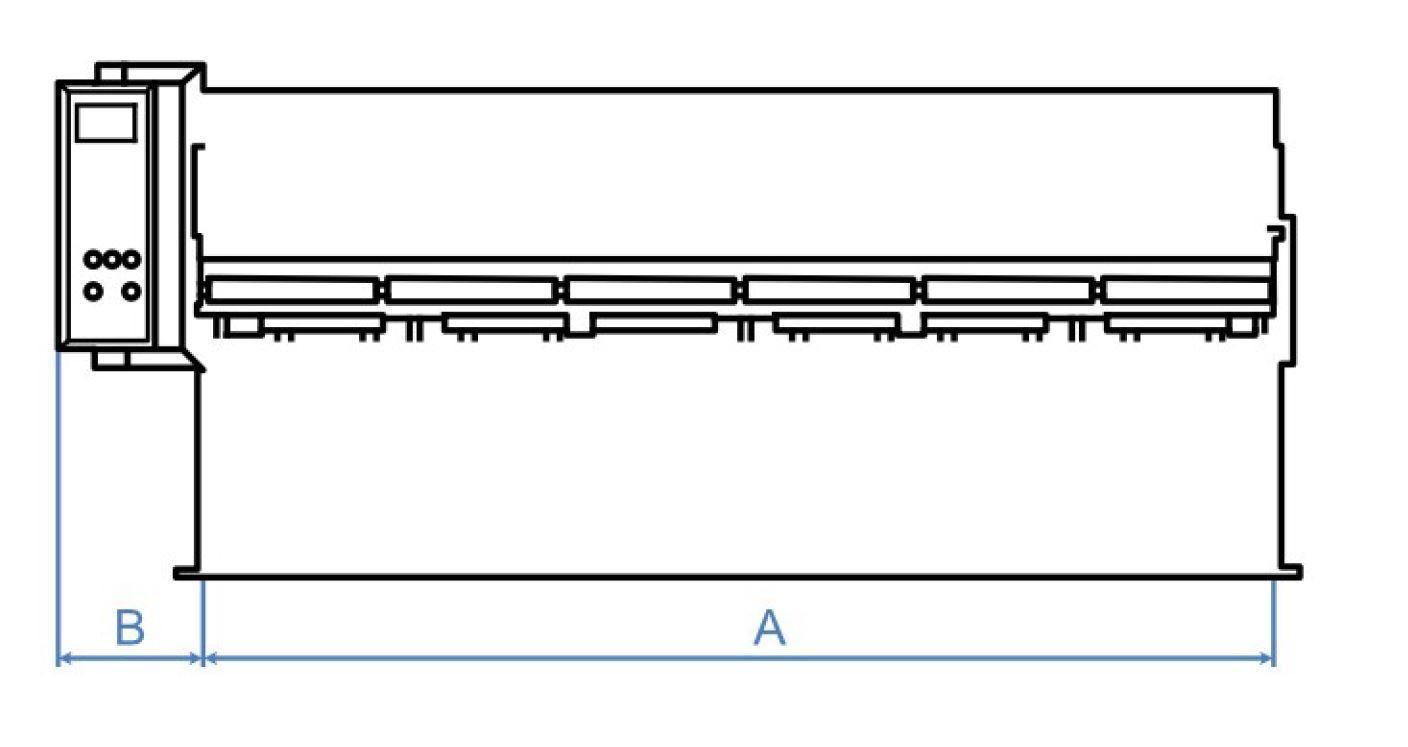

Dimension A 169"
Dimension B 17" Dimension C 61" Dimension D 19"
Dimension E 39"
Dimension G 31"
Dimension H 69"

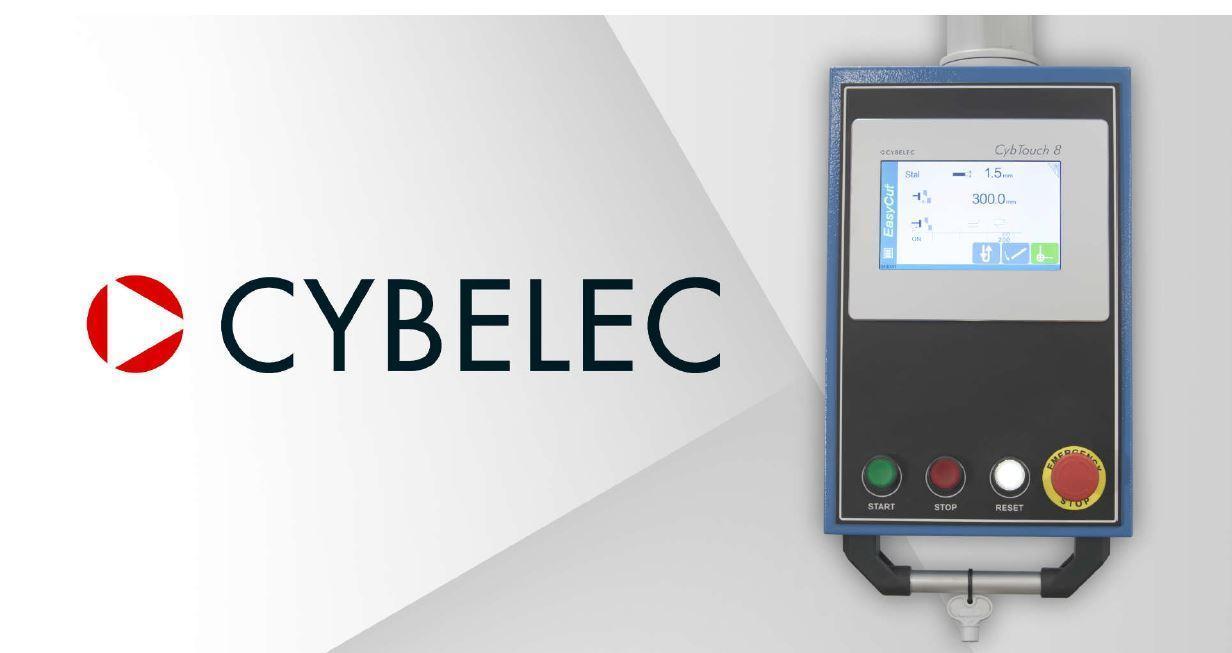

Controller CybTouch 8W
(Mounted on a swivel arm on the left-hand side of the machine)
Automatic calculations of the shear functions upon material specifications.
Automatic blade gap.
Automatic back gauge correction.
Automatic back gauge foldaway.
2/3- position sheet support.
Return to sender function (RTS).
Front or back gauge management.
Parking position (foldaway function).
Hold-downs pressure management.
System pressure management.
Large cutting sequences and programs can be memorized.vivid colors.
Simple pages, large keys, clear display with all the information the operator needs.
Intuitive and user-friendly interface.
Complete programming of parts in seconds.
Price included: A one-day operational training, including machine installation.
1 day up to 8 hours – machine installation and training on controller usage.
Telephone consultation with a specialist
from 7.30 to 21.00 (Mon-Sat) – 8 hour time package to be used within 12 months
Terms of cooperation 24 month warranty.
The machine is brand new.
Warranty and after-sales warranty service
The Client is responsible for the machine during unloading and transport on their facility.
