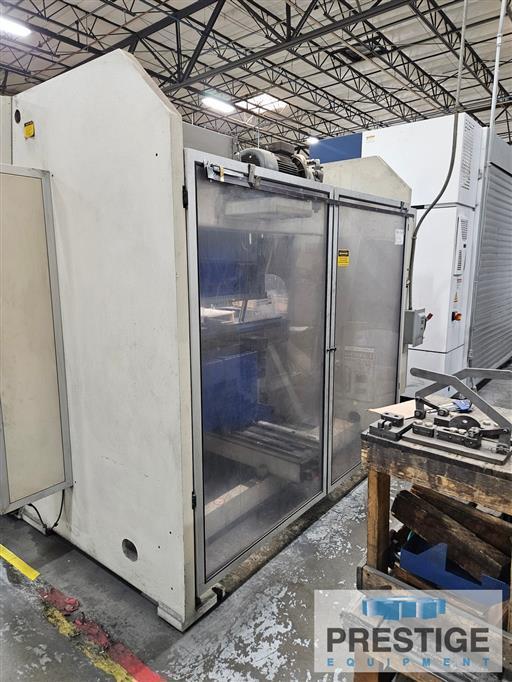

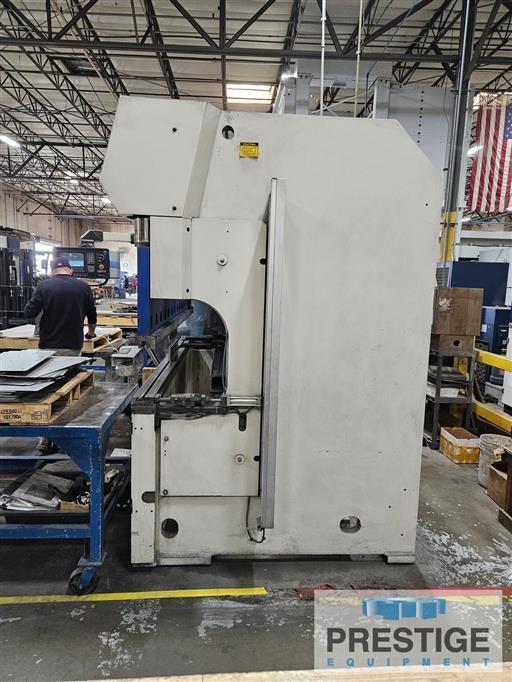

Trumpf V85S 6-Axis CNC Hydraulic Press Brake
Brand
Category
Model
V85S
Stock #
44032
Year
1999
Condition
Not specified
Location
Not specified
|
SPECIFICATIONS:
Tonnage Capacity 95 Tons Maximum Bending Length 100" Distance Between Housings 89" Stroke Length 8.46" Bending Capacity 1/4" x 6' Throat Depth 16" Travel In X-Axis (Back Gauge In/Out) 23.6" Travel In R-Axis (Back Gauge Up/Down) . 9.8" Y-Axis Operating Speed 2-24 IPM X-Axis Operating Speed 1200 IPM R-Axis Operating Speed 710 IPM Drive Motor 15 H.P. Approximate Weight 18,960 Lbs. Equipped With: Delem DA69 6-Axis CNC Control 4-Axis Back Gauge CNC Programmable Crowning CNC Programmable Die Shift Upper Hydraulic Clamping Electric Foot Tooling NOTE: Inspect in Plant Under Power |
