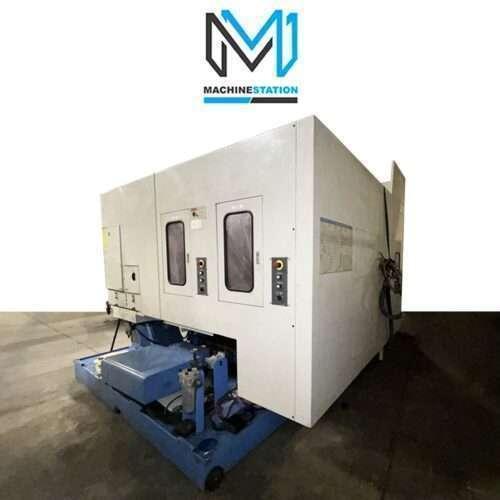

Mazak Variaxis 630 5 Axis CNC Vertical Machining Center

SKU: 112321 Make: Mazak Model No.: Variaxis 630 5X Year of Manufacture: 03/2002 Cutting Time: Only   Equipped With: Mazatrol Fusion 640 5X CNC Control Simultaneous 5 Axis Cutting Programmable Swiveling Trunnion Table 2 No. Pallet Changer 19.7 x 19.7” 12,000 RPM High Precision Spindle Through Spindle Coolant 80 Station Automation Tool Changer 1969 IPM Fast Rapid Traverse Rate Renishaw Probing System Ready PCMCIA Card Slot Helical Interpolation Spindle Chiller Spindle Orientation Rigid Tapping Absolute Incremental Programming High Pressure Coolant System Chip Conveyor Transformer Work light   Travels: X Axis: 24.80″ Y Axis: 30.12″ Z Axis: 20.08″ A Axis: – 120° + 30° ( 150° Table Tilt ) C Axis: 360° ( Table Rotate ) Min. Increment: 0.001°   Pallet: No. of Pallets: 2 Length: 19.70″ Width: 19.70″ Max Weight on Table: 1102 lbs   Spindle: Taper Size: 40 Max. Speed: 12,000 RPM Power: 30 HP   Feed rates: Rapid X, Y & Z : 1969 Inch Per Minute Cutting Feedrate: 1574 Inch Per Minute   Tool changer: Capacity: 80 Station Taper: 40 Max Tool Size: 3.15″ Max Tool Length: 14.17″ Max Tool Weight: 17.6 lbs. Tool Change Time: 5.5 Second   General: Air Required: 100 psi, 4 scfm Power: 50kva / 400v / 3-Phase Shipping Dimension: 162″ X 96″ x 126″ High Weight: 37,400 lbs *“No Charges for loading at list Price” Make Mazak Model Variaxis 630 5X Categories Vertical Machining Center
