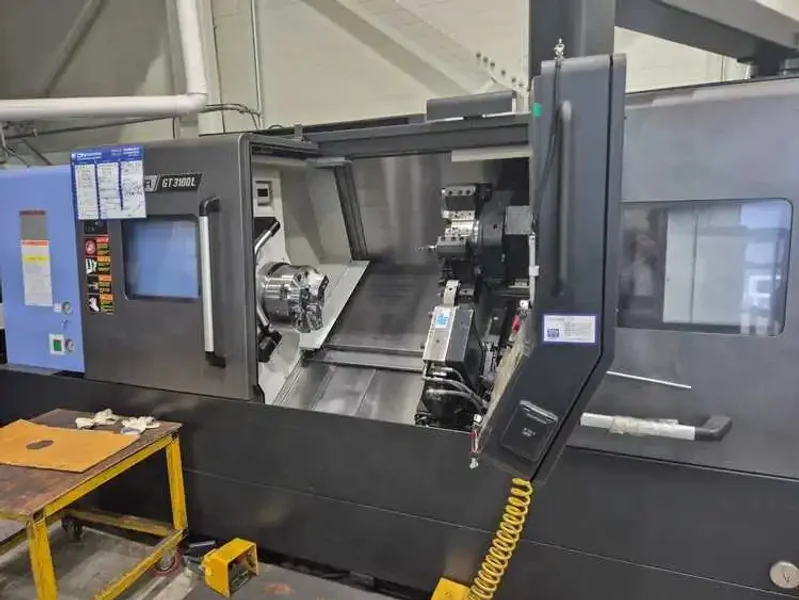

2023 DN SOLUTIONS Puma Gt 3100L | Lathes, Bar, CNC

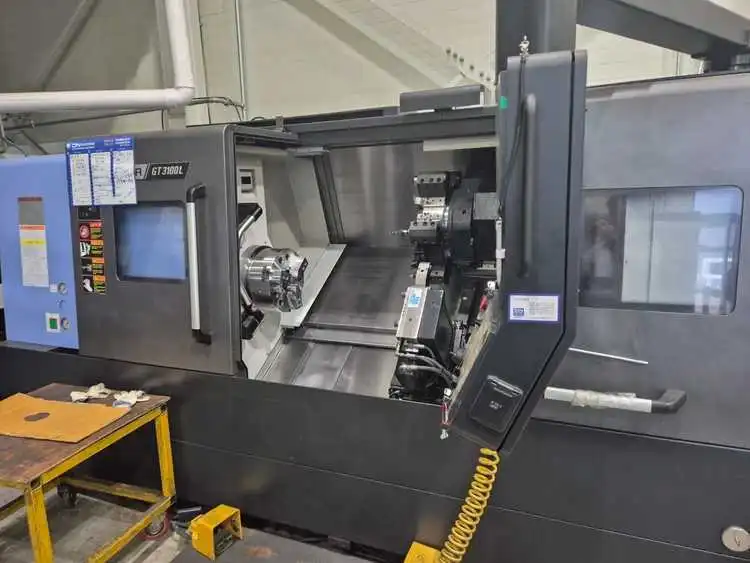

DN Solutions Puma GT 3100L CNC Turning Center by Doosan
New: 9/2023

Specifications:
Swing Over Bed 28.3"
Machining Length 50.2"
Chuck Size 1 12"
Spindle Nose 1 A2-11
Spindle Bar Capacity 1 4"
Turning Diameter, Shaft Diameter 18.9"
Spindle Speeds 1 2,800 RPM
Spindle Horsepower 1 45 hp
Spindle Bore Diameter 1 4.4"
X - Axis Travel 10.2"
Z - Axis Travel 53.1"
C - Axis Travel 1 0°
Rapid Traverse Rate - X1 945 in/min.
Rapid Traverse Rate - Z1 1,181 in/min.
Gear Ranges 0

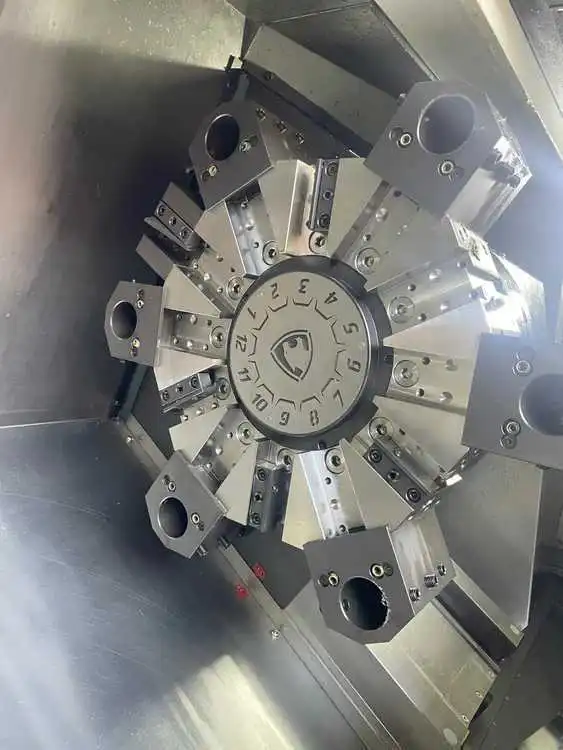

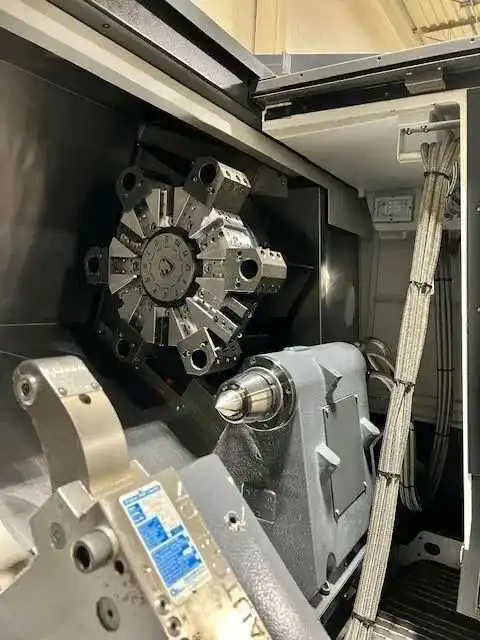

Turret Configuration 1 12
Tailstock Quill Diameter 3.9"
Tailstock Taper MT #5 LIVE CENTER
Tailstock Quill Travel 3.9"
Programmable Tailstock YES
Tailstock Travel 45.3"
Bar Capacity 4"
Tailstock YES

Equipped With:

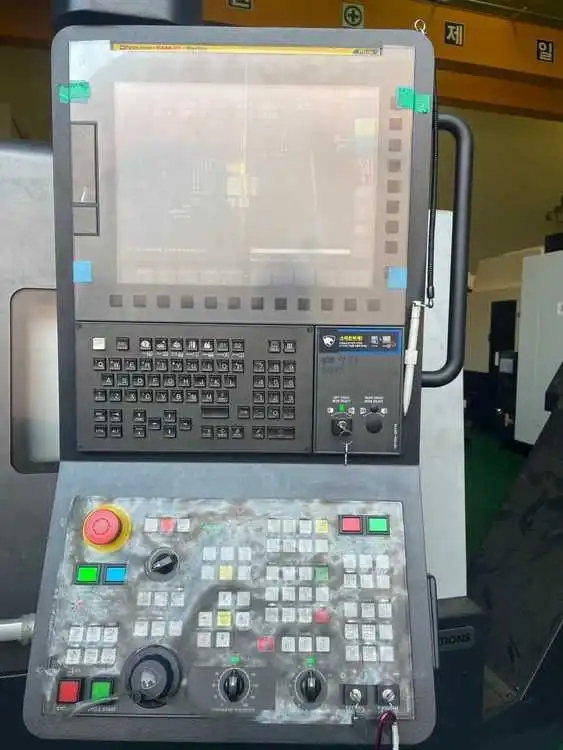

DOOSAN FANUC SERIES I CNC CONTROL
Weight 15212 LBS.
128 PAIRS OF TOOL OFFSETS
CHIP CONVEYOR
CHUCK CLAMPING CONFIRMATION
DOOSAN TOOL LOAD MONITORING

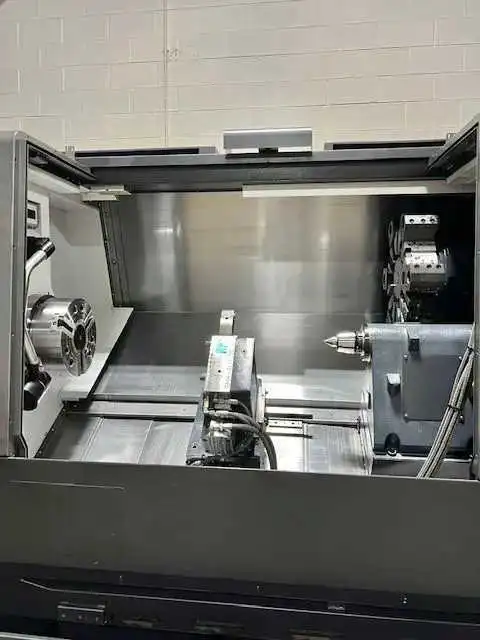

PROGRAMMABLE TAILSTOCK

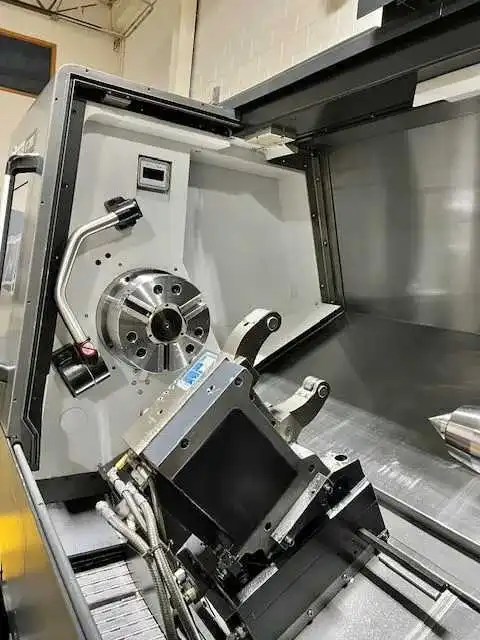

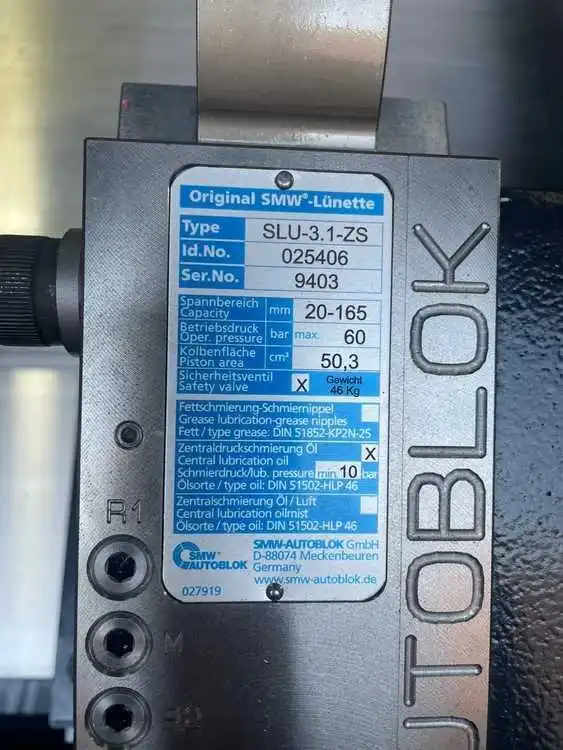

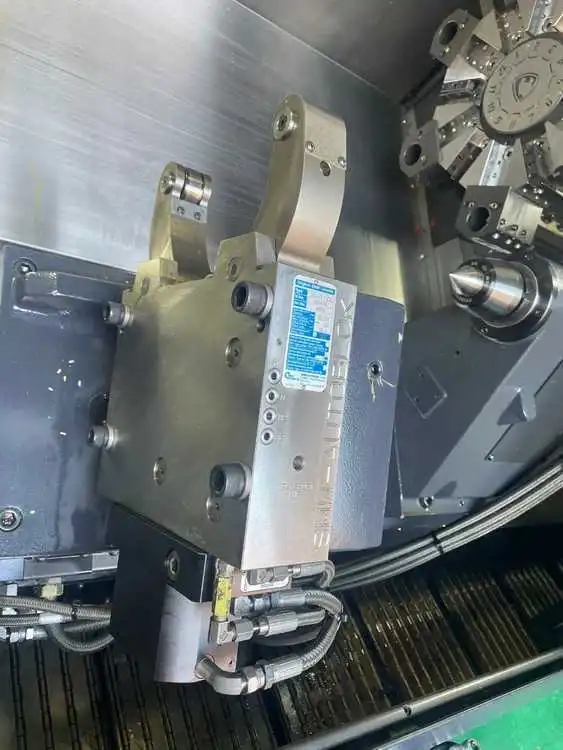

SMW SLU 3.1-ZS HYDRAULIC STEADY REST
TOOL PRESETTER
15" COLOR LCD MONITOR
LIVE CENTER
CHIP BUCKET

285 CUTTING HOURS
