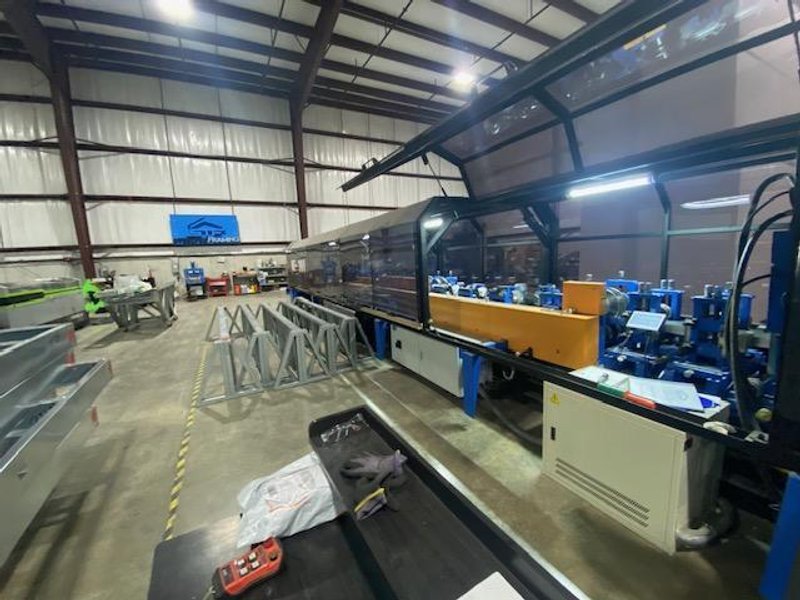

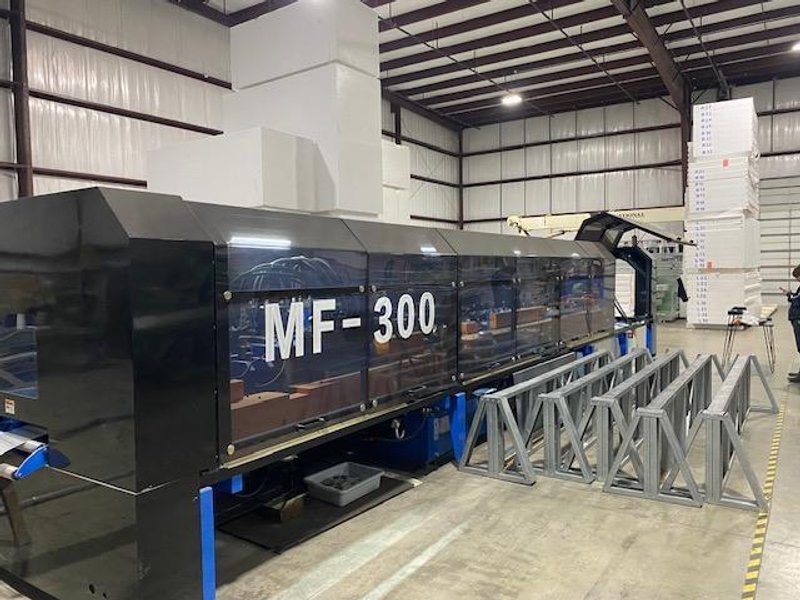

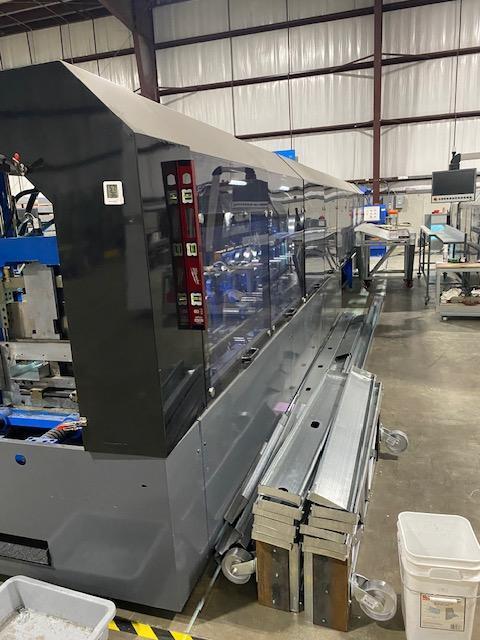

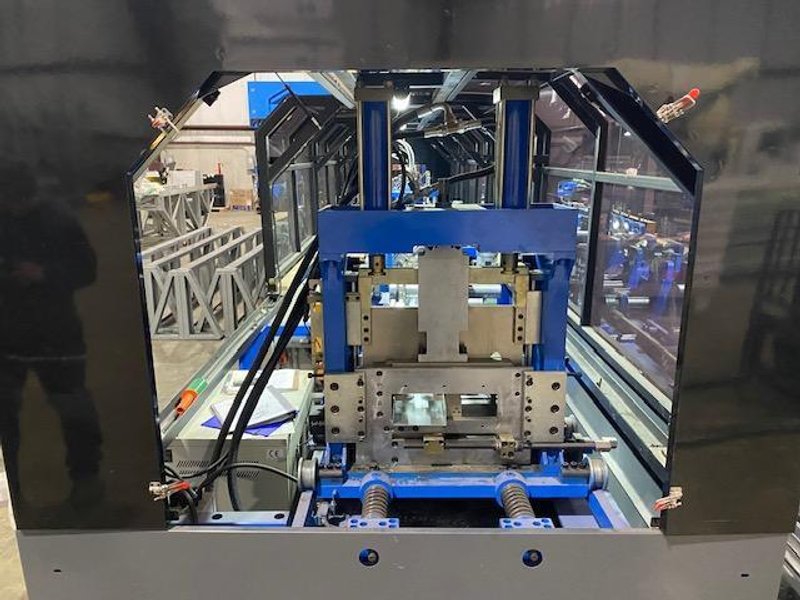

Frametec MF-300 Metal Stud Rollformer, 2022

Machine: Weight: 45981.81 lbs. Dimensions: 404.05” x 166.02” x 77.16” Width in any size within: 2.5″ to 12” Flange: 1.25″ – 2.5″ Lip: 0.78” Thick: 0.1” (adjustable) Production Speed: High Speed 1.37”/min. Material: Q235, G550 Hot rolled strip pr ot rolled galvanized strip

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Voltage: 380 V Frequency: 50 Hz Electrical Phase: 3 P Power Supply: 22 KVA Power: 19.03 hp

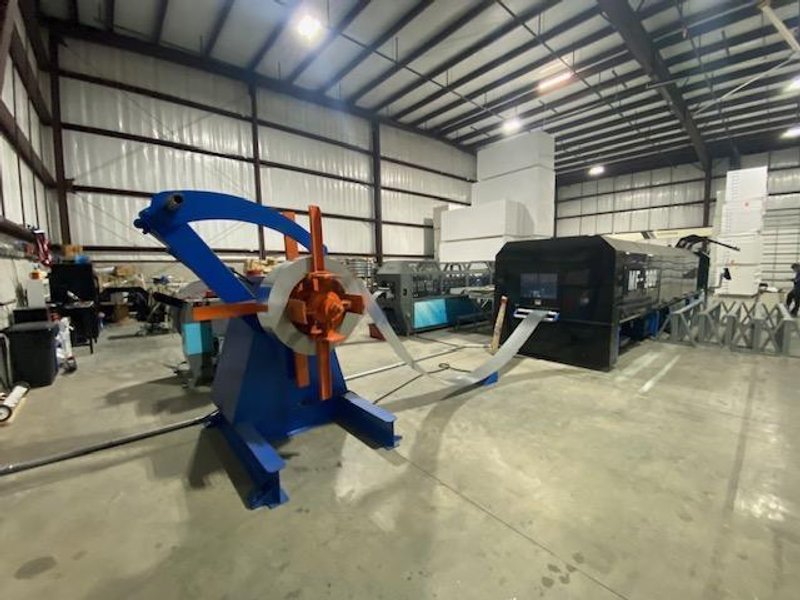

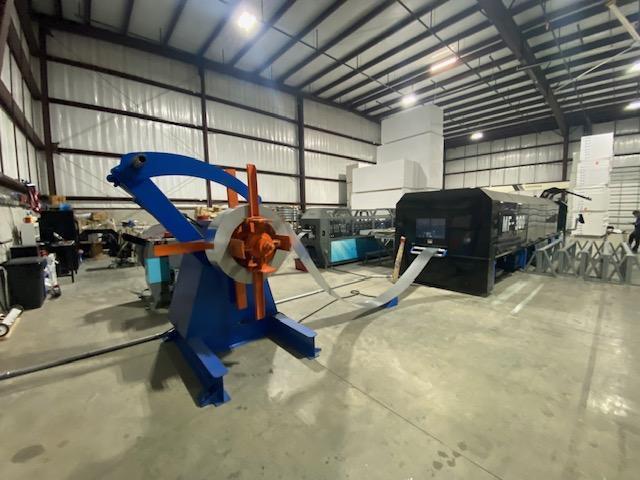

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Decoiler: FDY71 Fully Automatic Load: 6 Tons Tension mode: Hydraulic tension Spindle double holding brake Self-driven feeding Weight: 2226.66 lbs. Dimension: 90.43” x 110.23” x 74.01”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Support Table: Support length: 6 Meters Support Method: Fixed storage table Weight: 209.43 lbs. Dimension: 236.22” x 20.07” x 33.30”

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Hydraulic System: Hydraulic power: 15 hp Flow: 28 ml Tank Volume: 200 L Dimension: 1.85 “ x1 2.59” x 61.41” Oil circuit of hydraulic station: 10

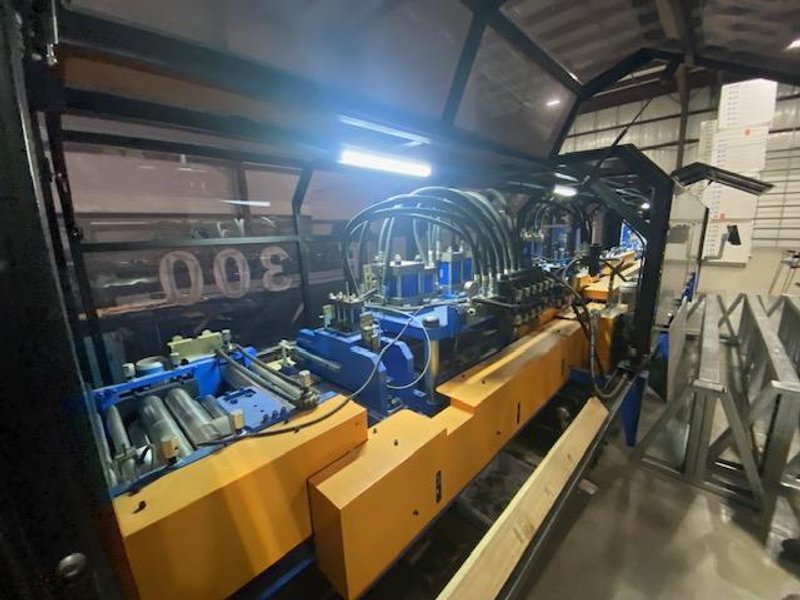

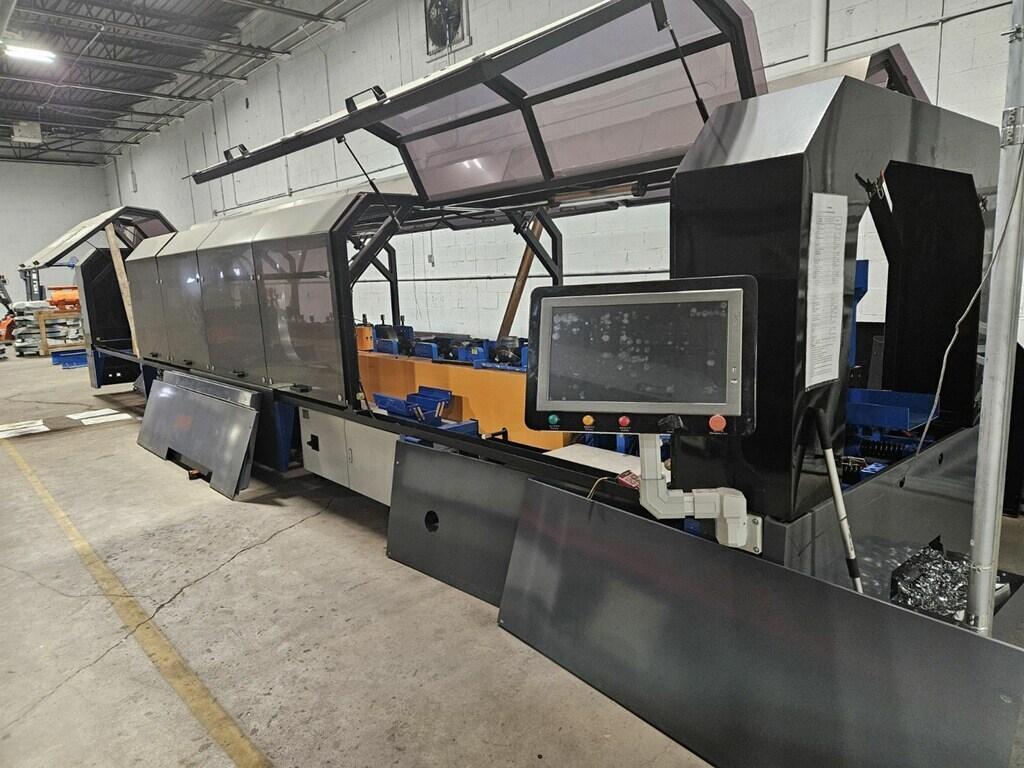

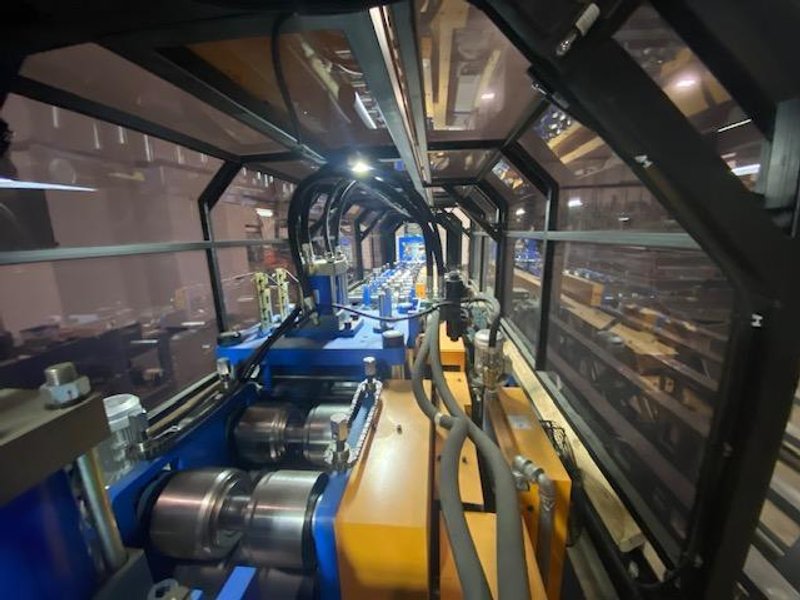

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Hydraulic Decoiler Feeding and Leveling Device Hydraulic Punching Rolling Forming System Hydraulic Cutting Safety Coves Guard Industry computer control panel Product Support frame PLC Control System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,*Note: Machine Profile Lists available upon request

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
