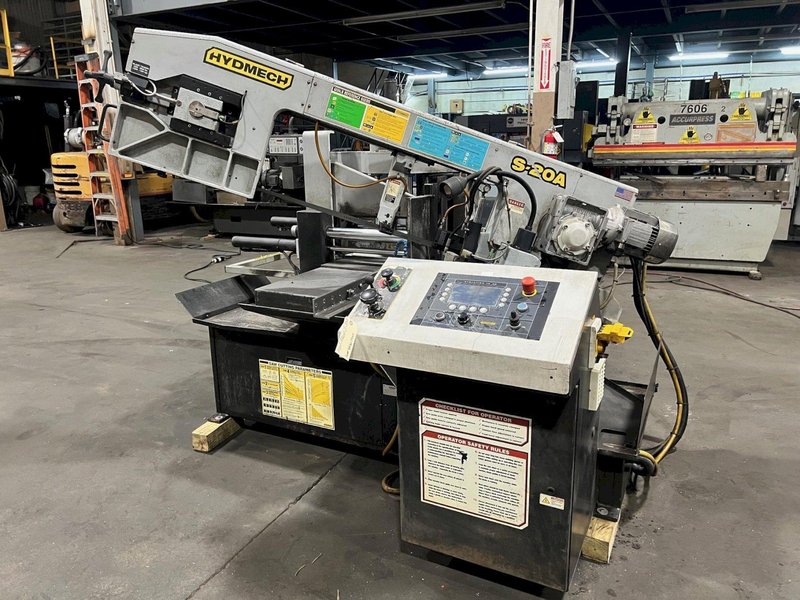

USED HYD-MECH 13" X 18" FULLY AUTOMATIC MITERING BANDSAW MODEL S-20A, Stock# 11146, Year: 2017
Brand
Category
Type
Model
S-20A
Stock #
11146
Year
2017
Condition
Used
Location
Michigan
|
Brand: Hyd-Mech

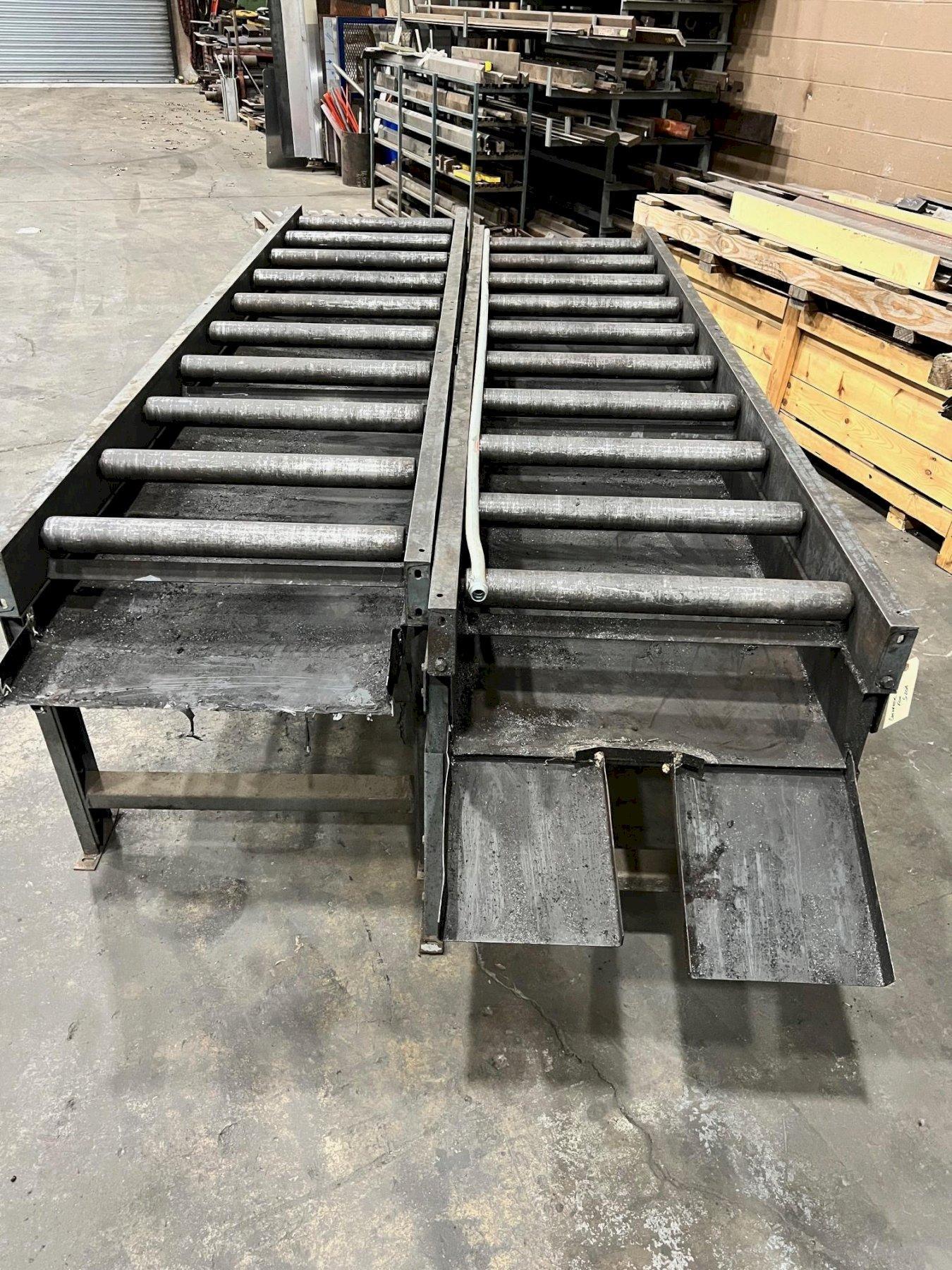

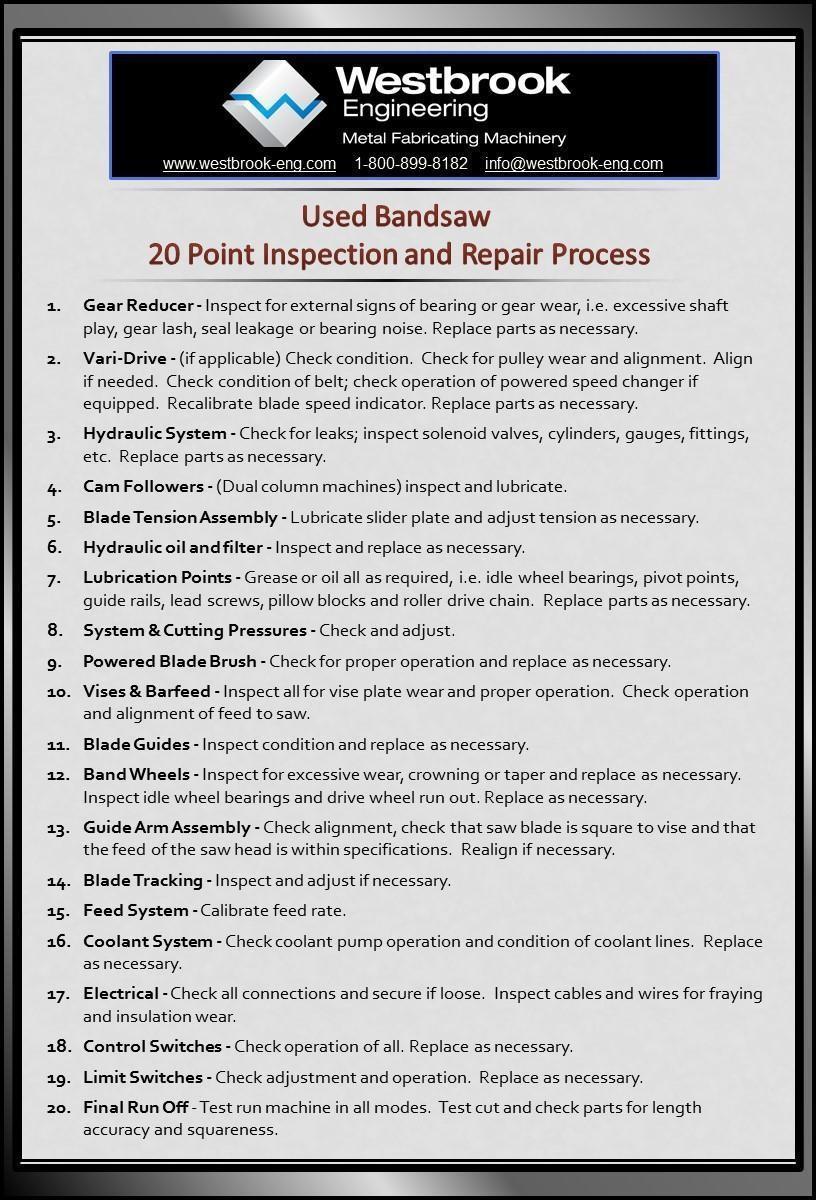

Model: S-20A Specifications: Capacity @ 90 degrees: 13" T x 18" W Capacity @ 45 degrees: 13" T x 10-3/4" W Capacity @ 30 degrees: 13" T x 7-3/4" W Blade size: 14'10" x 1" x .035" Blade drive: 3 H.P. Blade speed: 40 - 350 FPM Blade wheel diameter: 17-3/4" Coolant tank capacity: 6 gallons Mitering: 0 - 60 degrees Work load: 5,000 Lbs. Shuttle stroke: 29" Voltage: 240 volt 3 phase Dimensions: 93" x 86" x 52" Weight: 3,785 Lbs. Equipped with: Full capacity overhead bundling (2) 10' roller conveyors Variable frequency blade drive Direct drive motor to gearbox Positive hydraulic downfeed Cast iron guide arms Flood coolant Carbide blade guides Powered blade chip brush Manual blade tension Out of stock switch Linear ball bearing shuttle feed We put our Bandsaws through a 20 Point Inspection and Repair Process assuring immediate performance when they hit your floor. |
