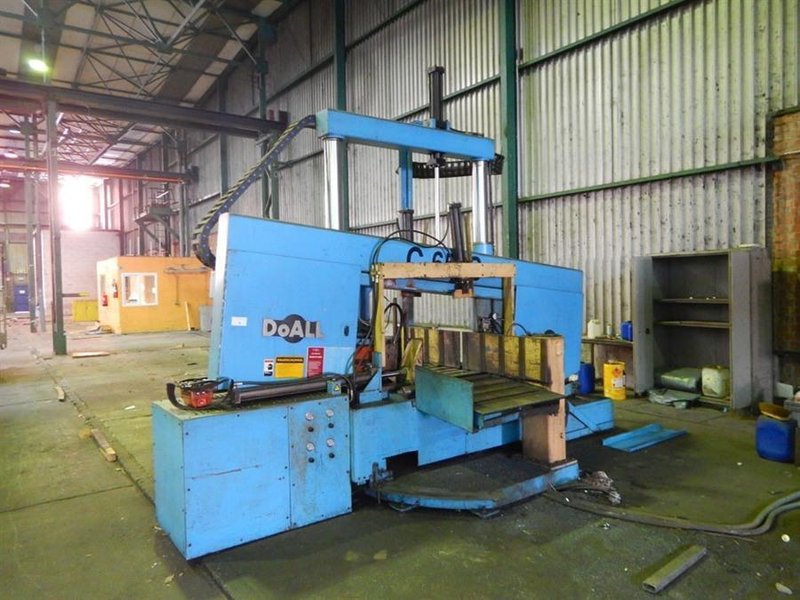

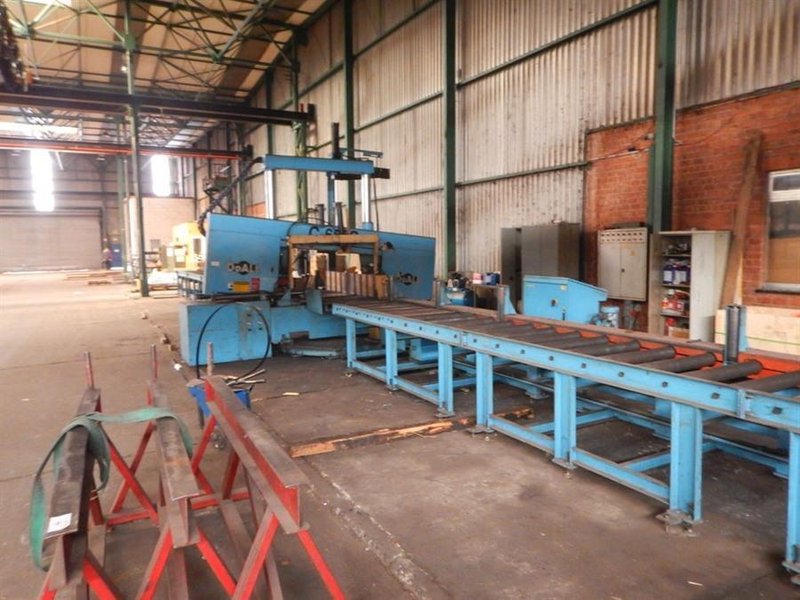

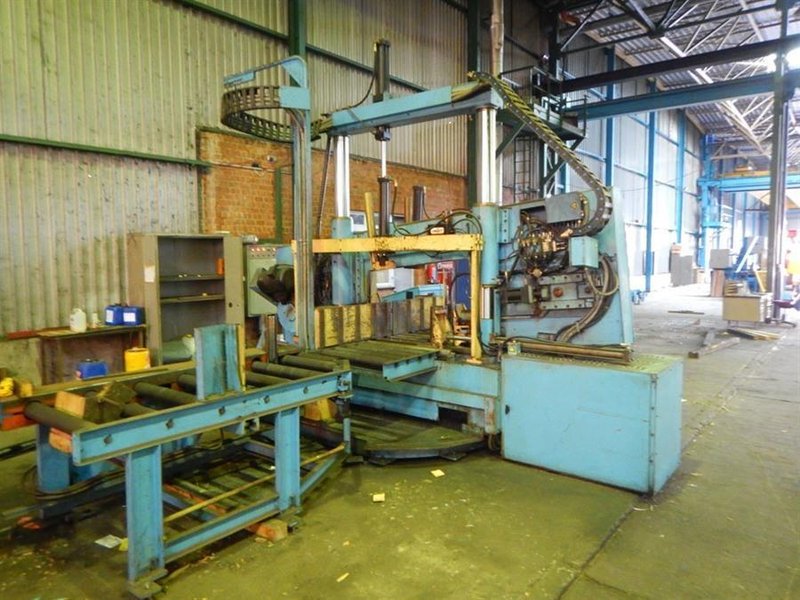

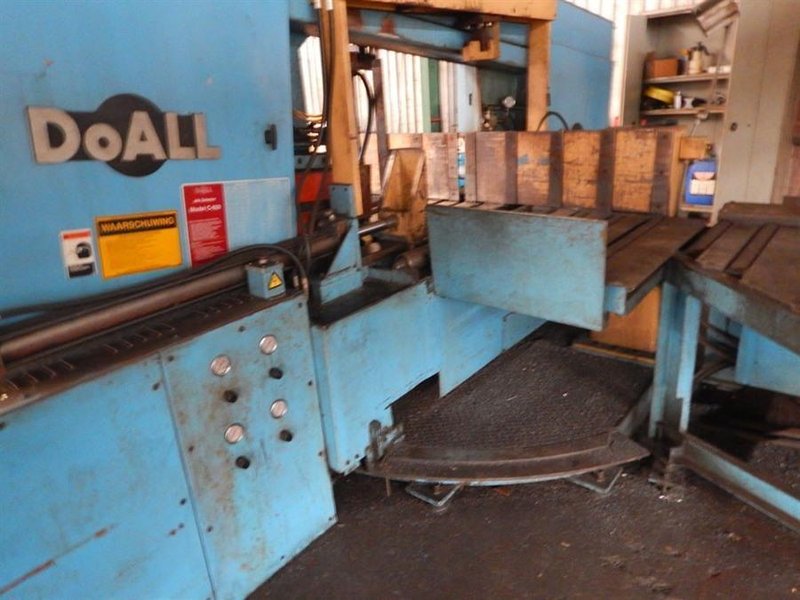

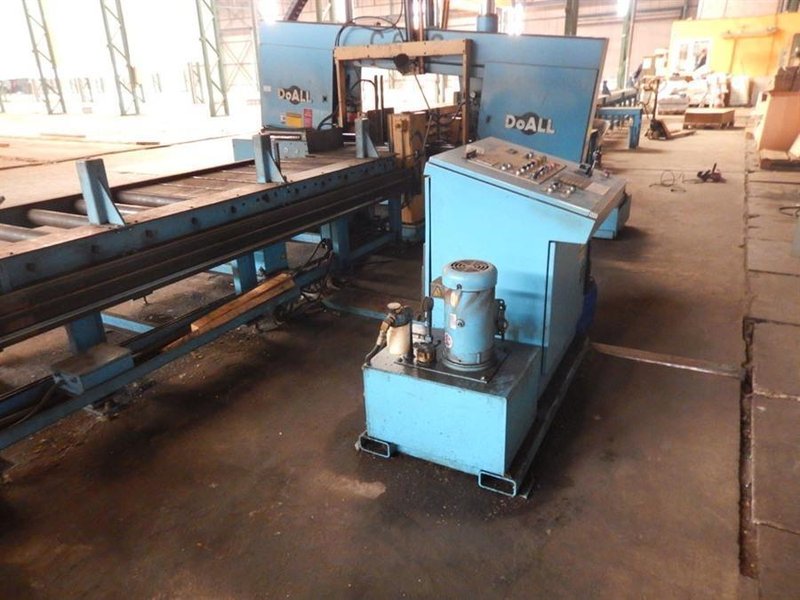

Doall 1000 x 660 mm CNC

Brand
DOALL
Category
Saws
Type
Saws, Bandsaws
Model
1000 x 660 mm CNC
Stock #
L.03 9675
Year
Not specified
Condition
Not specified

Location

Not specified
REQUEST FINANCING
Located in Deinze, Belgium

Technical information

  • Max height of workpiece 660 mm
  • Sawspeed 12 > 110 m/min
  • Length of band saw 8636 mm
  • Power needed 10 HP
  • Weight 6 ton

Additional info

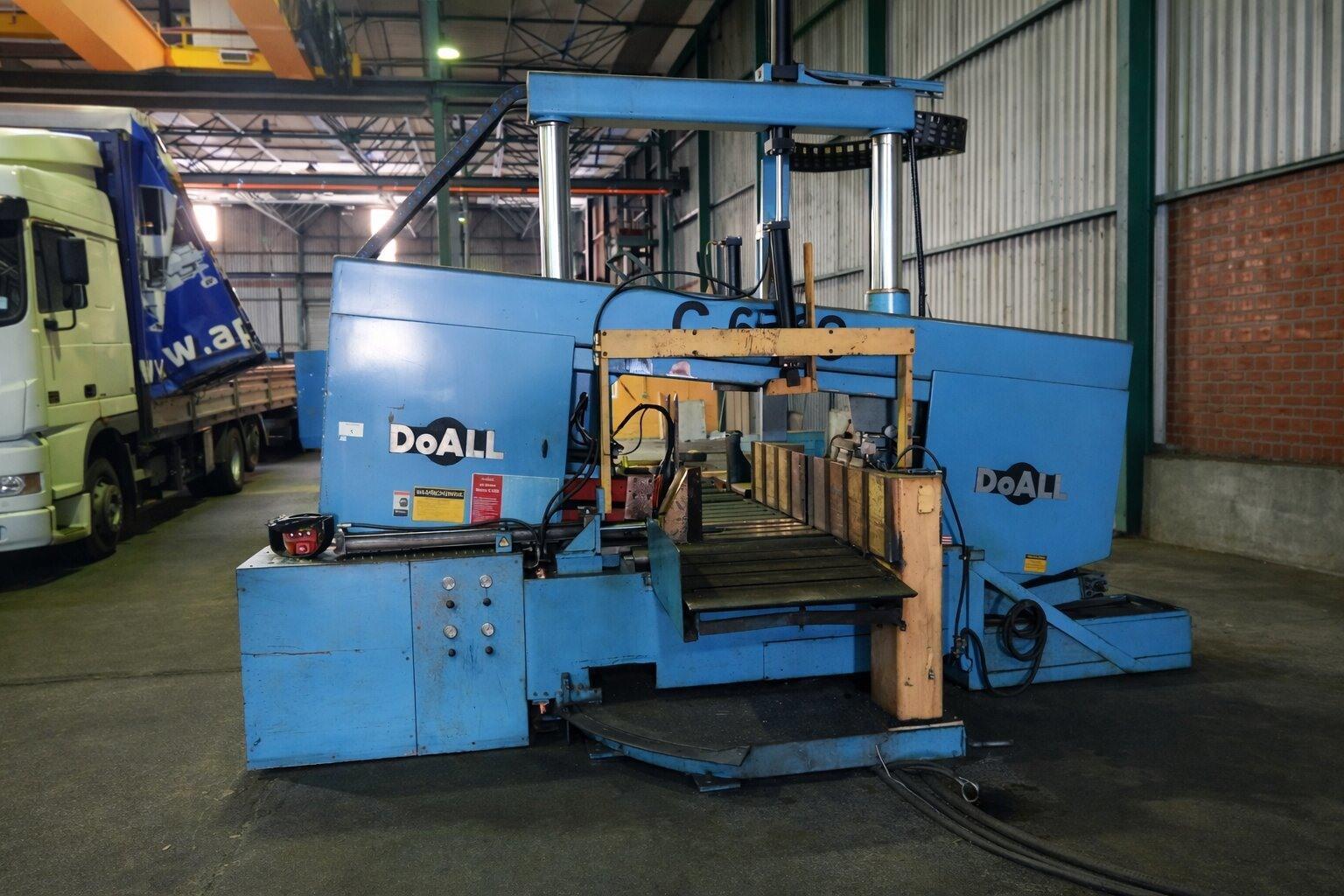

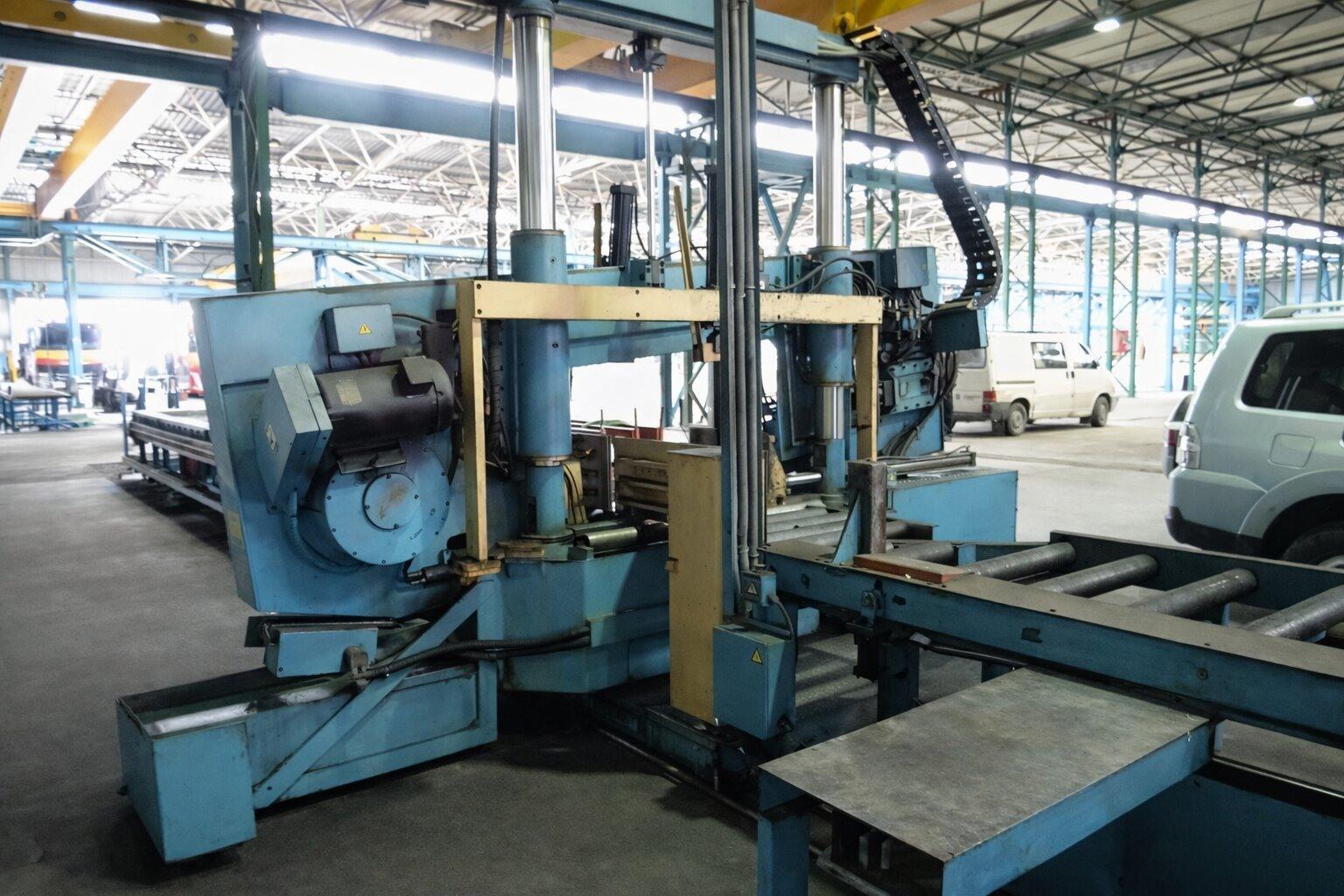

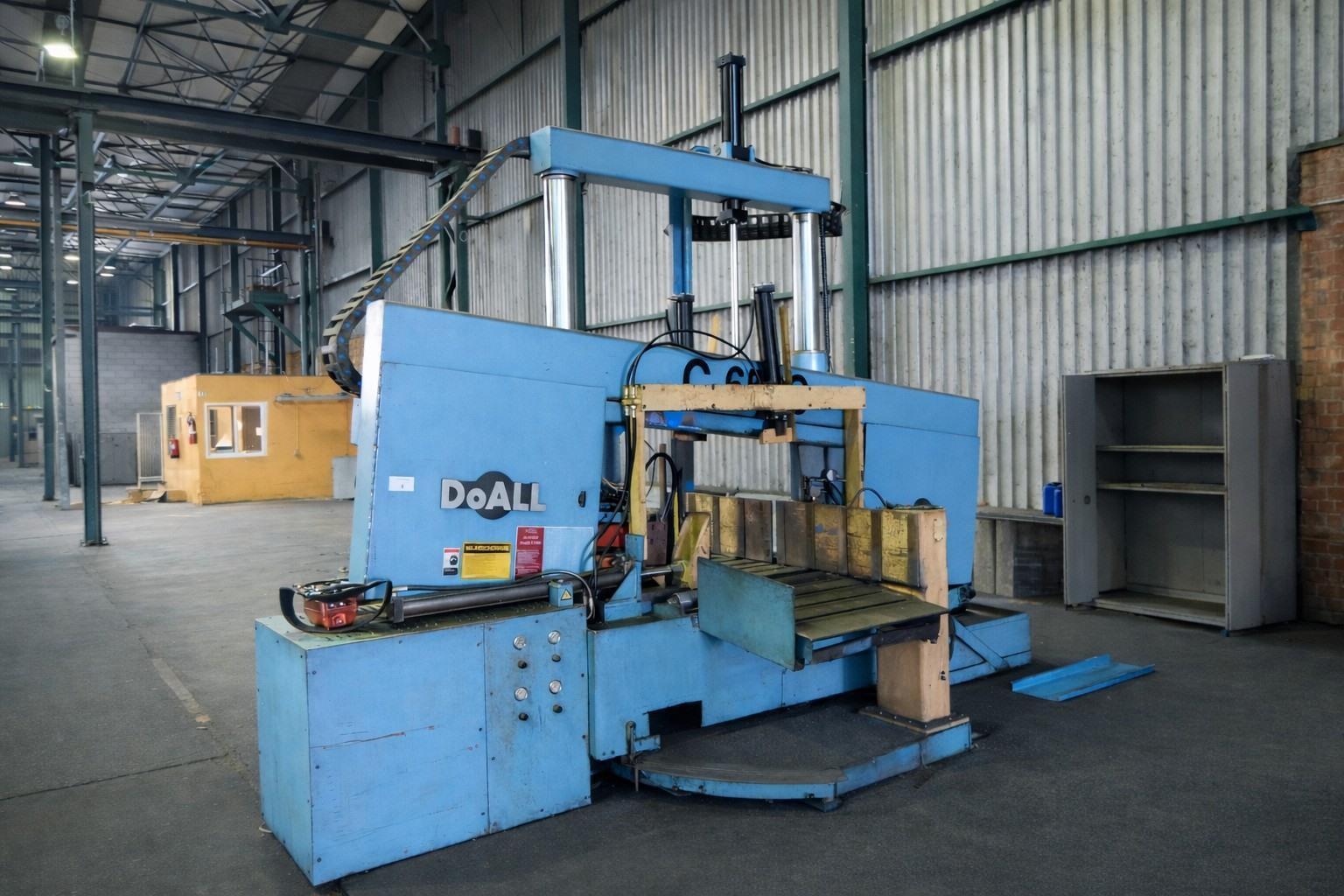

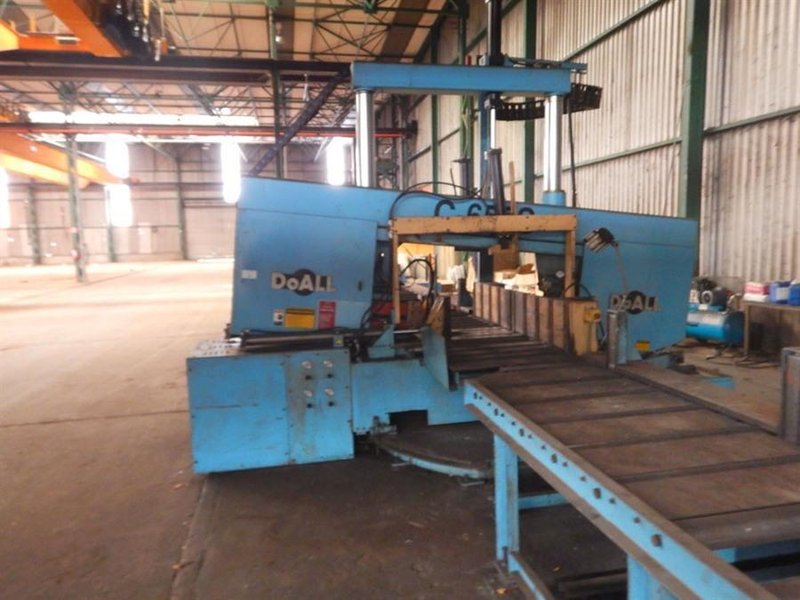

  • The DoALL C-650 45/45 degree swivel double column structural saw is designed to cut round, square, tubular or structural shapes of any material quickly and accurately. The machine features a powerful 10 HP motor and 2 inch band saw blade tensioned at 30,000 psi to deliver accurate cuts at optimum rates in all materials from ordinary carbon steels to exotic alloys. Hardened and ground, chrome plated columns with Teflon and bronze bushings insure accurate cutting and long life. The machine s base swivels 45 degrees left and 45 degrees right for accurate miter cuts.

    Cap round: 660 mm
    Cap rectangular 90°: 1000 x 660 mm
    Cap rectangular +45°/-45°: 560 x 660 mm

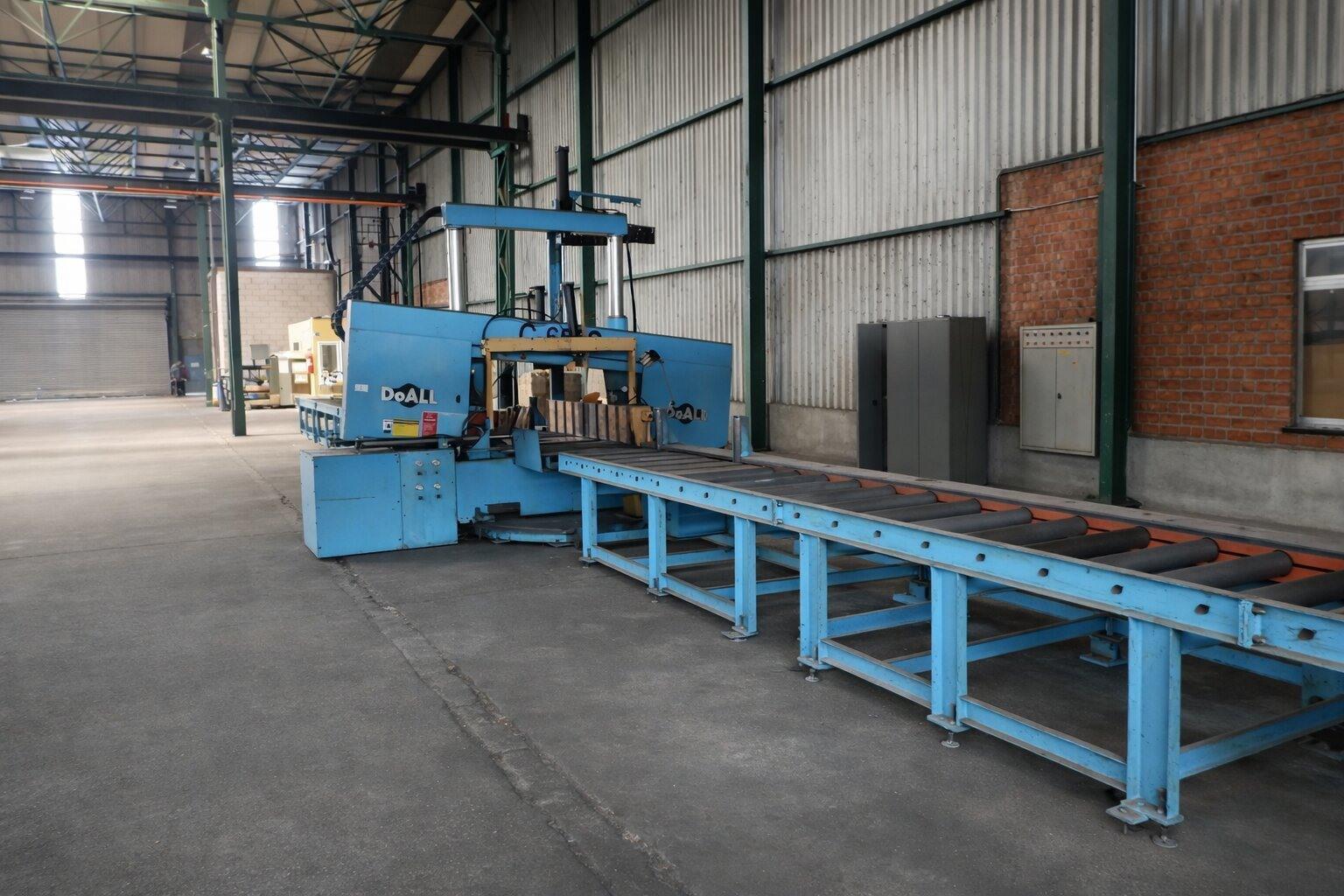

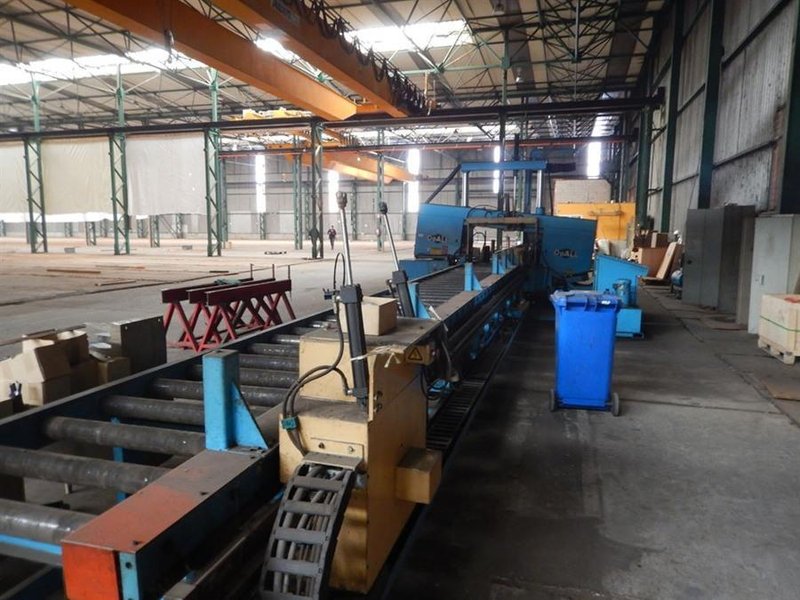

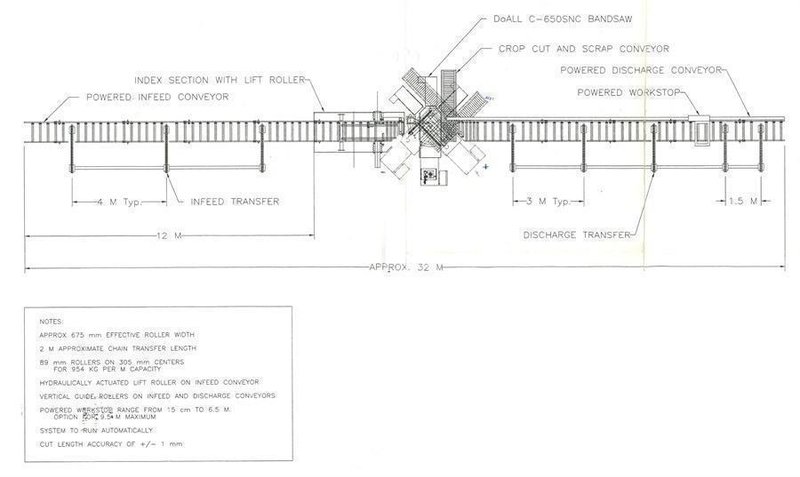

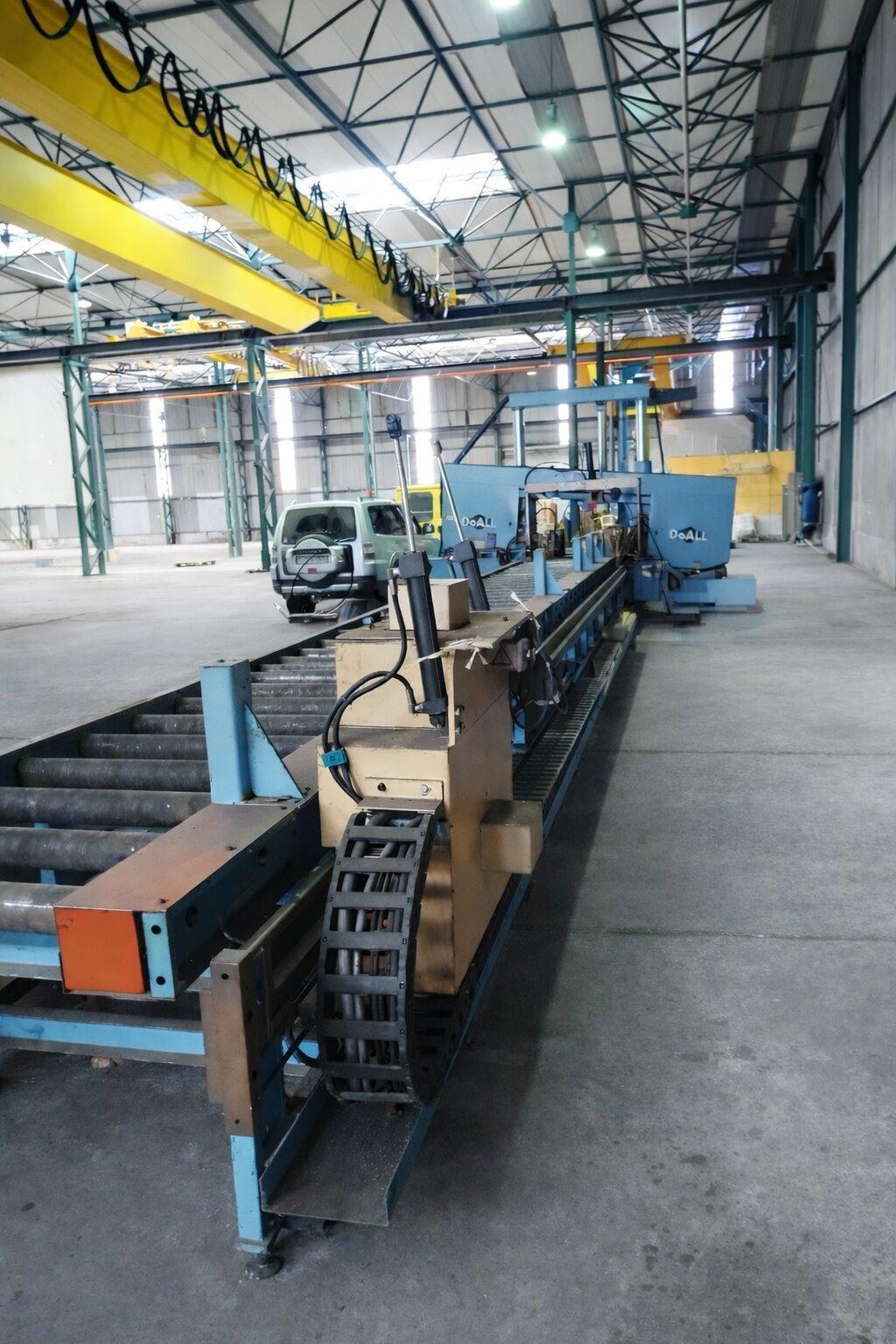

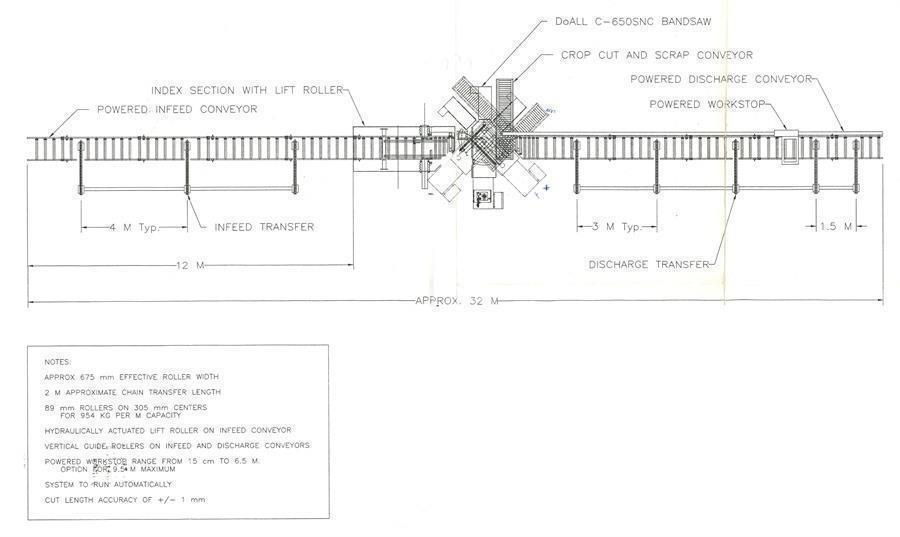

    12 meter motorized CNC infeed table

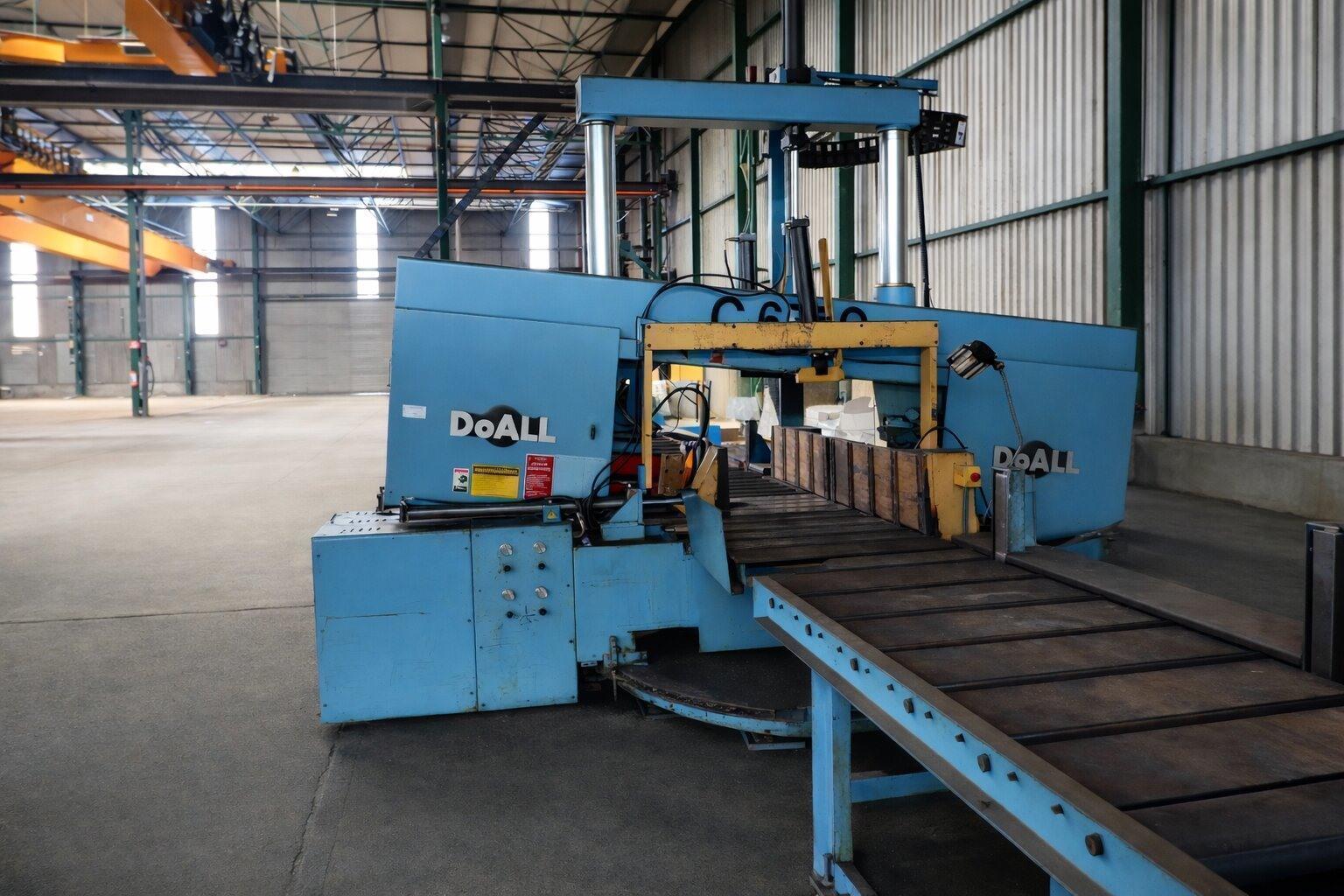

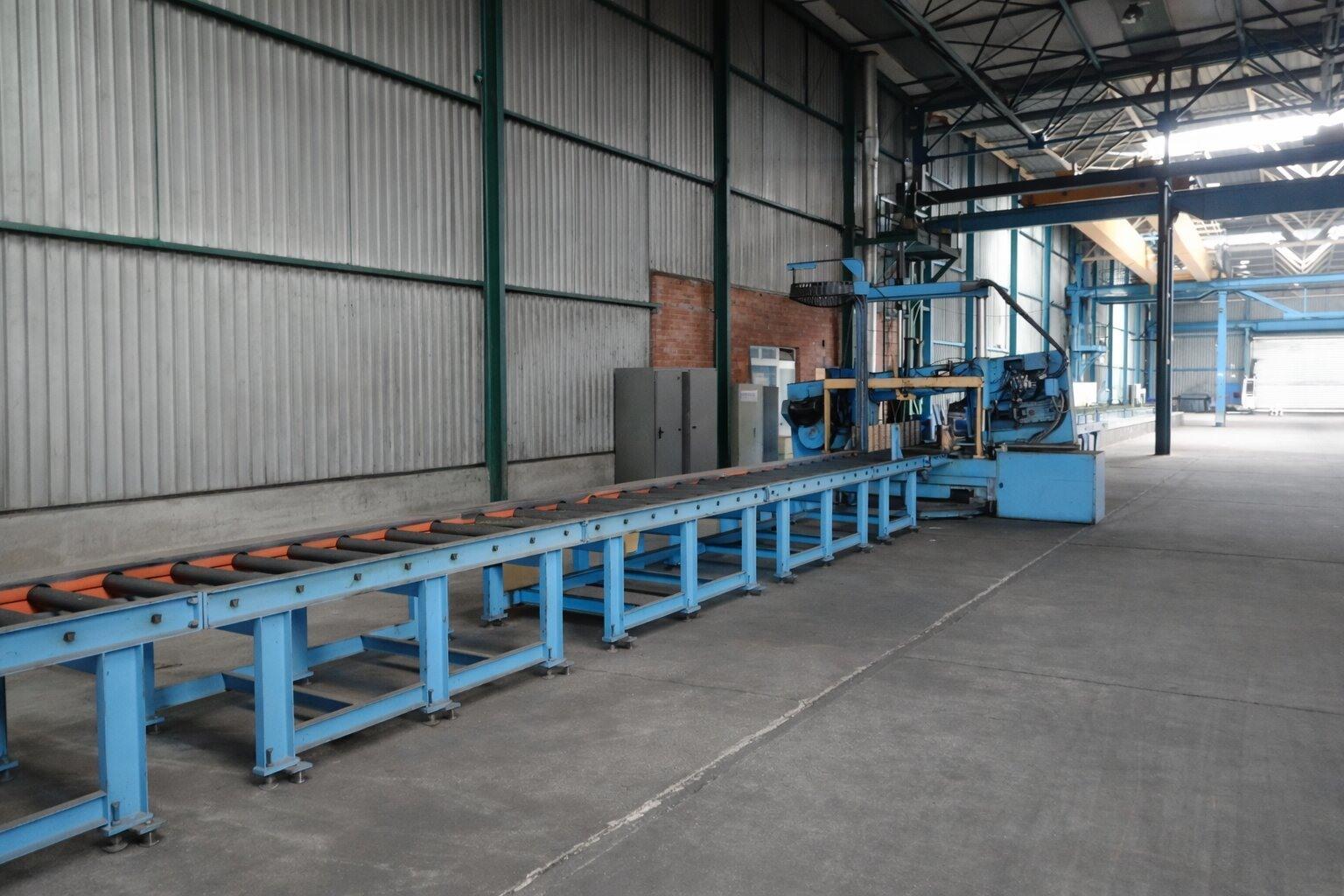

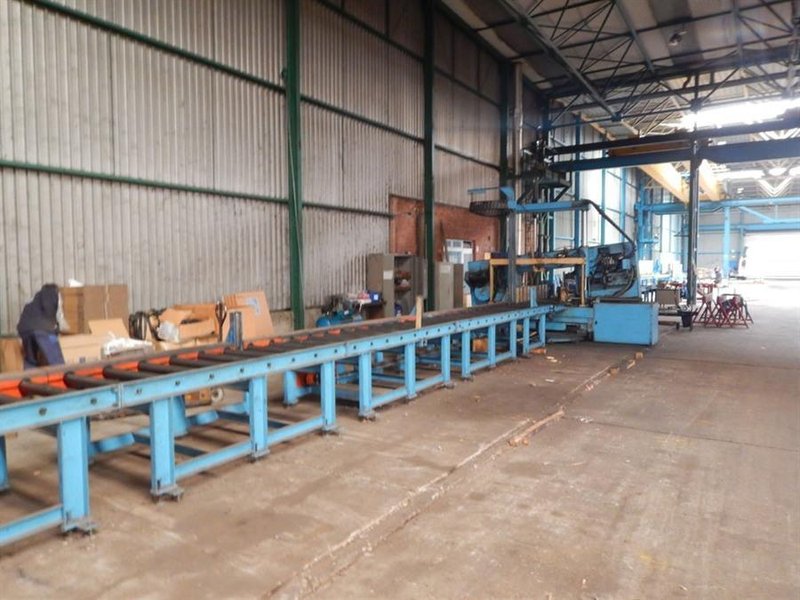

    10,5 meter motorized outfeed table

    Features:

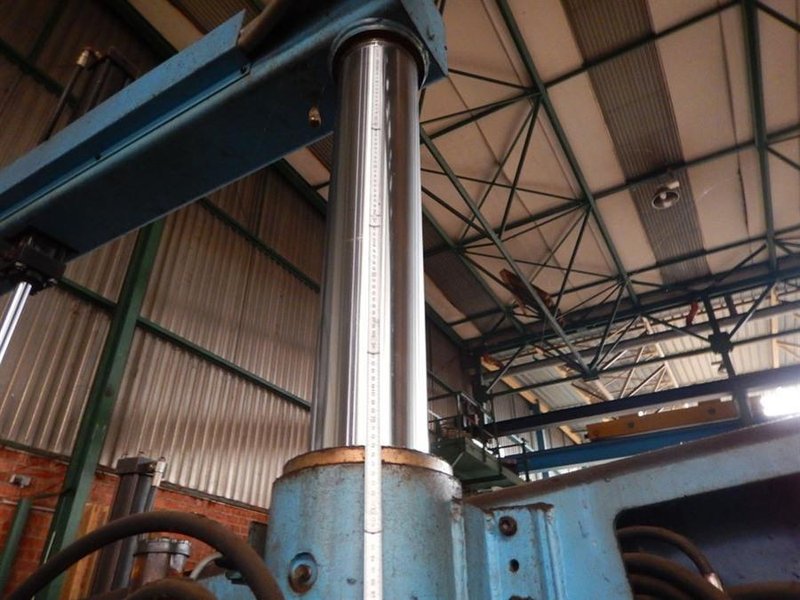

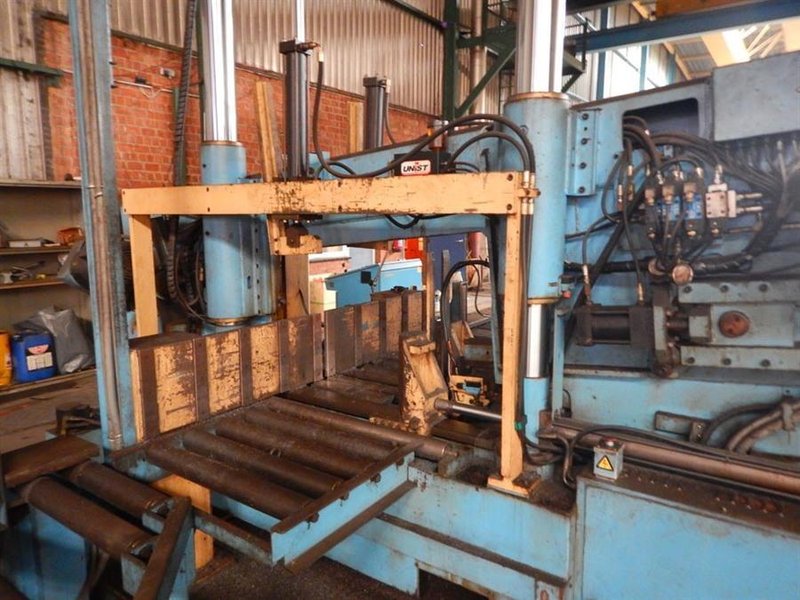

    Hardened, ground and polished columns
    Teflon and bronze bushings
    Band break limit switch
    3 degree head cant

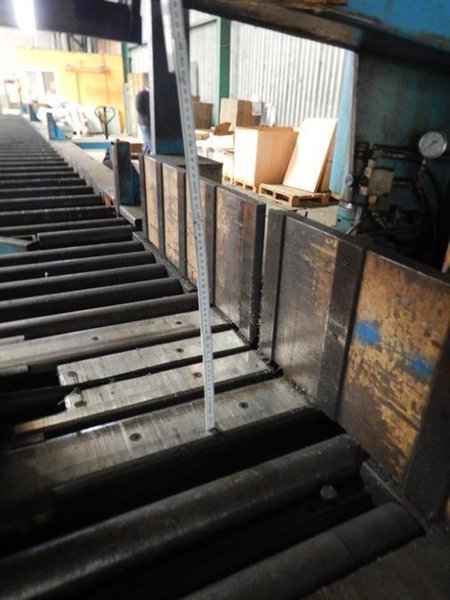

    Outboard vise
    Hydraulic band tension
    Power driven band brush

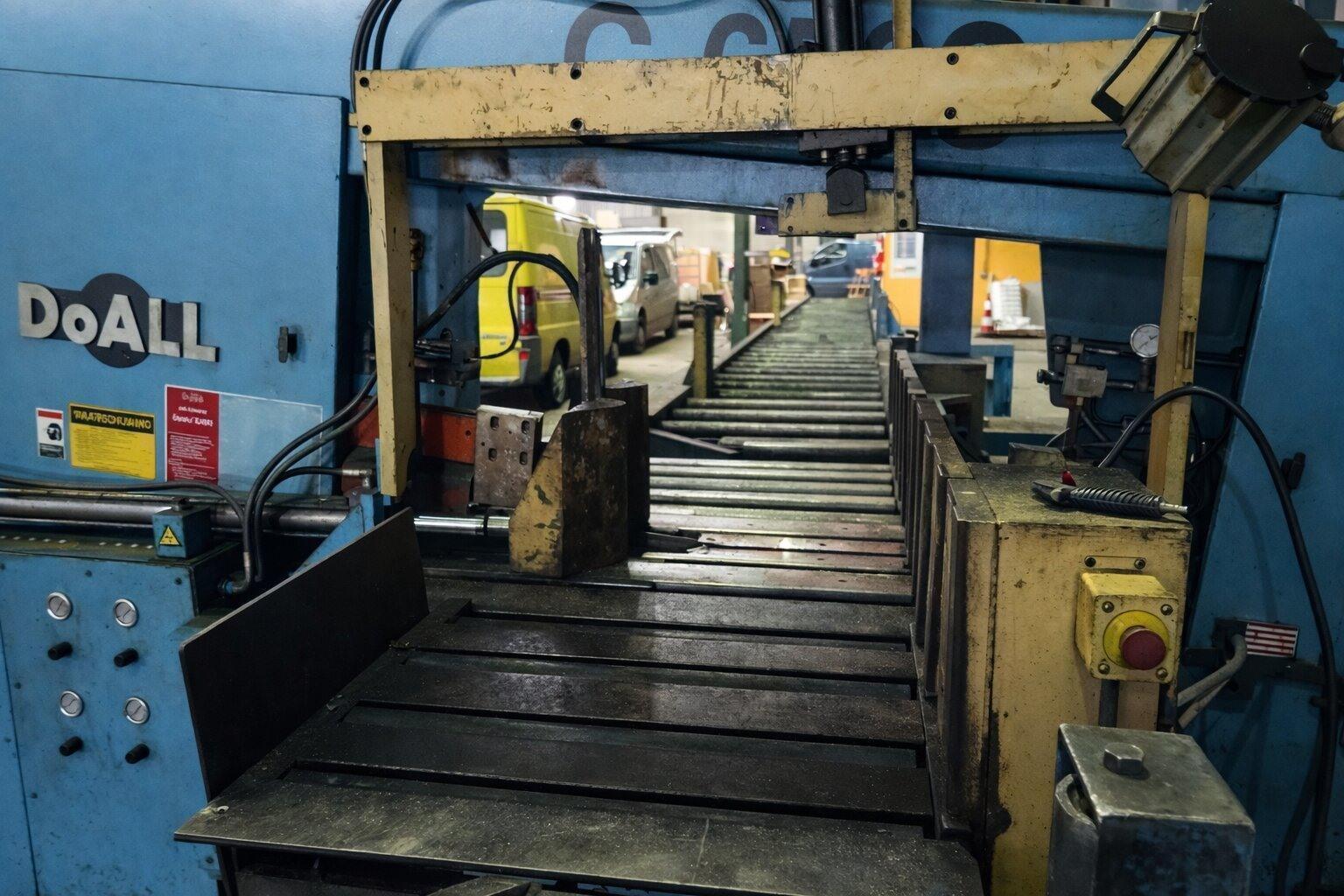

    Hydraulic actuated, zero clearance carbide faced saw guides

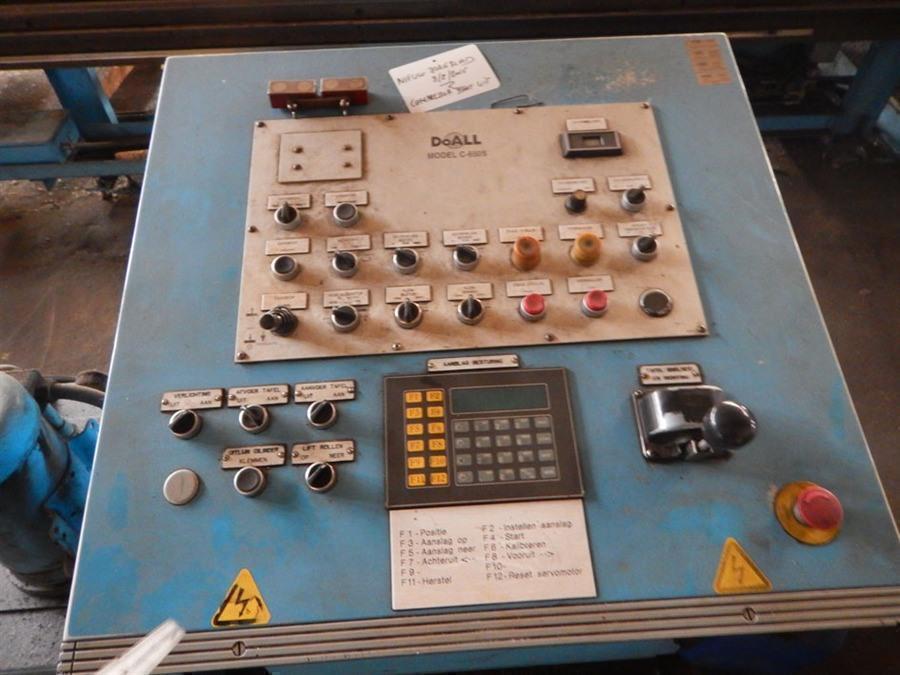

    Manual and semi-automatic cut cycles
    Servo-controlled constant feed pressure
    Hydraulic powered guide arm
No files or videos to display

Want to request a quote from the owner of this listing?

Similar Listings to - Doall 1000 x 660 mm CNC

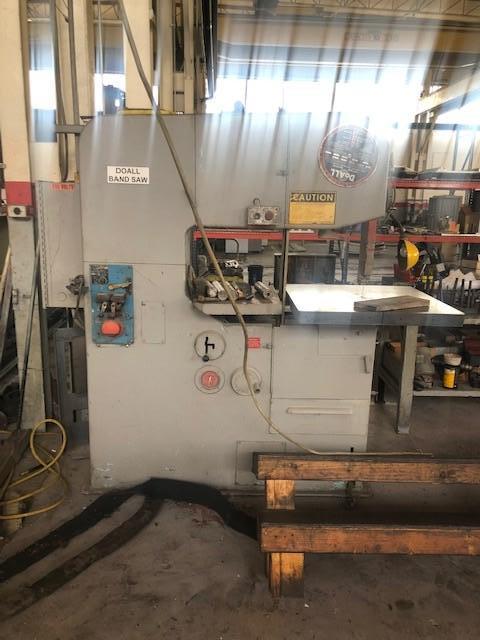

36" DOALL MODEL #ZS3620 VERTICAL BANDSAW: STOCK #21873
