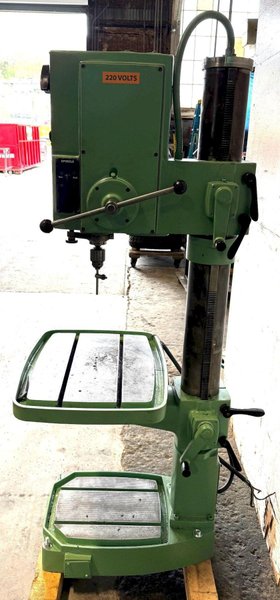

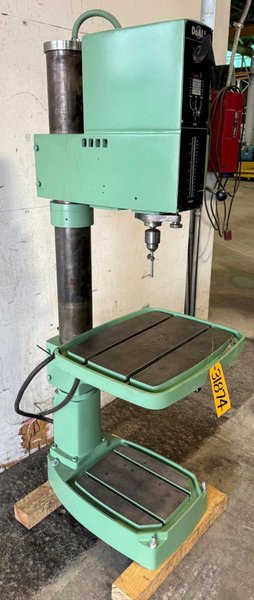

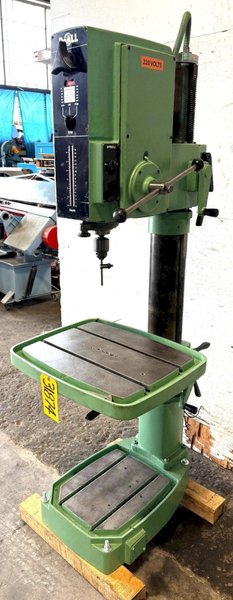

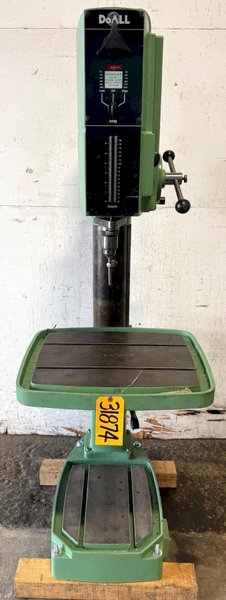

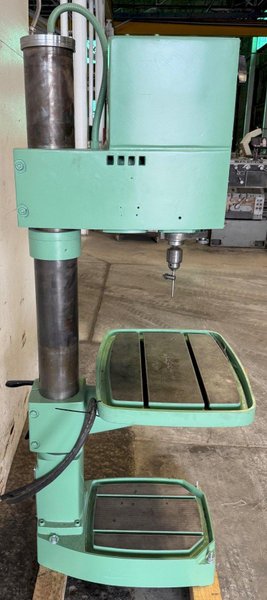

24" Doall Single Spindle Drill DG-24, Gear Head, 90-3360 RPM, 16" x 20" T-Slot Table, Clean
Brand
Category
Model
DG-24
Stock #
31874
Year
Not specified
Condition
Used
Location
Ohio
|
DOALL SINGLE SPINDLE DRILL

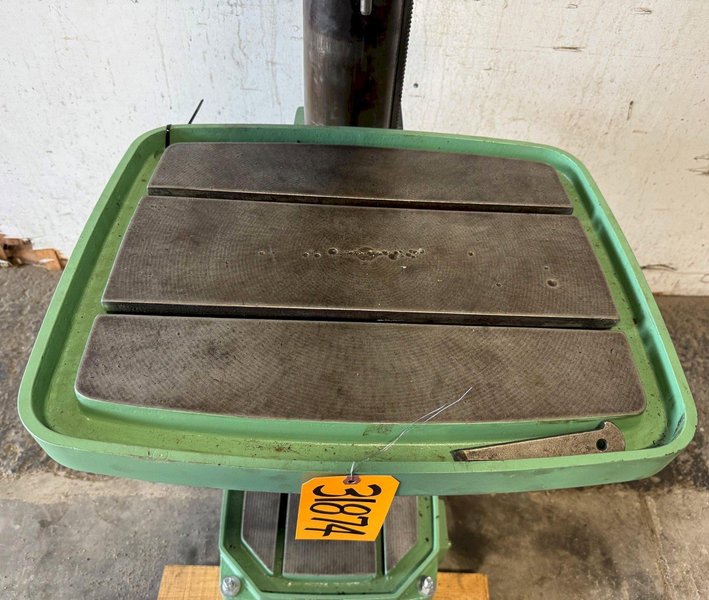

MODEL: DG-24 SERIAL NUMBER: 28/8001 GENERAL SPECIFICATIONS Gear Head Drive Hand Feed Drills To Center: 24" Spindle Speeds: (12) 90 to 3360 RPM Spindle Taper: No. 3 MT Quill Travel: 6-3/4" Column Diameter: 5-1/2" Overall Table Size: 20" x 24" Working Surface Of Table: 16-1/2" x 20-1/2", (2) T-Slots Drilling Capacity, Mild Steel: 1-1/4" Drilling Capacity, Cast Iron: 1-1/2" EQUIPPED WITH 1.9 / 1.3 HP Two Speed Motor, 220/60/3 Forward/Reverse Switch T-Slotted Base Head and Table Raising Mechanisms Depth Stop Approximate Weight: 1200 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
