50 ton Macrodyne Model MPZ-50 4-Post Used Hydraulic Press For Sale, Year 2008
Brand
Category
Type
Model
MPZ-50
Stock #
2940
Year
2008
Condition
Excellent
Location
Michigan
| Tonnage | 50 |
| Stroke | 20 inches |
| Bed Size | 72" x 30" |
| Ram Area | 72" x 30" |
|
Macrodyne 4-Post Hydraulic Press

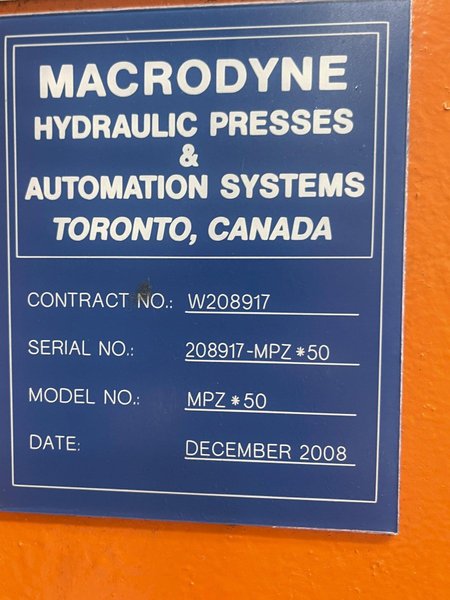

Model # MPZ-50 Serial Number / 208917 Year 2008 Pressing Force: 50 Ton
Maximum Return Force: 1.5 Ton
Usable Bed Size: 72"LR x 30" FB
Usable Slide Size: 72"LR x 30"FB
Distance Between Columns: 72"LR x 22"FB
Open Daylight: 36"
Closed Daylight: 16"
Stroke: 20"
Speeds:
Approach Speed: 19.5"@5.0"/Second = 3.90 Sec.
Pressing Speed: 0.5"@0.5"/Sec. = 1.00 Sec.
Return Speed: 20.0"@5.0"/Sec. = 4.00 Sec.
Shifting Time Etc. = 1.00 Sec.
Total Dry Cycle = 9.90 Sec.
Hydraulic System Operating Pressure: 2,600 PSI
Controls: Allen Bradley w/Panelview 600
Control Features:
Programmable Pressing Speed Slide Position and Monitoring via Position Transducer Multi-Mode Capability Programmable Dwells
Jog Function Security Screen Fault Diagnostics Electrical: 480V/3PH/60Hz
Weight: 15,000 lbs. Approximate Dimensions: 80" LR x 36" FB x 150" Tall (Max. Overall) Can be seen under power upon request! 4-post Hydraulic Press For Sale, Macrodyne Hydraulic Press |
|
Watch Click here to see a video of a 50 ton Macrodyne Model MPZ-50 4-Post Used Hydraulic Press For Sale
