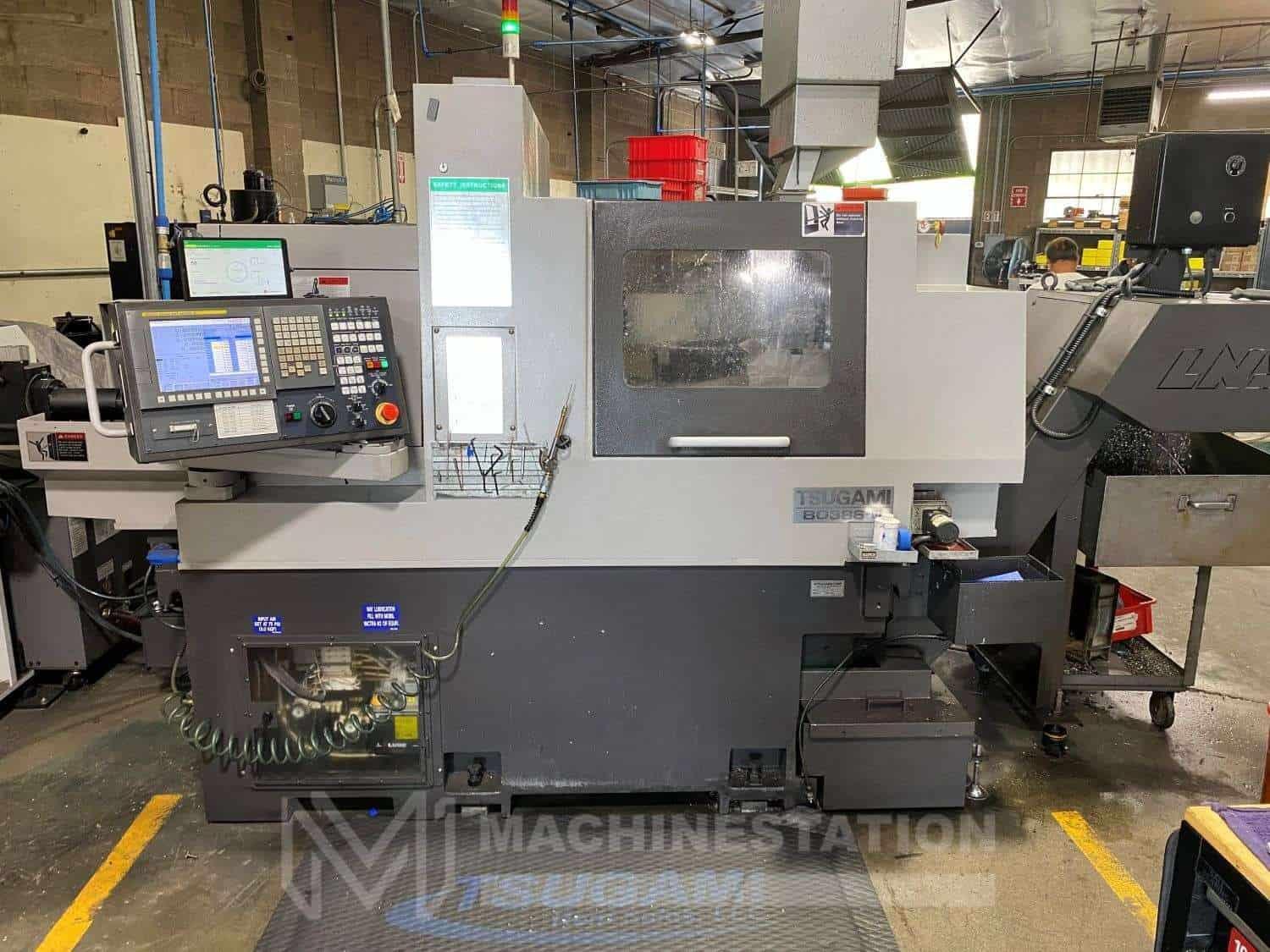

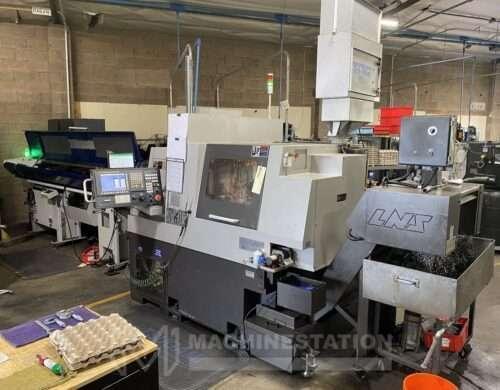

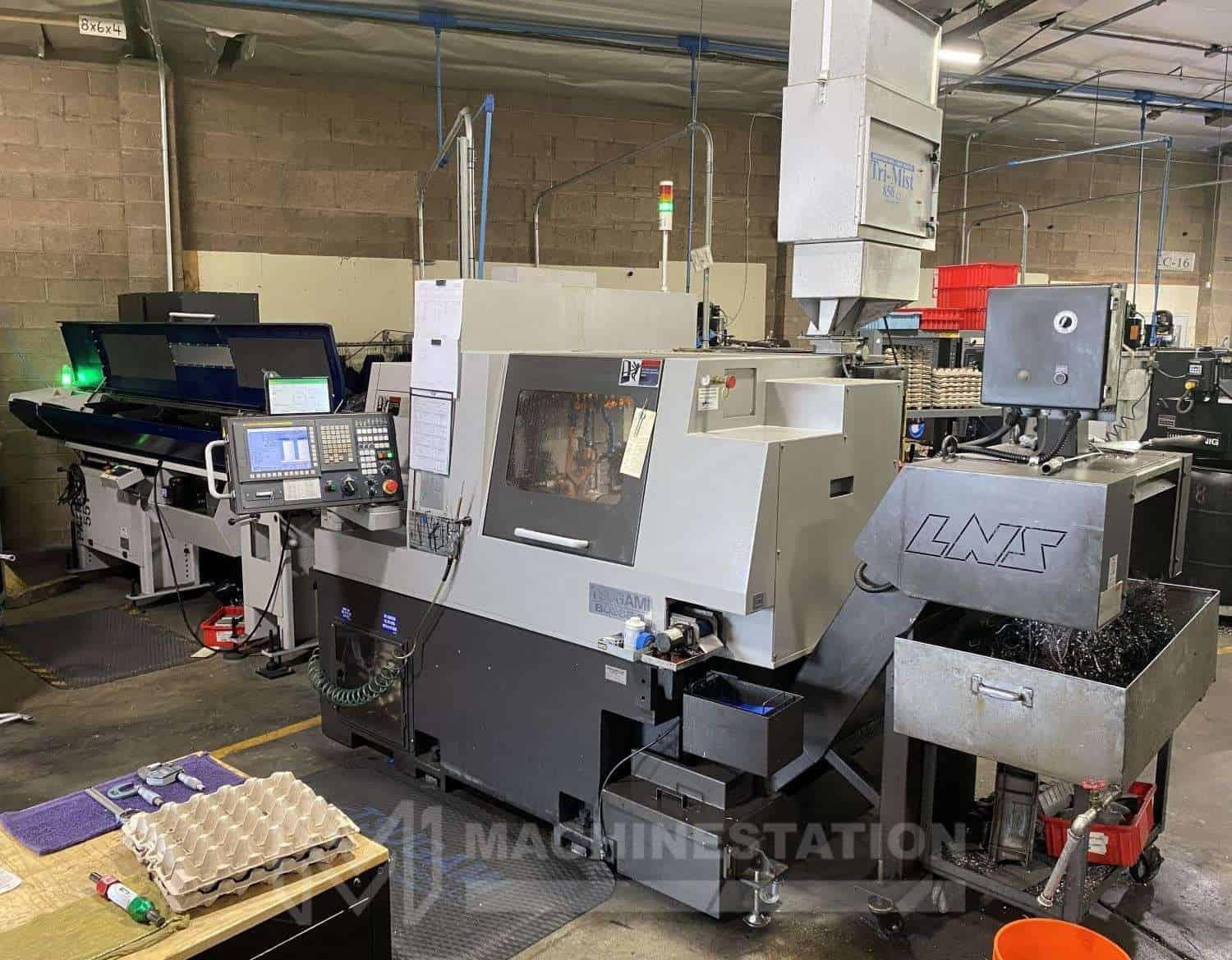

Tsugami B0386-III CNC Swiss Type Automatic Lathe

Tsugami B0386-III CNC Swiss Type Automatic Lathe

Name: Used TSUGAMI B0386-III For Sale 115049
Brand: TSUGAMI
SKU: 115049

Brand

TSUGAMI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

Make:	TSUGAMI

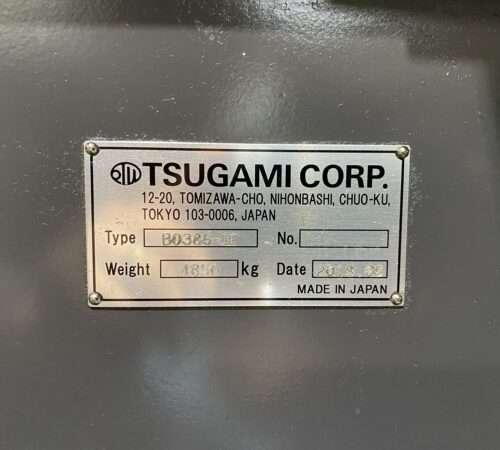

Model:	B0386-III
Year:	2019
Condition:	Used – Excellent

Equipped With:

Fanuc 32i-MB CNC Control
Controlled Axes (Liner Axes) X1, X2, Y1, Y2, Z1, Z2
Comes with Edge Technologies Patriot 551 Bar Feeder
Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 1260 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Tri-Mist 850 G2 Mist Collector

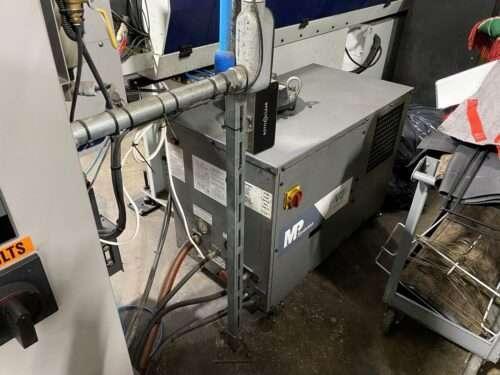

MP Systems V2 Swiss High Pressure Coolant System
LNS Chip Conveyor

Capacity:

Max Machining Diameter with Guide Bushing: 1.5″ (38 mm)
Max Machining Diameter without Guide Bushing: 1.65″ (42 mm)
Max Machining Length without Guide Bushing: 12.6″ (320mm)
Max Machining Length without Guide Bushing: 2.75″ (70mm)
Max Bar Capacity: 1.5″ (38 mm)
Max Tool Positions: 29
Max. Drilling Diameter: 0.511″ (13 mm)
Max. Tapping Diameter: M12
Max. Back Spindle Chucking Barstock Diameter: 1.5″ (38 mm)
Max. Back Spindle Drilling Diameter: 0.472″ (12 mm)
Max. Back Spindle Tapping Diameter: M12
Max. Tool Spindle Drilling Diameter: 0.393 ( 10 mm)
Max. Tool Spindle Tapping Diameter: M8
Max. Tool Spindle Slotting Cutter Diameter: T4 (45 mm)

Spindle:
Main Spindle Indexing: 360° (Full C-Axis) Main Spindle Speed: 200 – 6.000 RPM Main Spindle Motor: 11 kw Back Spindle Indexing: 360° (Full C-Axis) Back Spindle Speed: 200 – 7,000 RPM Back Spindle Motor: 5.5 kw

Standard Tools:
Front Turning Stations: 5 Back Turning Stations: 5 Front Drilling Head Stations: 5 Turning Stations: 2

Power Driven Tools Attachment:
Live Cross Mill Stations: 4 Live Sub Milling Stations: 8 Driven Tool Speed: 200 – 6,000 RPM Driven Tool Motor: 1.4 kw

General:
Power Source: AC 220v / 3-Phase /60 Hz Power Requirement: 22.4 kva Overall Dimensions: 88″ X 60″ X 81″ High without Bar Feeder Weight: 10,694 lbs. Approx.
