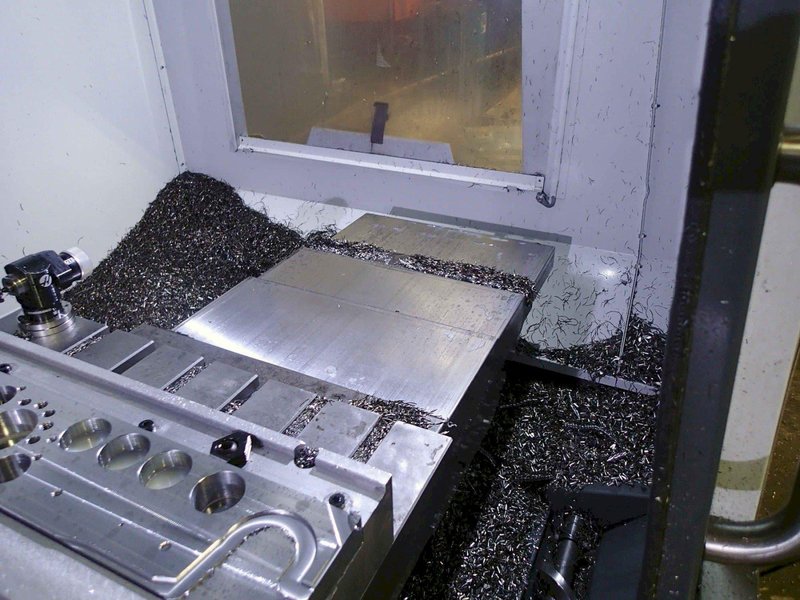

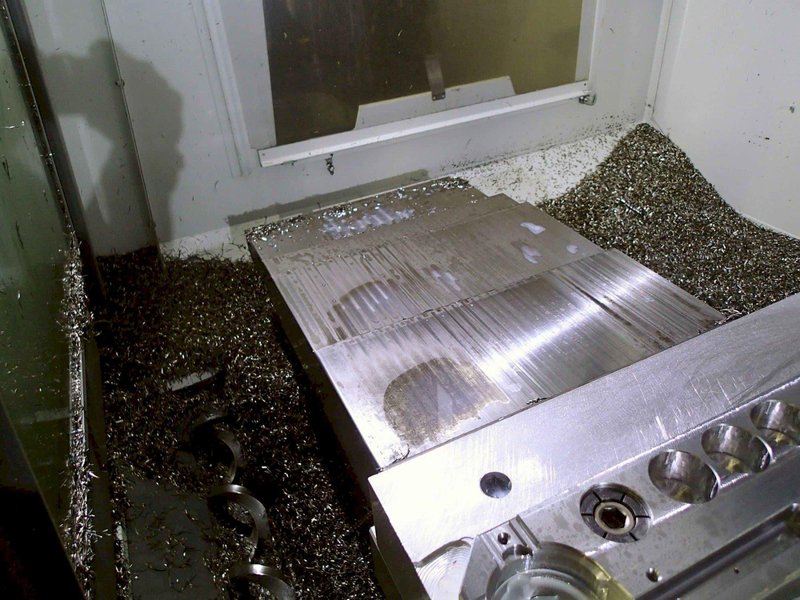

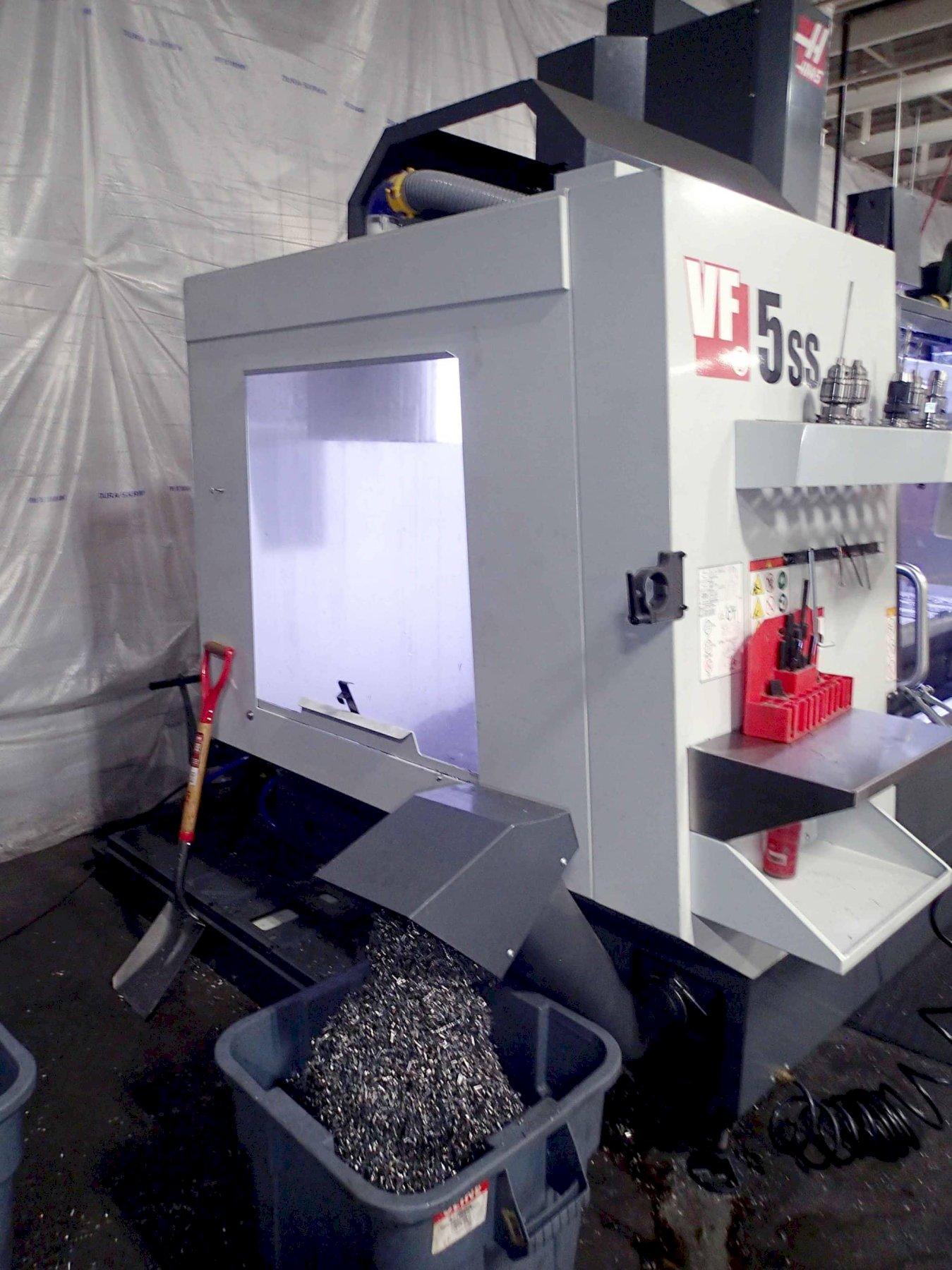

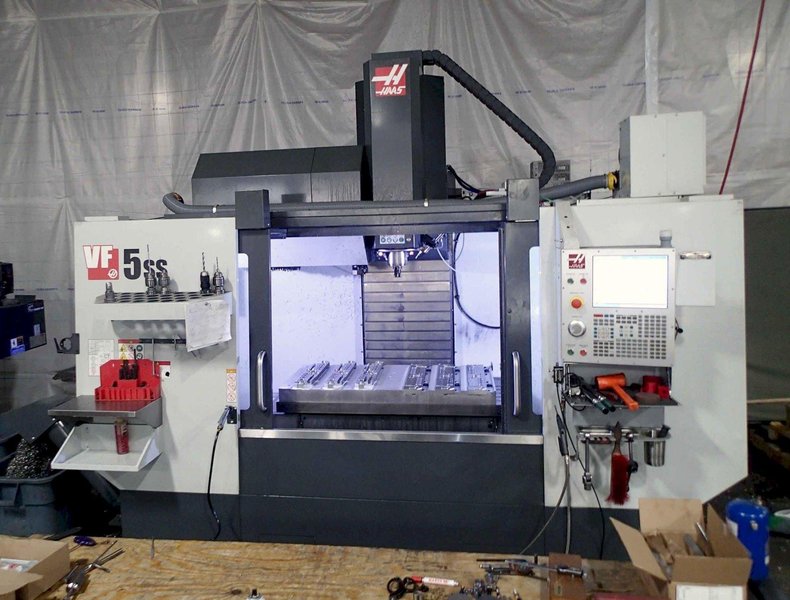

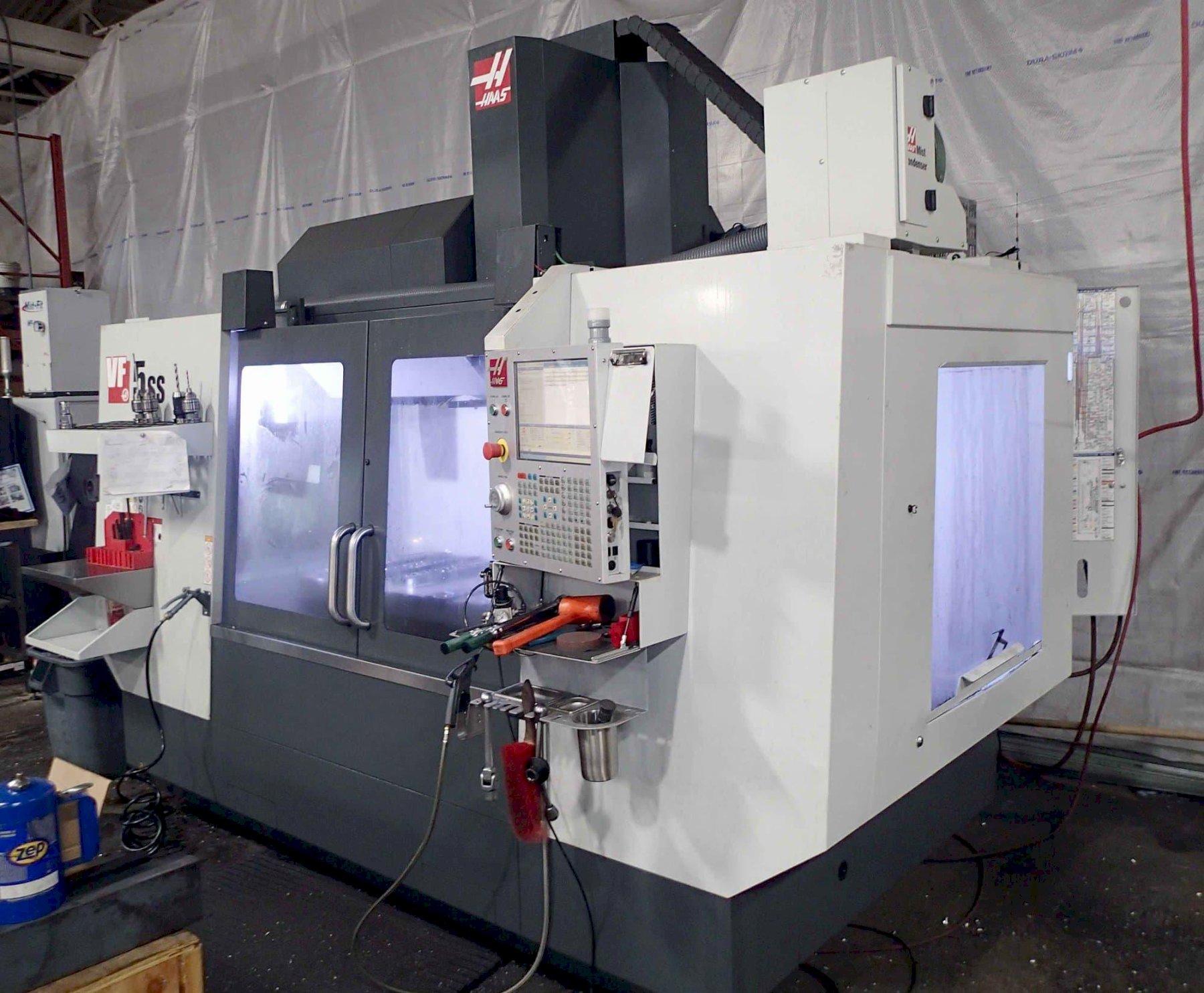

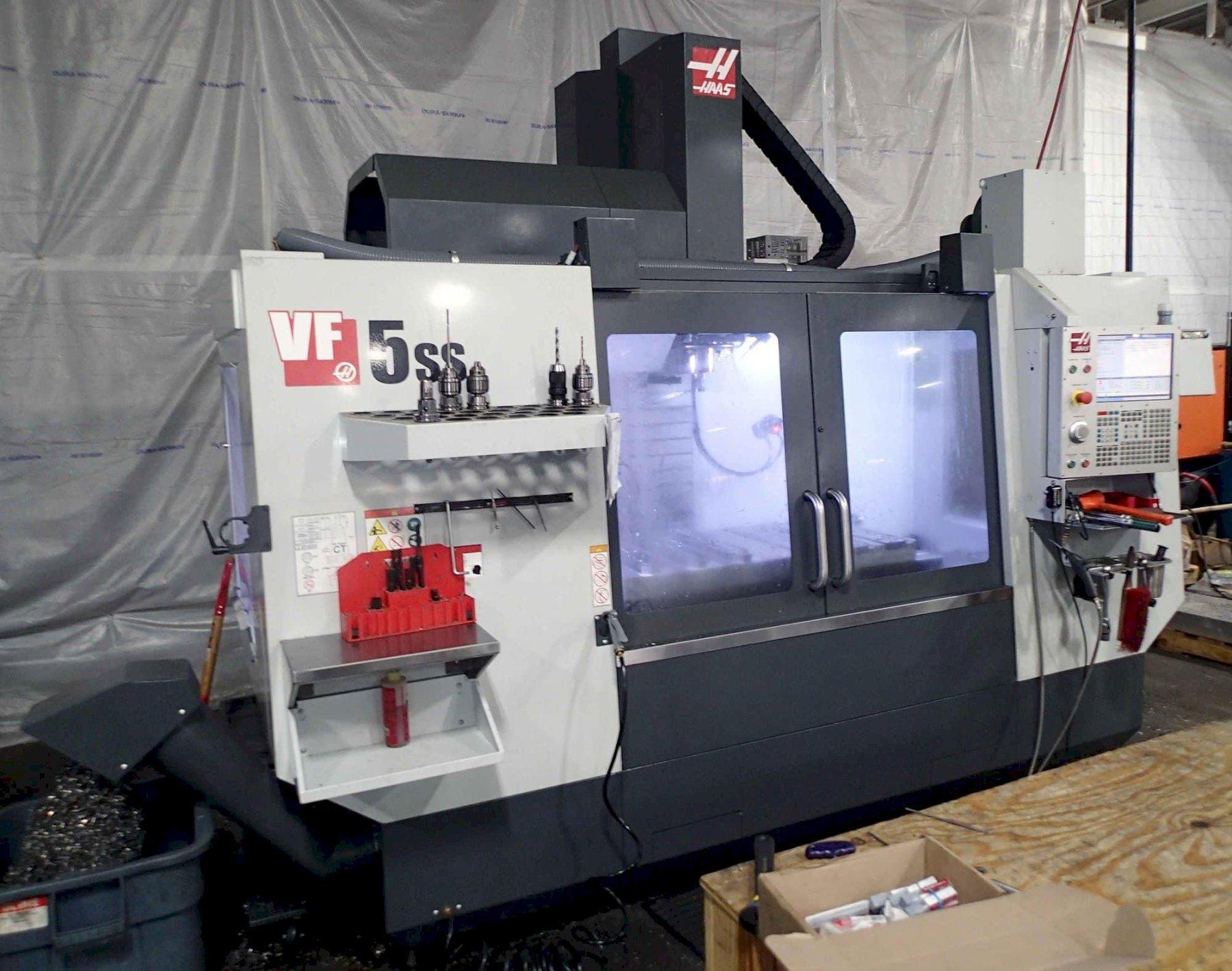

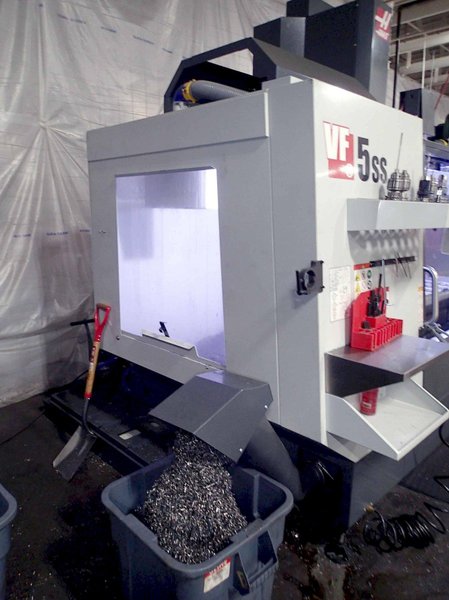

Haas VF-5SS 5-Axis VMC, 2020- TR200Y Trunnion Rotary Table, Probing, TSC, HSM, TCPC & DWO, Auto Doors

X-Axis Travel: 50″ Y-Axis Travel: 26″ Z-Axis Travel: 25″ Table Size: 54″ x 24″ A-Axis Tilt: +/- 120 degrees B-Axis Indexing: 360 degrees Rotary Platter Size: 7.87″ (200mm)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Speed: 12,000 RPM Spindle Power: 30 HP Auto Tool Changer: 30 + 1 Positions Spindle Taper: CAT 40 Max Table Load: 1750 pounds

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 220 V; 3 Ph; 50/60 Hz Approx Dimensions: 164″ x 92″ x 101″ Approx Weight: 12,700 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Trunnion Rotary Table- Haas TR-200Y Platter Size: 7.87″ (200mm) Max Weight: 80 lbs Max Part Swing: 8.1″ Max Table Tilt (A-Axis): +/- 120 degrees Max Tilt Speed: 100 degrees/second Rotary Indexing (B-Axis): 360 degrees Max Index Speed: 130 degrees/second A/B-Axis Rotation Resolution: 0.001 degrees

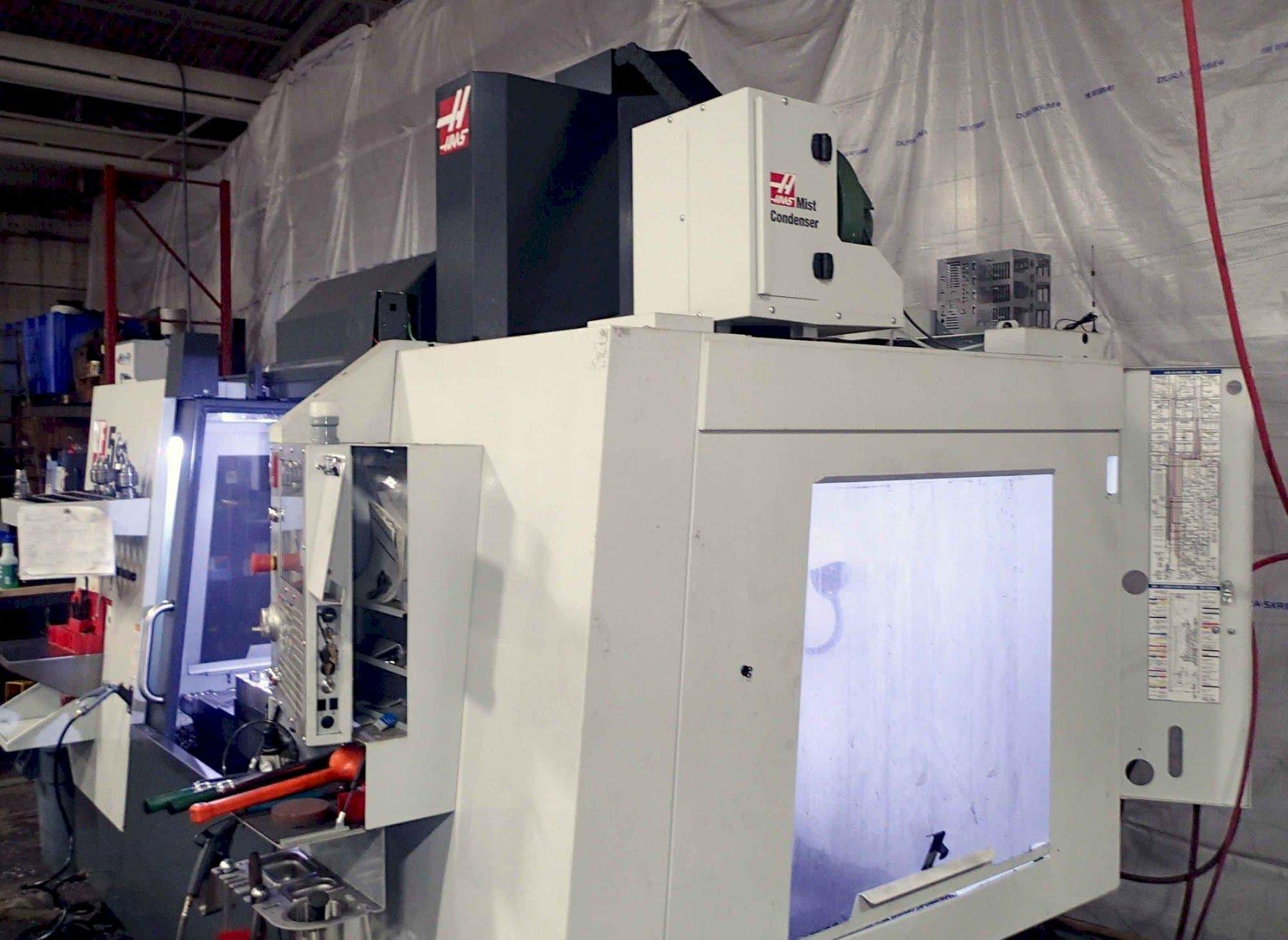

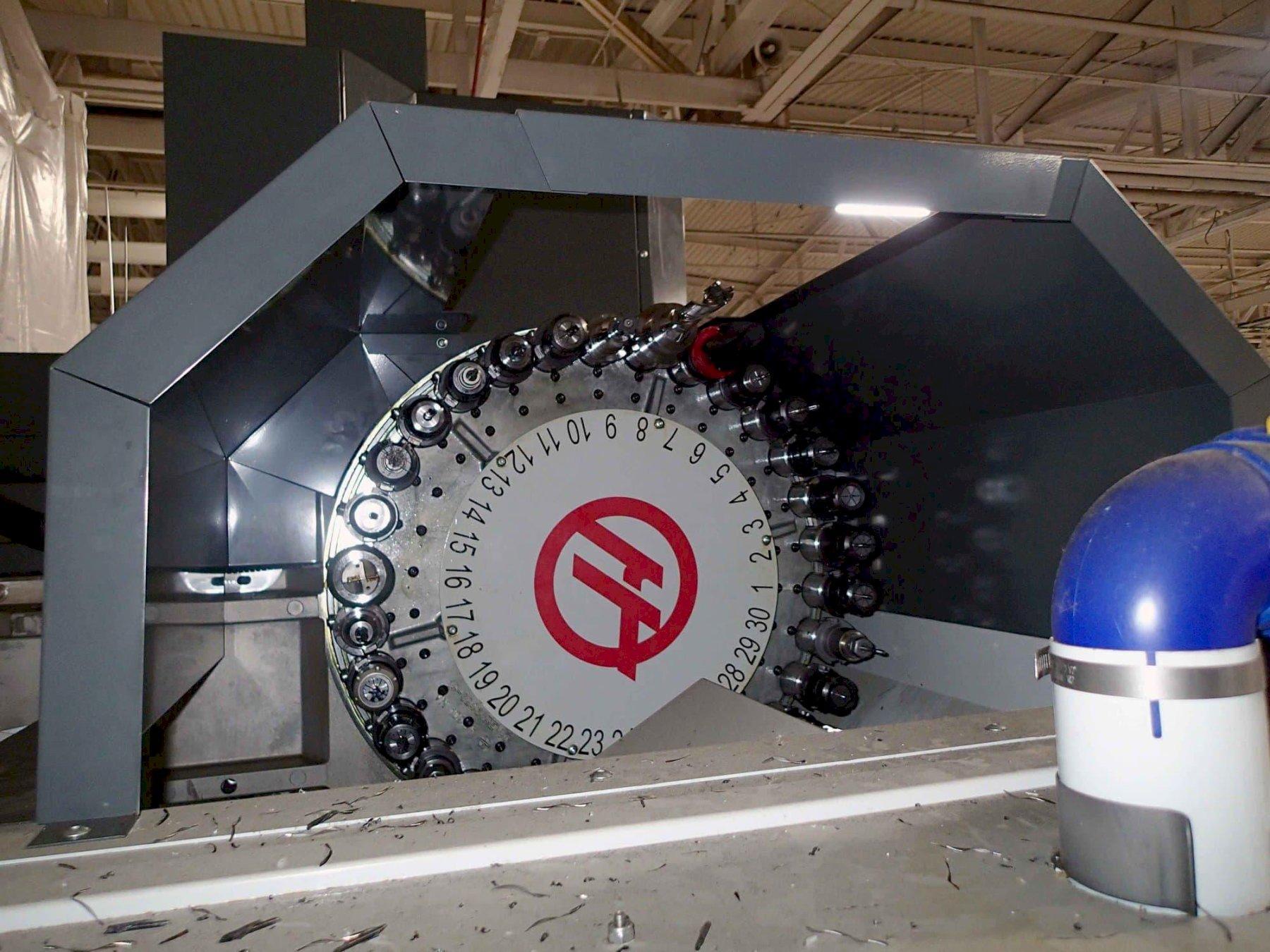

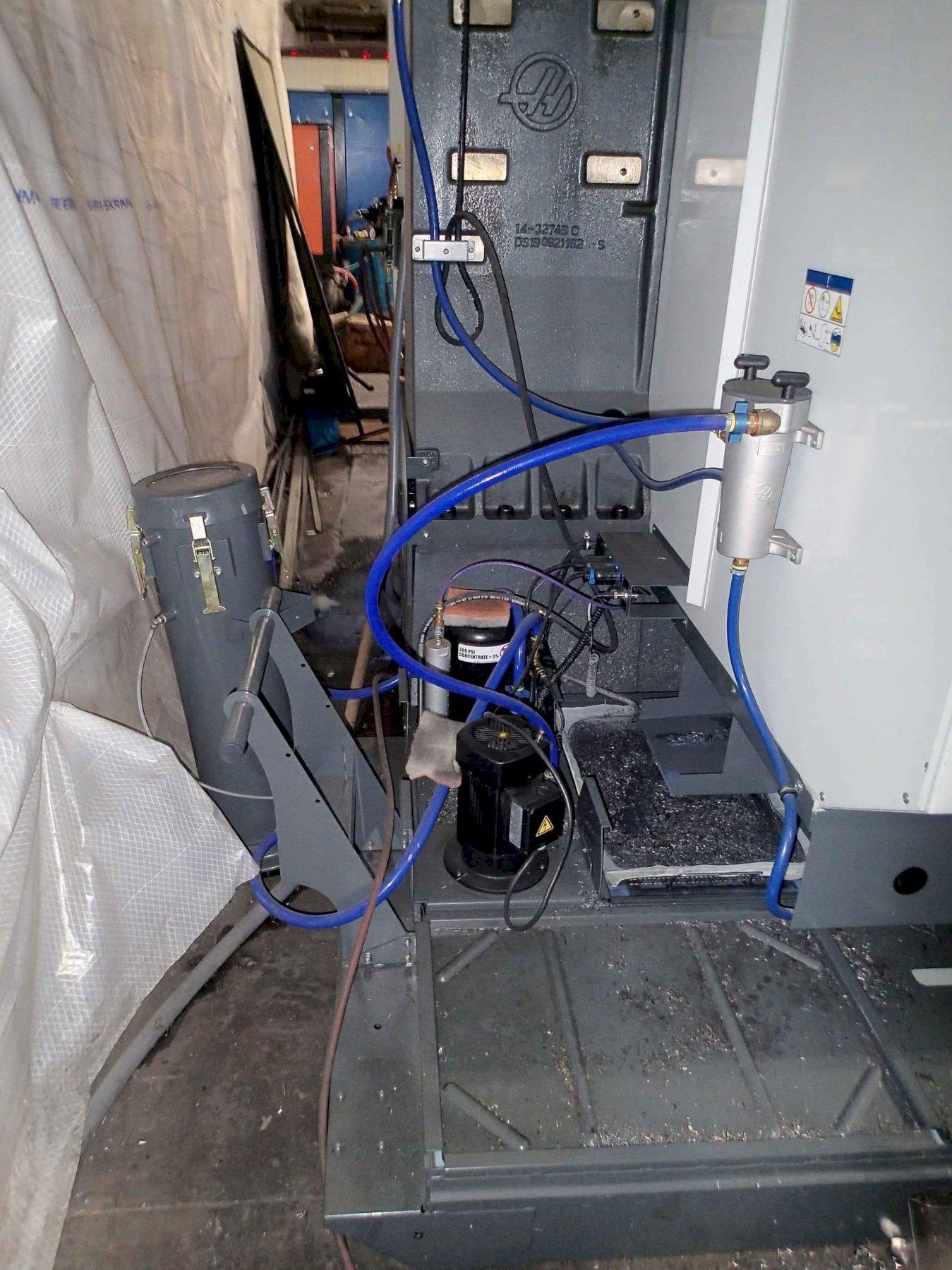

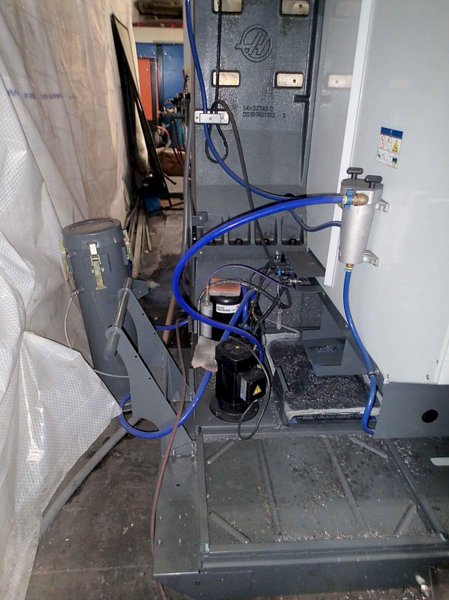

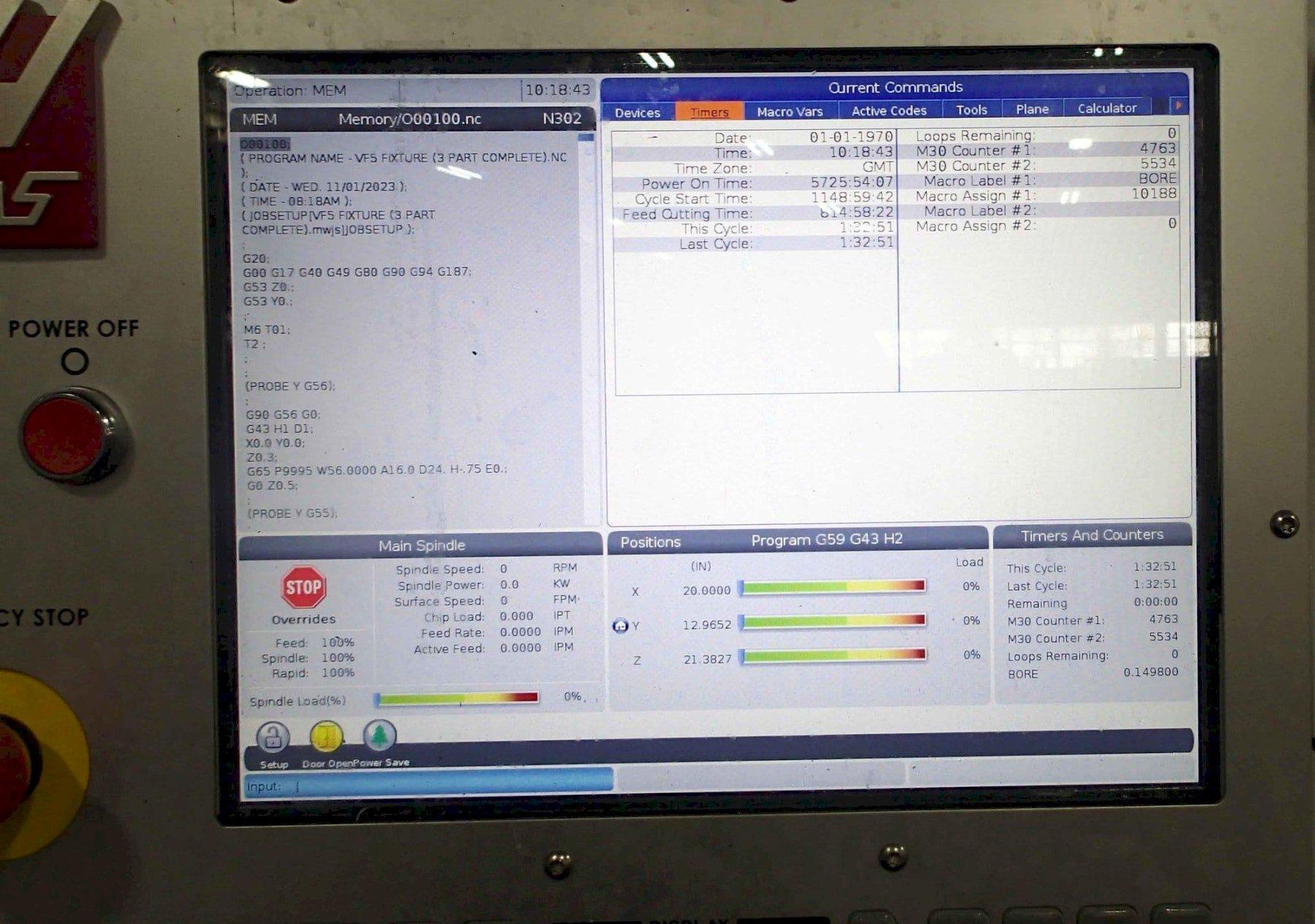

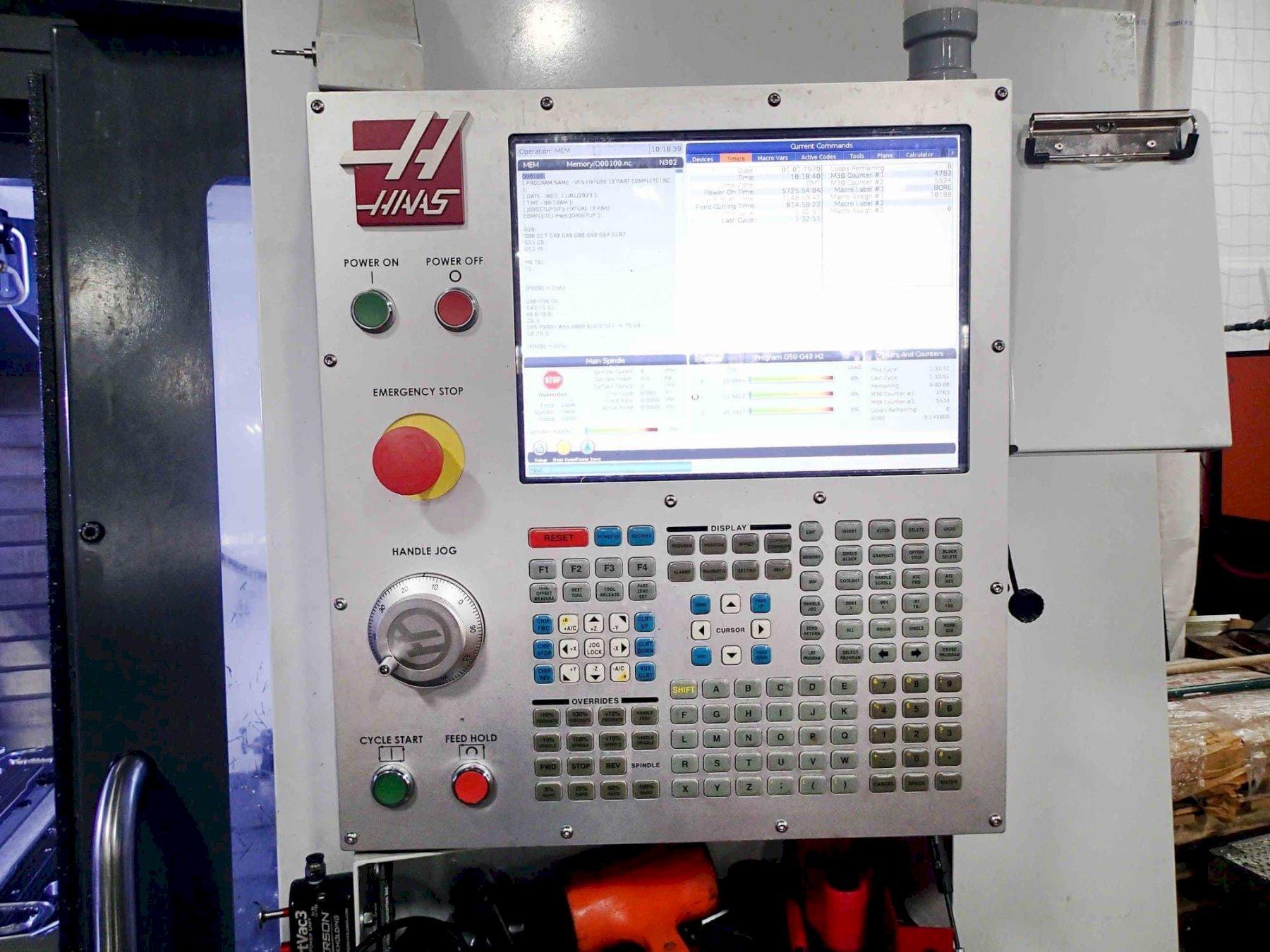

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: Haas CNC Control 4th Axis Drive & Wiring 5th Axis Drive & Wiring Haas TR-200Y Trunnion Rotary 5th Axis Table Through Spindle Coolant WIPS- Wireless Intuitive Probing System TCPC & DWO- Tool Center Point Control & Dynamic Work Offsets High Speed Machining Automatic Doors 12,000 RPM Spindle 30 + 1 Automatic Side Mount Tool Changer Haas Mist Condenser Chip Auger Coolant Tank & Coolant Maintenance Package

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Vacuum Table Pump Additionally Available.
