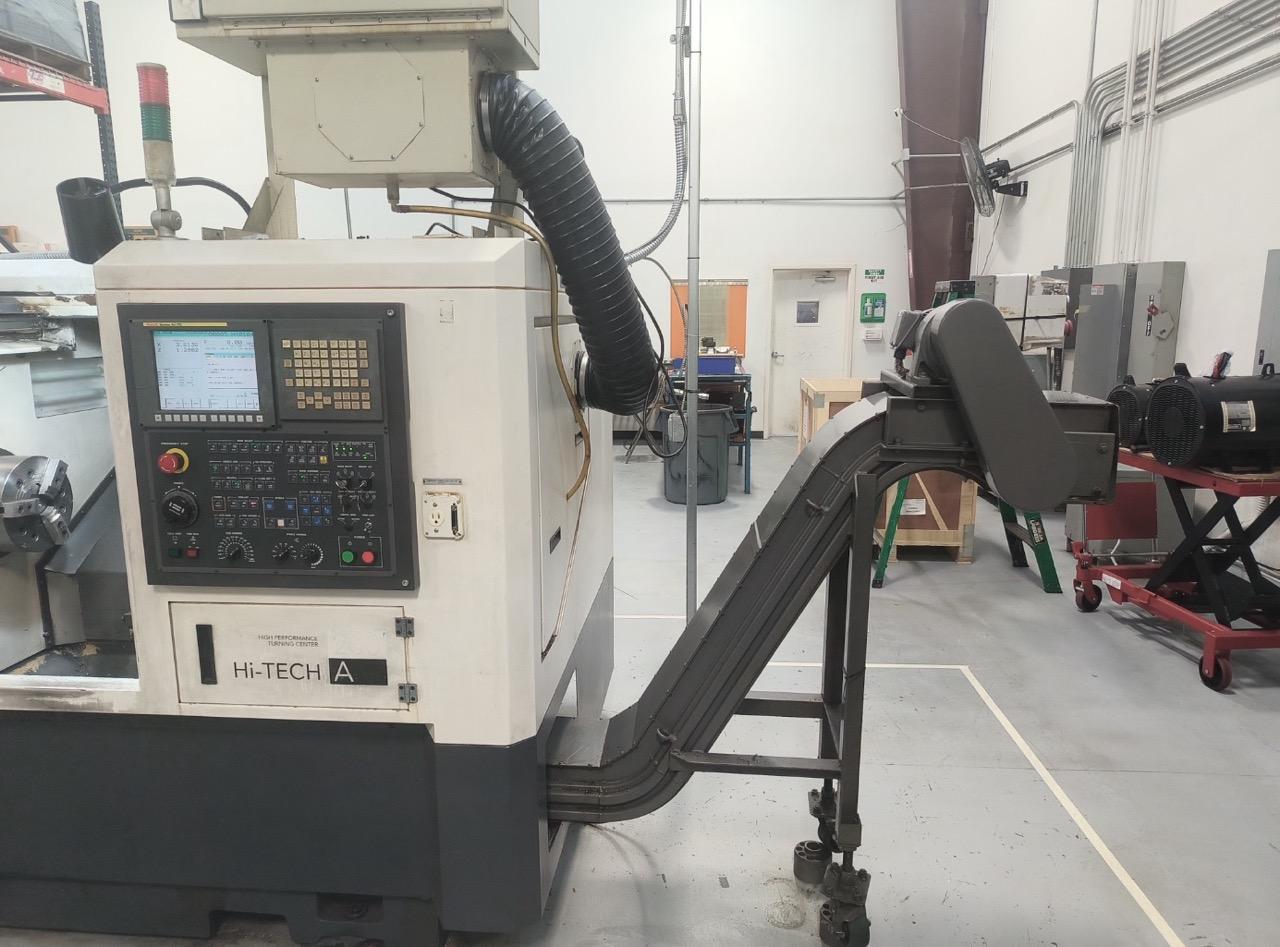

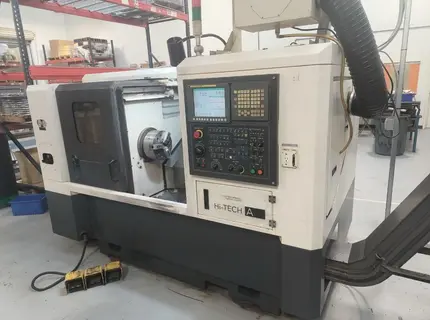

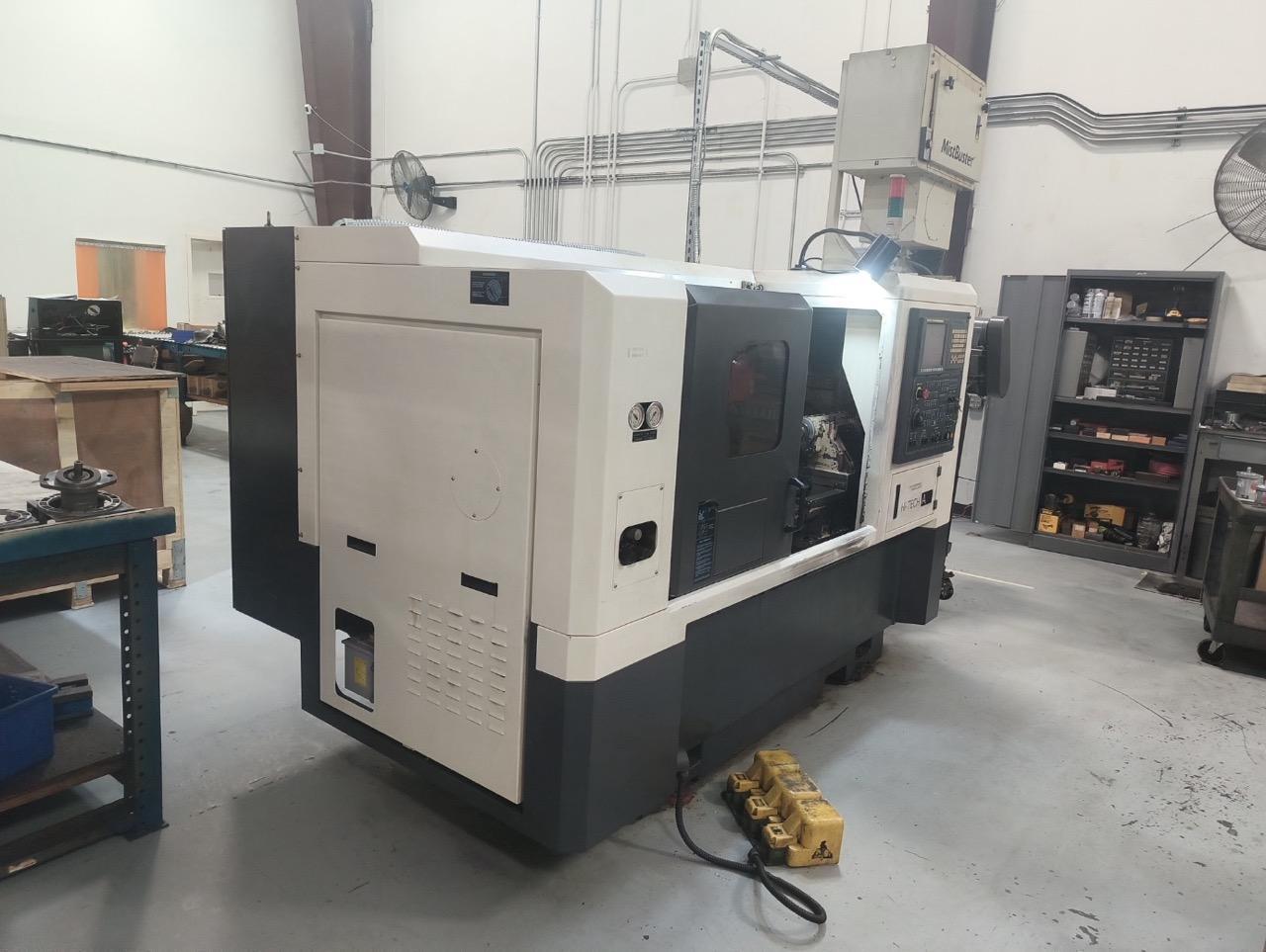

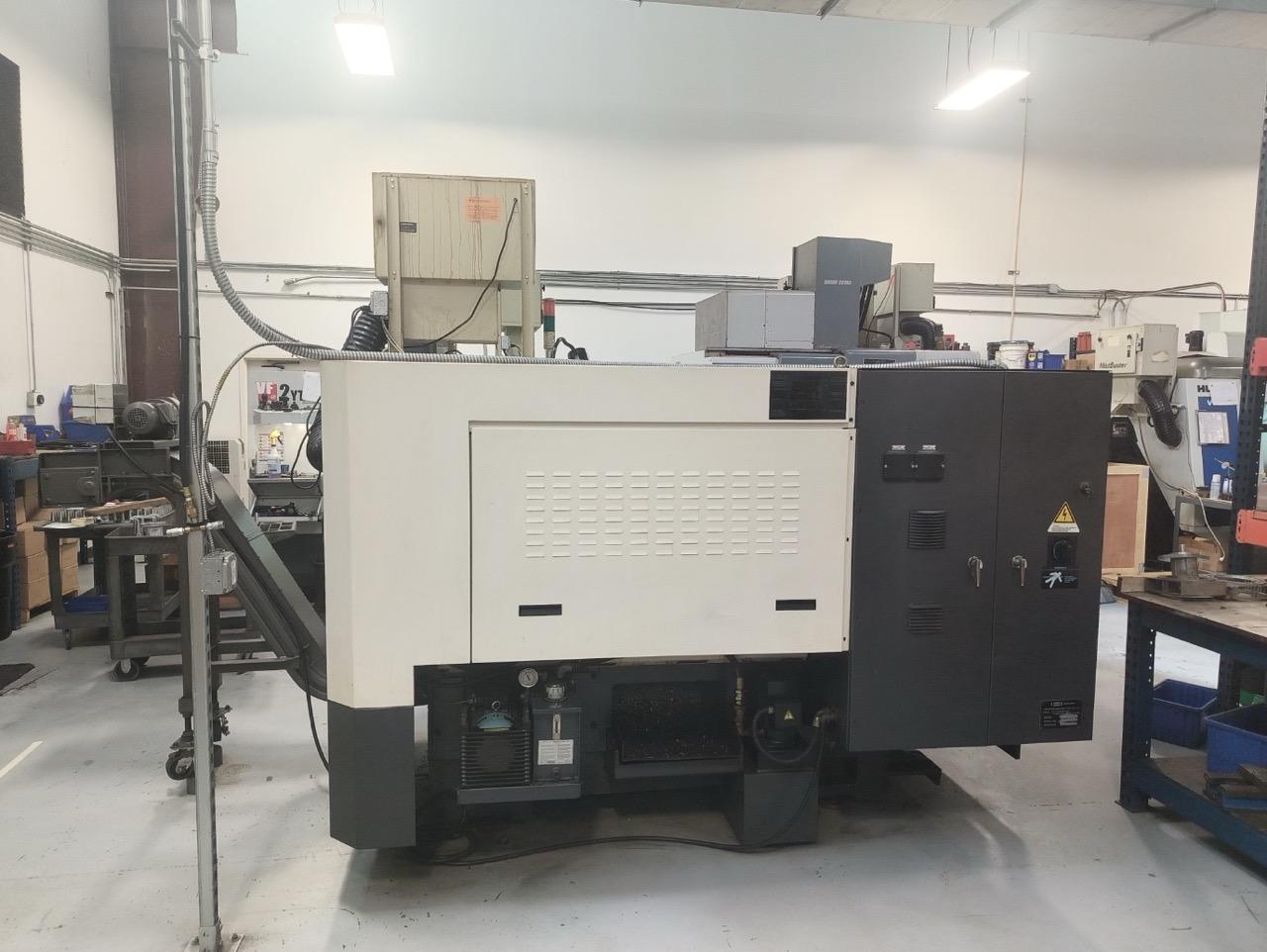

Hwacheon Hi-Tech 200A CNC Lathe, 2009 – Fanuc Oi-TC Control, Mist Buster, Chip Conveyor and Tailstock

Max Turning Diameter: 13.81″ Max Turning Length: 15.75″ Max Bar Capacity: 2.9″ Distance Between Centers: 20.5″ Swing Over Bed: 18.7″ X Axis Travel: 7.69″ Z Axis Travel: 16.90″ Rapid Traverse X Axis: 1181 IPM Rapid Traverse Z Axis: 1181 IPM Spindle Nose: A2-6 Spindle Bore: 2.95″ Spindle Speed: 50 – 5000 RPM Spindle Motor: 15/20 HP Turret Capacity: 12 Live Tool Stations Turret Index Time: 0.20 Second Tailstock Taper: MT-3 Tailstock Quill Dia.: 2.362″ Tailstock Quill Travel: 4.72″ Tailstock Body Travel: 13.7″ Power: 220v / 3-Phase Overall Dimensions: 90″ x 70″ x 72″ High Machine Weight: 8500 lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

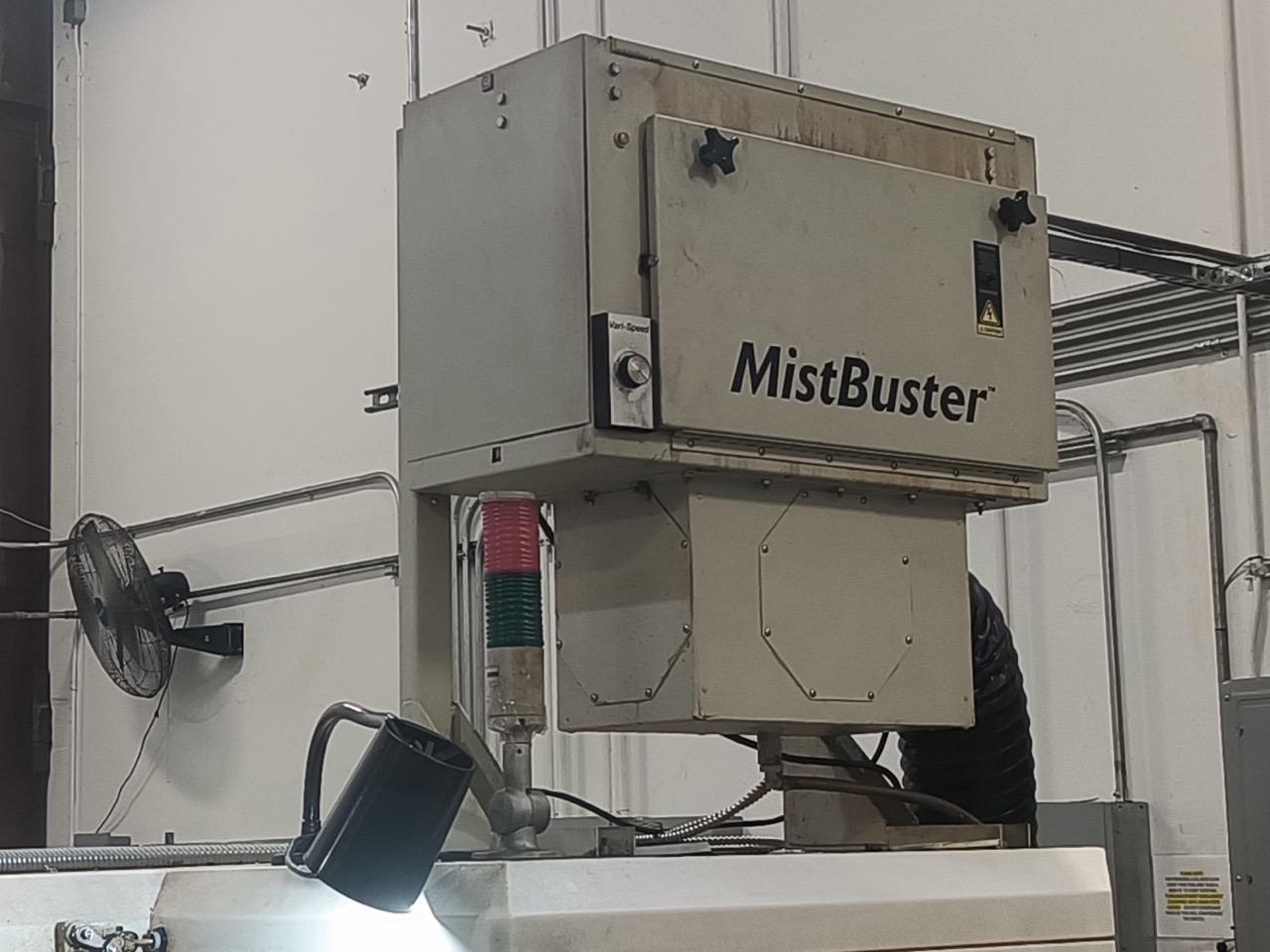

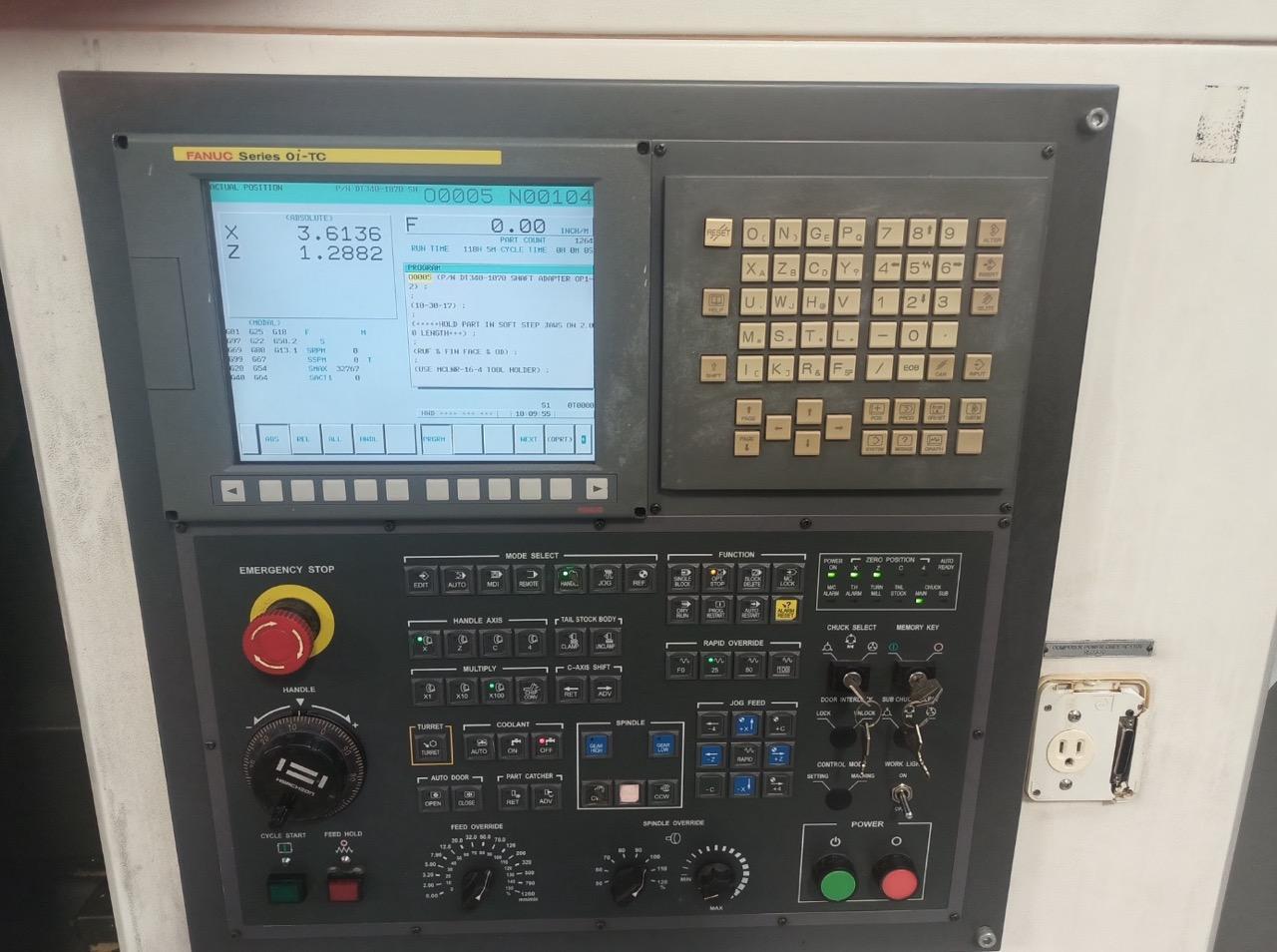

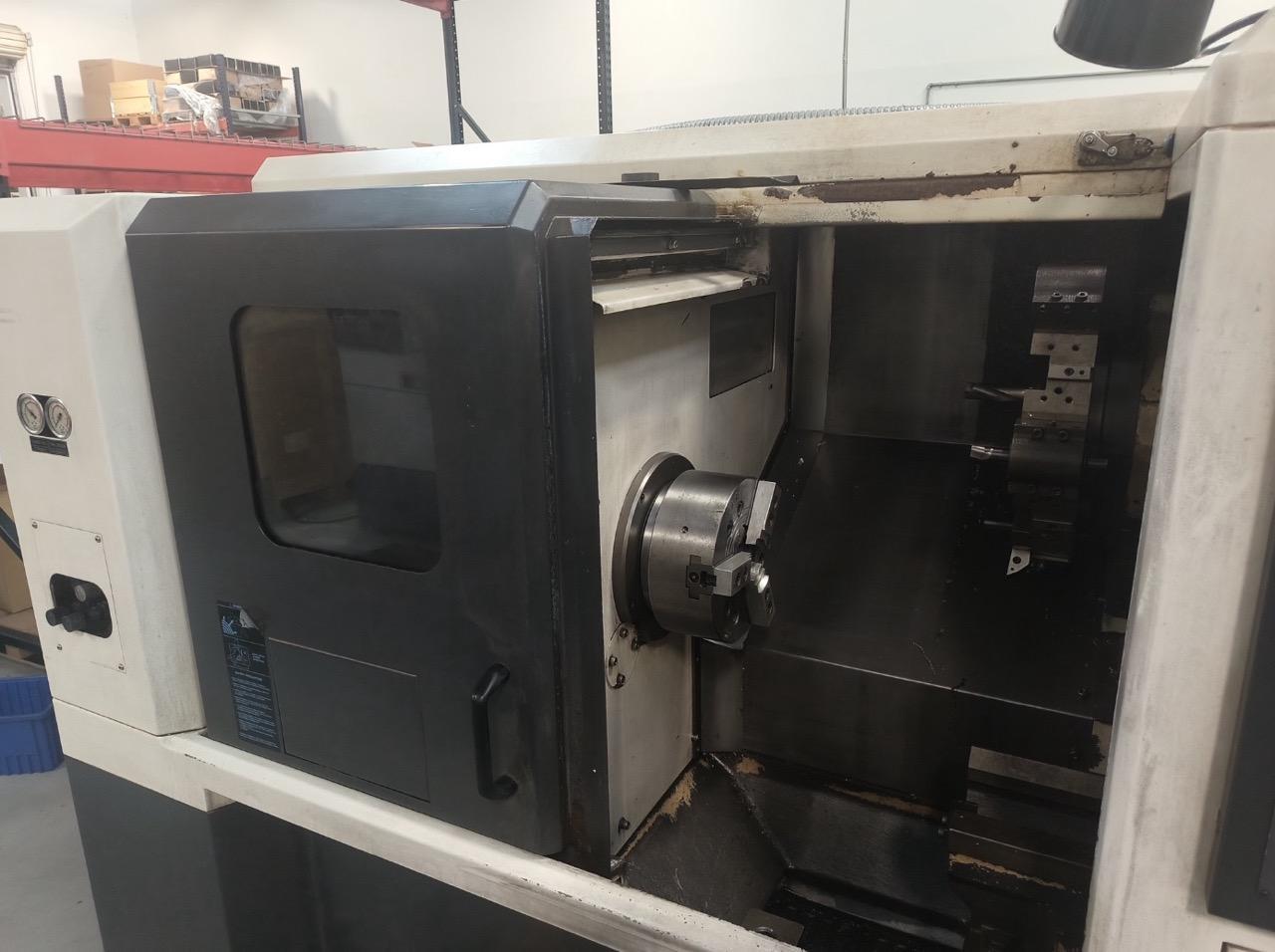

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc Oi-TC Control 10″ Hydraulic Chuck Mist Buster Tailstock Chip Conveyor

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
