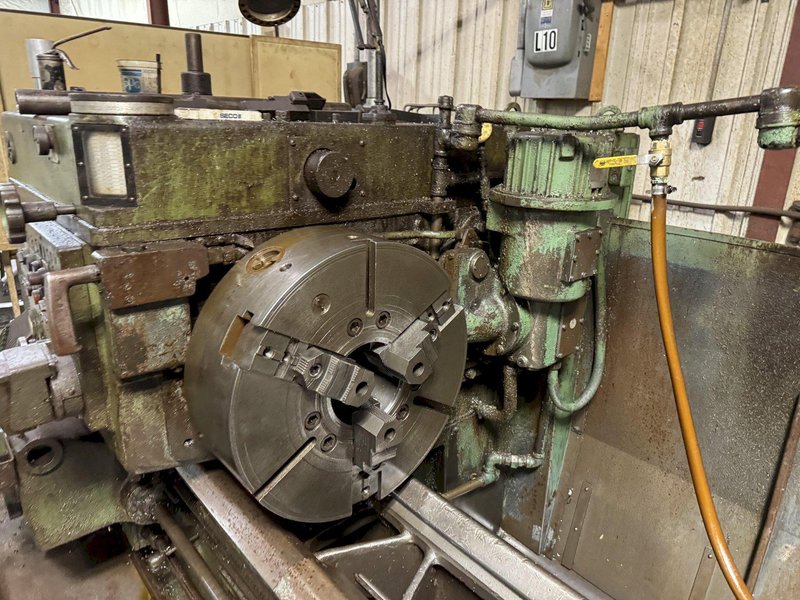

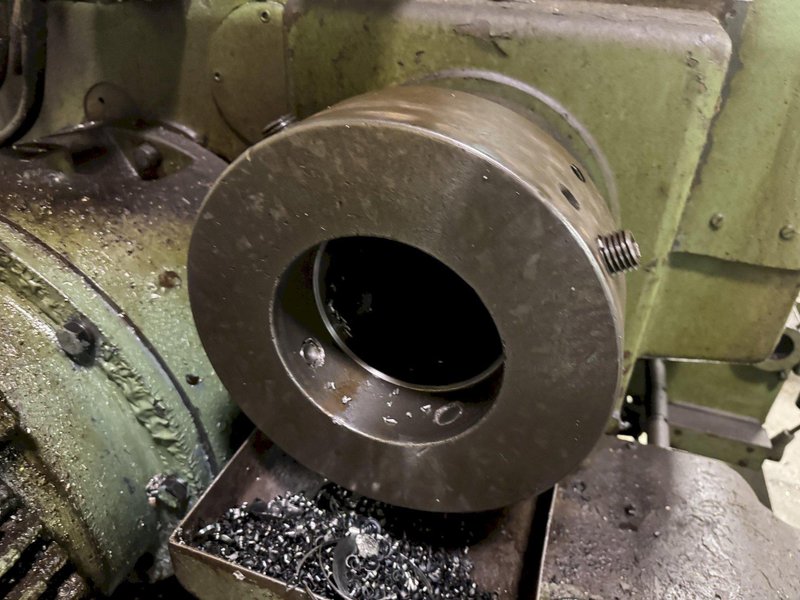

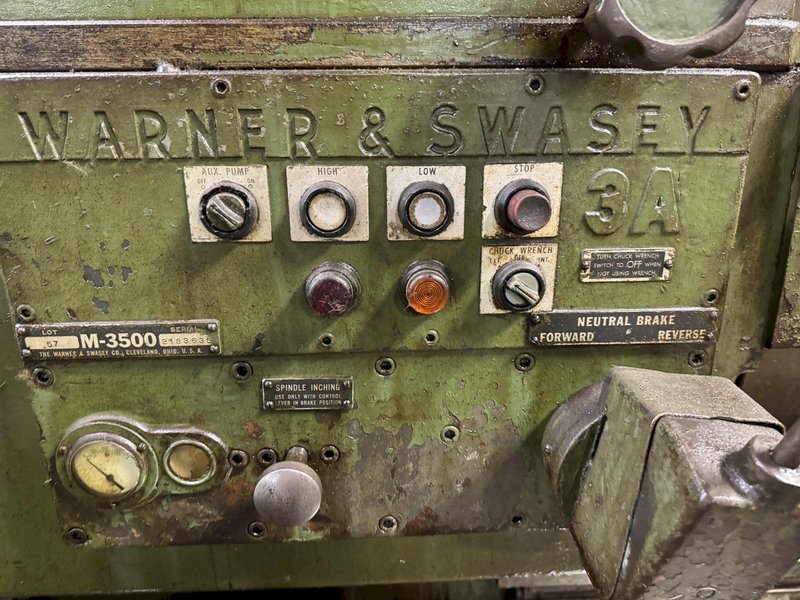

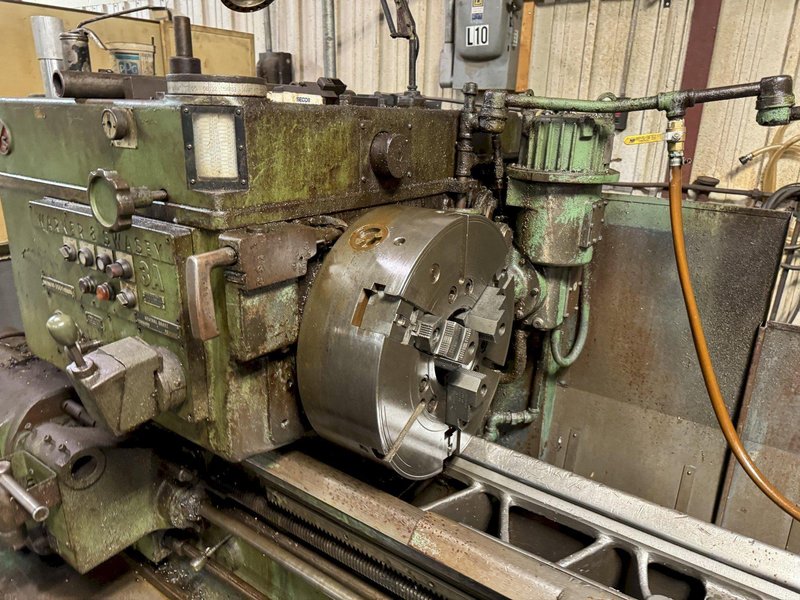

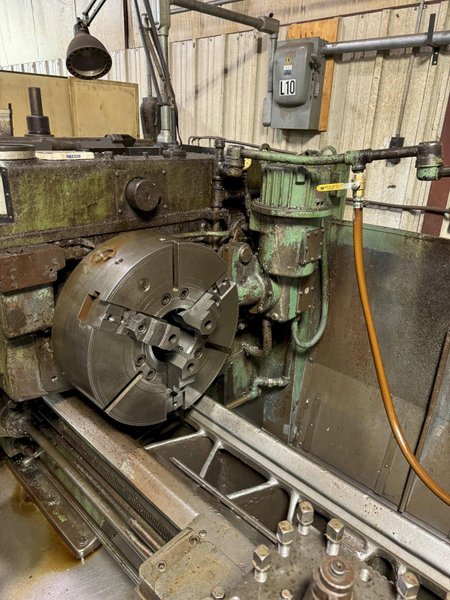

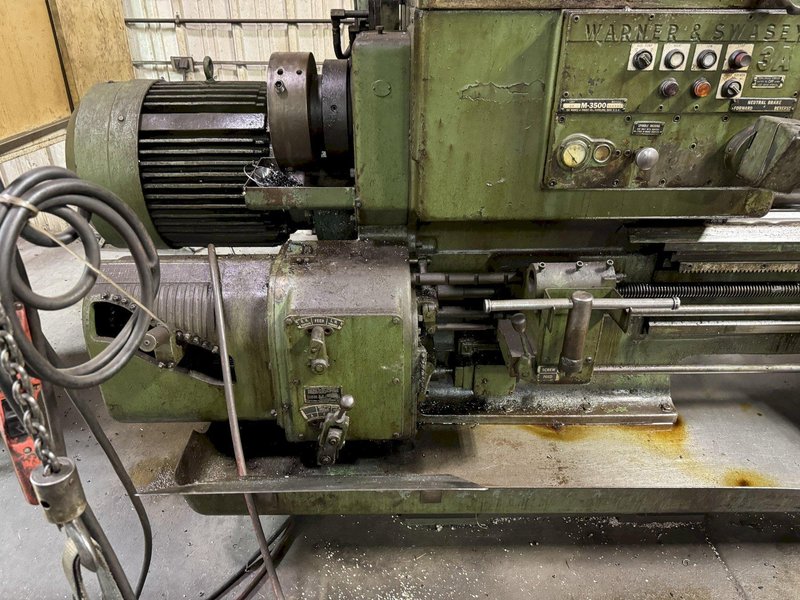

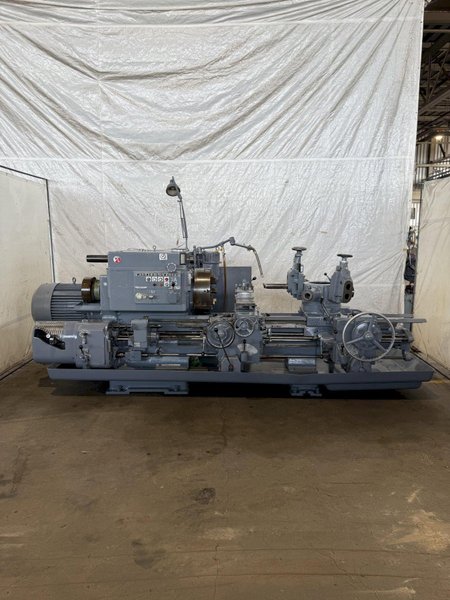

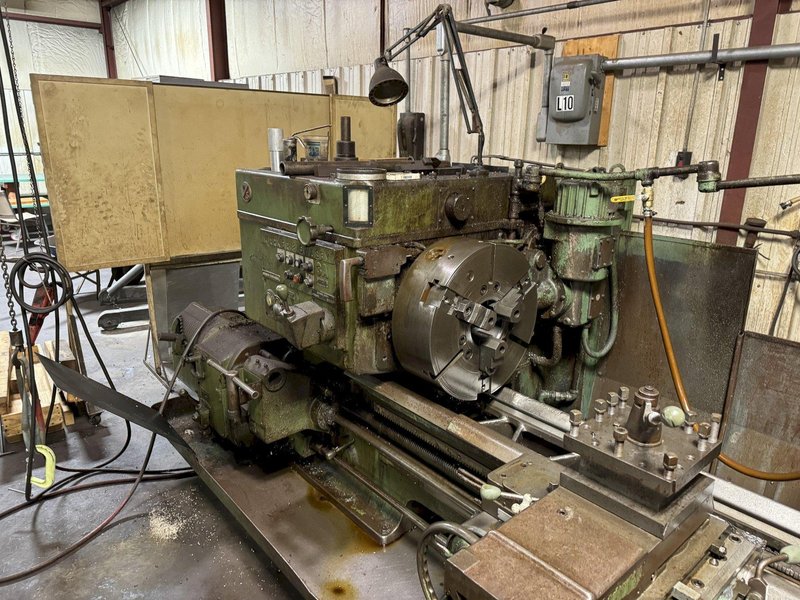

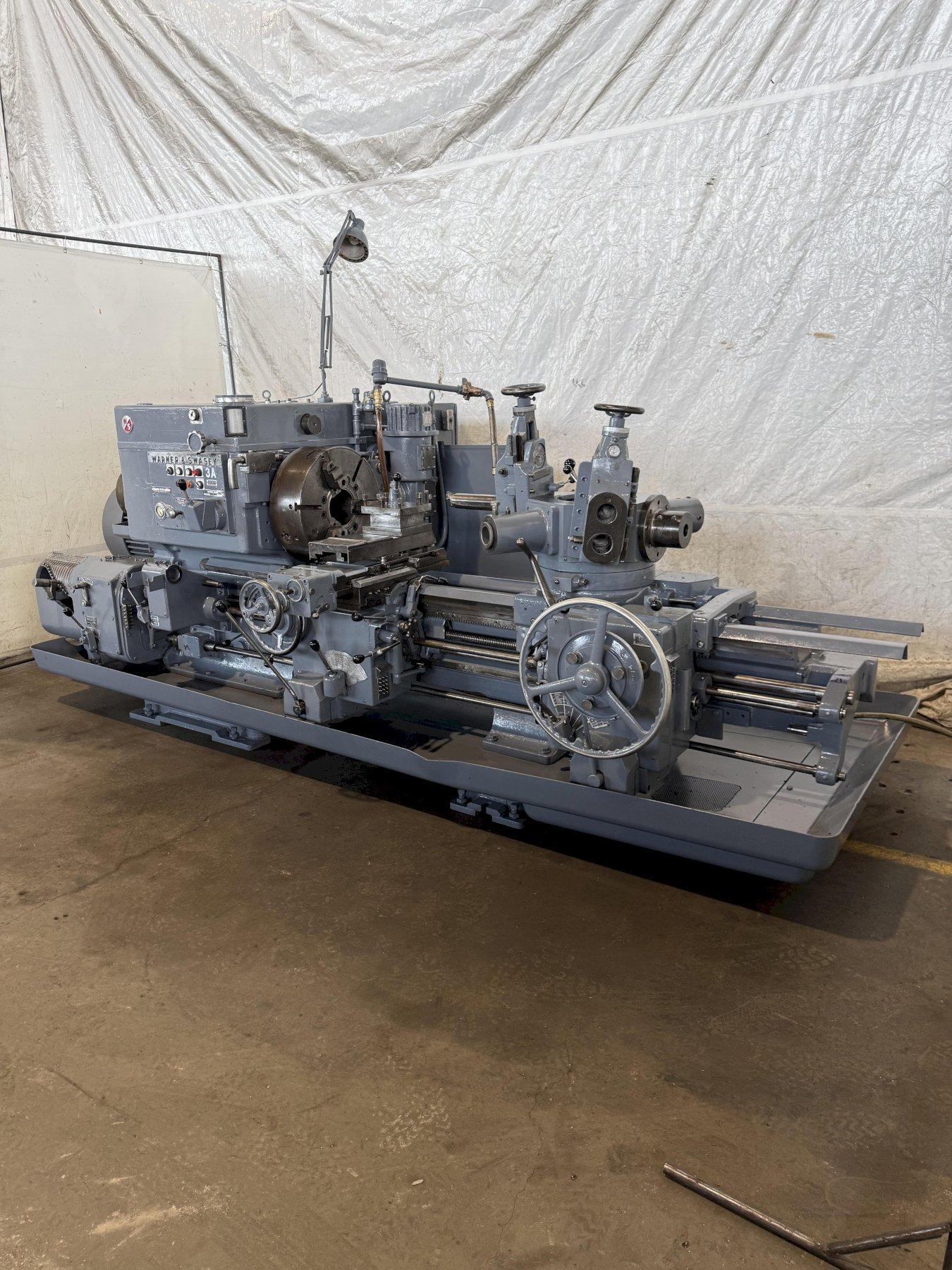

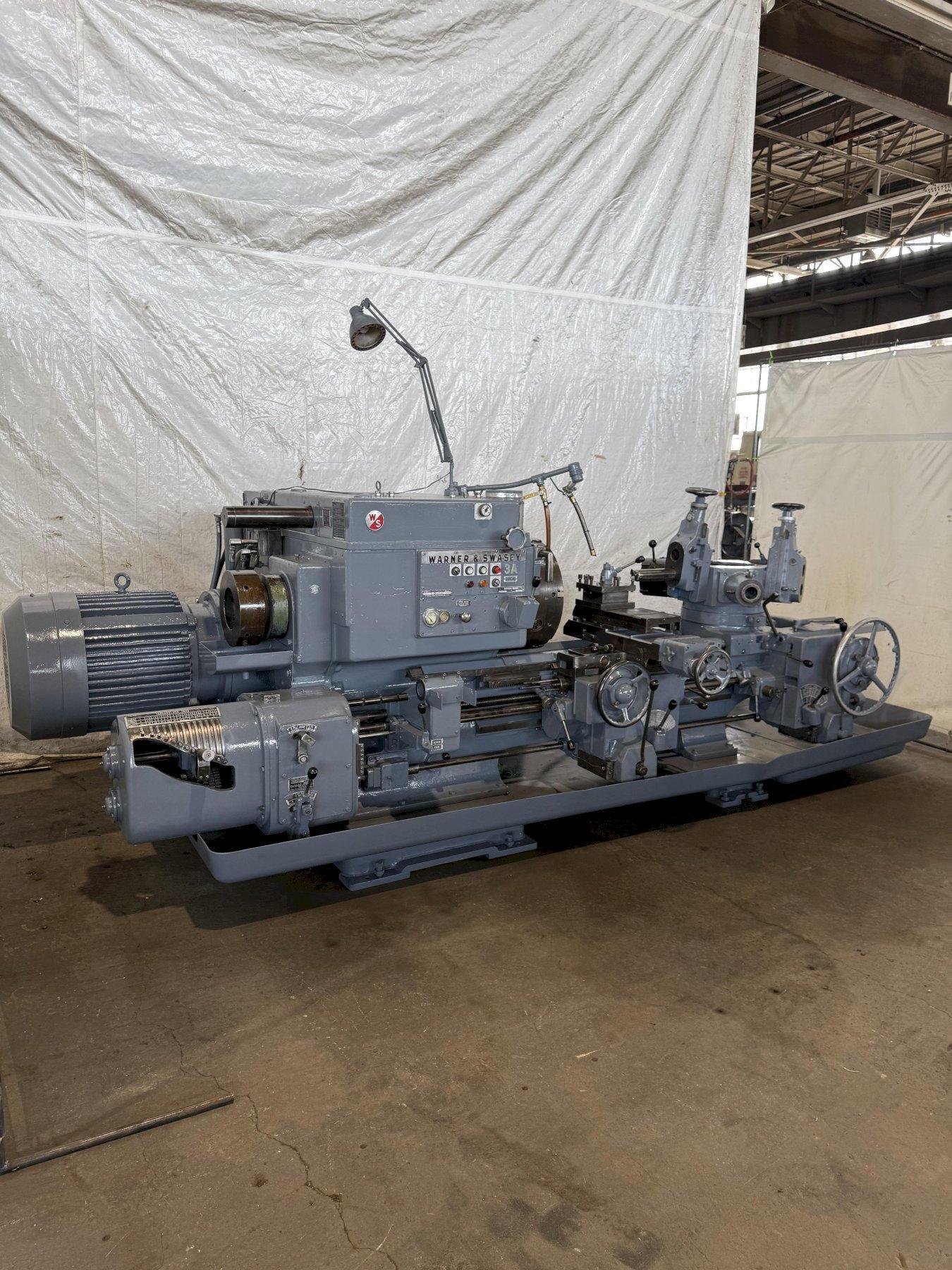

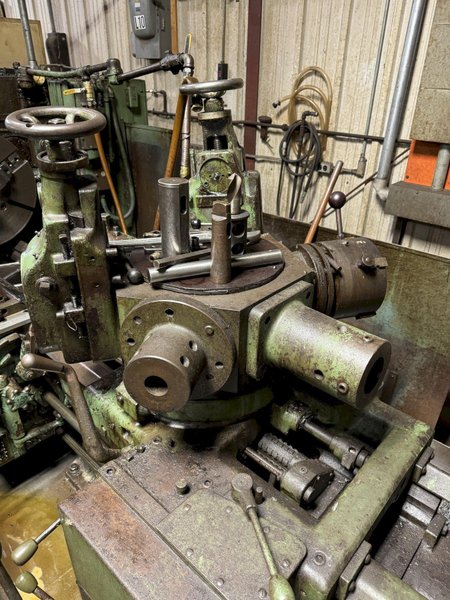

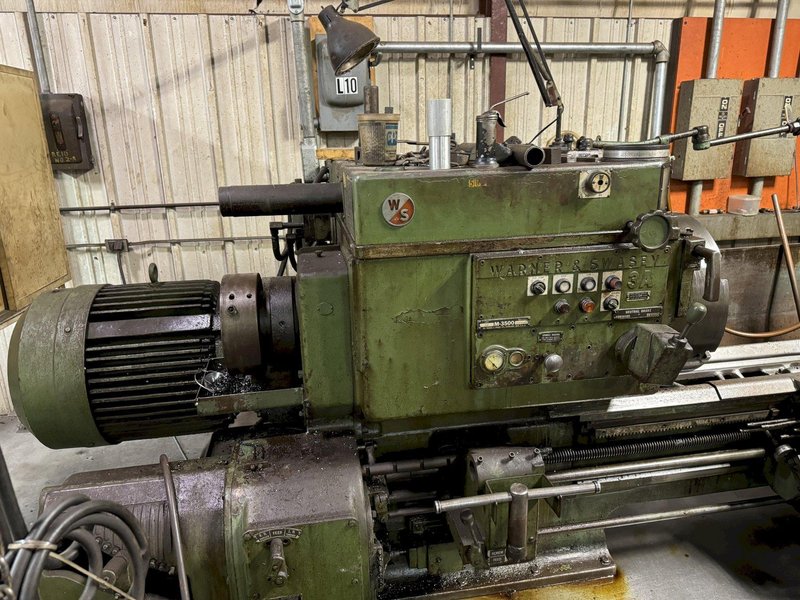

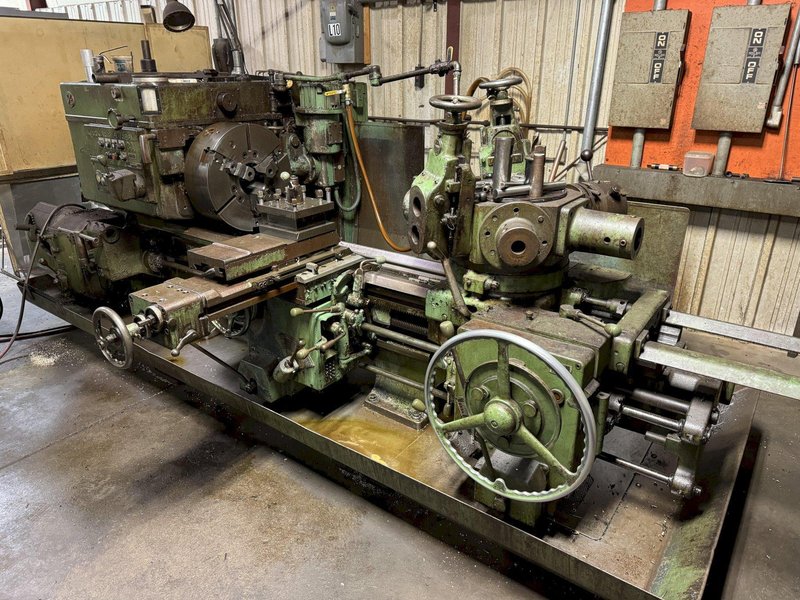

3A WARNER & SWASEY M-3500 SADDLE TYPE TURRET LATHE. STOCK # 0345325

Brand
WARNER & SWASEY
Category
Lathes & Turning Machines
Type
VTL Lathes (Vertical Turret Lathe)
Model
M-3500
Stock #
0345325
Year
Not specified
Condition
Used

Location

Ohio
Swing 24.5 inches
Swing Nose 58.75
Spindle Hole 6.125 inches
Chuck Size 21 inches
Power Chuck Wrench Yes
Adjustable Slide Tools 2

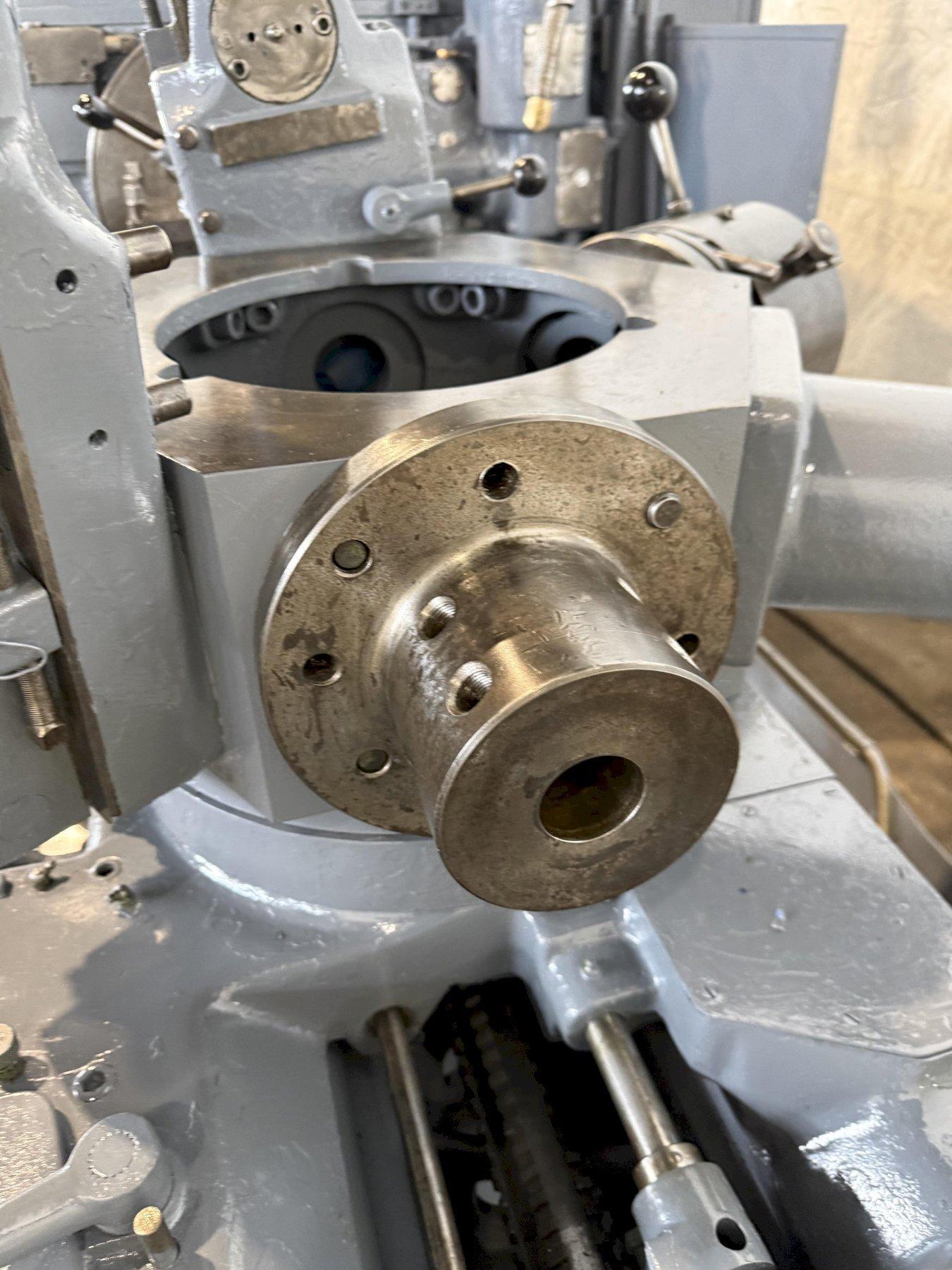

Flange Tool Holder 4
Chip Pan With Coolant YES

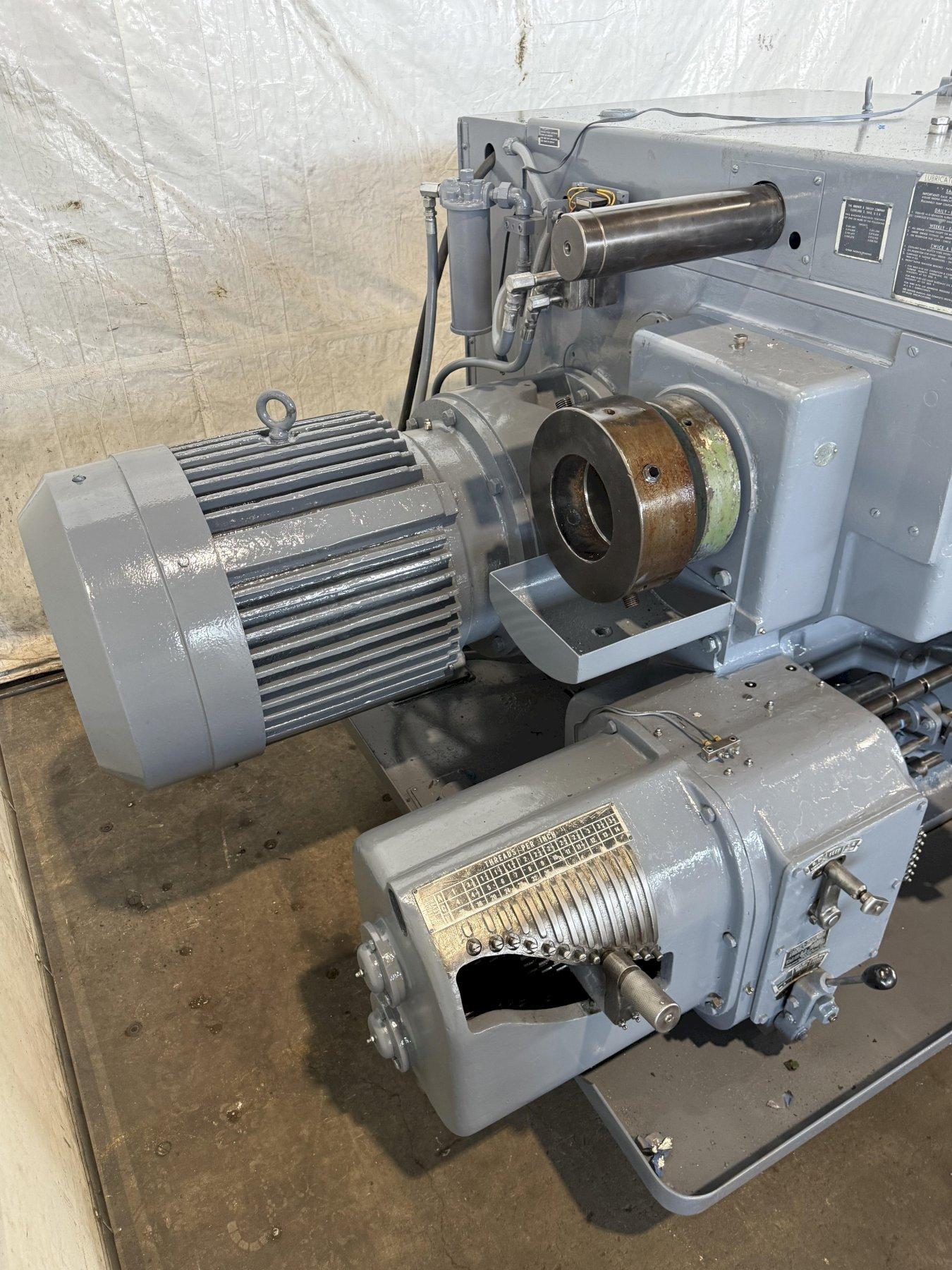

Main Motor 25 horsepower

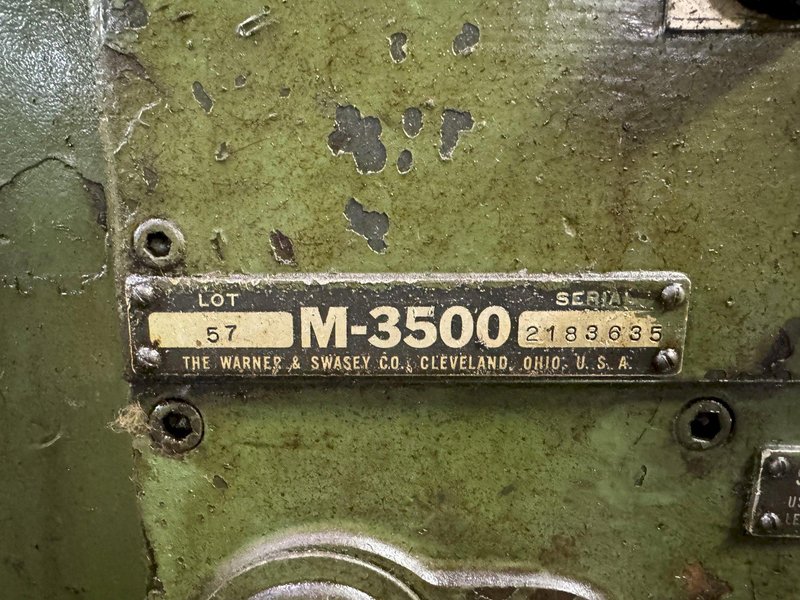

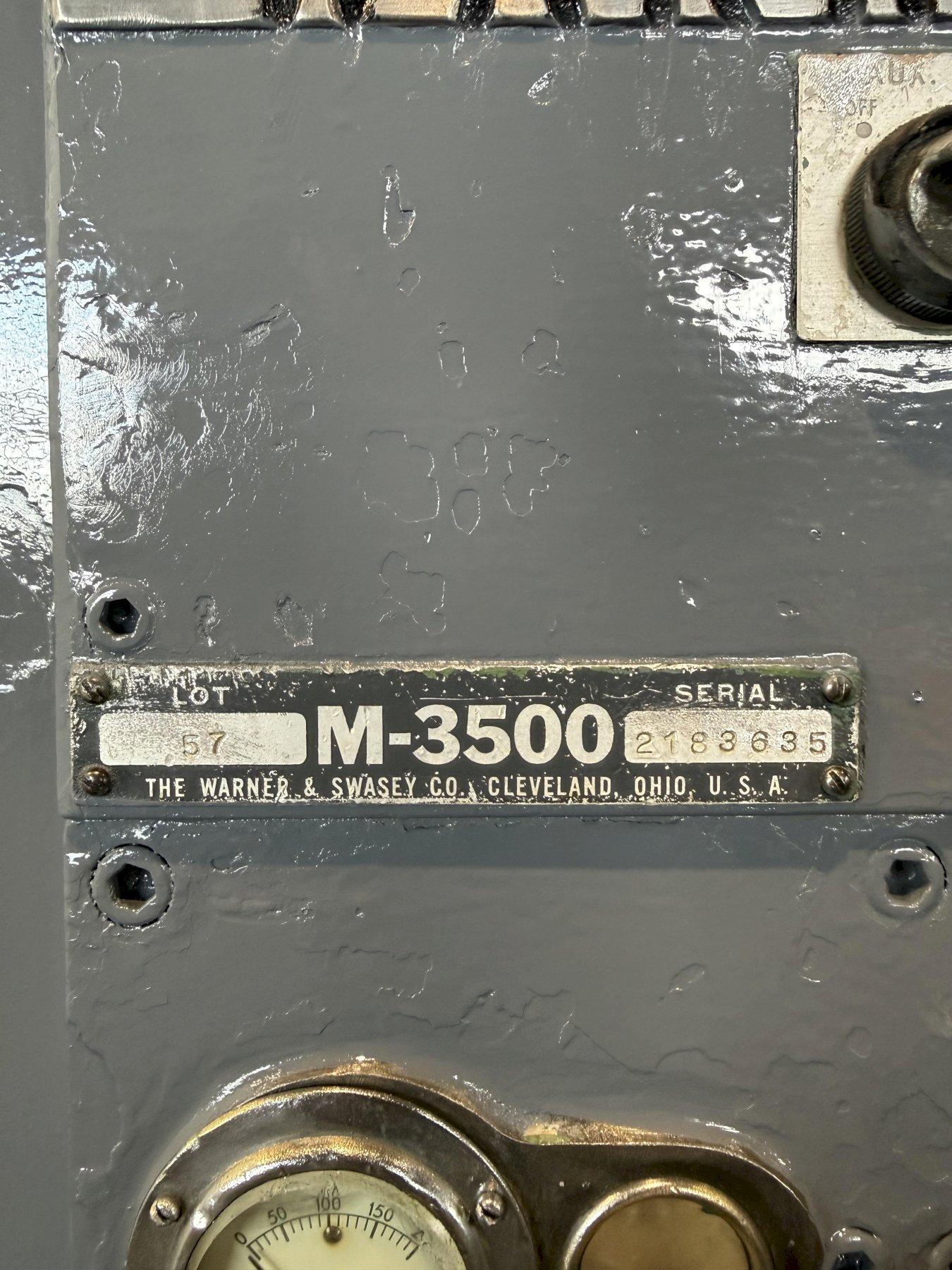

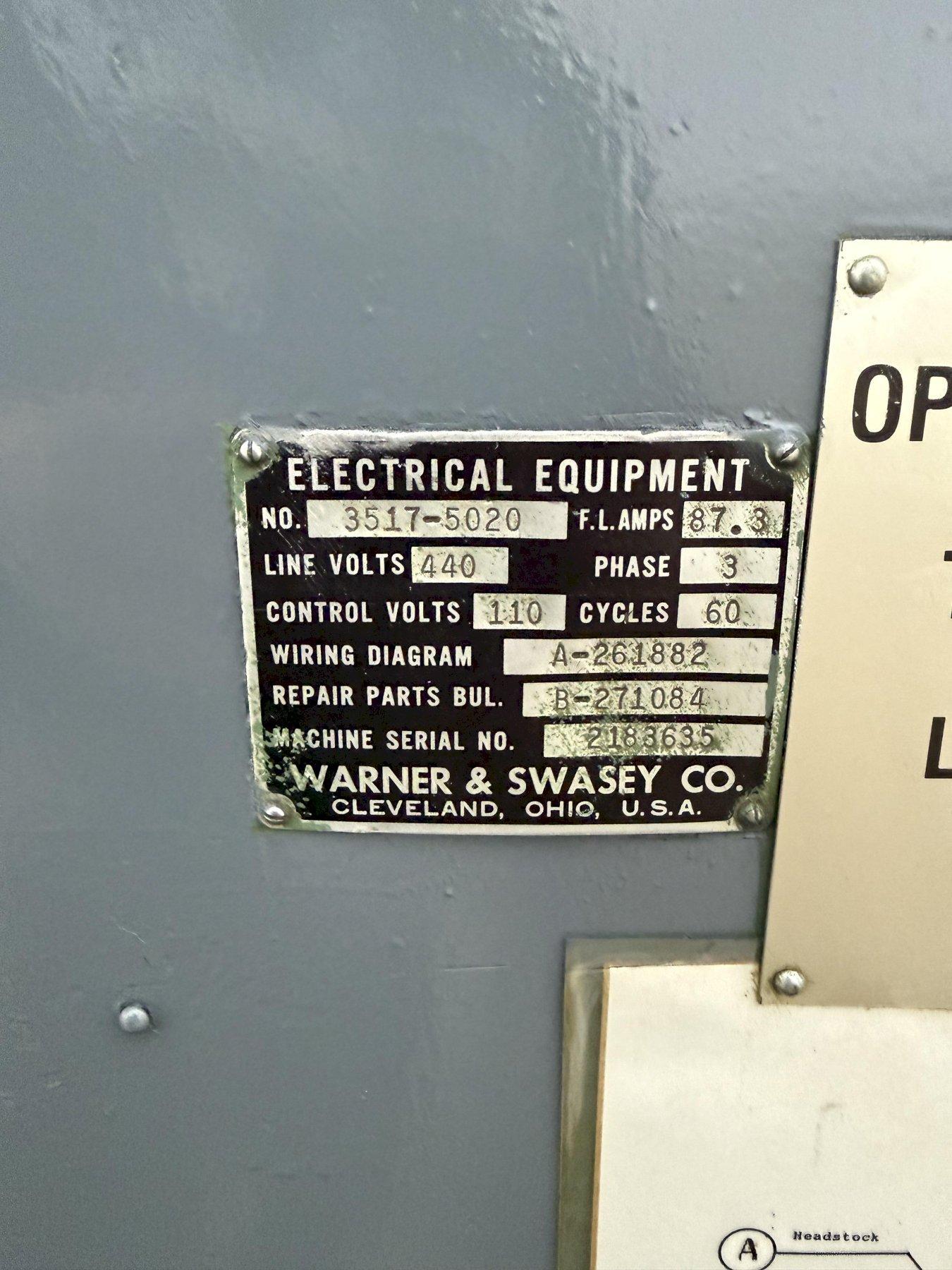

SERIAL ............................. 2183635

MODEL .............................. 3A (M-3500) SQUARE HEAD

SWING OVER BED ..................... 24-1/2"

SWING OVER CARRIAGE HORN ........... 18"

SPINDLE NOSE TO TURRET ............. 58-3/4"

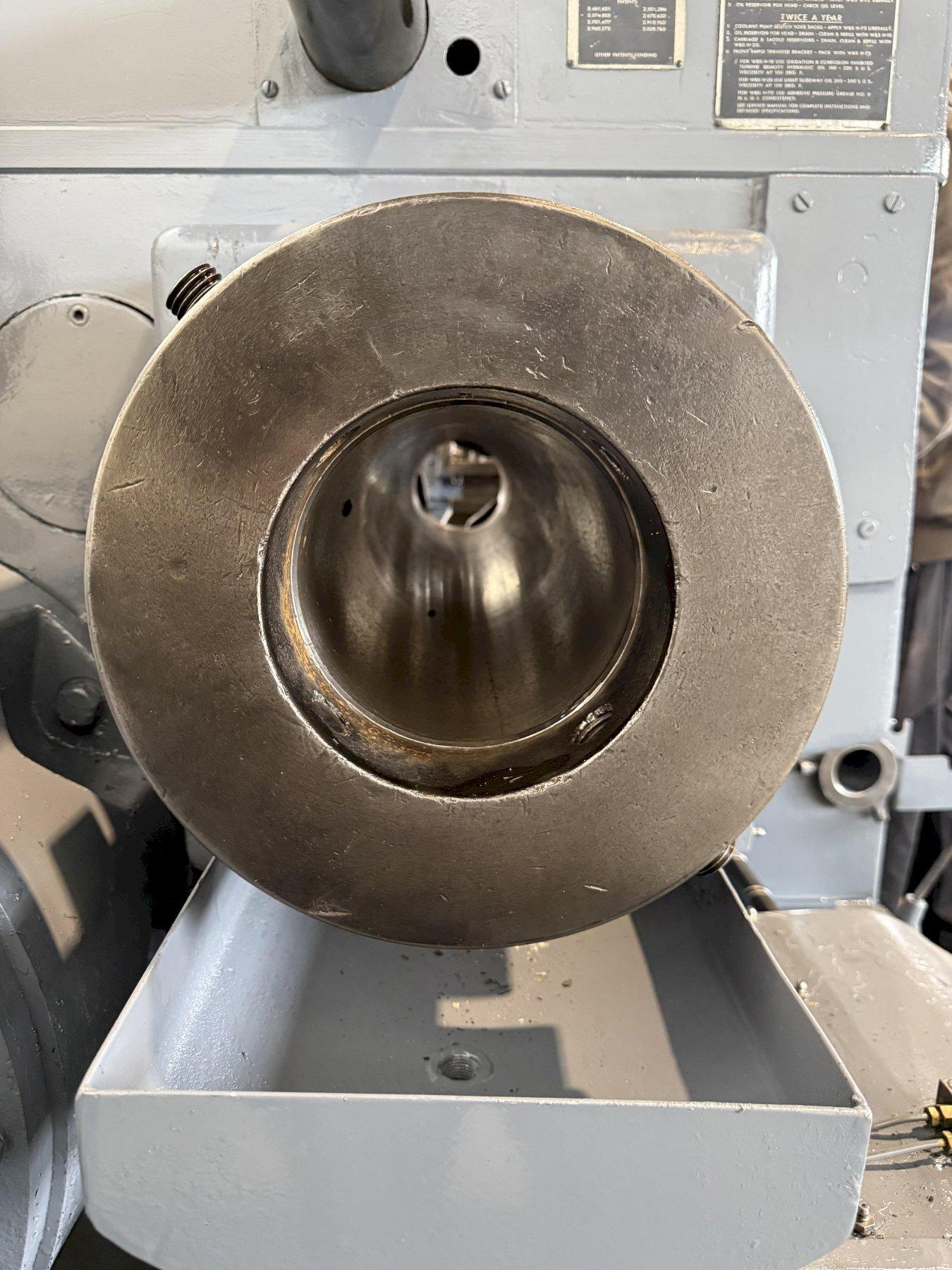

SPINDLE HOLE ....................... 6-1/8"

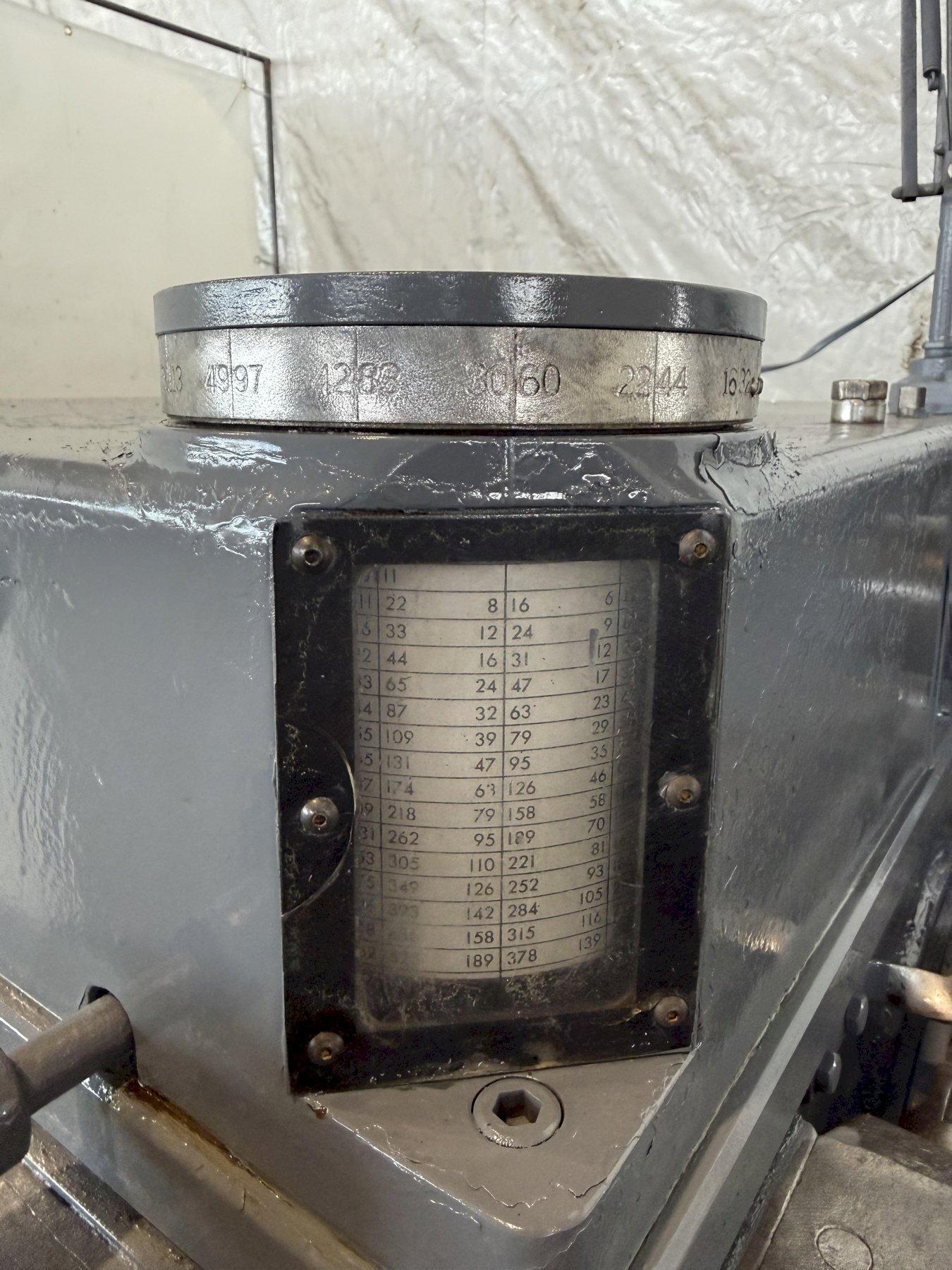

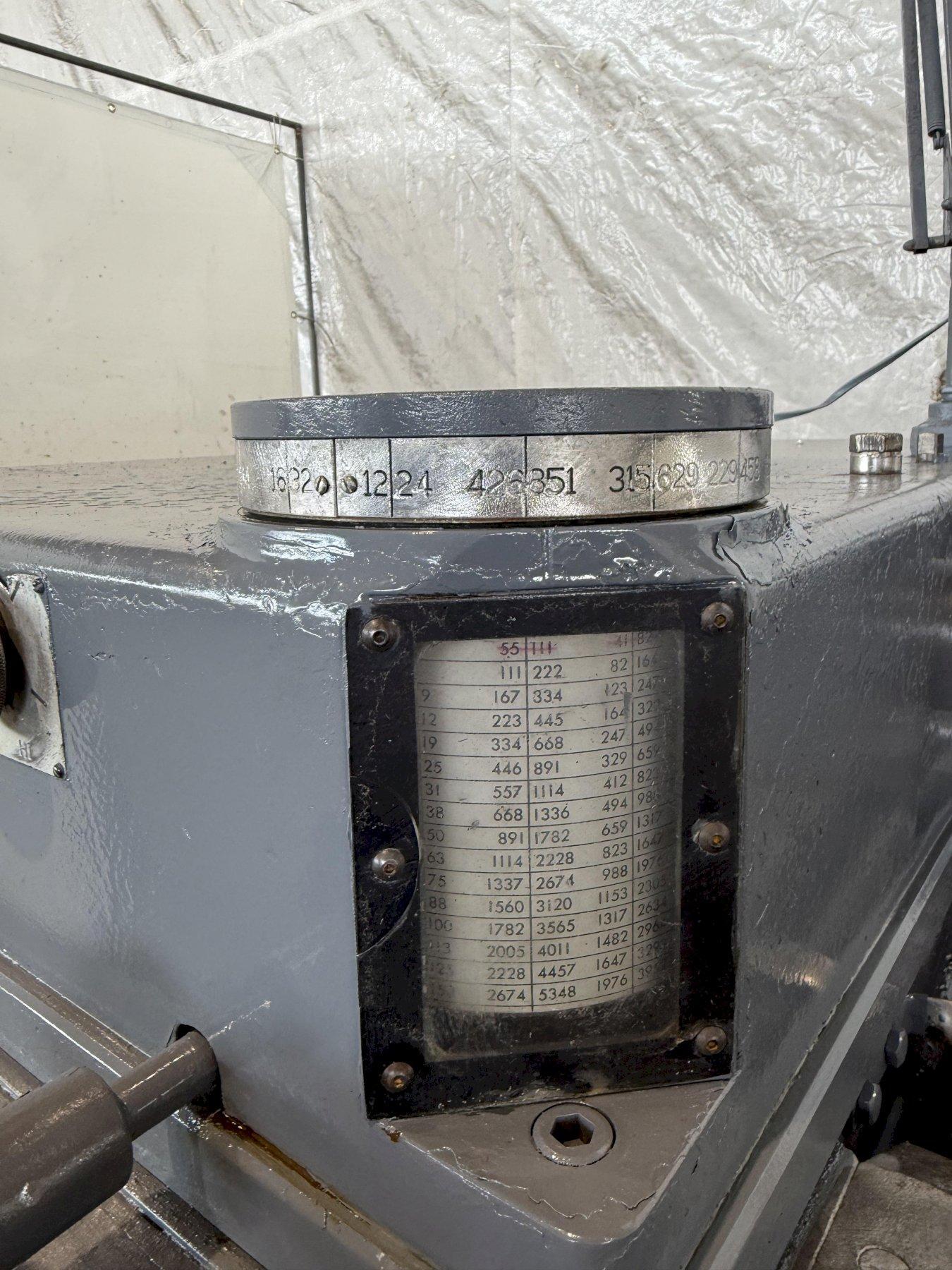

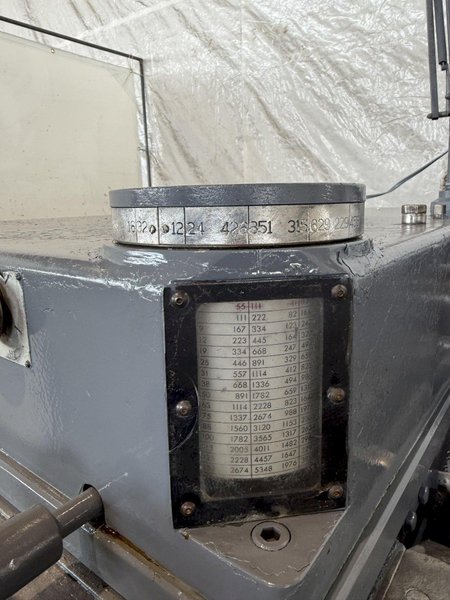

SPINDLE SPEEDS ..................... (32) 12 TO 851 RPM

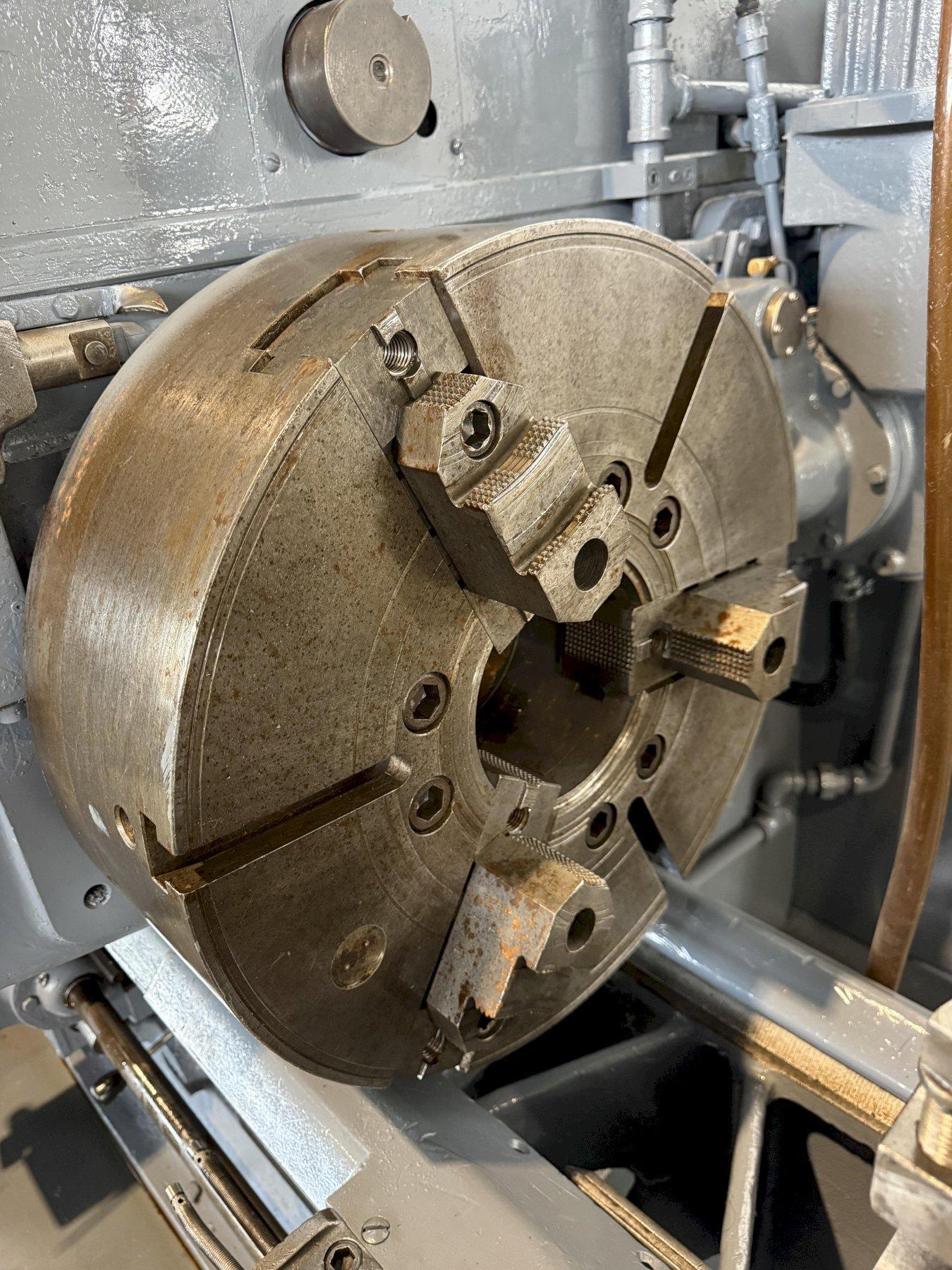

CHUCK .............................. 21" 3 JAW

POWER CHUCK WRENCH .. YES

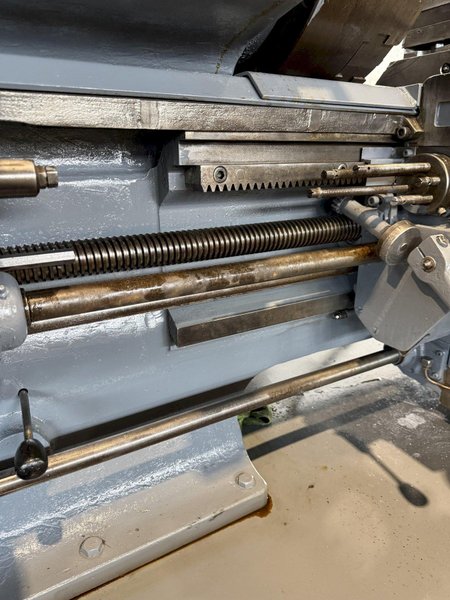

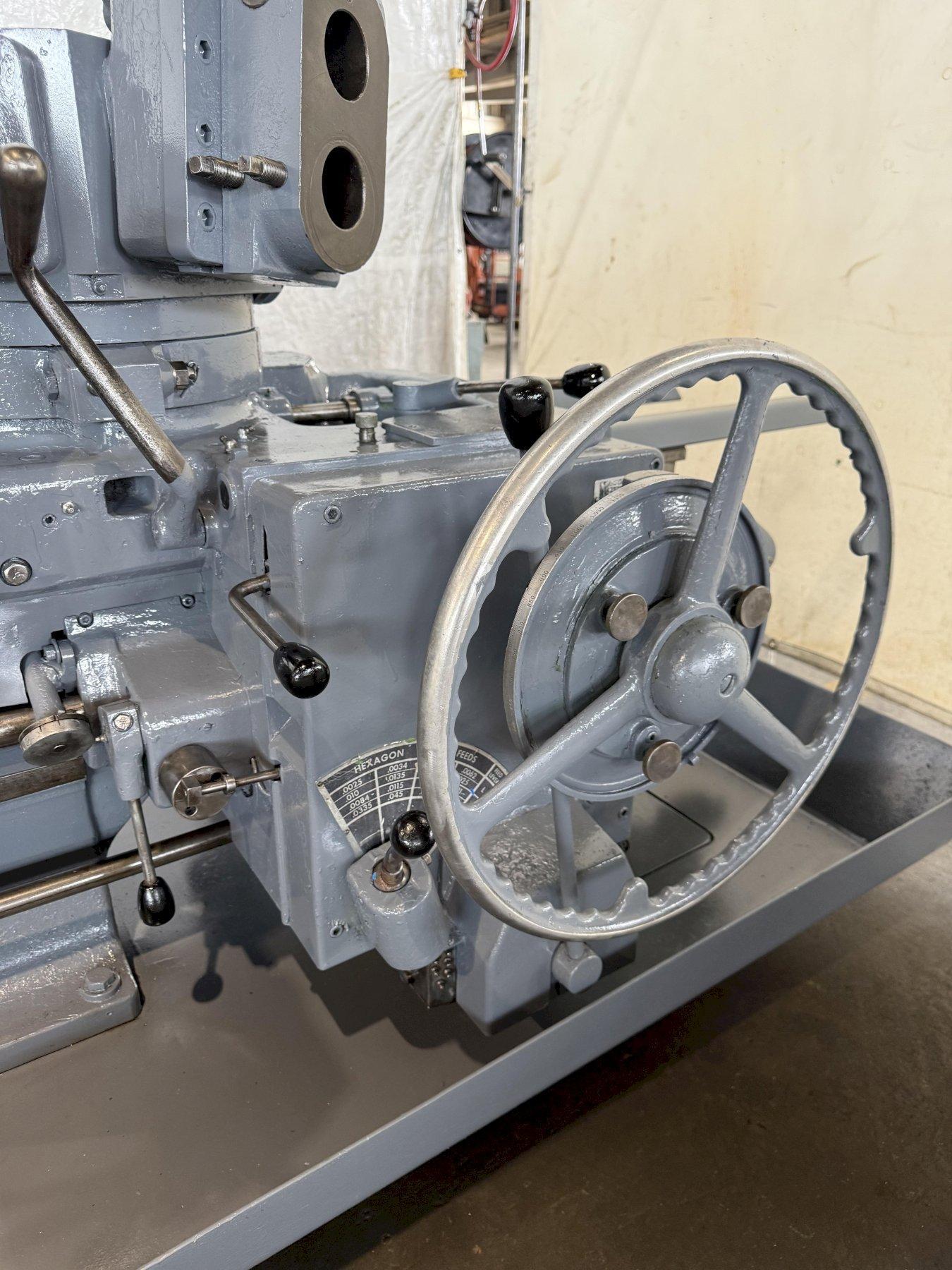

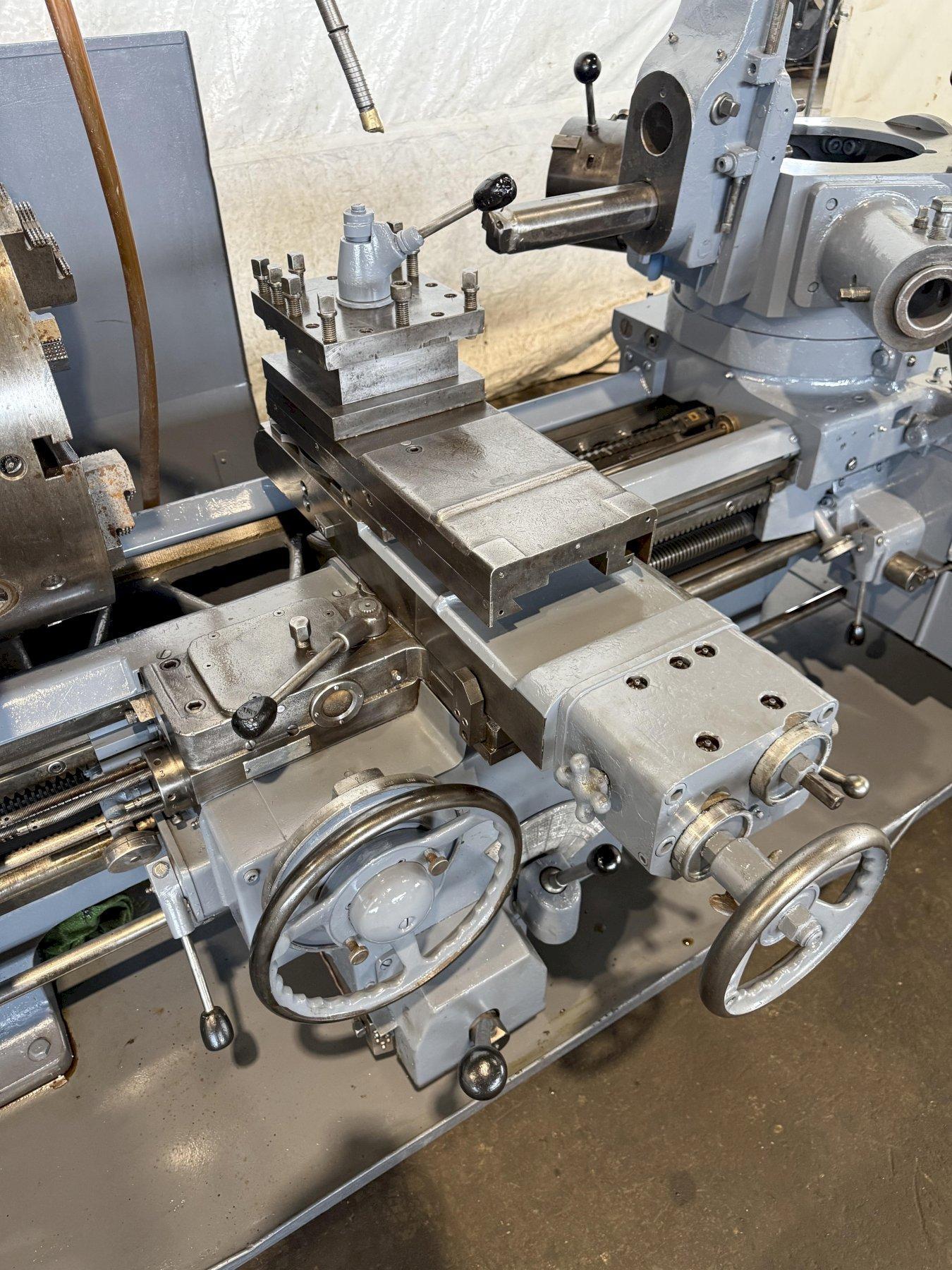

CARRIAGE LONGITUDINAL FEEDS ........ (16) .005 TO .167 IPR

CARRIAGE CROSS FEEDS ............... (16) .002 TO .082 IPR

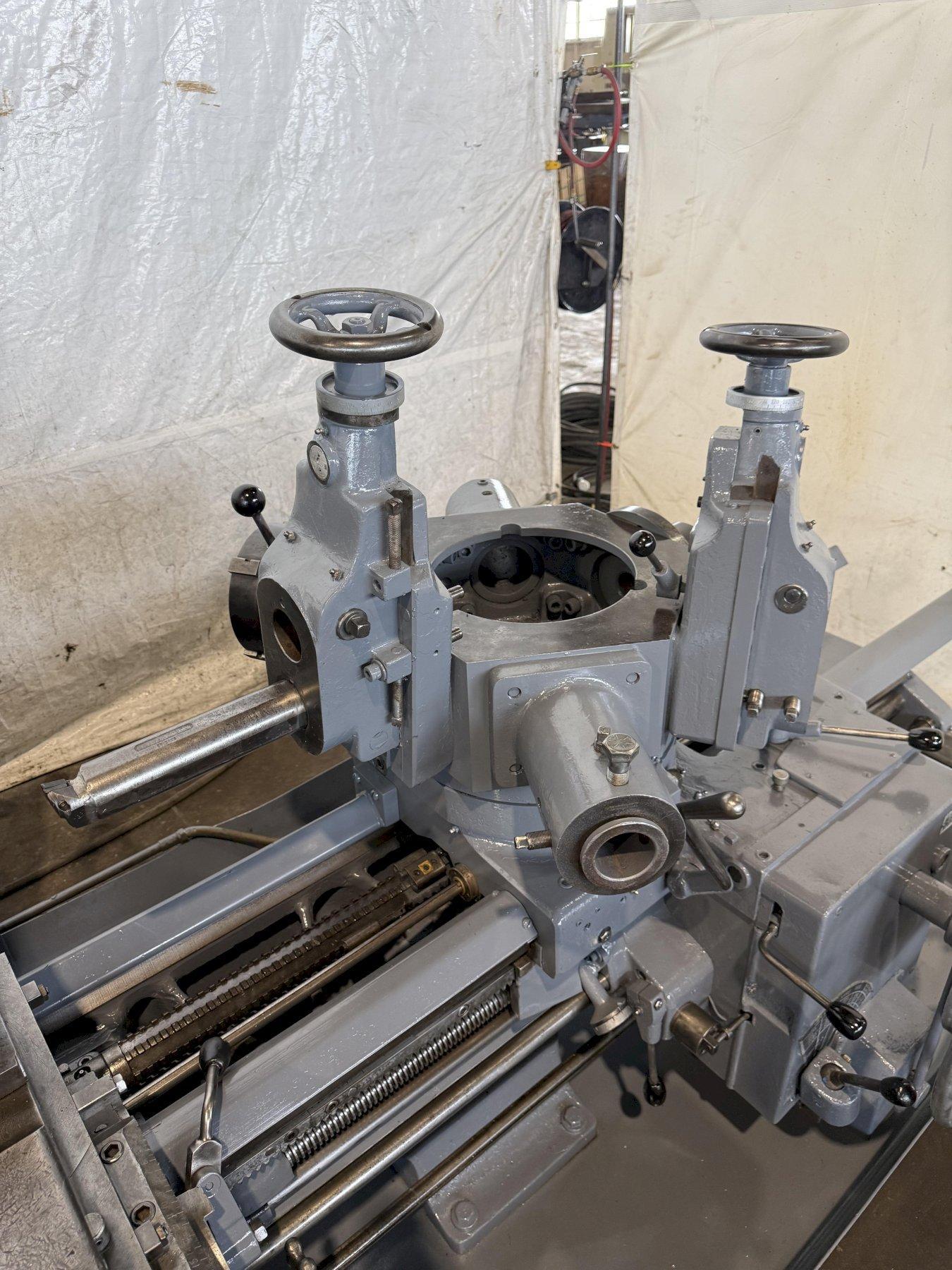

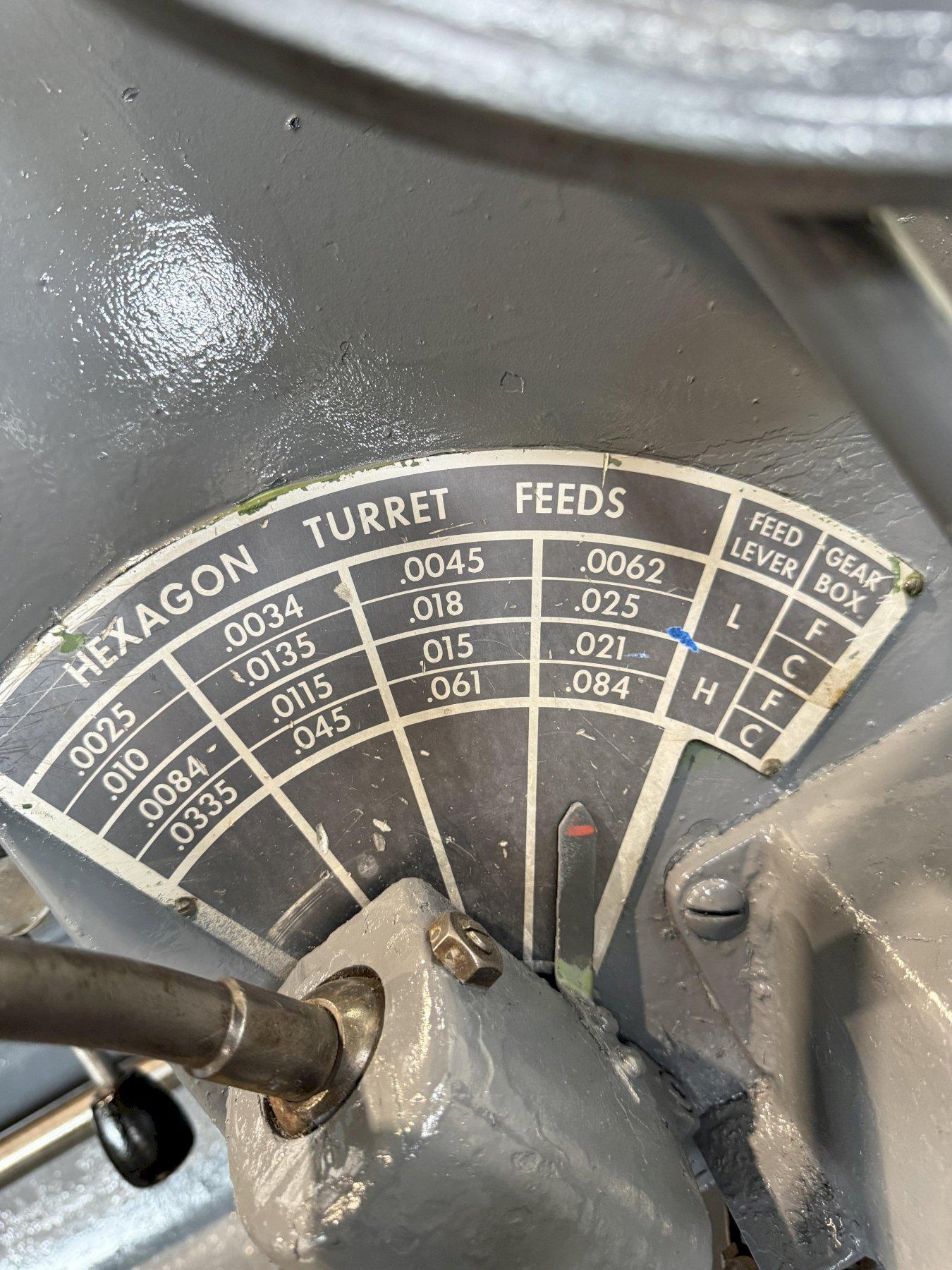

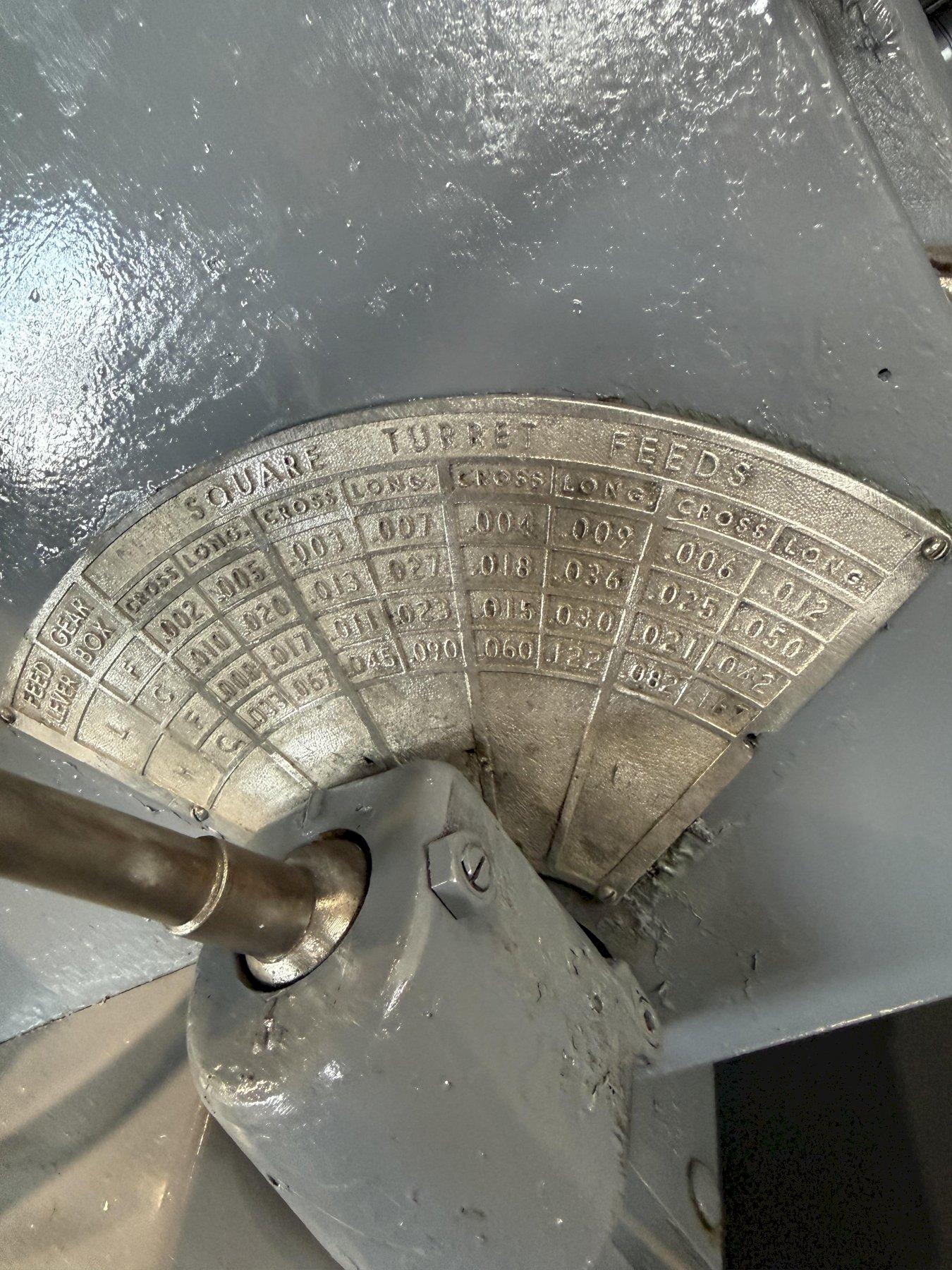

TURRET LONGITUDINAL FEEDS .......... (16) .005 TO .167 IPR

ADJUSTABLE SLIDE TOOLS .. 2

FLANGE TOOL HOLDER .. 4

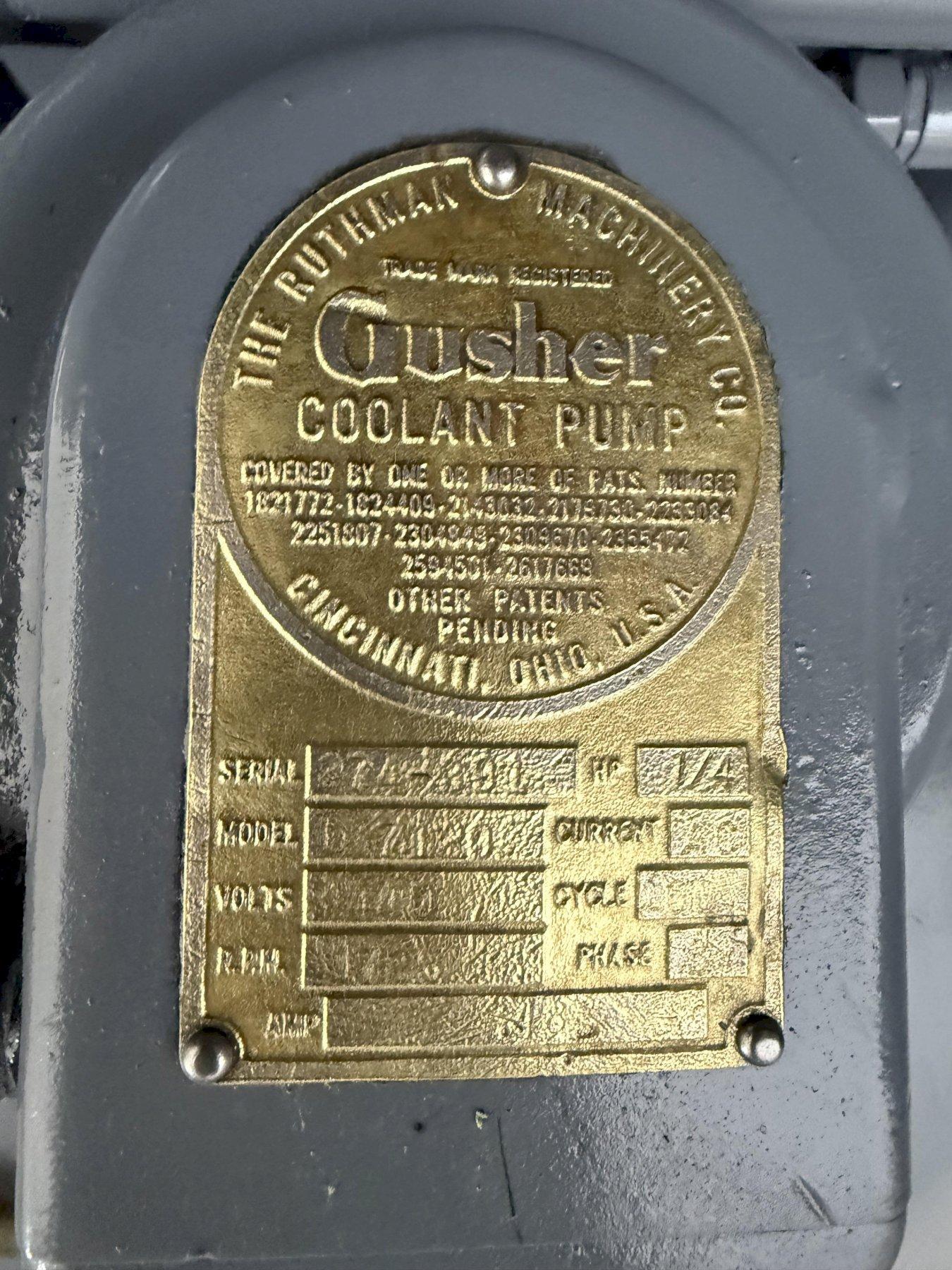

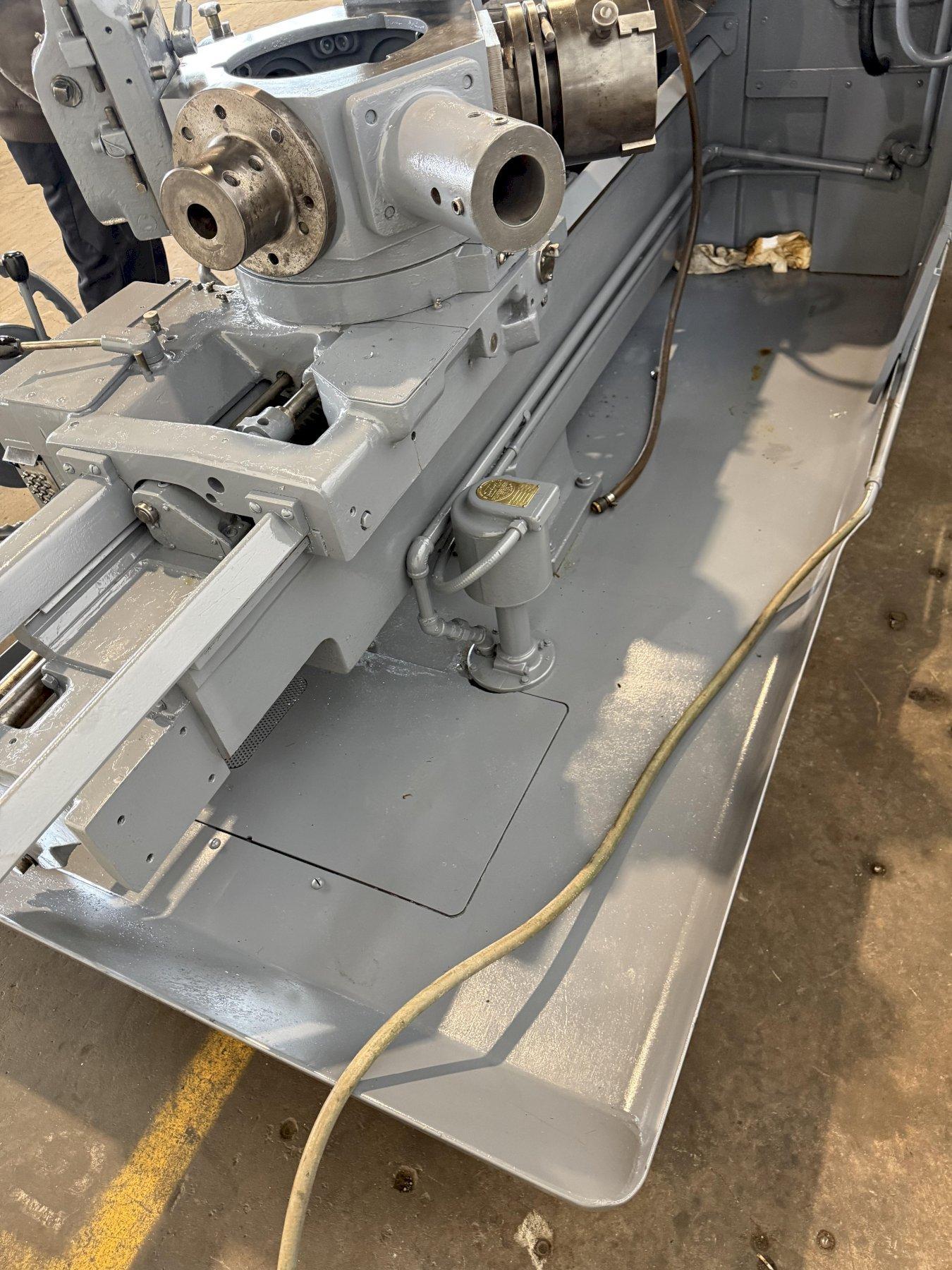

CHIP PAN WITH COOLANT .............. YES

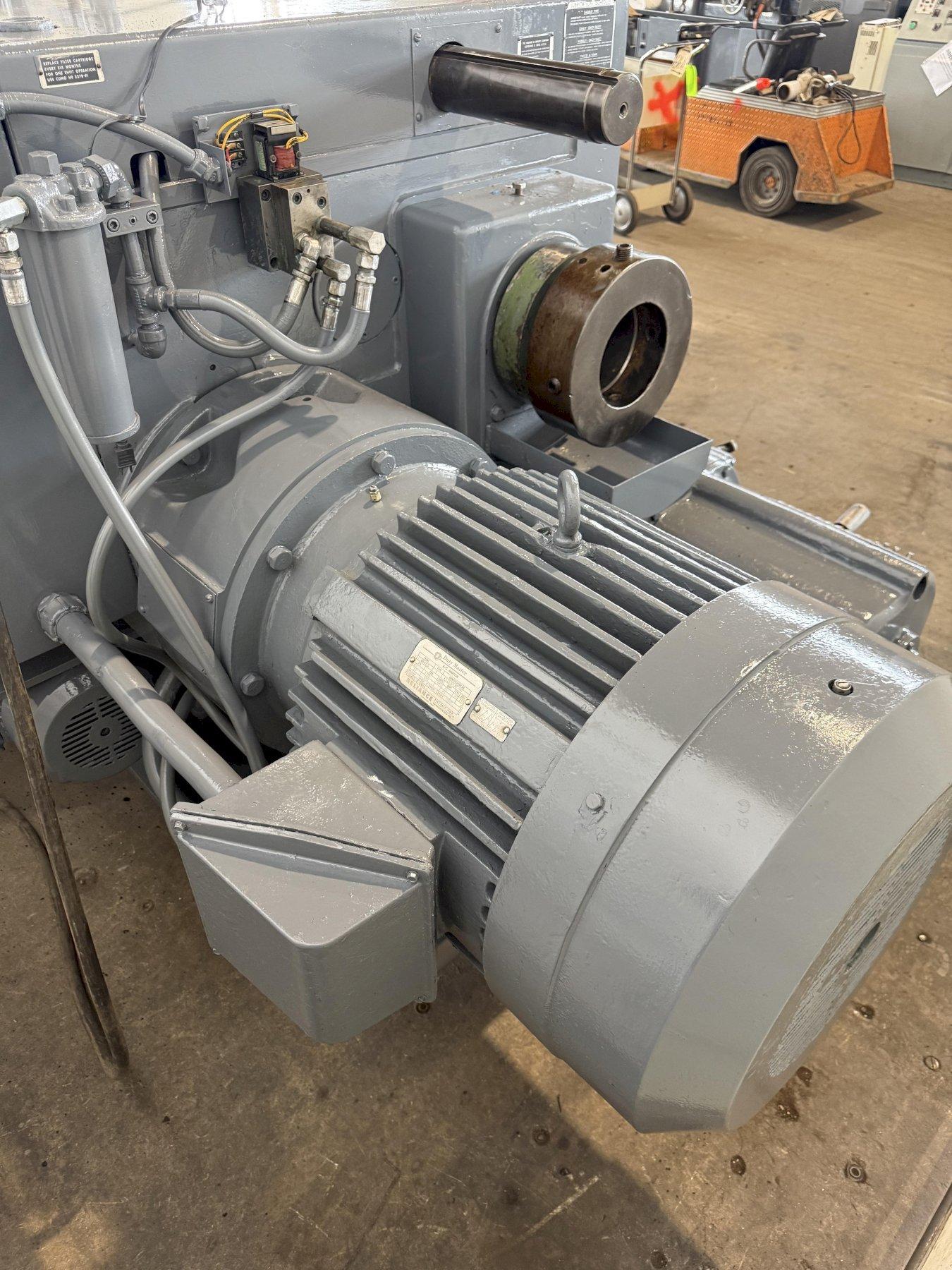

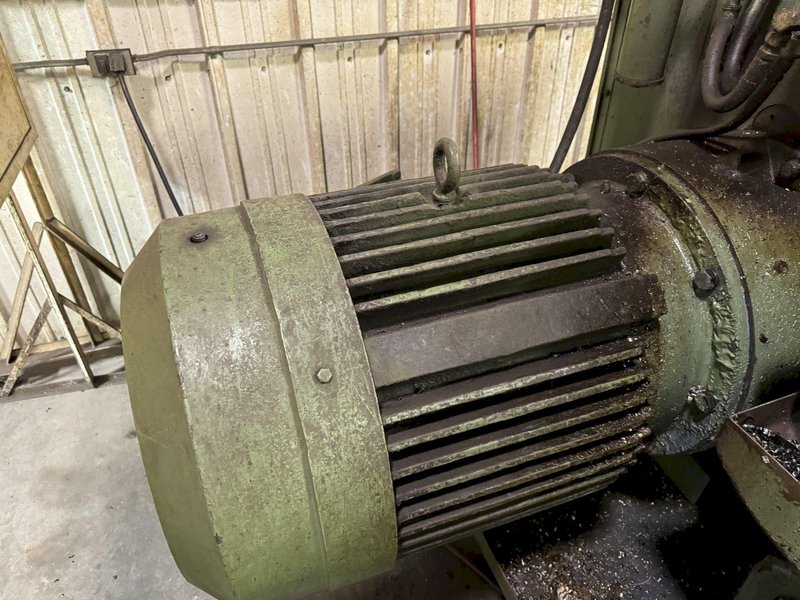

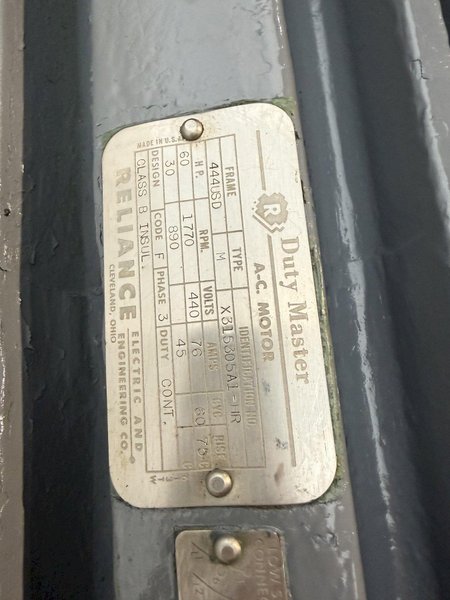

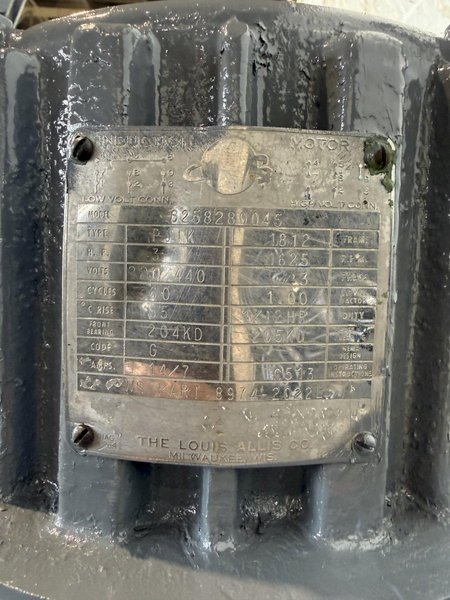

MAIN MOTOR ......................... 25 HORSEPOWER


Watch 3A WARNER & SWASEY M-3500 Saddle Type Turret Lathe - Stock # 0345325

Want to request a quote or ask the owner of this listing a question?

Similar Listings to - 3A WARNER & SWASEY M-3500 SADDLE TYPE TURRET LATHE. STOCK # 0345325

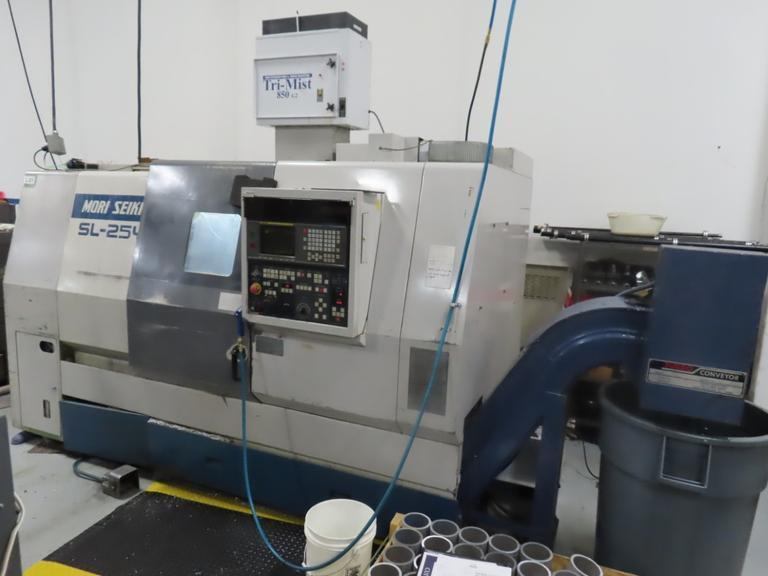

Mori Seiki SL-25Y CNC Turning with Y-Axis Capability, MF-T6 CNC Control, 10" 3-Jaw Chuck, Y-Axis Capability, Tailstock, Chip Conveyor- Auction Item

VTL Lathes (Vertical Turret Lathe)

Mori Seiki SL-25Y CNC Turning with Y-Axis Capability, MF-T6 CNC Control, 10" 3-Jaw Chuck, Y-Axis Capability, Tailstock, Chip Conveyor- Auction Item

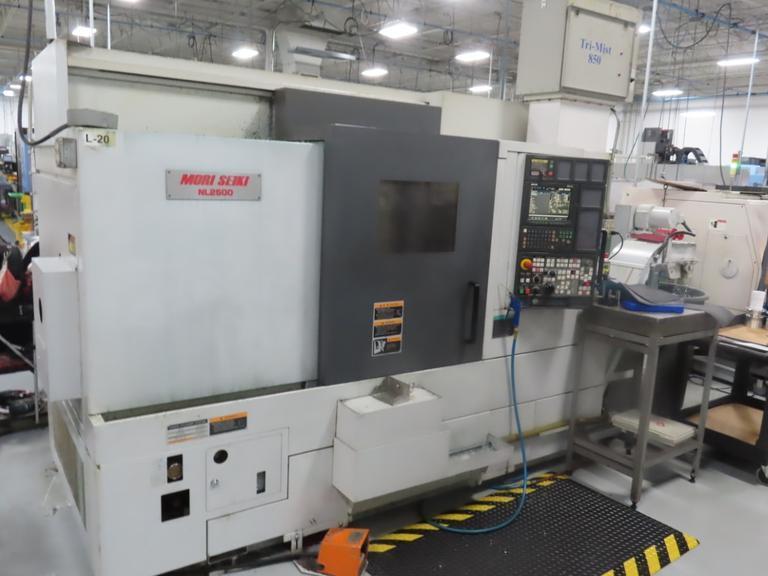

Mori Seiki NL2500MC/700 CNC Turning Center, MSX-850 CNC Control, Live Milling Capability, Tool Setter, Parts Catcher, Hi Pressure Coolant- Auction Item
