100 KVA LORS PRESS TYPE SPOTWELDER
Brand
Not specified
Category
Type
Model
1100AP
Stock #
116809
Year
Not specified
Condition
Used
Location
Not specified
|
100 KVA LORS PRESS TYPE SPOTWELDER

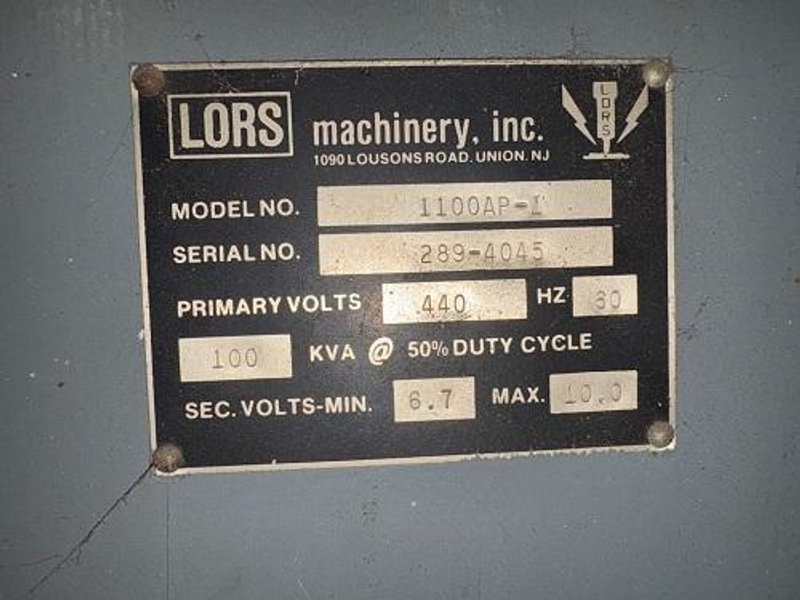

MODEL 1100-AP S/N 289-4045 NEW 1989
KVA ............................................ 100
RATED CAPACITY ...(2 PIECES COLD ROLL STEEL).... .165"
RATED CAPACITY ...(2 PIECES STAINLESS STEEL).... .110"
VOLTAGE ........................................ 440
SECONDARY VOLTAGE .............................. 6.7
MAXIMUM VOLTAGE ................................ 10.0
THROAT DEPTH ................................... 36"
MAXIMUM SHORT CIRCUIT .......................... 30,000
ELECTRO FORCE @ 80 PSI ......................... 4,020#
STROKE ......................................... 4"
HOLDER DIAMETER ................................ 1-1/2"
ARM DIAMETER ................................... 3"
EQUIPPED WITH:
- INTERLOCK INDUSTRIES MICROPROCESSOR CONTROLS MODEL 105
- HEAVY DUTY WELDED STEEL FRAME
- SOLID COPPER ARMS WITH STEEL END CAPS
- MULTI-STEP TRANSFORMER TAP SWITCH
- EJECTOR-TYPE WATER COOLED TIP HOLDERS
- OPERATOR SELECTABLE SINGLE/DOUBLE STAGE FOOT SWITCH
- OPERATOR SELECTABLE SET-UP/RUN SWITCH FOR ADDED SAFETY
- CONVENIENT MANUALLY OPERATED TIP ALIGNMENT VALVE FOR QUICK
SET-UP
|
