Voortman V630M CNC Beam Drill with VB1050 Miter Saw & Material Handling

VOORTMAN V630 DRILL CAPACITY:
Material Width 2-3/8" - 41"
Material Height 3/8" - 18"
Max. Material Weight 29,100 Lbs
Max. Speed Roller Measuring System 138 FPM
Min. Infeed Length 59"
Number Of Drilling Units 3 x VD40
Automatic Tool Changer 3 x VTC 5/40
Speed, Y & Z Axis 114-6/8 FPM
Spindle Speed, Stepless 0-2500 RPM
Nominal Power 40 HP
Holder SK 40
Drill Diameter 13/64" - 1-9/16"
Thread Tapping 1/4" - 1-3/16"
Roller Conveyor Height 30"
Roller Conveyor Speed 197 FPM
VOORTMAN VB1050 MITER SAW CAPACITY:
Cutting Capacity @ 0-Degree 20" x 44"
Cutting Capacity @ 15-Degree 20" x 44-23/32"
Cutting Capacity @ 30-Degree 20" x 36-13/32"
Cutting Capacity @ 45-Degree 20" x 28"
Cutting Capacity @ 60-Degree 20" x 18-1/2"
Cutting Capacity, Round 20"
Blade Height 2.64"
Blade Size 2-1/8" x 1/16"
Blade Speeds, Stepless 135-400 SFPM
Main Motor 10 HP



Equipped With:
Voortman CNC Control

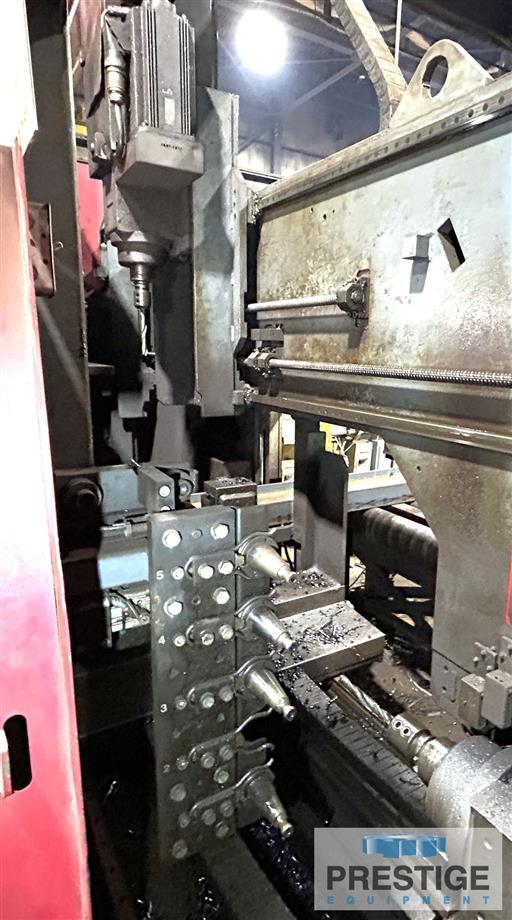

(3) Drilling Units With 5-Station Automatic Tool Changers

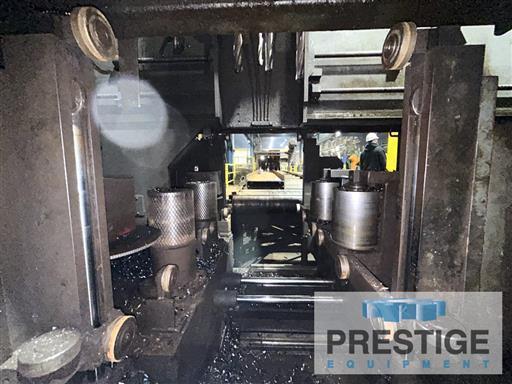

Roller Feed Measuring

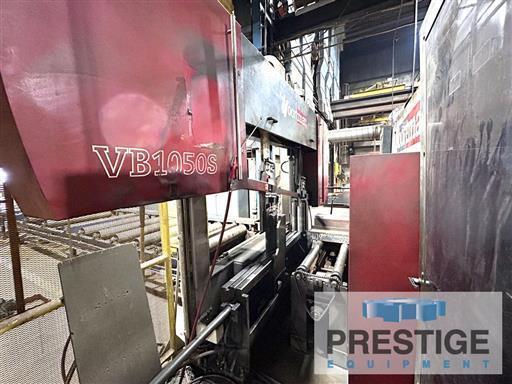

Voortman VB1050 Miter Saw

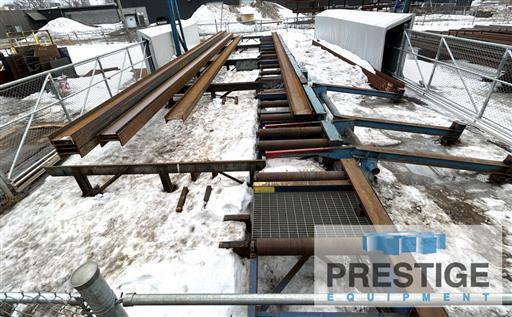

Infeed & Outfeed Conveyor
Material Transfers


NOTE: Inspect In Plant
