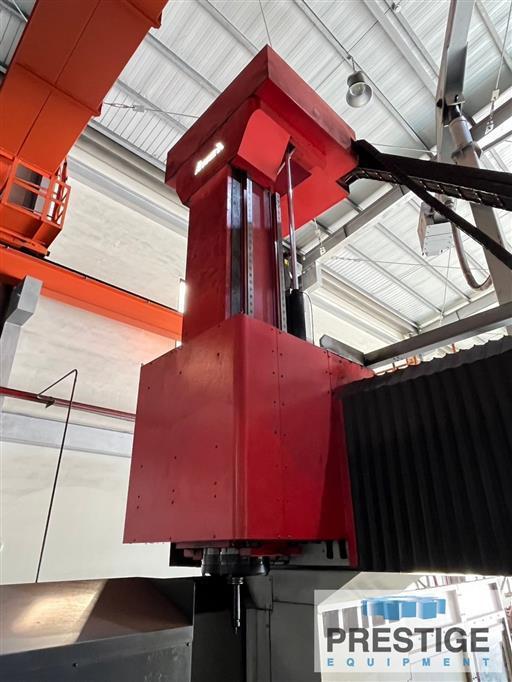

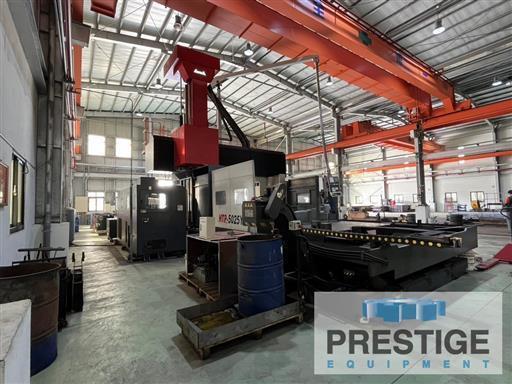

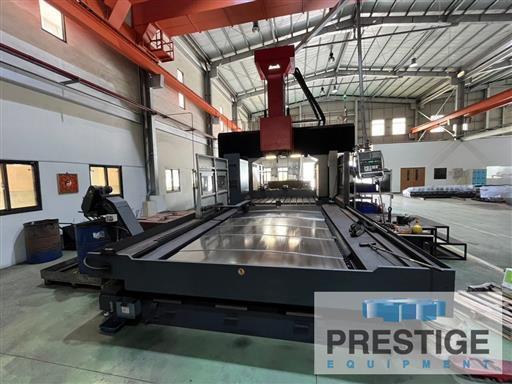

AWEA HTP-5025YZF 5-Face Double Column Machining Center

Brand
AWEA
Category
Machining Centers
Type
Machining Centers, Gantry (incld. Bridge & Double Column)
Model
HTP-5025YZF
Stock #
44046
Year
2020
Condition
Not specified

Location

Not specified
REQUEST FINANCING
SPECIFICATIONS:
X-Axis Travel 196.85"
Y-Axis Travel 124.80"
Z-Axis Travel 55.11"
Distance Between Columns 106.29"
Table Size 197.63" x 94.48"
Table Load Capacity 39,600
Distance from Spindle Nose to Table 7.87"-62.99"
Spindle Speeds, Geared Head 4,000 RPM
Spindle Drive Motor 29.3 HP/34.6 HP
Spindle Taper BT #50
Tool Changer 60 ATC



Equipped With:

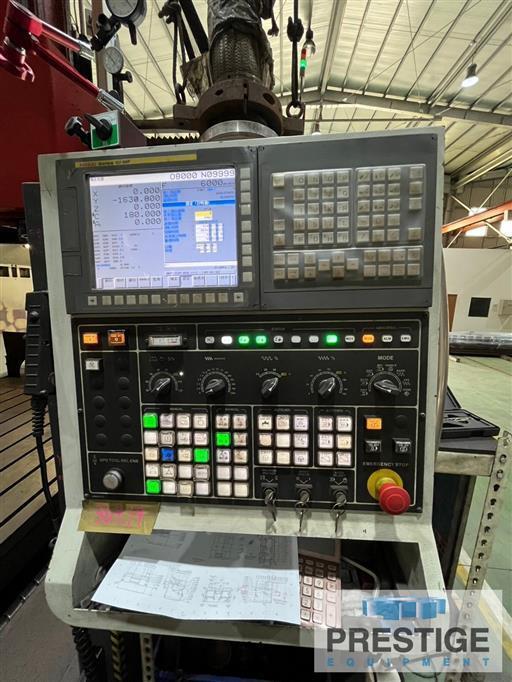

Fanuc Oi-MF CNC Control
Coolant Thru Spindle
60-Position Automatic Tool Changer
Automatic Head Storage
90 Degree Automatic Head (3,000 RPM)
Automatic Universal Head (A & C Axis 5 Deg., 3,000 RPM)
Y-Axis 3 Roller Linear Guide Way
Z-Axis 4 Roller Linear Guide Way
Blum Tool Measuring System
X/Y Linear Scales
