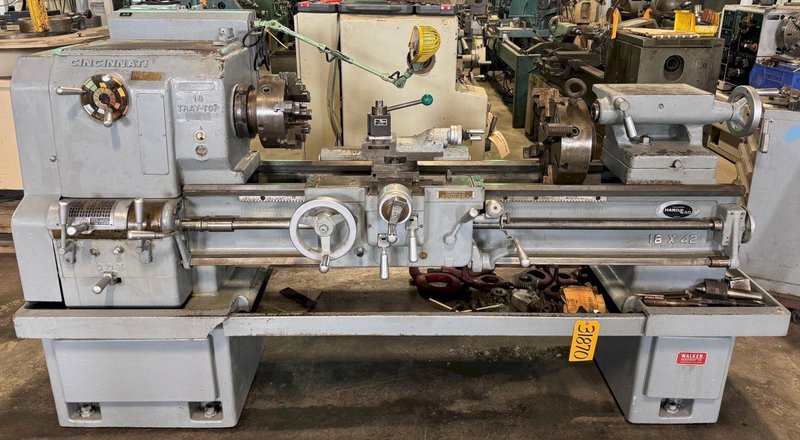

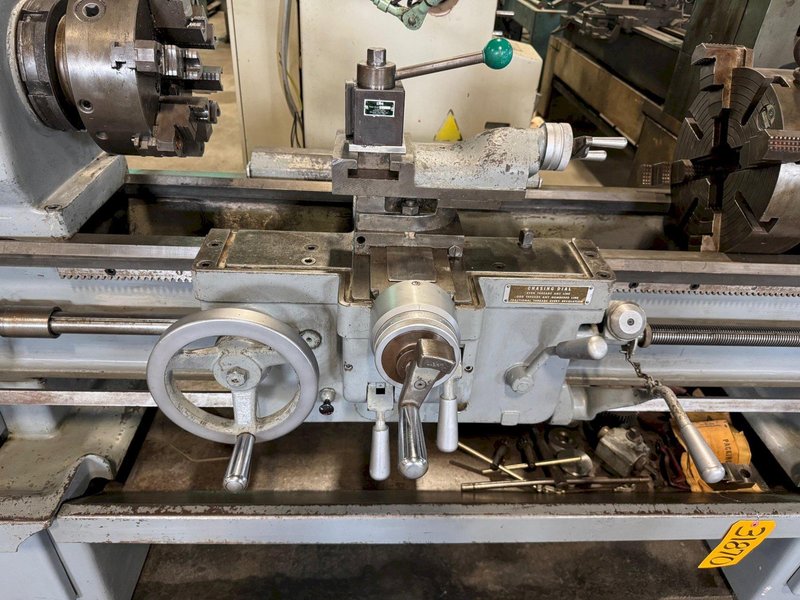

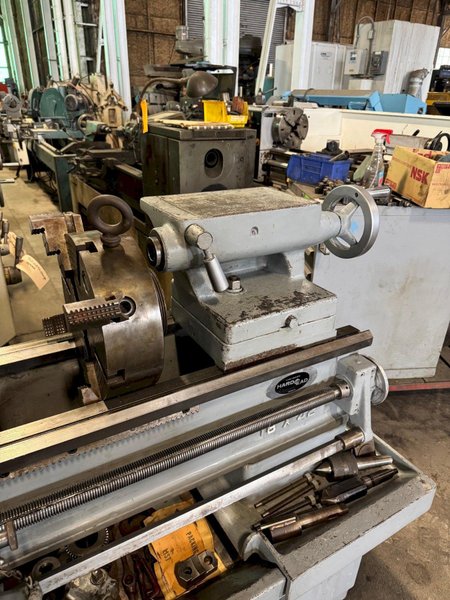

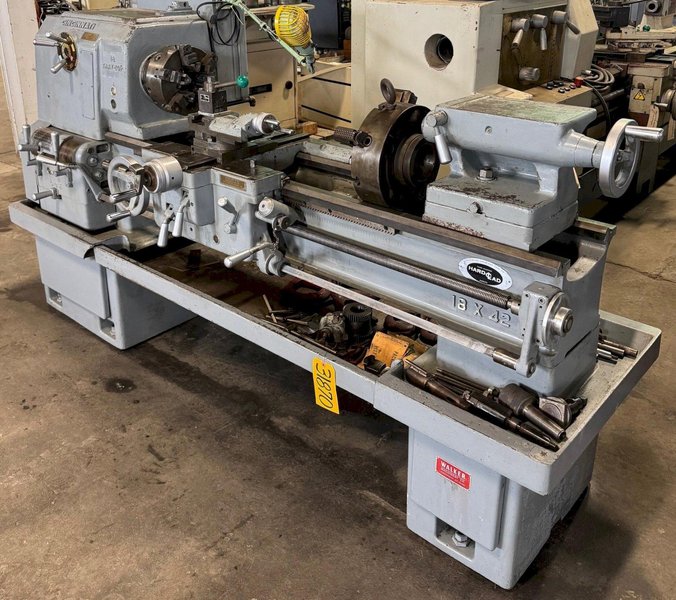

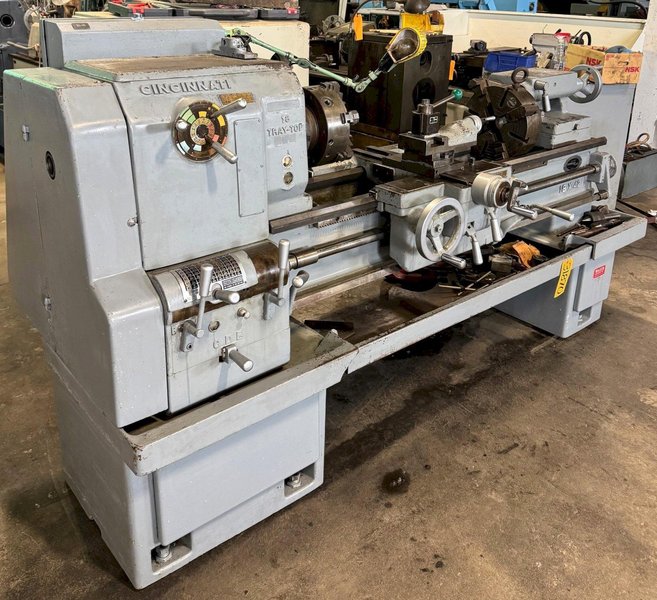

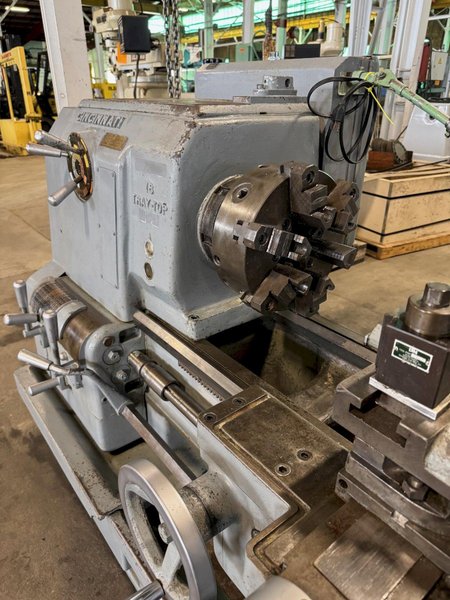

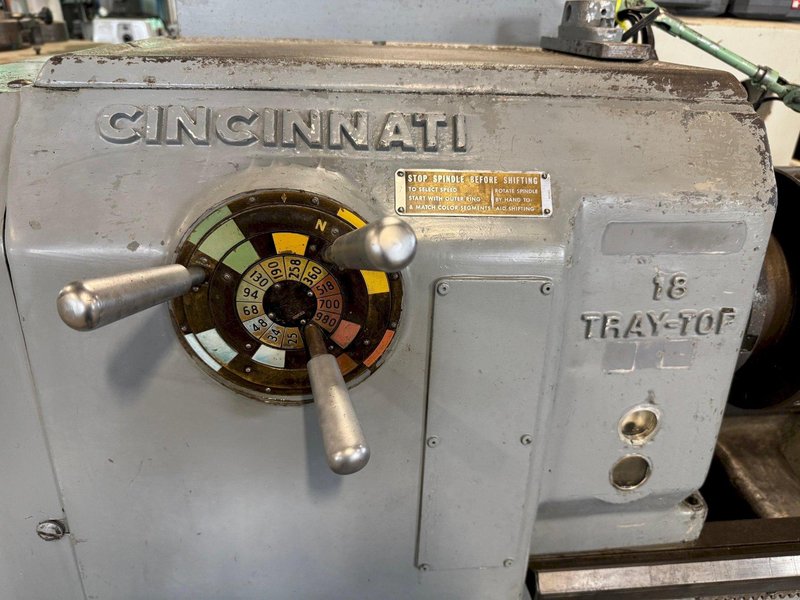

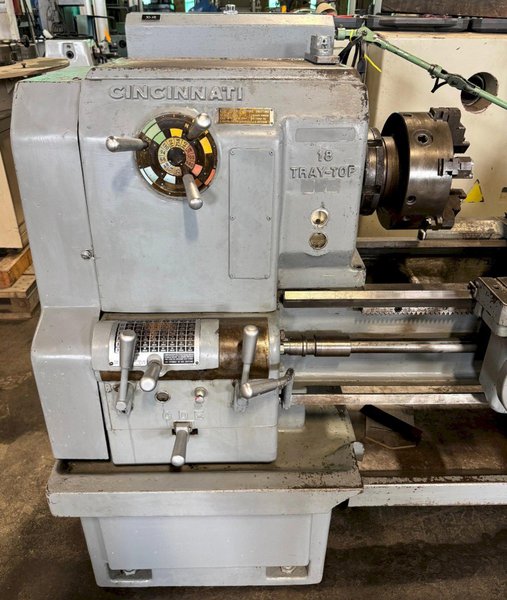

18" x 42" Cincinnati Tray-Top Lathe, 980 RPM, Chucks, 3 HP
Brand
Category
Type
Model
18" Tray-Top
Stock #
31870
Year
Not specified
Condition
Used
Location
Ohio
| Weight | 3000 pounds |
| Main Motor | 3 HP |
| Swing Over Cross Slide | 11.75 inches |
| Power | 3 horsepower |
| Spindle Bore | 1.75 inches |
| Centers | 42 inches |
|

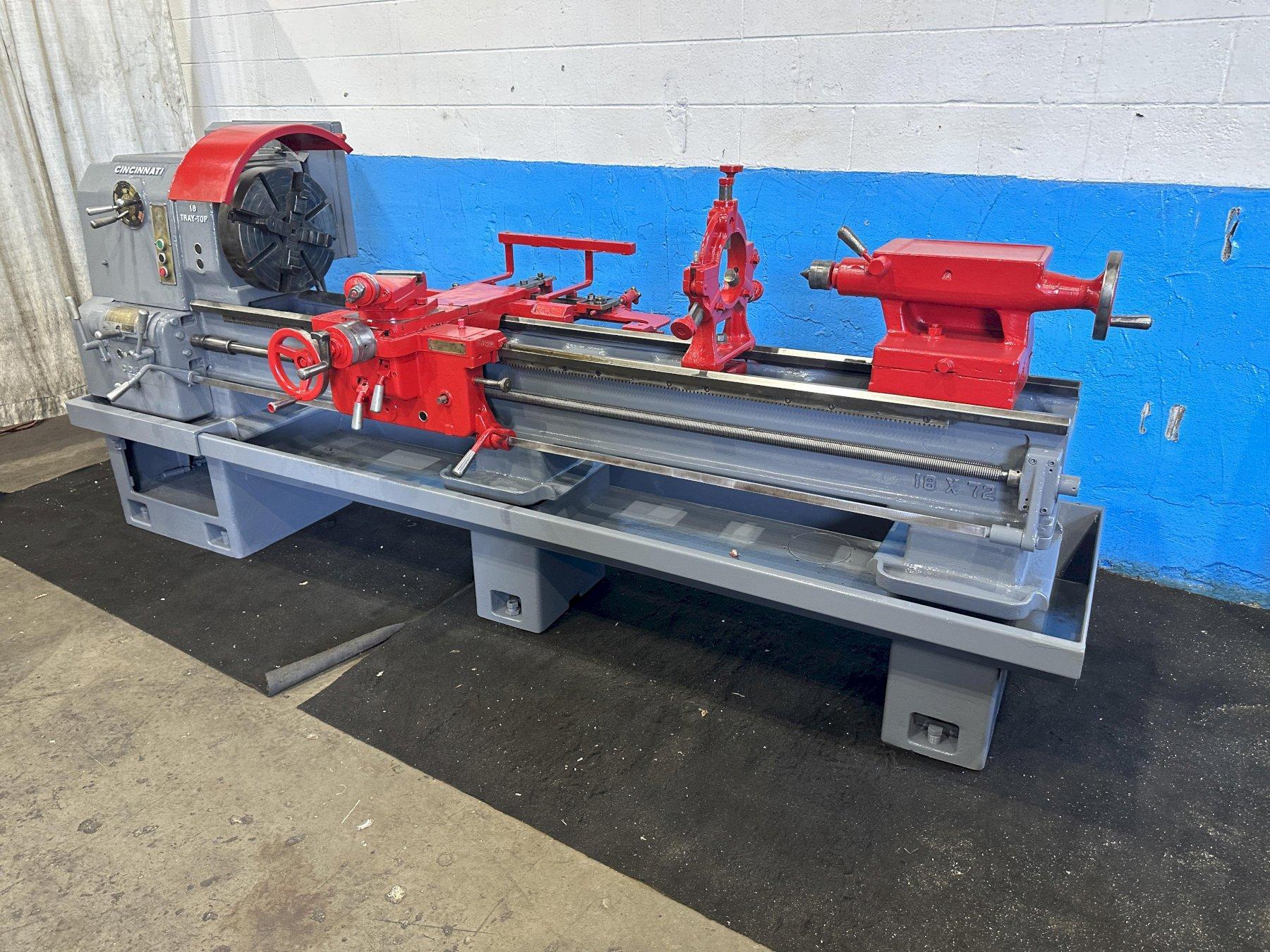

CINCINNATI LATHE
MODEL: 18" Tray-Top SERIAL NUMBER: 1W4E5D-7 GENERAL SPECIFICATIONS Swing Over Bed: 18-3/4" Swing Over Cross Slide: 11-3/4" Distance Between Centers: 42" Swing Over Gap: 27" Spindle Speeds: (12) 25 - 980 RPM Spindle Nose: L-1 Spindle Hole: 1-3/4" Number Of Thread and Feed Changes: 48" Thread Range: 1-1/2 to 92 TPI Feeds, Carriage: .0019" - .1215" Feeds, Cross Slide: .0009: - .0578" Leadscrew Diameter: 1-3/8"-6 Cross Slide Travel: 12" Top Slide Travel: 3-1/4" Tailstock Spindle Travel: 6" Tailstock Spindle Diameter: 2-1/4" Tailstock Spindle: No. 4 M.T. EQUIPPED WITH 3 HP Drive Motor 10" 6-Jaw Chuck 12" 4-Jaw Chuck Thread Dial Approximate Weight: 3000 Lbs. F.O.B. Cincinnati, Ohio ALL SPECIFICATIONS SUBJECT TO VERIFICATION BY PURCHASER |
|
