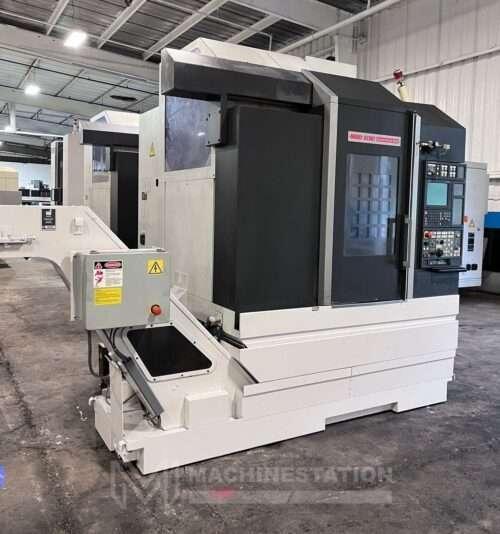

Mori Seiki DuraVertical 5060 CNC Vertical Mill – 4th Axis Mill

Mori Seiki DuraVertical 5060 CNC Vertical Mill – 4th Axis Mill

Brand

MORI SEIKI

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU:	112714
Make:	Mori Seiki
Model:	DuraVertical 5080
Year:	2009

Features:
Mori Seiki MSX-504III Series CNC Control
Nikken 4th Axis Rotary Table
10,000 RPM Spindle
Through Spindle Coolant
30 Station Side Mounted Tool Changer
Tool Presetter
PCMCIA Card Slot
Rigid Tapping
Coolant System
Chip Conveyor
Levelling Pads

Travels:
X-Axis: 23.6″
Y-Axis: 20.9″
Z-Axis: 20.1″
Rapid Traverse Rates X, Y Axis: 1417″ Per Minute
Rapid Traverse Rates Z Axis: 787″ Per Minute
Spindle Nose to Table (Min.- Max.): 5.9″ – 26.0″

Table:
Length: 35.4″
Width: 23.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 1102 lbs

Spindle:
Spindle: Taper Size: 40
Speed Range: 10,000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 30 Station
Tool Weight: 17.63 lbs
Max Tool Dia: 3.14″ – 4.92″
Max Tool Length: 11.81″

General:
Air Required: 80 psi, 4 scfm
Power: 220v / 31 kva / 3-Phase
Overall Dimensions: 91″ x 85″ x 105″ High
Overall Dimensions: 132″ x 85″ x 105″ High (With Chip Conveyor)
Weight: 12,786 lbs

No files or videos to display
