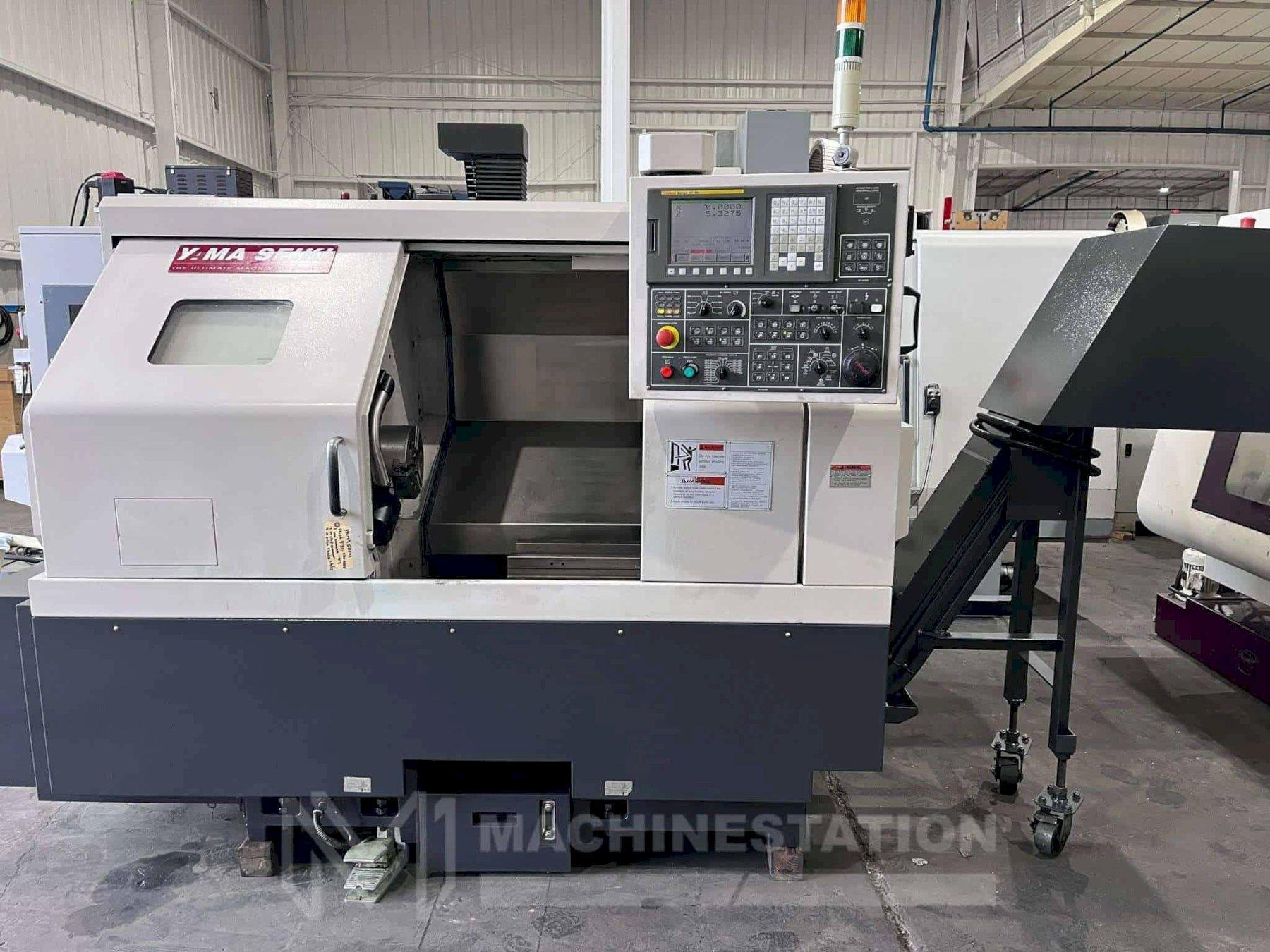

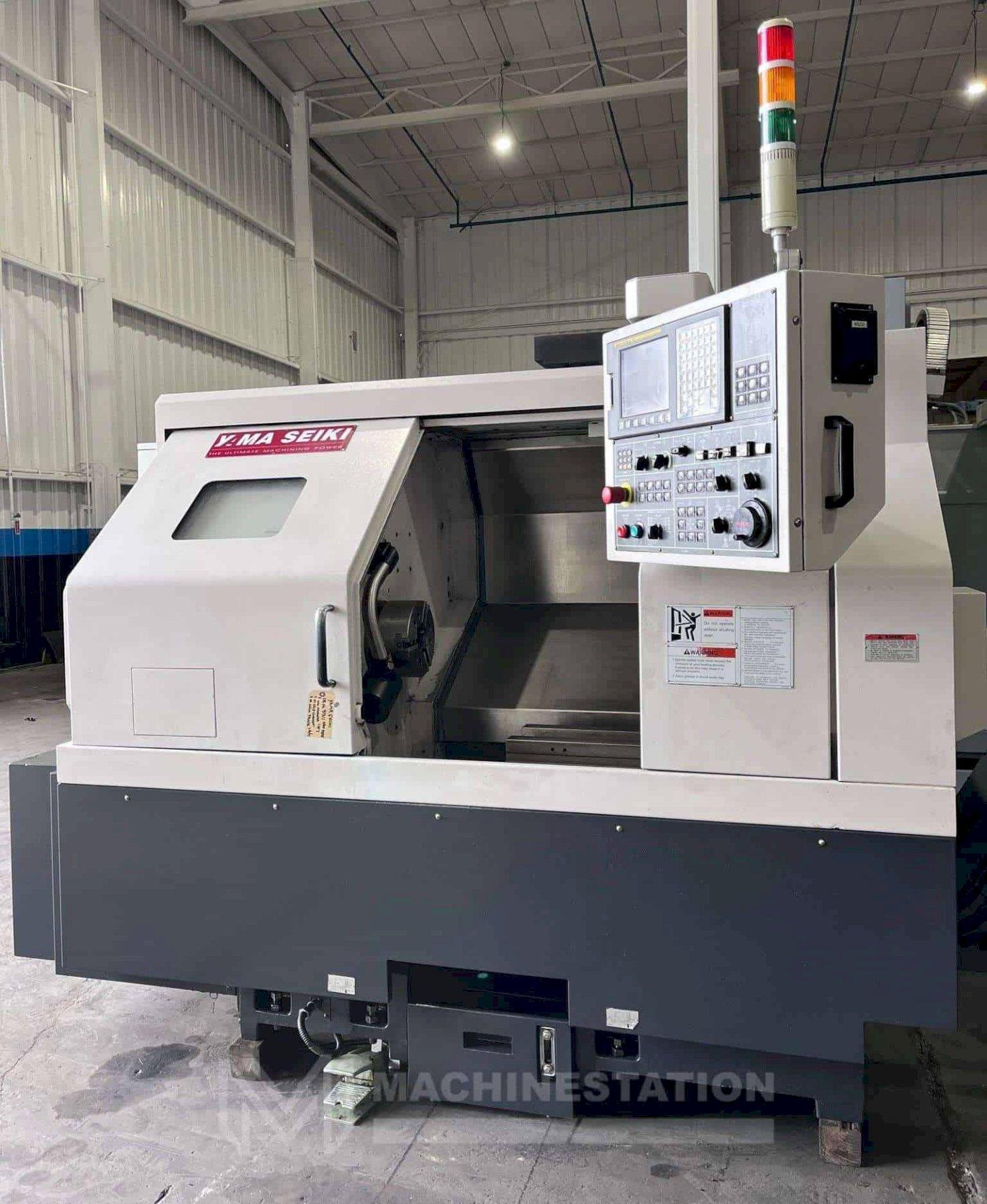

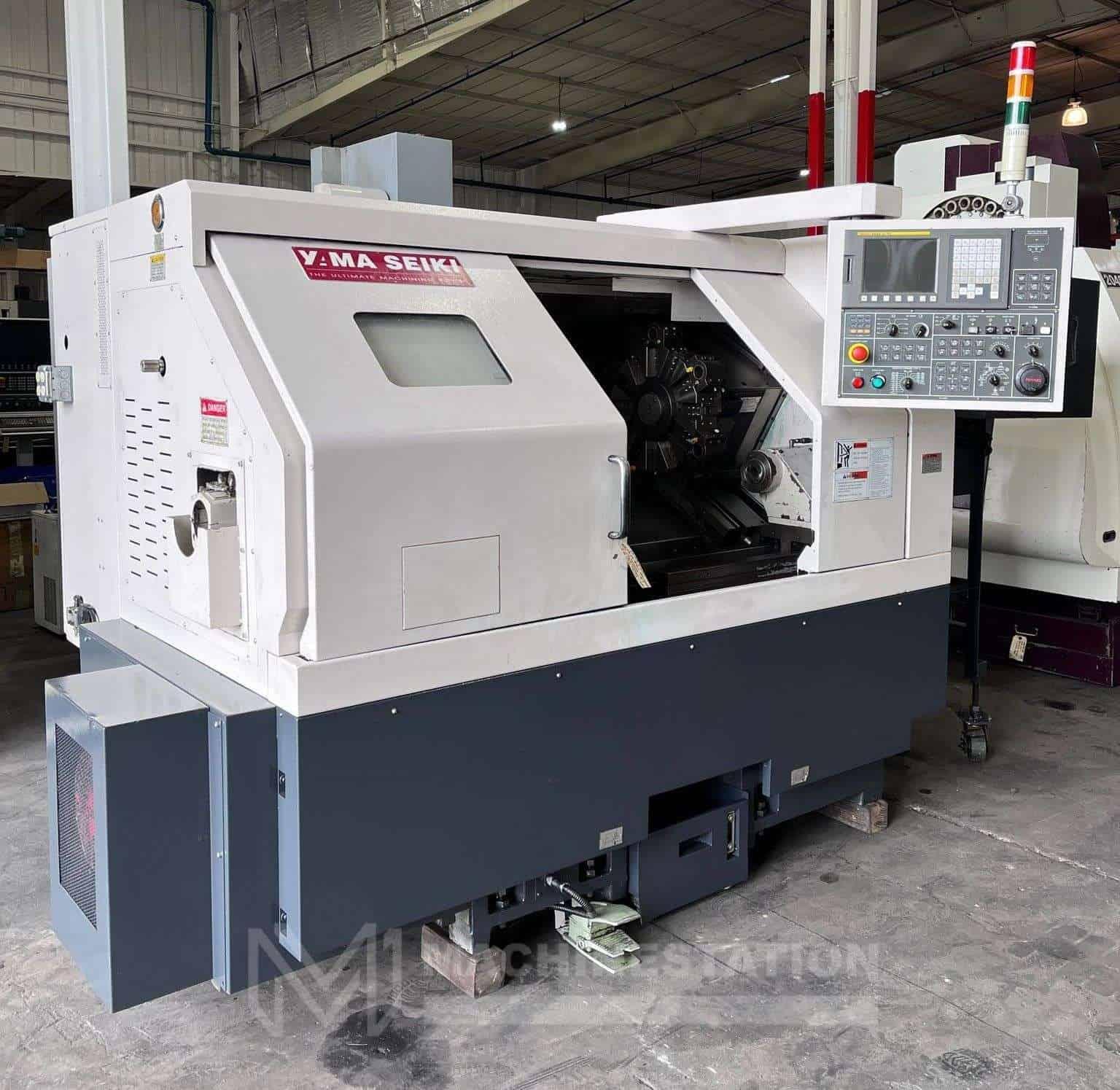

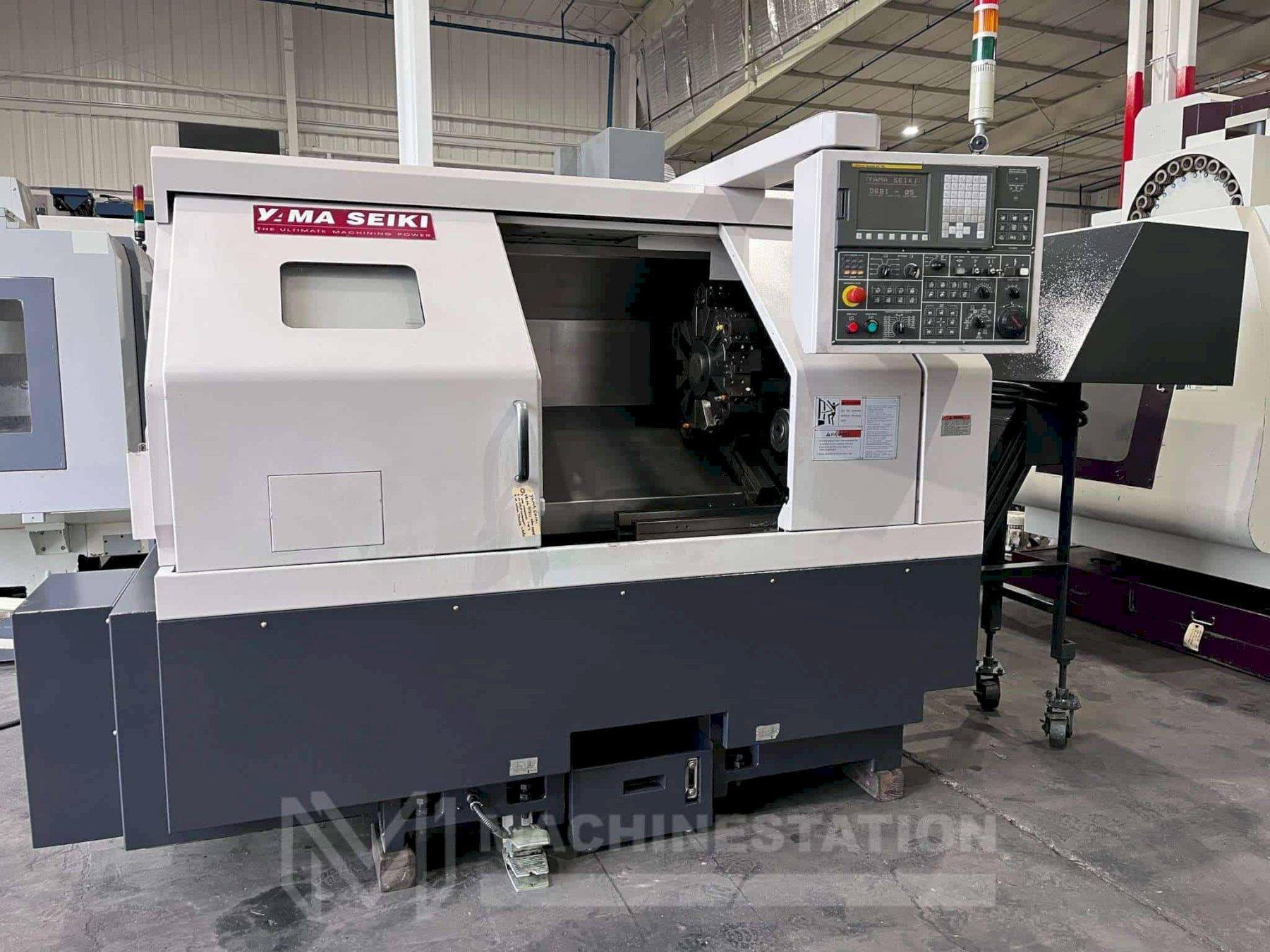

Yama Seiki GA-2000 CNC Turning Center – Lathe

Model
GA-2000
Stock #
112718
Year
Not specified
Condition
Not specified

Location

Not specified

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

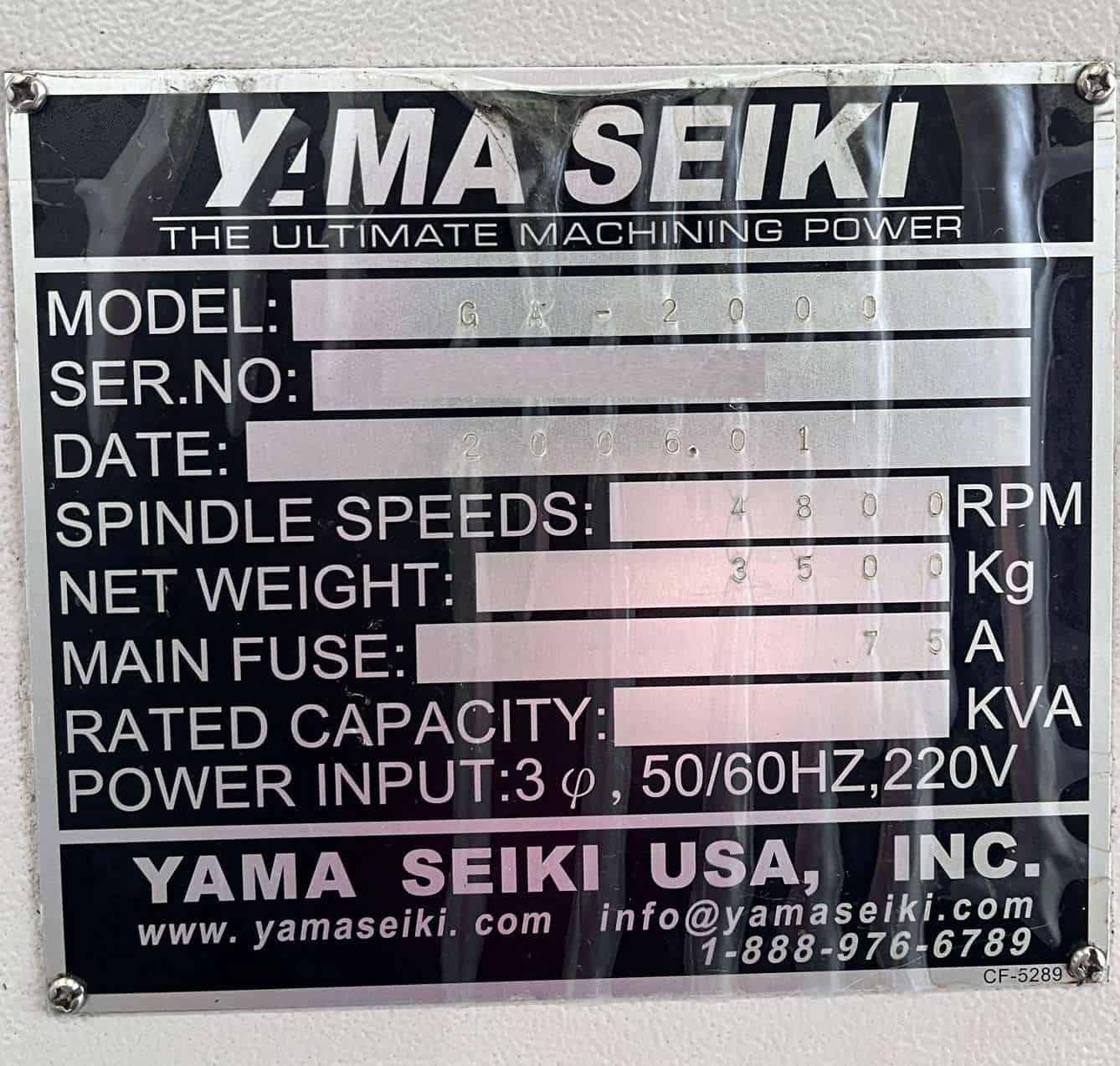

Make:Yama Seiki
Model:GA-2000
Year:2006
Condition:Used – Good



Equipped With:

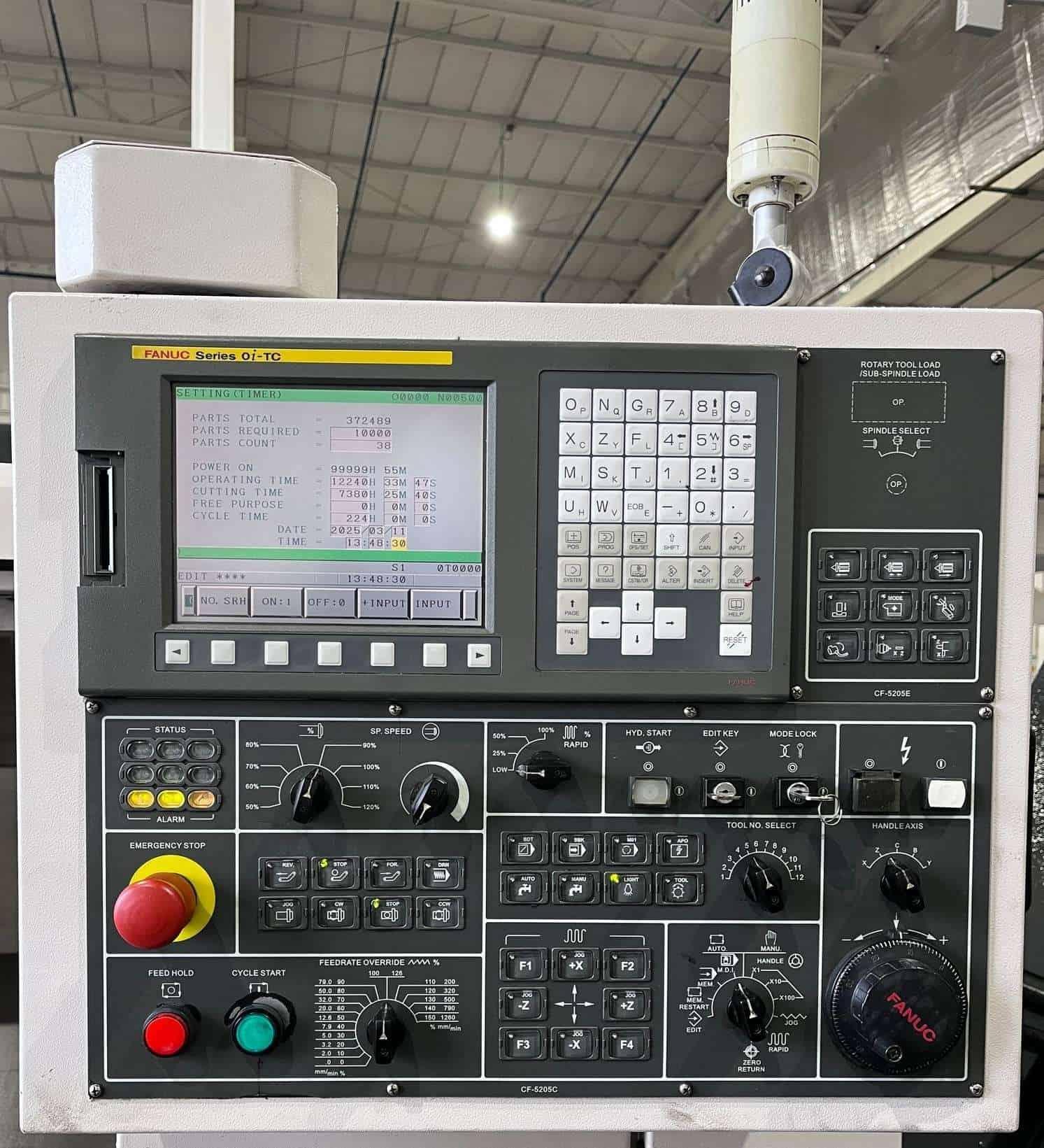

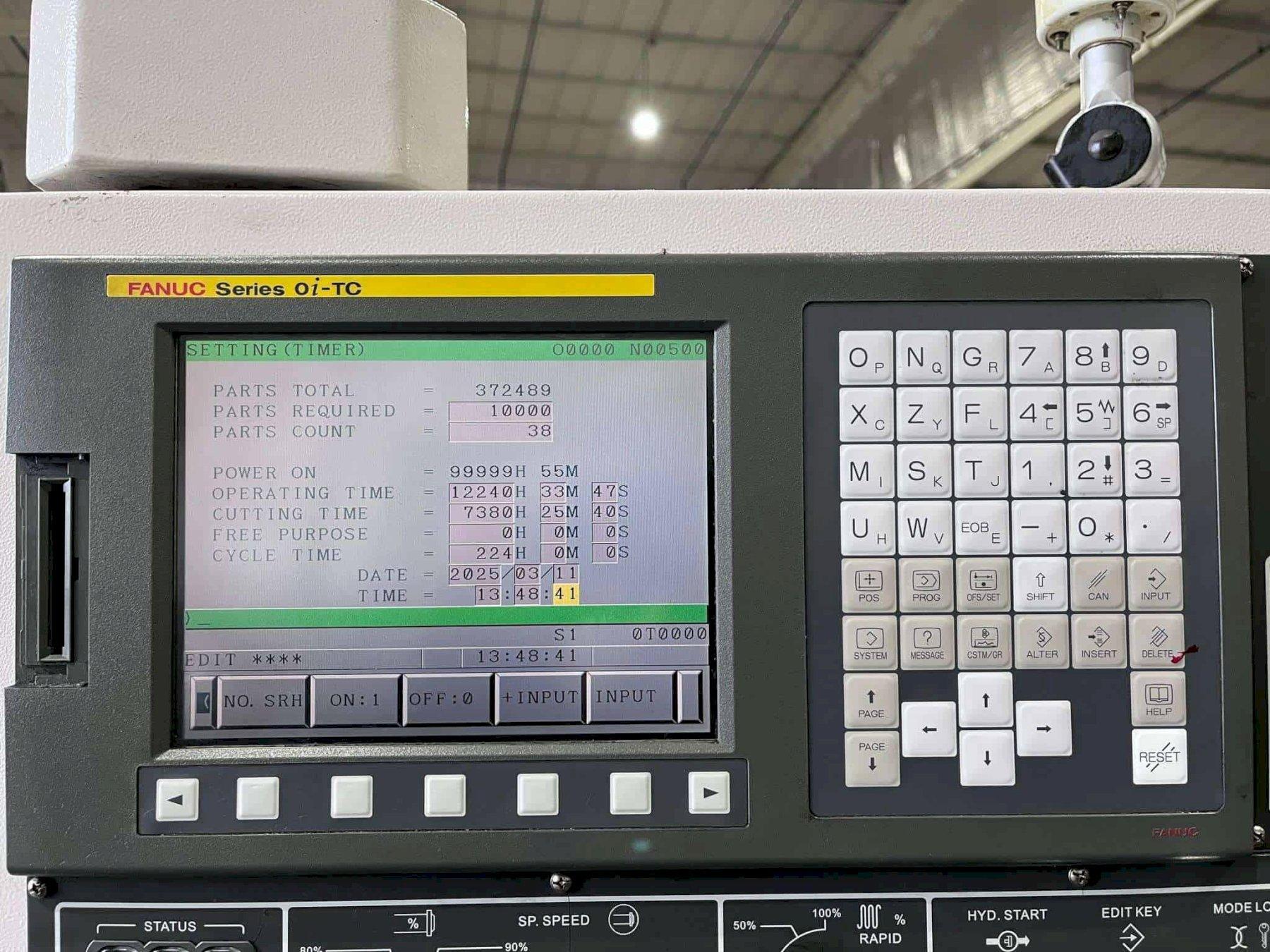

  • Fanuc Oi-TC CNC Control

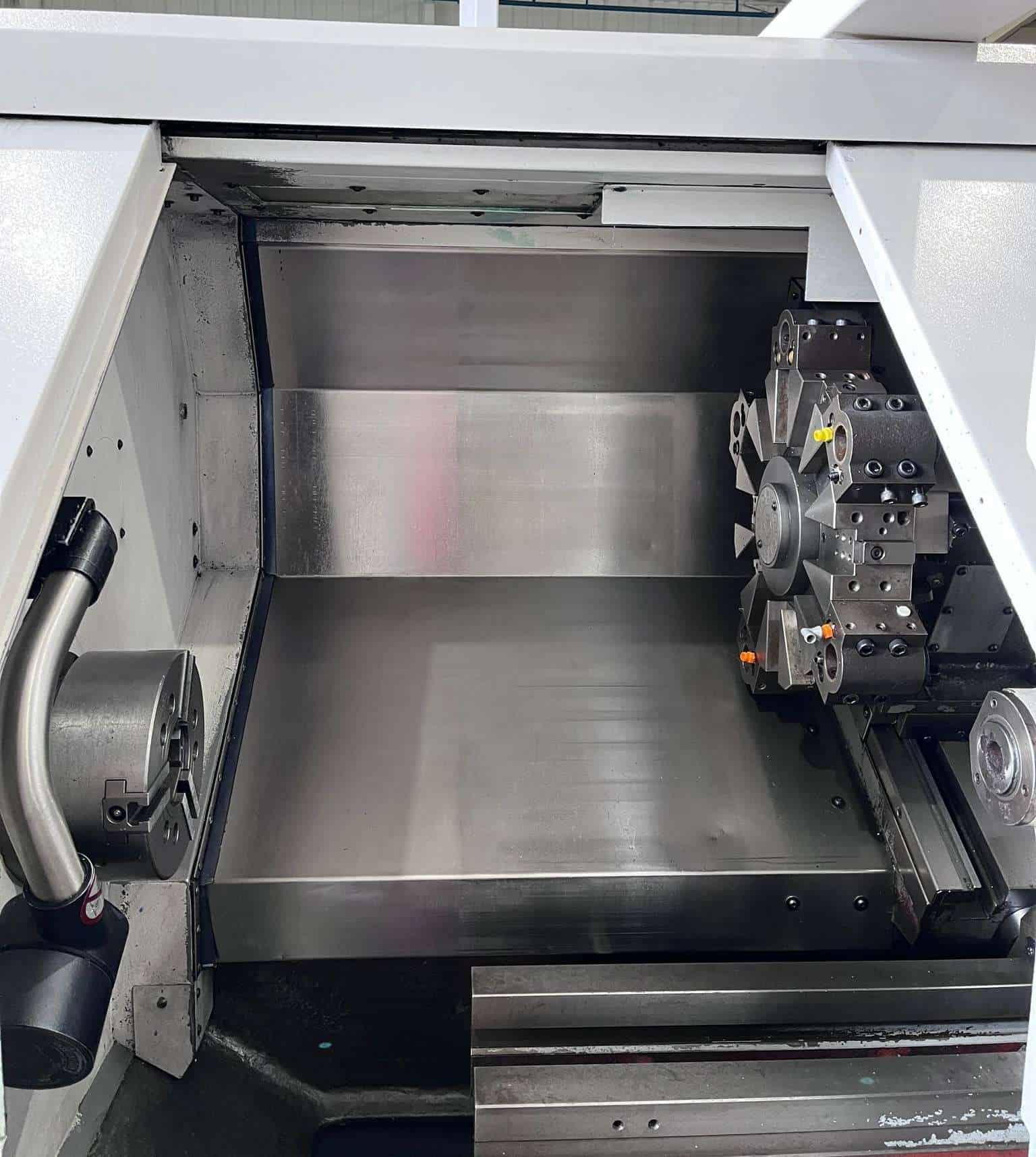

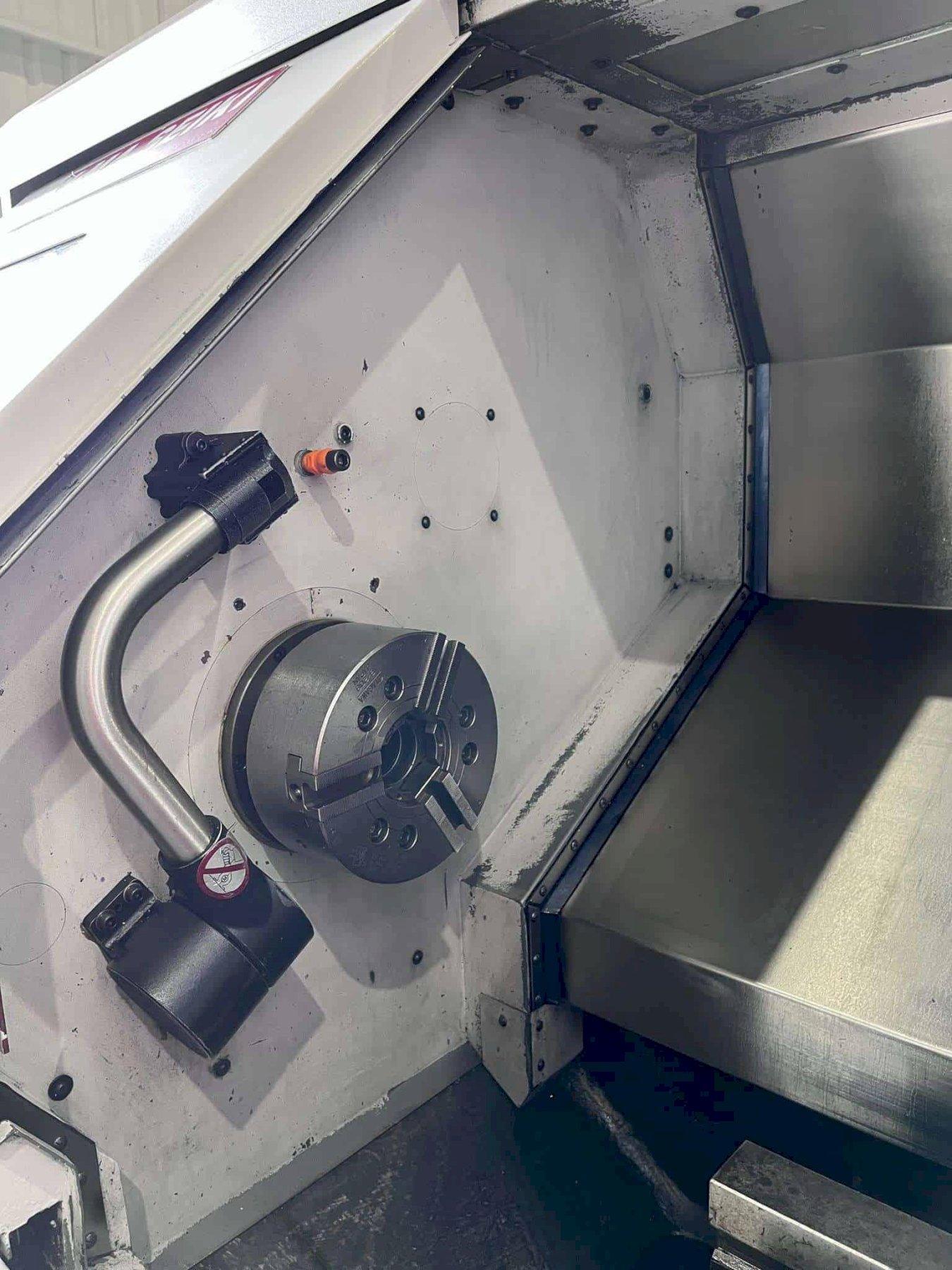

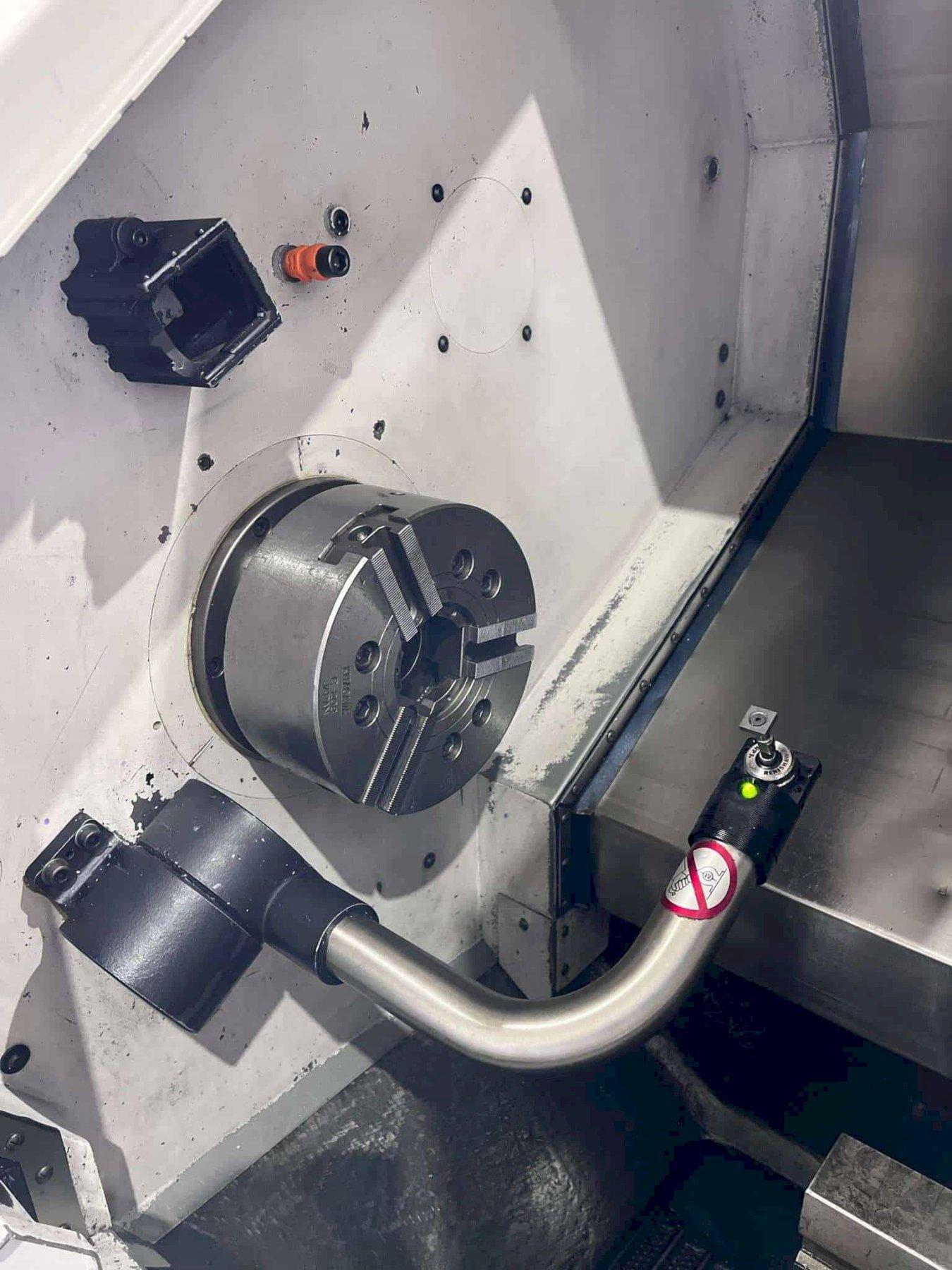

  • 8″ 3- Jaw Kitagawa Chuck
  • A2-6, 4800 RPM Spindle
  • 12 Station Automatic Turret
  • Tool Presetter
  • Tailstock
  • Rigid Tapping
  • PCMCIA Card Interface
  • Foot Switch

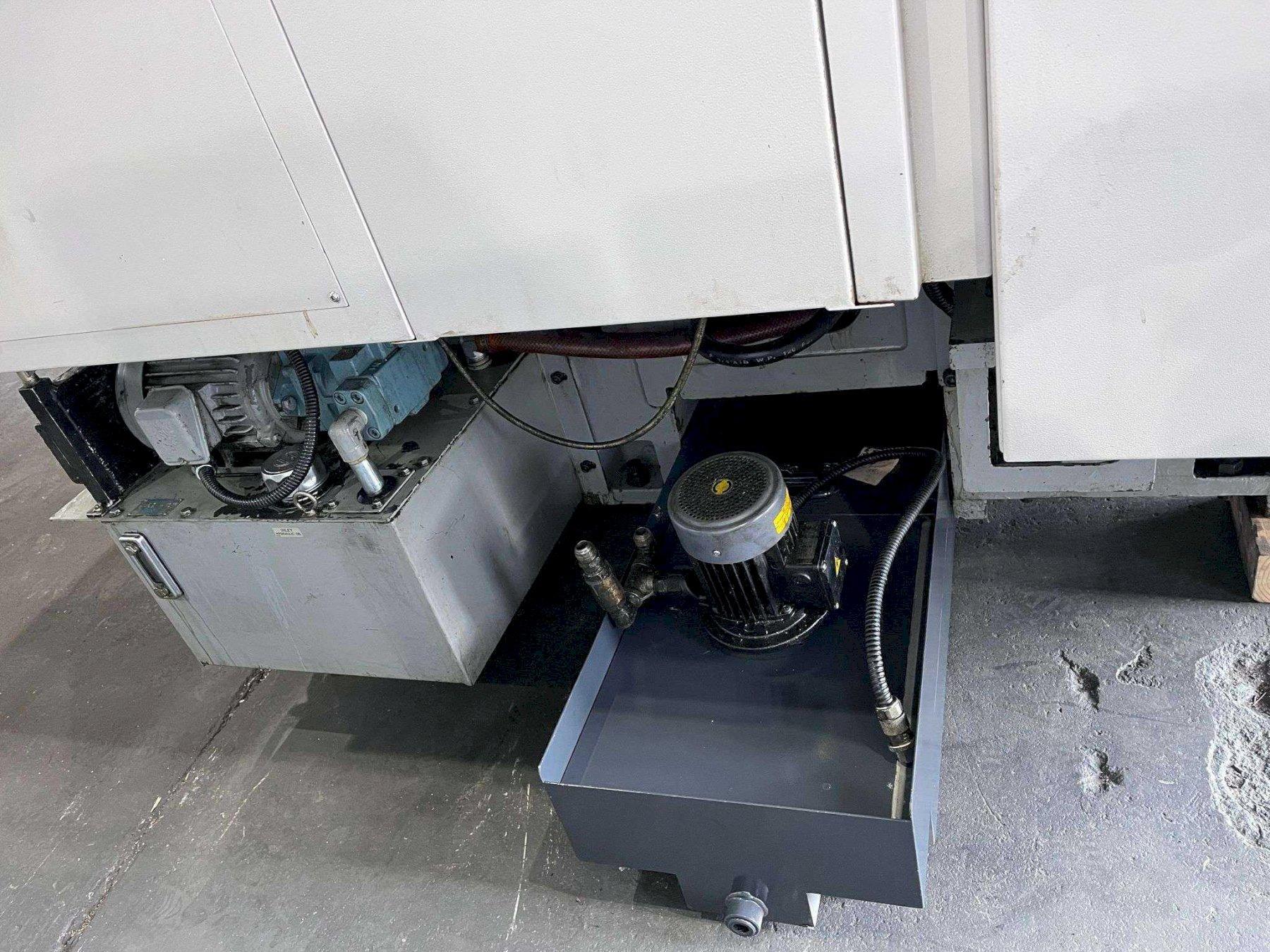

  • Coolant System
  • Chip conveyor
  • (5) Boring Tool Holders (Equipped on Turret as shown in the images)



Capacity:
  • Max Turning Diameter: 13.78″
  • Max Turning Length: 23.60″
  • Max Swing Over Bed: 22.83″
  • Max Swing Over Saddle: 15.75″
  • Max Bar Capacity: 2.0″



Travels:
  • X Axis Travel: 8.07″
  • Z Axis Travel: 24.40″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM



Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 2.4″
  • Spindle Speed: 4800 RPM
  • Spindle Motor: 20 HP

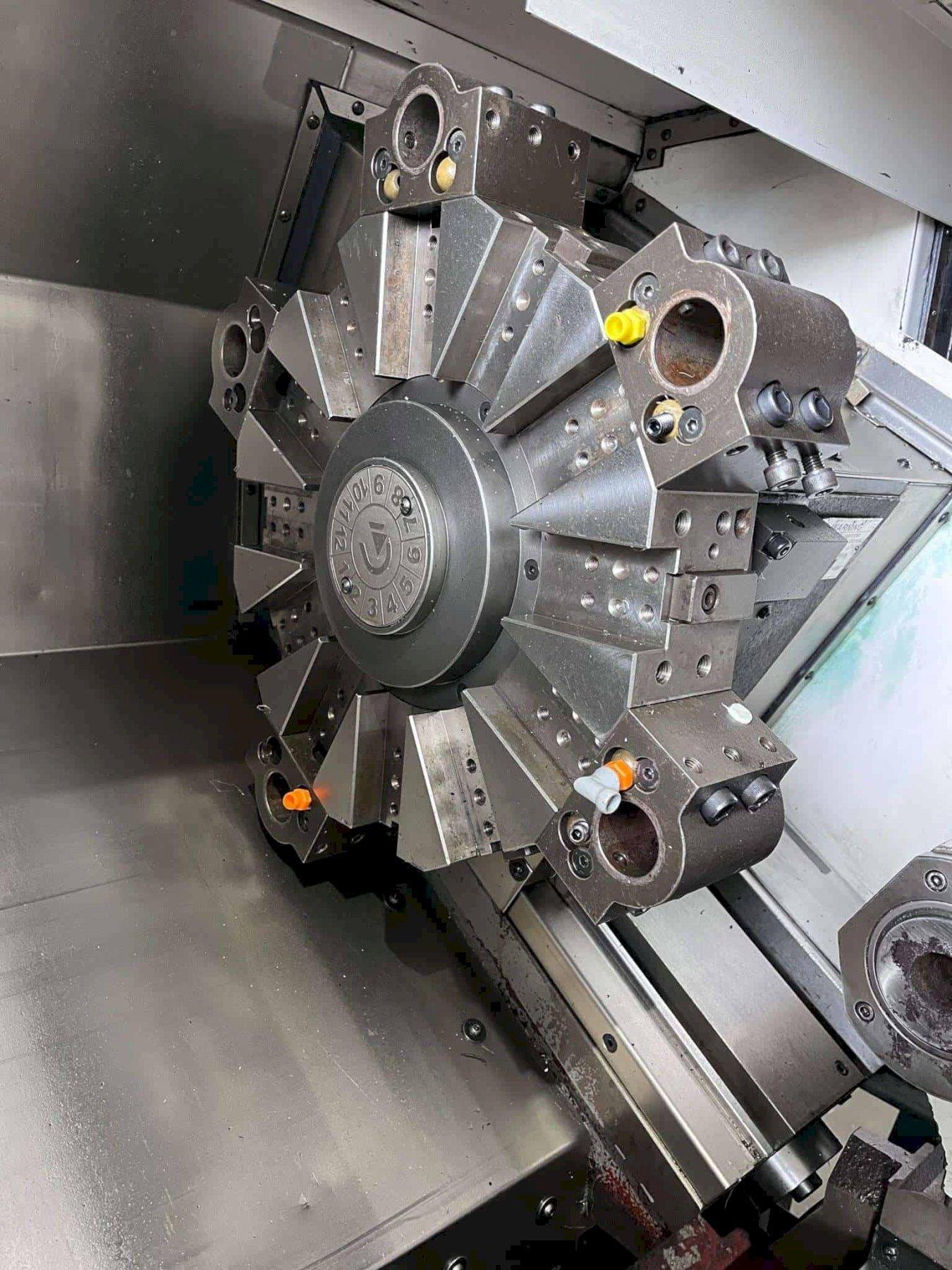

Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tool Size: 1″
  • Tool Holders Type: BMT



Tailstock:
  • Tailstock Taper: MT-4
  • Tailstock Quill Diameter: 2.76″
  • Tailstock Quill Stroke: 5.91″



General:
  • Power: 50/60 HZ / 220v / 3-Phase
  • Overall Dimensions: 133″ x 64″ x 74″ High  Approx.
  • Weight: 7,716 lbs
