9" x 48" Lagun Vertical Milling Machine W/ DROs, Powerfeed

Brand

LAGUN

Location

Illinois

REQUEST FINANCING

Specifications
Files & Videos

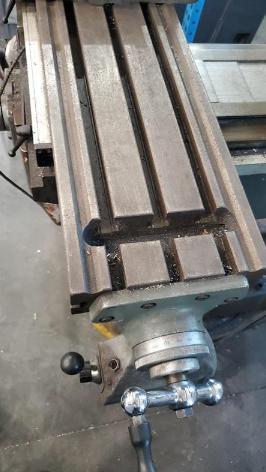

Table size: 9" x 48"
Max weight of workpiece: 441 LBS
X-axis (longitudinal table travel power feed): 34.62"
Y-axis (cross saddle travel): 16"
W-axis (vertical knee travel): 16"
Z-axis (vertical quill travel): 5"
Distance spindle center to column: 5" - 27"
Overarm ram adjustment: 22-3/16" Manual
Head swivel (left to right): ±90º
Head tilt (front to back): ±45º
Spindle taper: R-8
Spindle speeds: 55 - 4,250 RPM
Quill feeds: 0.0015, 0.003, & 0.006 IPR
Quill diameter: 3.37"
Spindle horsepower: 3 HP
Electrics: 220/440/3/60 Operating Voltage 460
Full load current: 3 amps
Approximate machine dimensions: 57" x 65"
Approximate machine height: 83"
Approximate machine weight: 2,425 LBS

Equipped With:

2-Axis Newall Digital Read Outs,
Powerfeed,
