2021 Desktop Metal 3D Printer System (Includes Furnace & Drying Oven)

2021 Desktop Metal 3D Printer System
New: 2021

Includes:

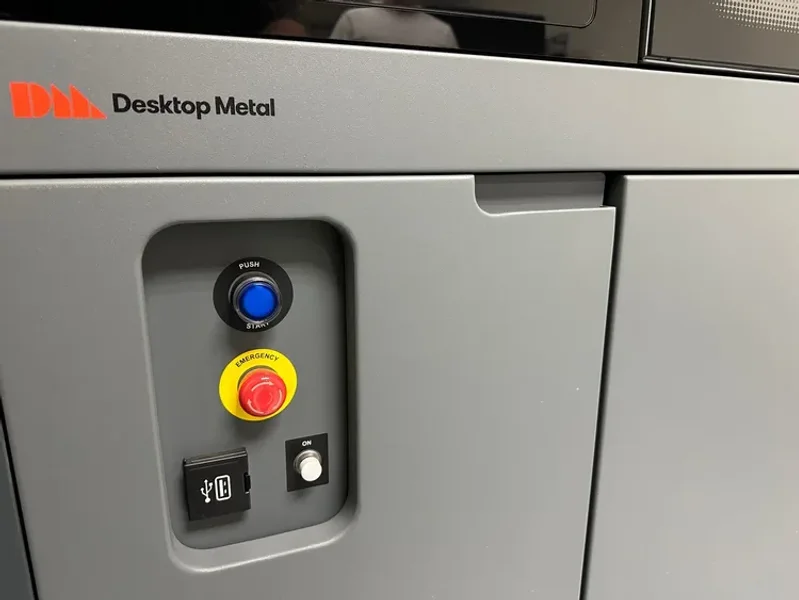

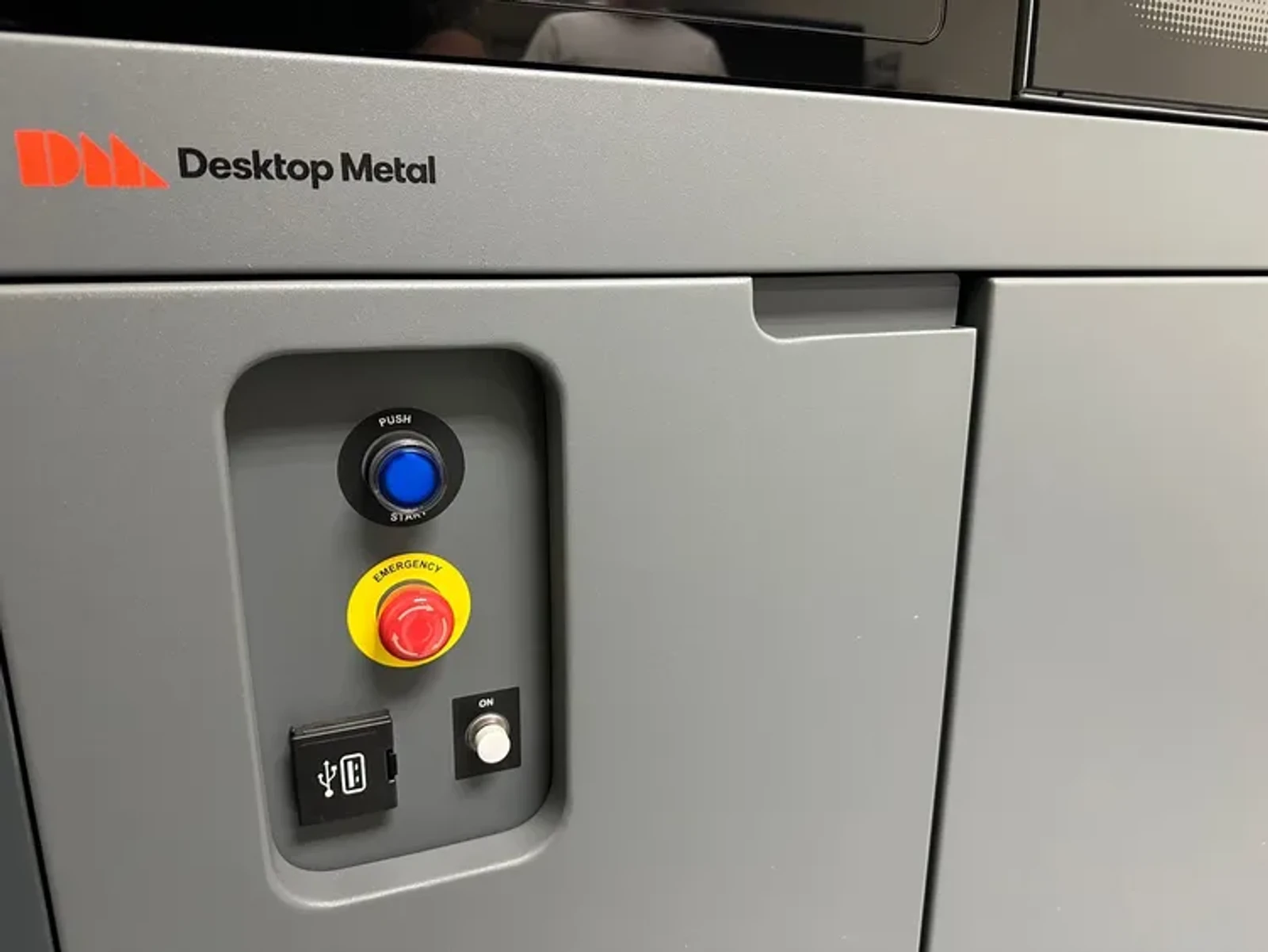

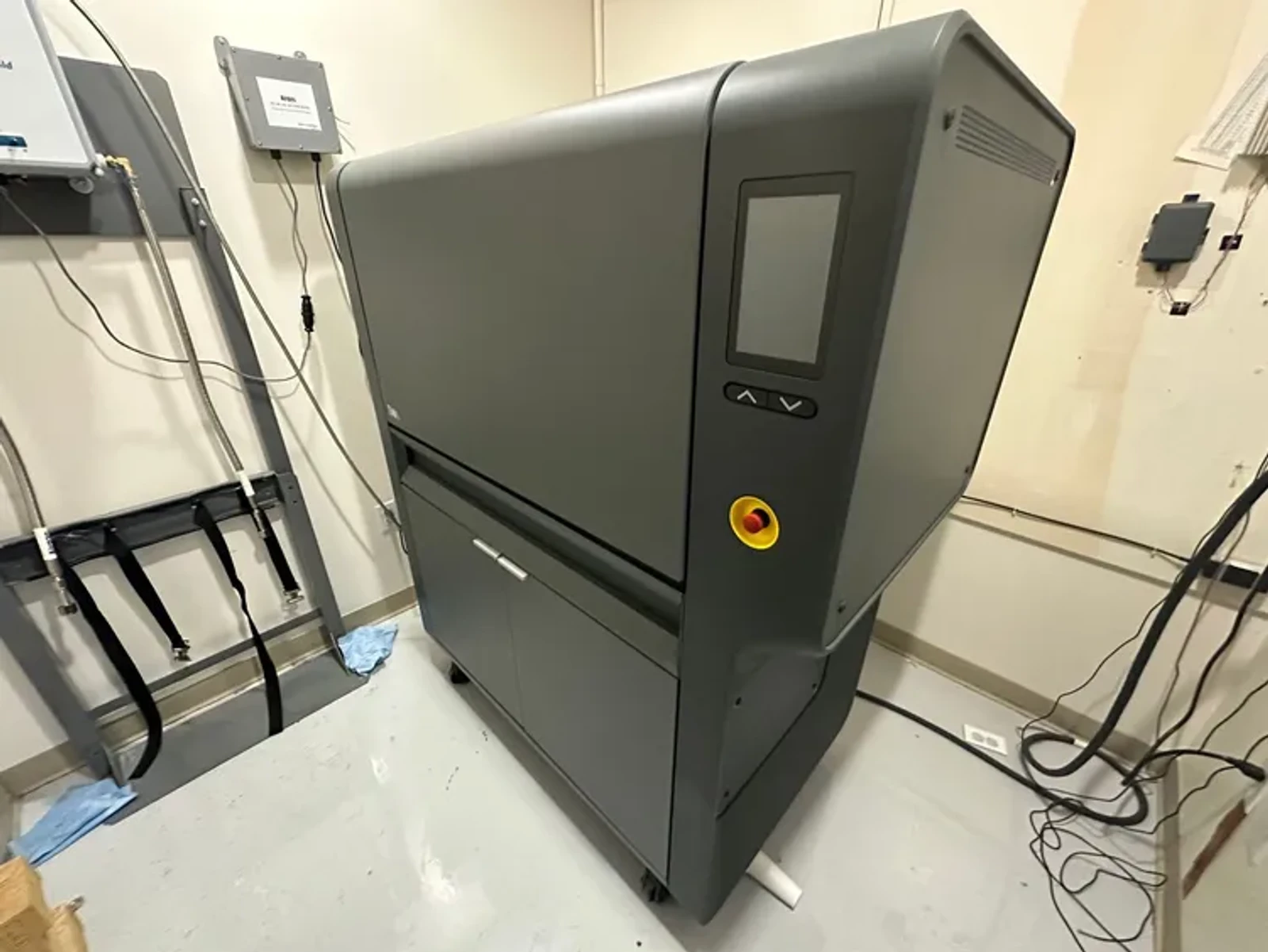

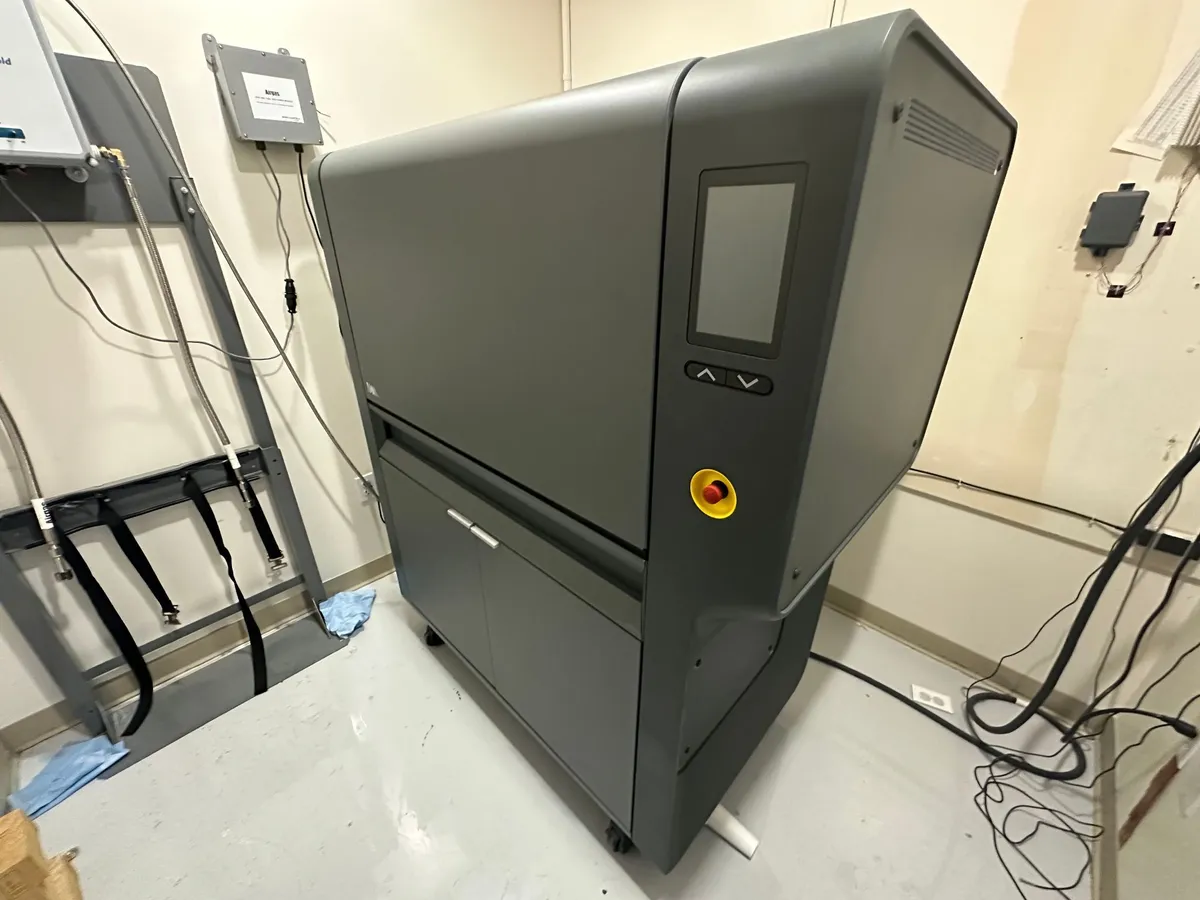

Printer PP-0009
Shop System Drying Oven LFB1
Shop System Sintering Furnace BMD-PF0002

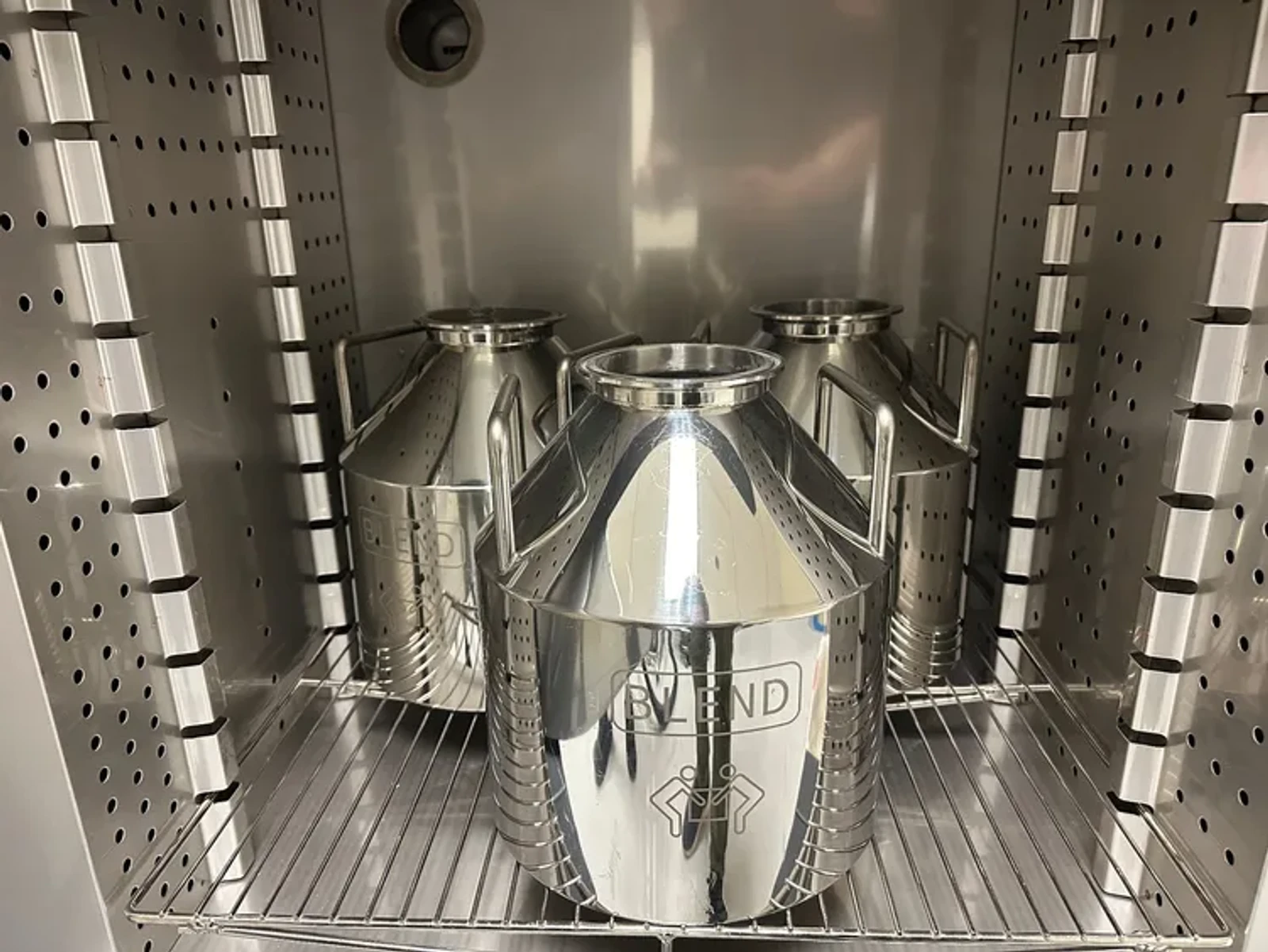

Shop System Blender SHP PB0001

Replaces for over $400,000 new.

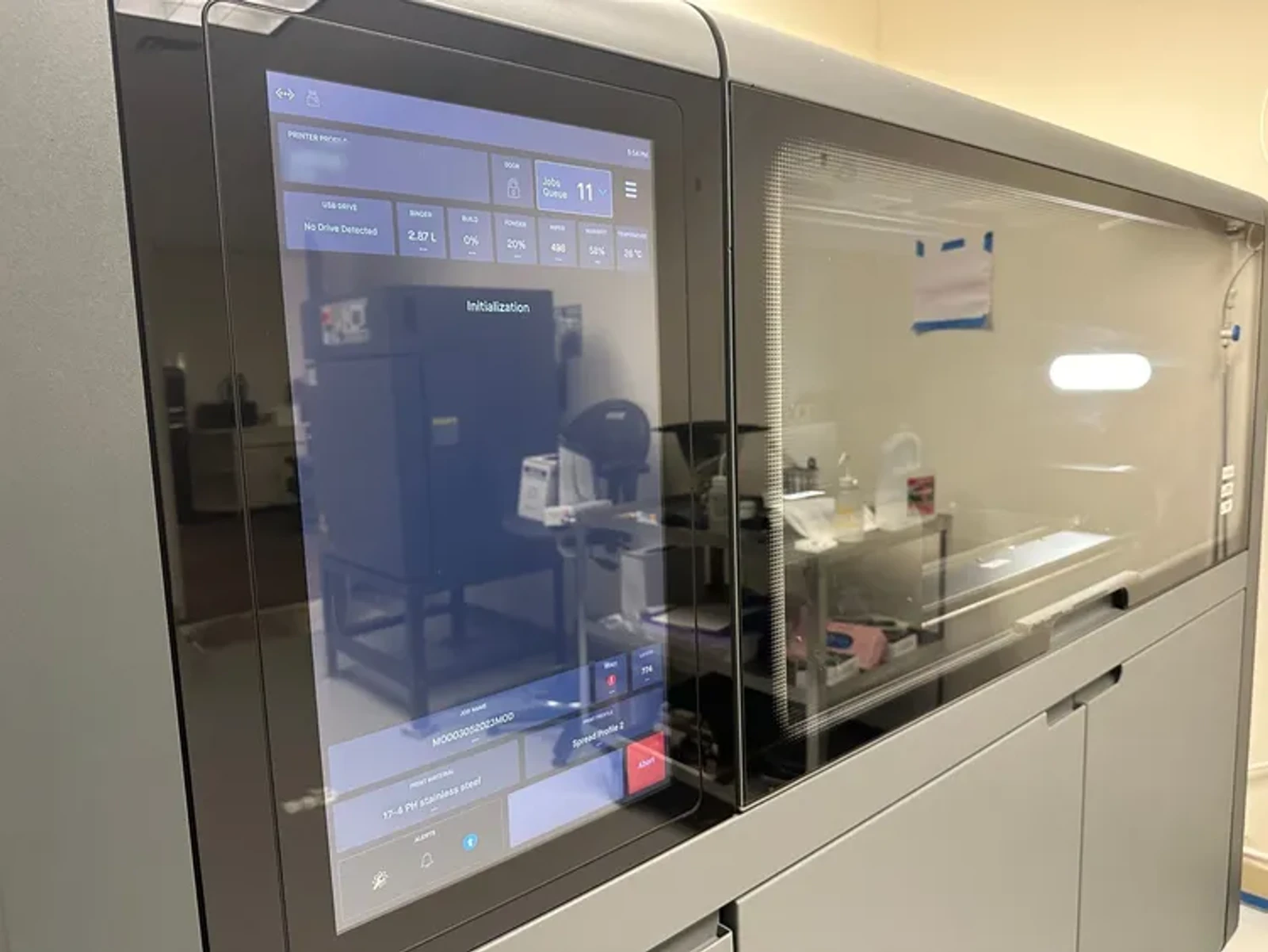

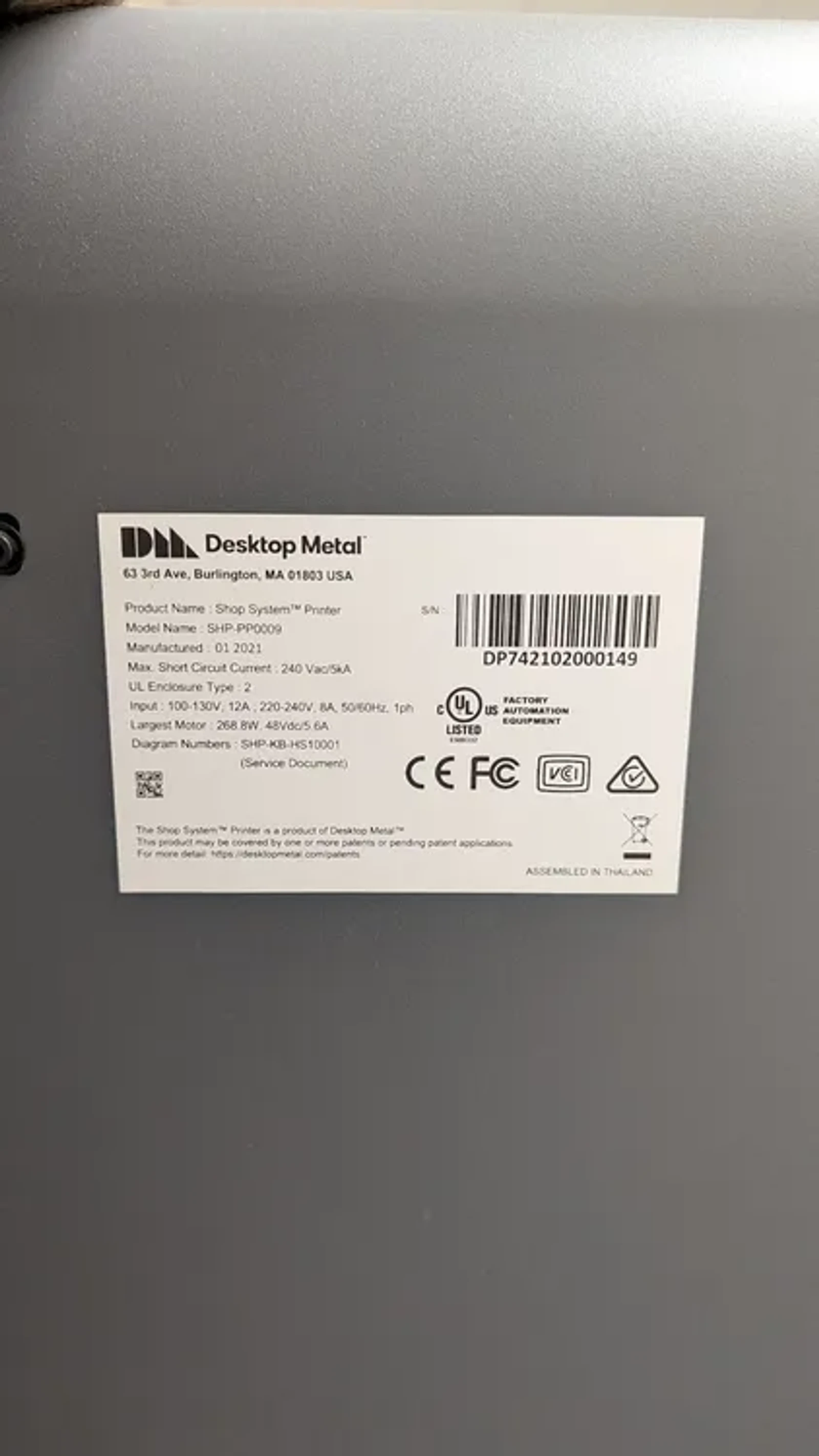

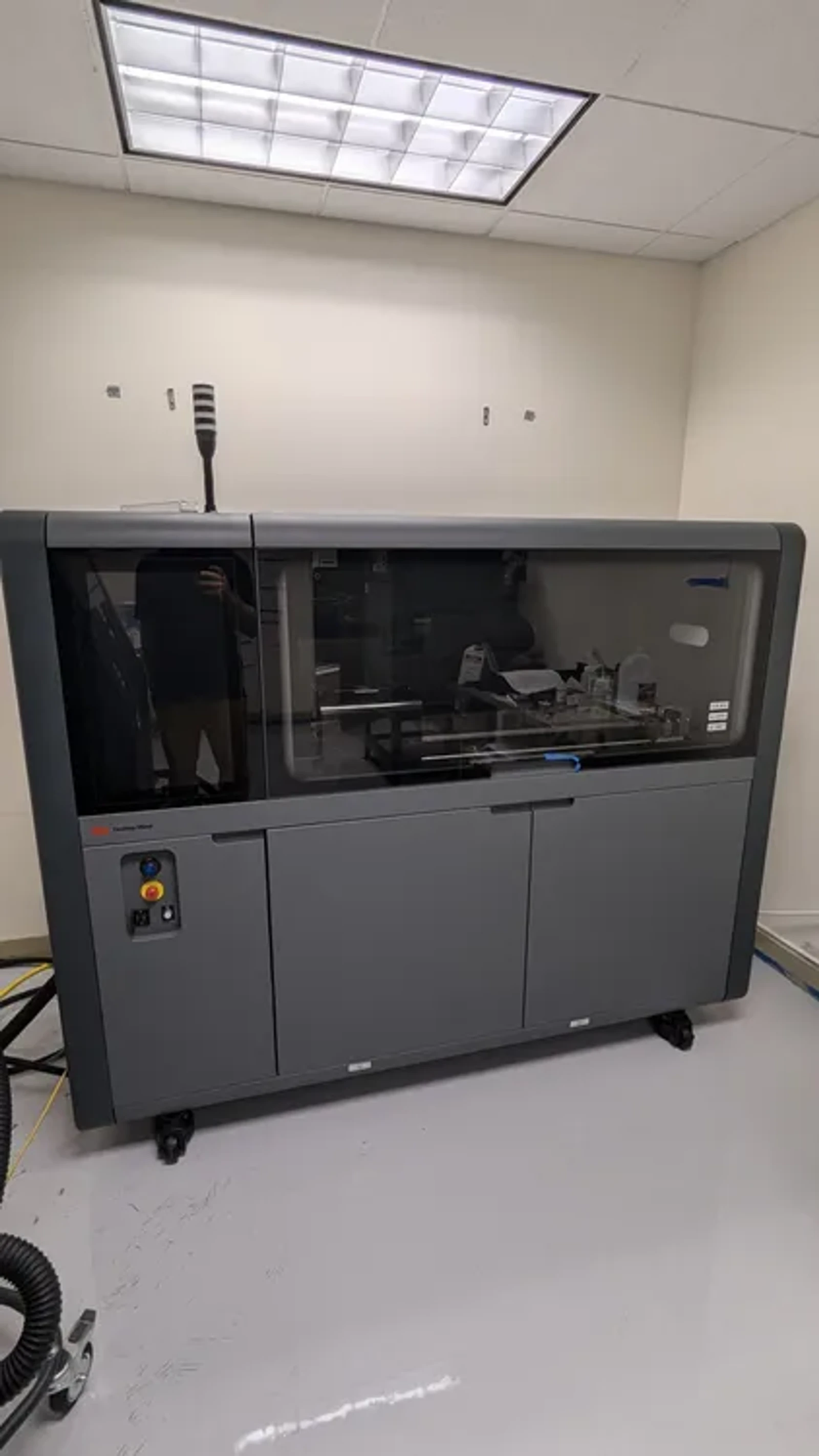

The Desktop Metal Shop System™ (model SHP-PP0009) is a metal 3D printing solution designed for machine shops, enabling the production of high-resolution, end-use metal parts with exceptional speed and cost-effectiveness. This system utilizes binder jetting technology, which involves depositing a binding agent onto layers of metal powder to build complex geometries suitable for low to mid-volume production.

Key Features:

High-Speed Printing: The Shop System™ employs a single-pass print engine capable of producing high-quality metal parts up to 10 times faster than traditional laser powder bed fusion systems.

Advanced Printhead Technology: Equipped with over 70,000 nozzles, the printhead jets 1.2 pL droplets at nearly 10 kHz, achieving a native resolution of 1600 x 1600 DPI.

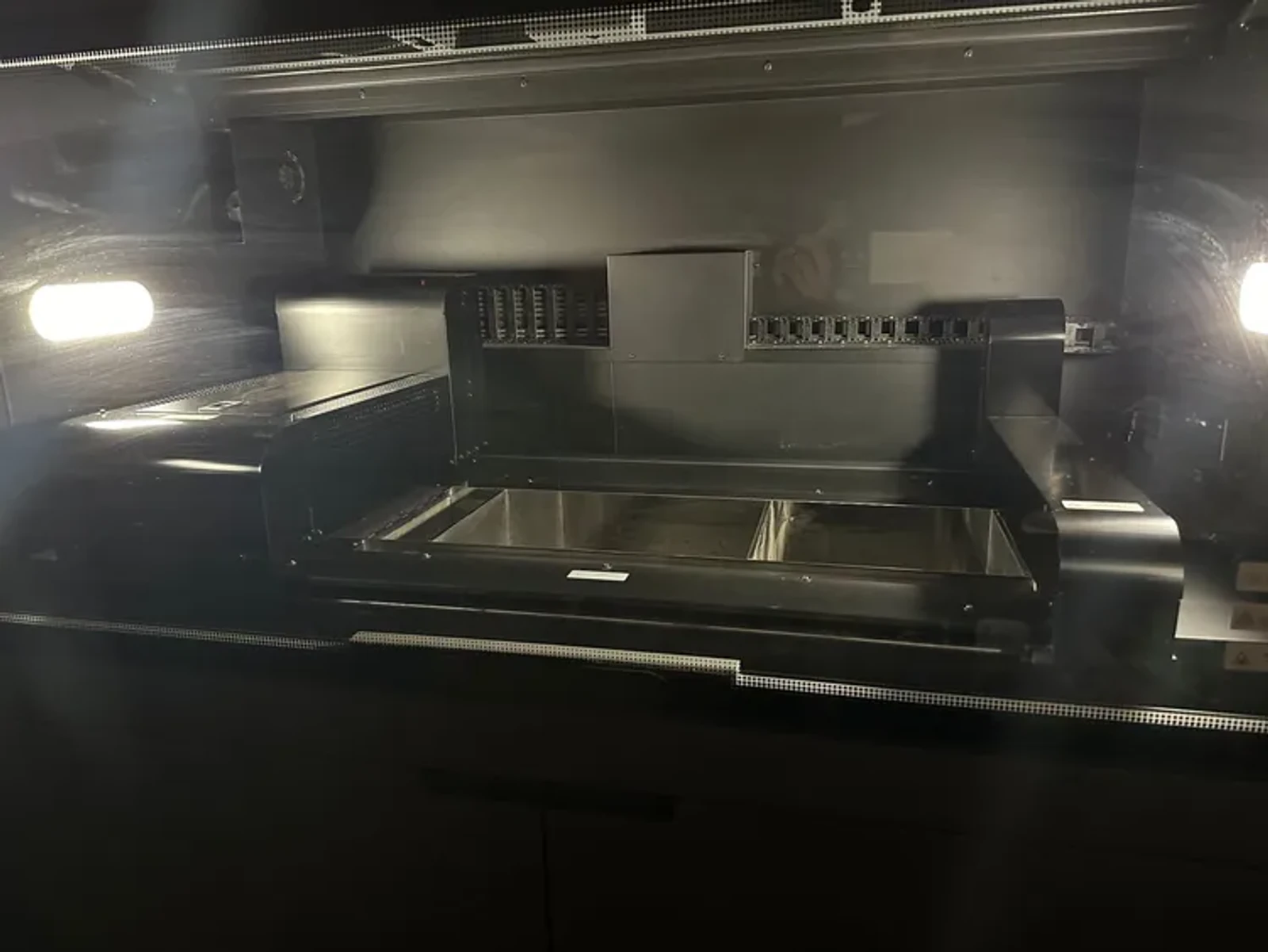

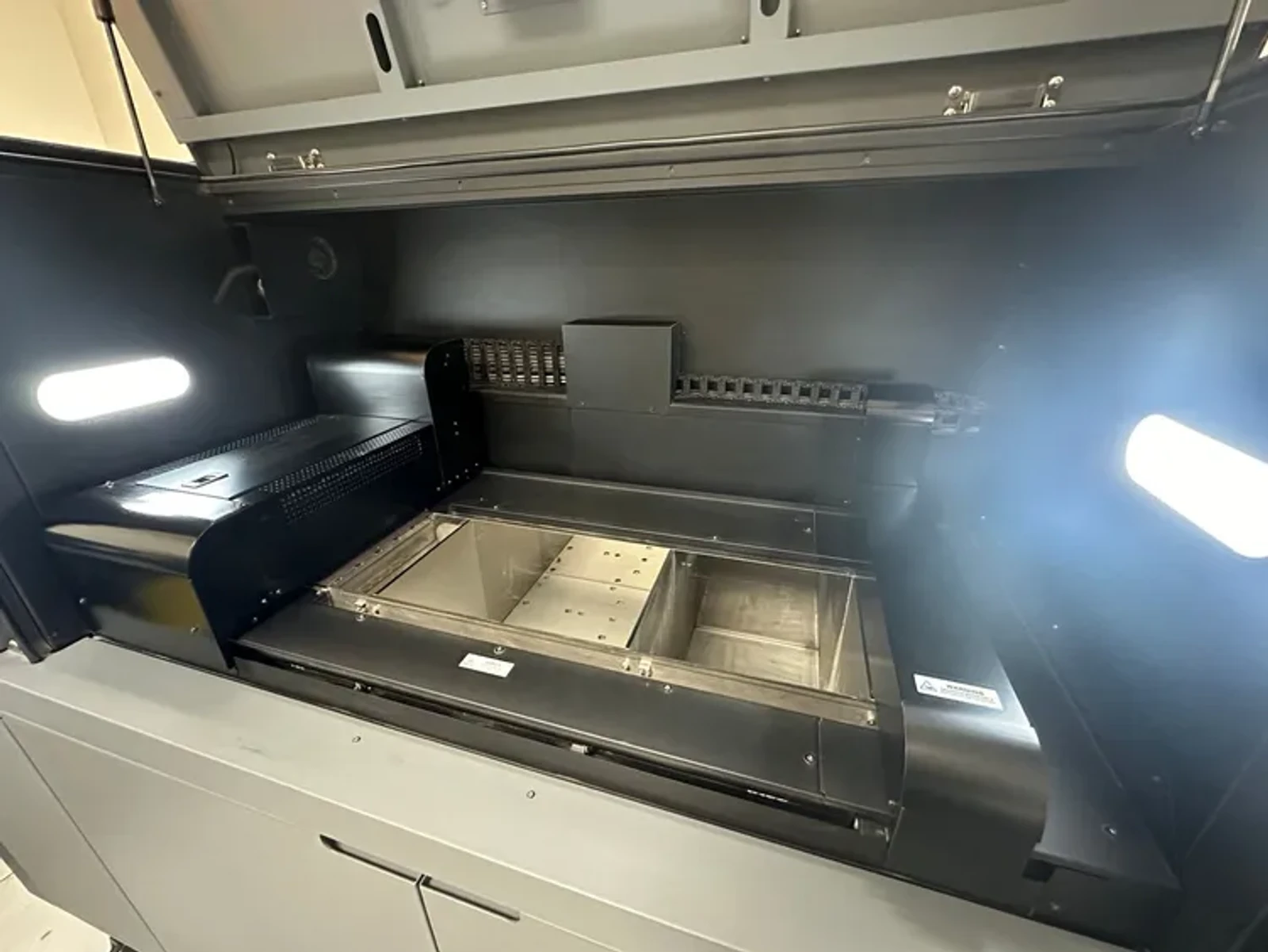

Flexible Build Sizes: The system offers various build envelope configurations, including 350 x 220 x 50 mm, 350 x 220 x 100 mm, 350 x 220 x 150 mm, and 350 x 220 x 200 mm, accommodating a wide range of part sizes.

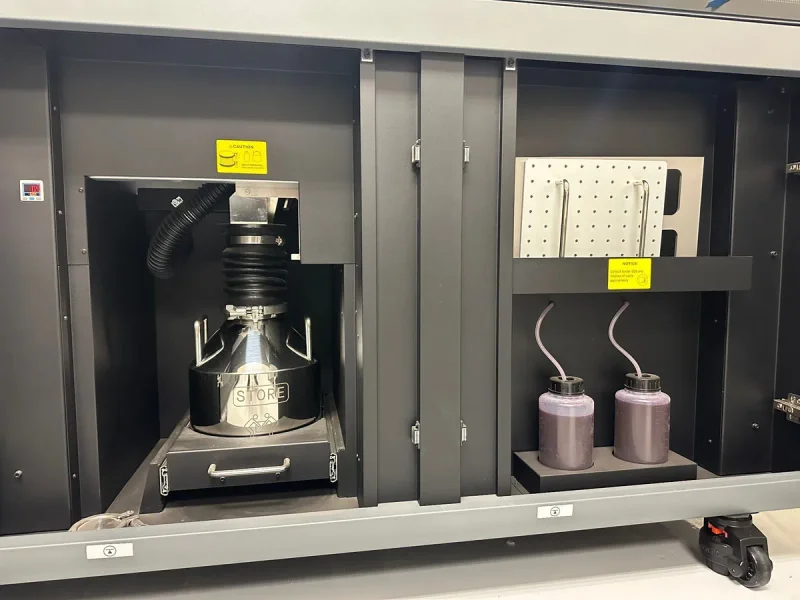

Integrated Solution: Designed as a turnkey system, it includes the printer, powder station, drying oven, and furnace, streamlining the entire additive manufacturing process from printing to sintering.

Material Compatibility: The Shop System™ supports various materials, such as 17-4 PH Stainless Steel, 316L Stainless Steel, and Cobalt Chrome (ASTM F75), catering to diverse industrial applications.

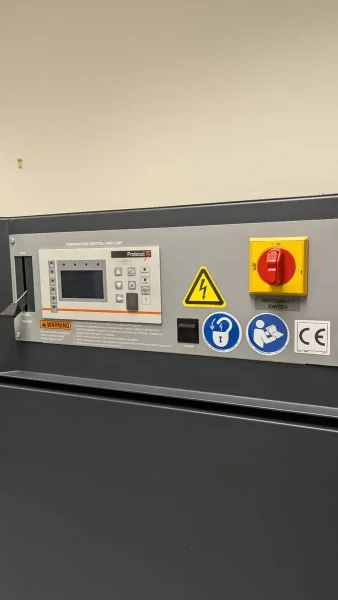

Furnace Operates up to 1400° C; vacuum sintering for low gas usage and high metal density

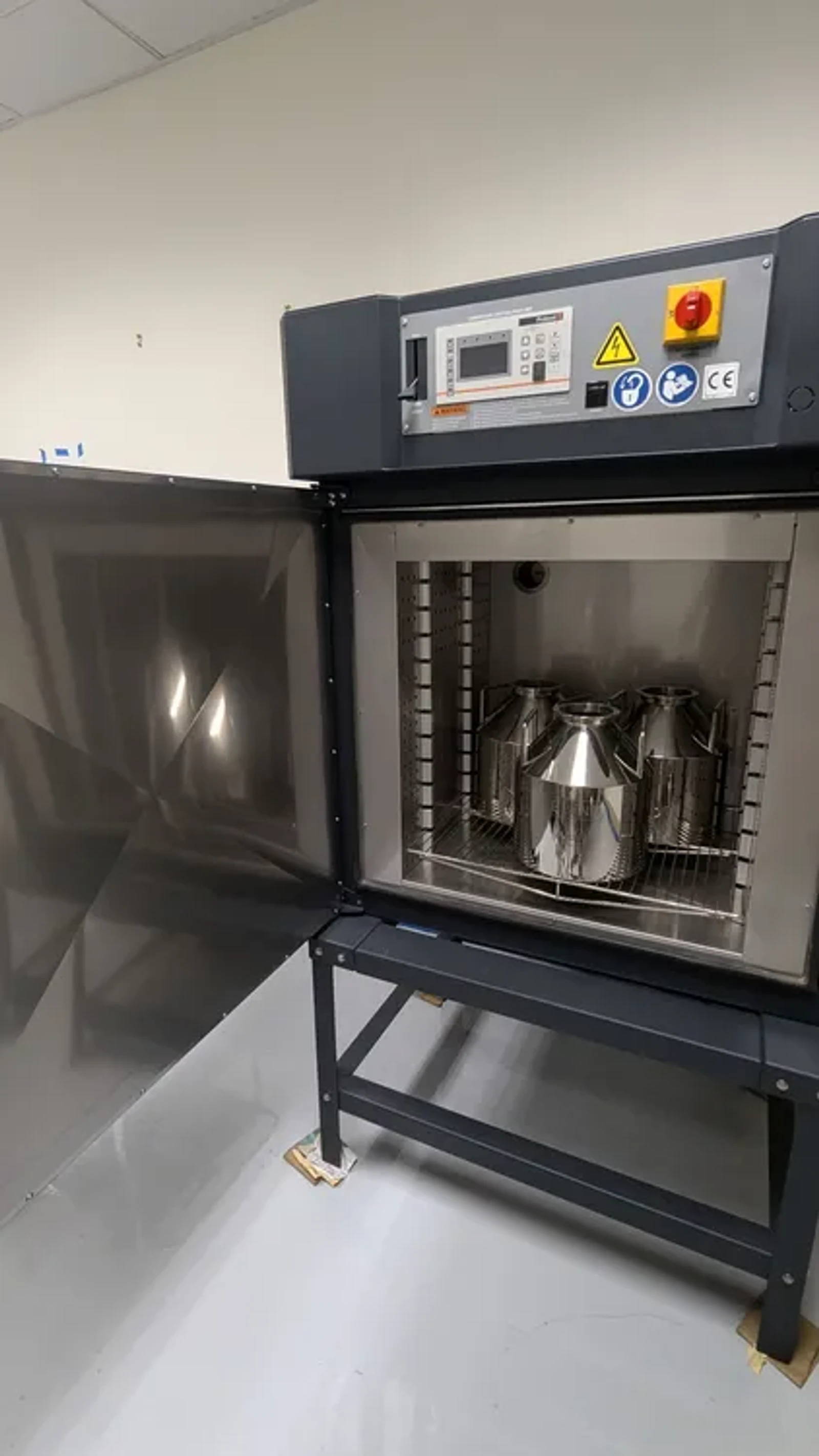

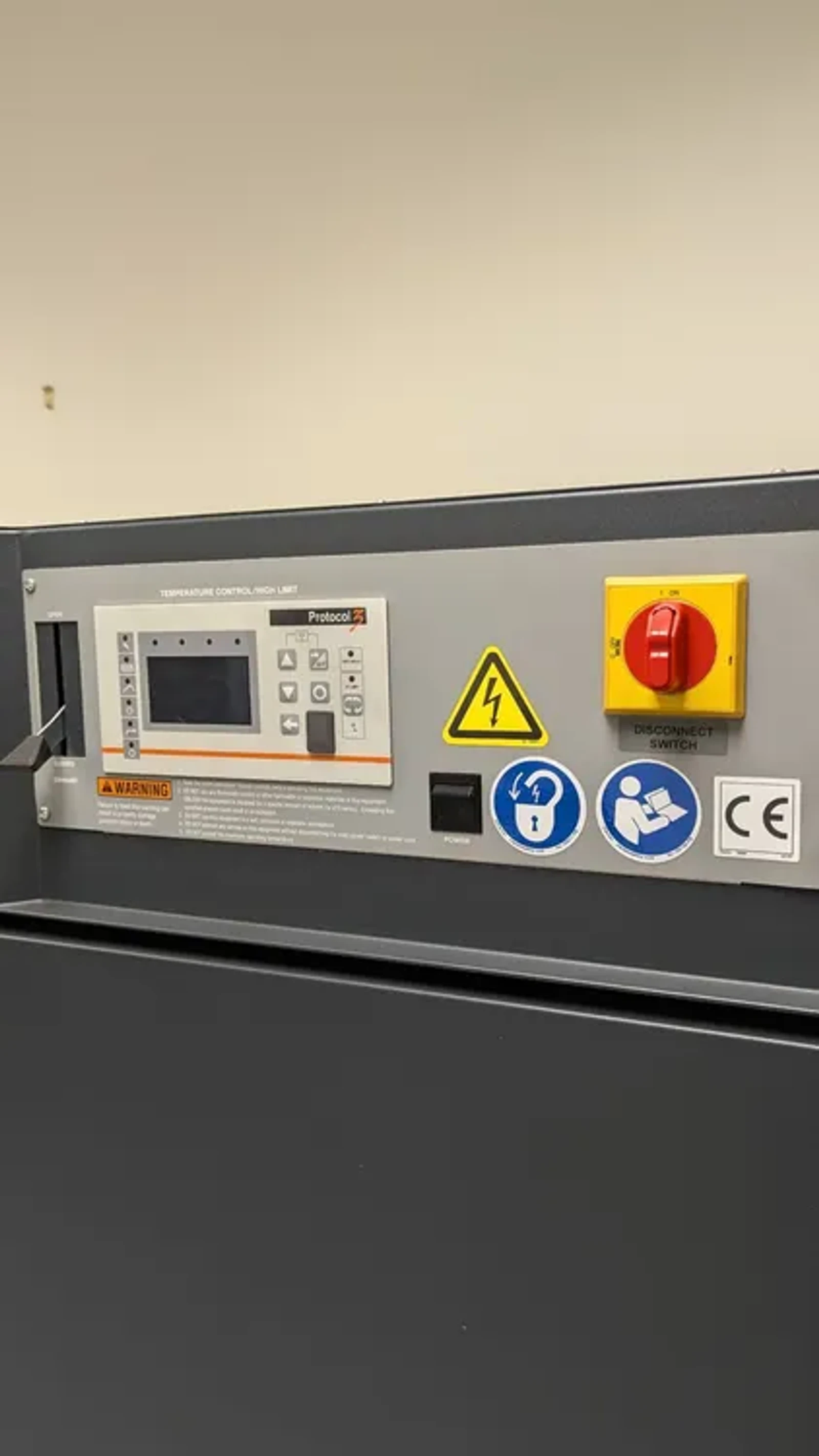

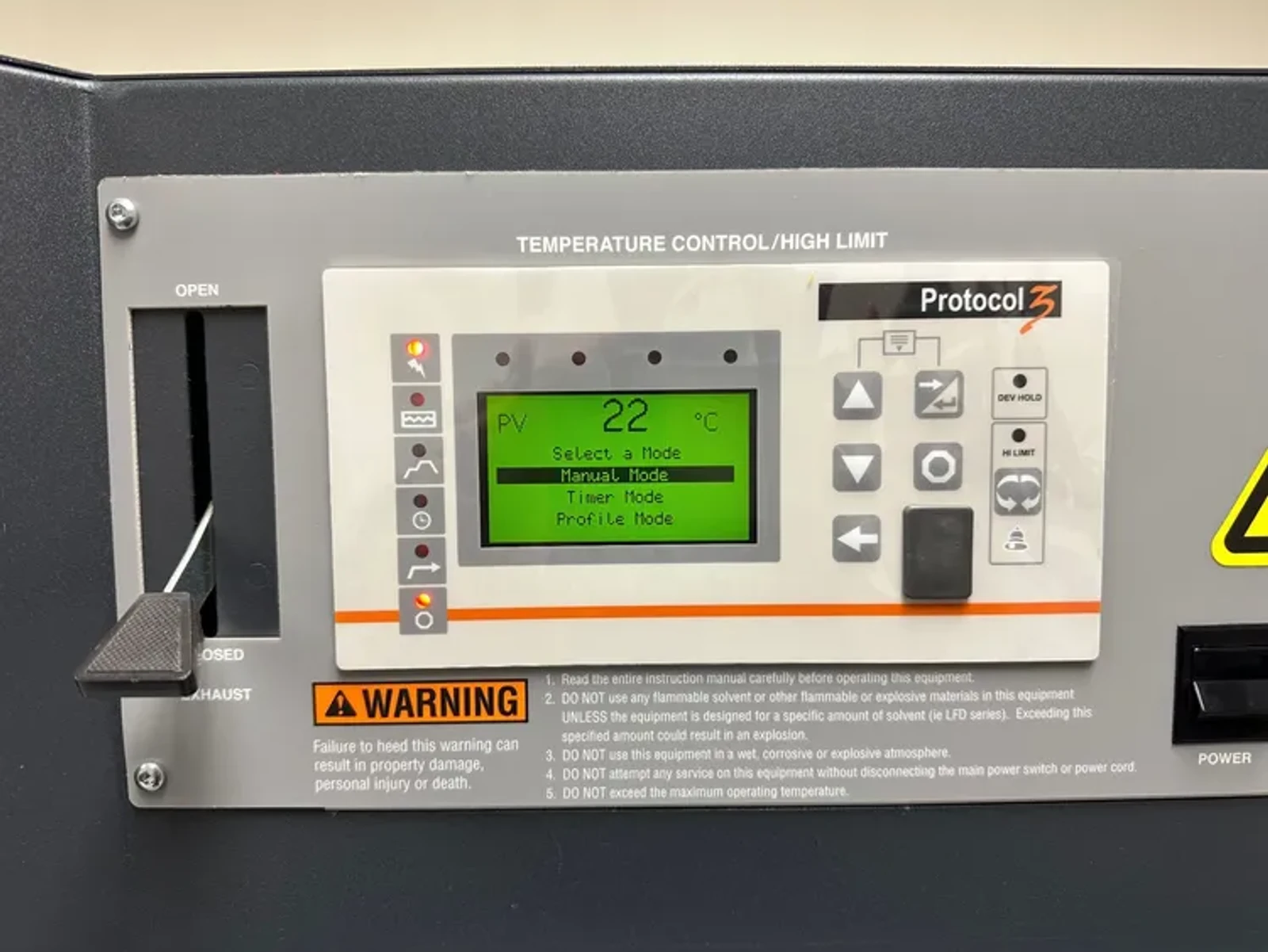

Drying oven thermally processes parts to remove solvents and solidify binder for stronger parts
