20mm (0.787") WIRE DRAWING BULL BLOCK (14776)
Brand
Not specified
Category
Type
Model
WIRE DRAWING BULL BLOCK
Stock #
14476
Year
Not specified
Condition
Not specified
Location
Not specified
|

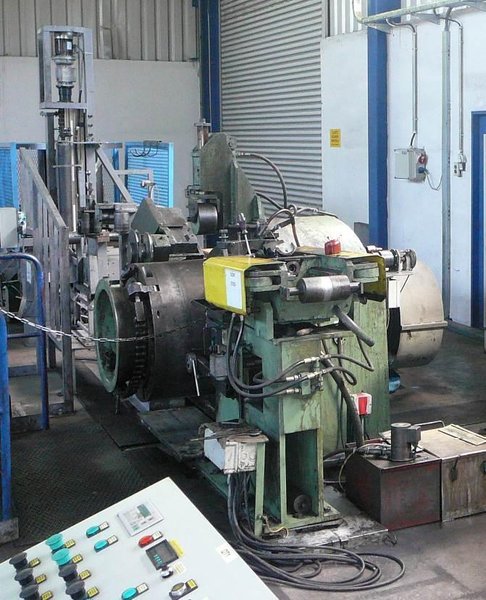

20mm (0.787") WIRE DRAWING BULL BLOCK

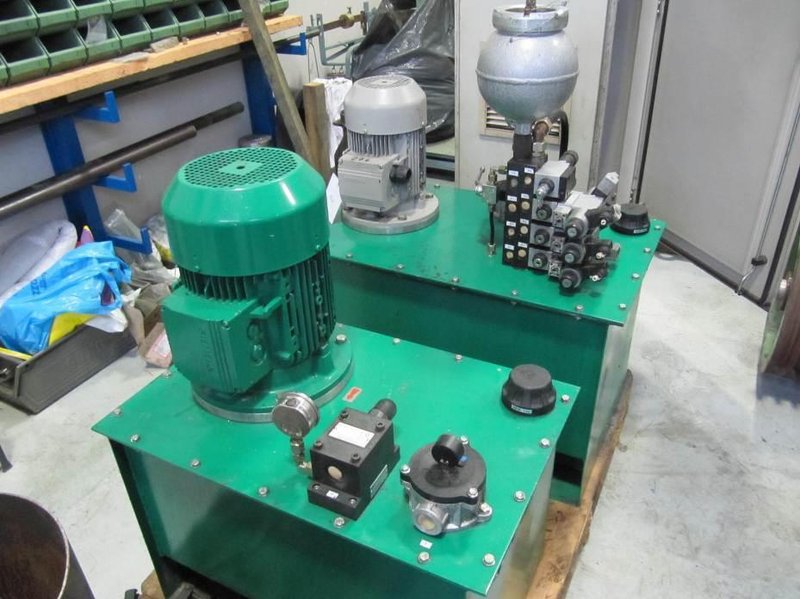

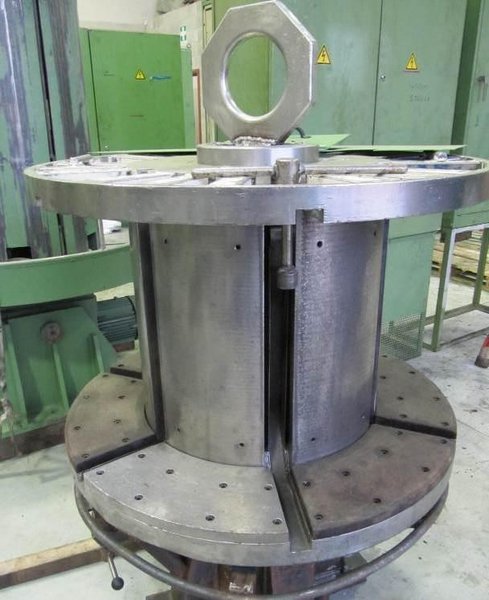

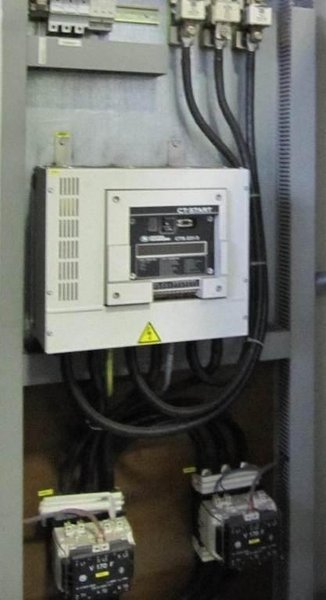

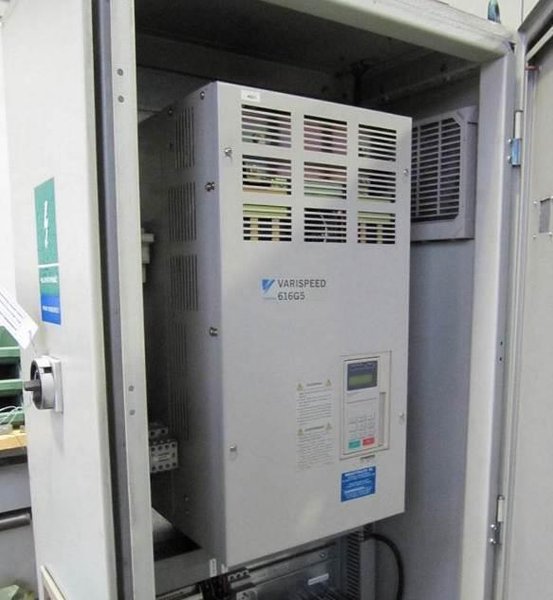

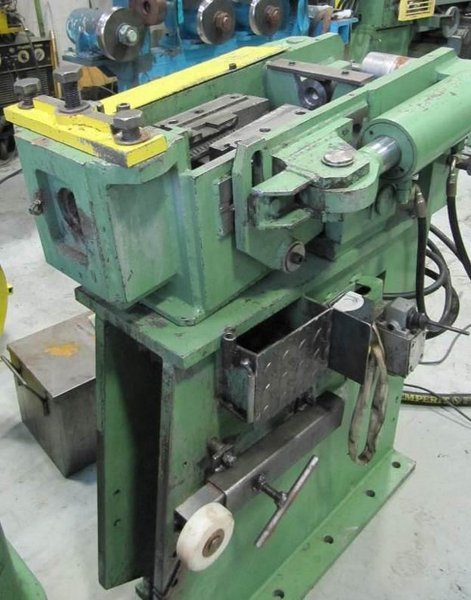

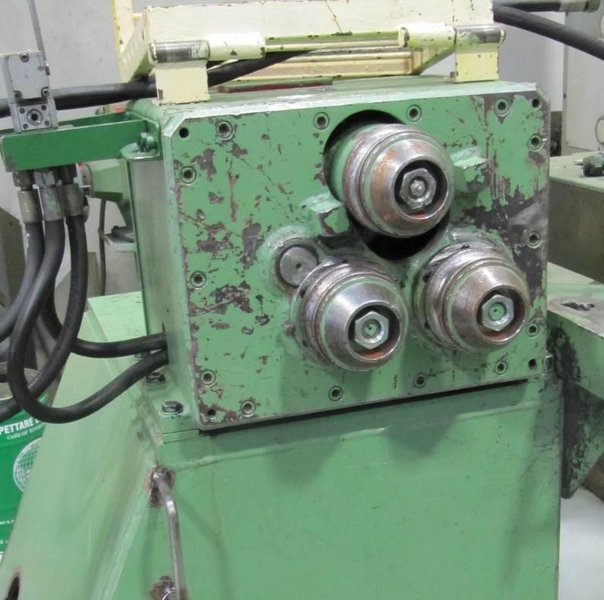

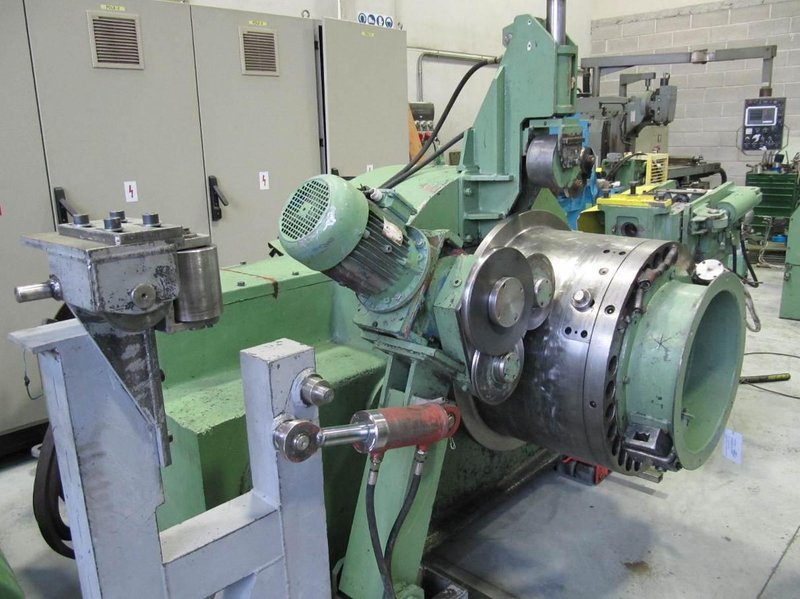

Stock # 14476 Year of manufacture 2001 Drum diameter Available Ø 560 and 750 mm. – Interchangeable Wire range Ø 5- 20 mm. Drawing force 7 Tons. Max. reduction 30% with low carbon steel Speed - From Ø 6 to 12 mm.: 80 mt./min. max. - From Ø 12 to 20 mm.: 54 mt./min. max. Capstan main motor 90 kW d.c. with Inverter Spool diameter Ø580 mm. Diameter of the spooled coil Min. 600 – Max. 1’000 mm. Max spooled weight 2’000 Kg. Spooler main motor 37 kW d.c. with Inverter Tension 400 V. - 50 Hz. COMPOSITION OF THE LINE Pre-straightener Push pointer with die holder Capstan Tiltable re-coiler Layer winding spooler Electric equipment Hydraulic equipment Drawings and documentation available Pictures when installed **Temporary Specifications Subject to Revisions** **PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE** **ALL SPECIFICATIONS ARE SUBJECT TO BUYERS VERIFICATION** |
