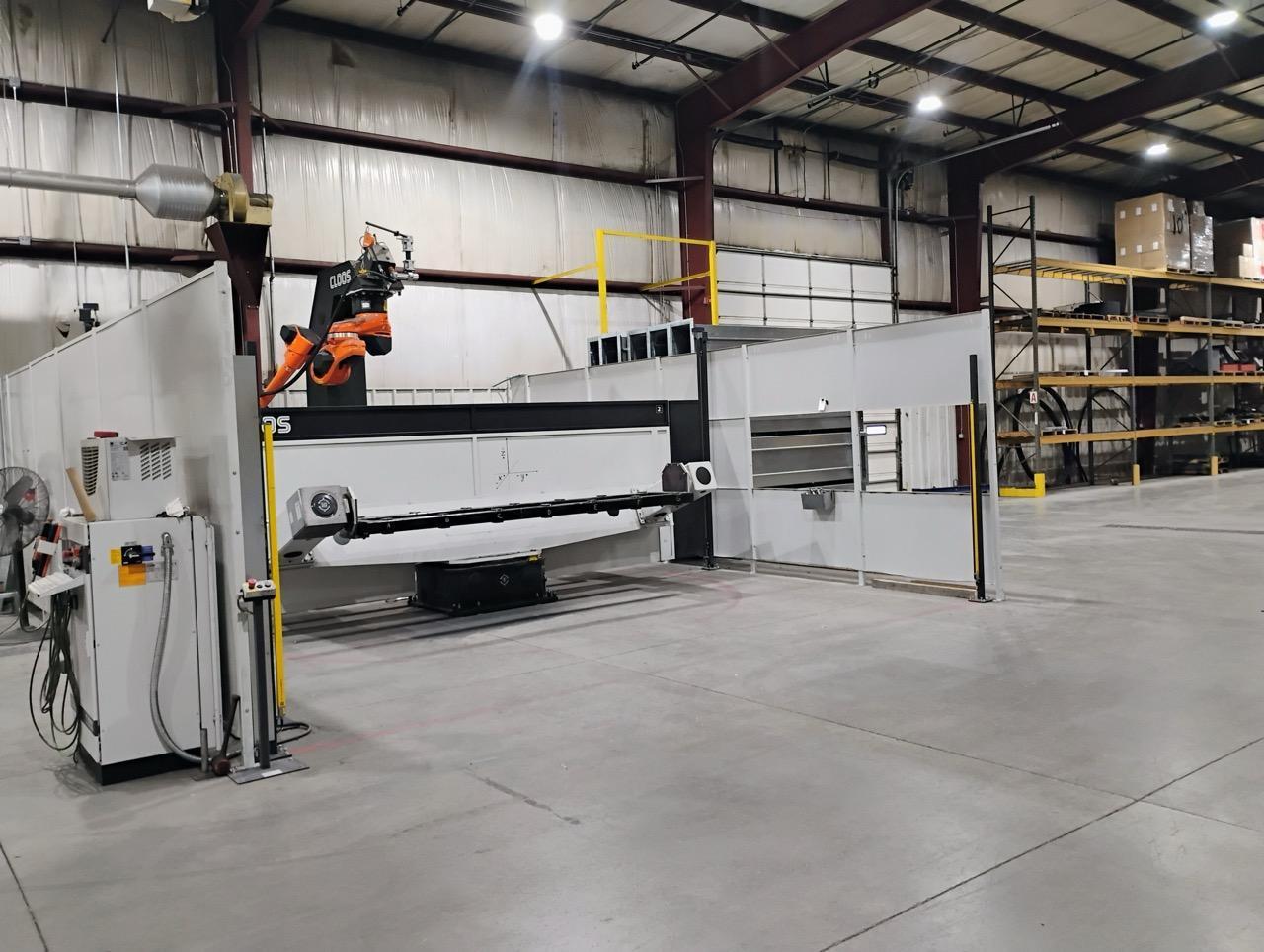

Cloos CS-30 Robotic Welding Cell, 2023 – 450a Qineo pulse Power Source, 7 Axis QIROX® QRC-410e Robot

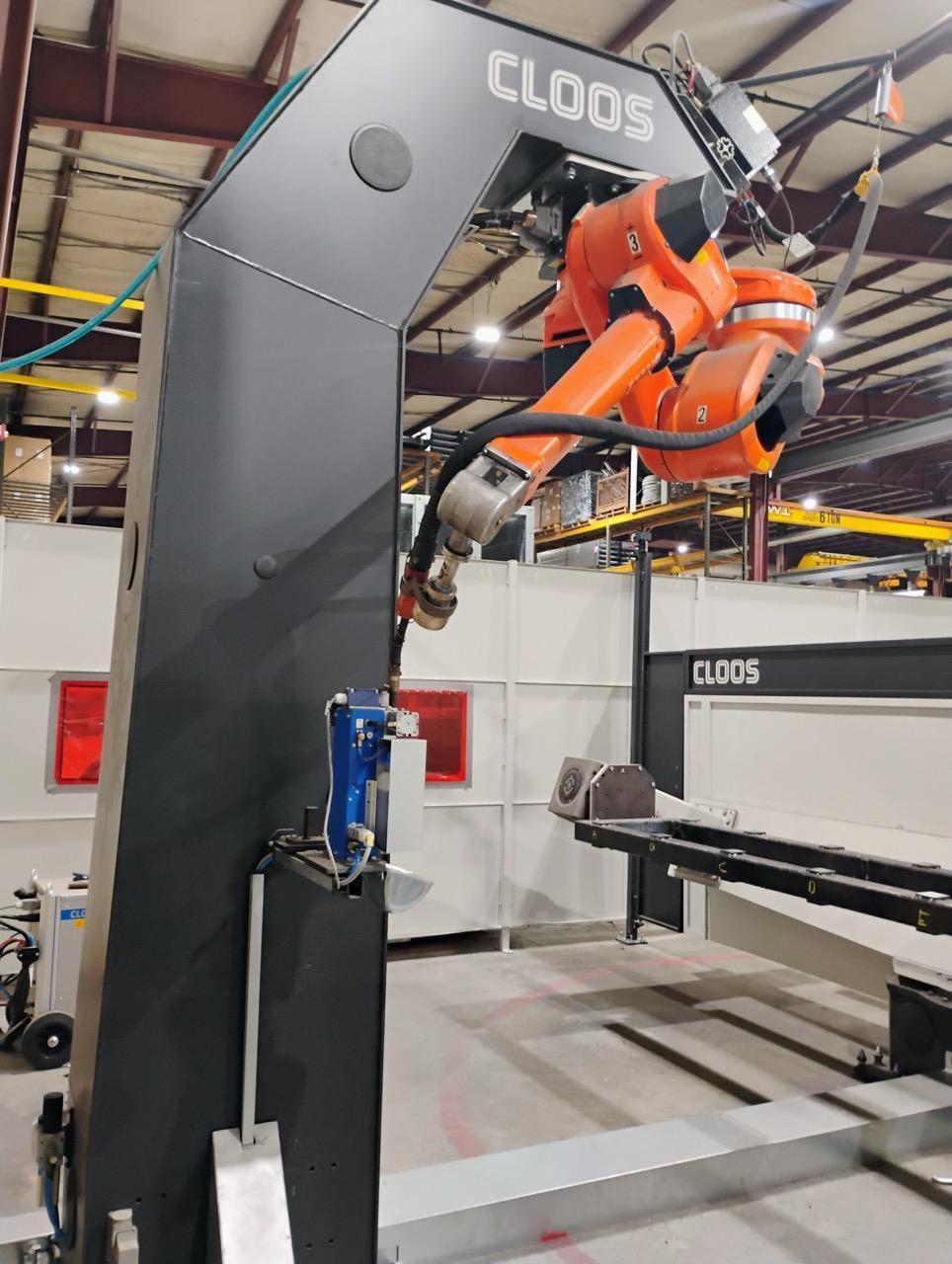

Robot Model: Cloos QIROX® QRC-410e Axis: 7 Welding Current: Up to 500 A (MIG/MAG) Wire Feed Speed: Adjustable, up to 25 m/min

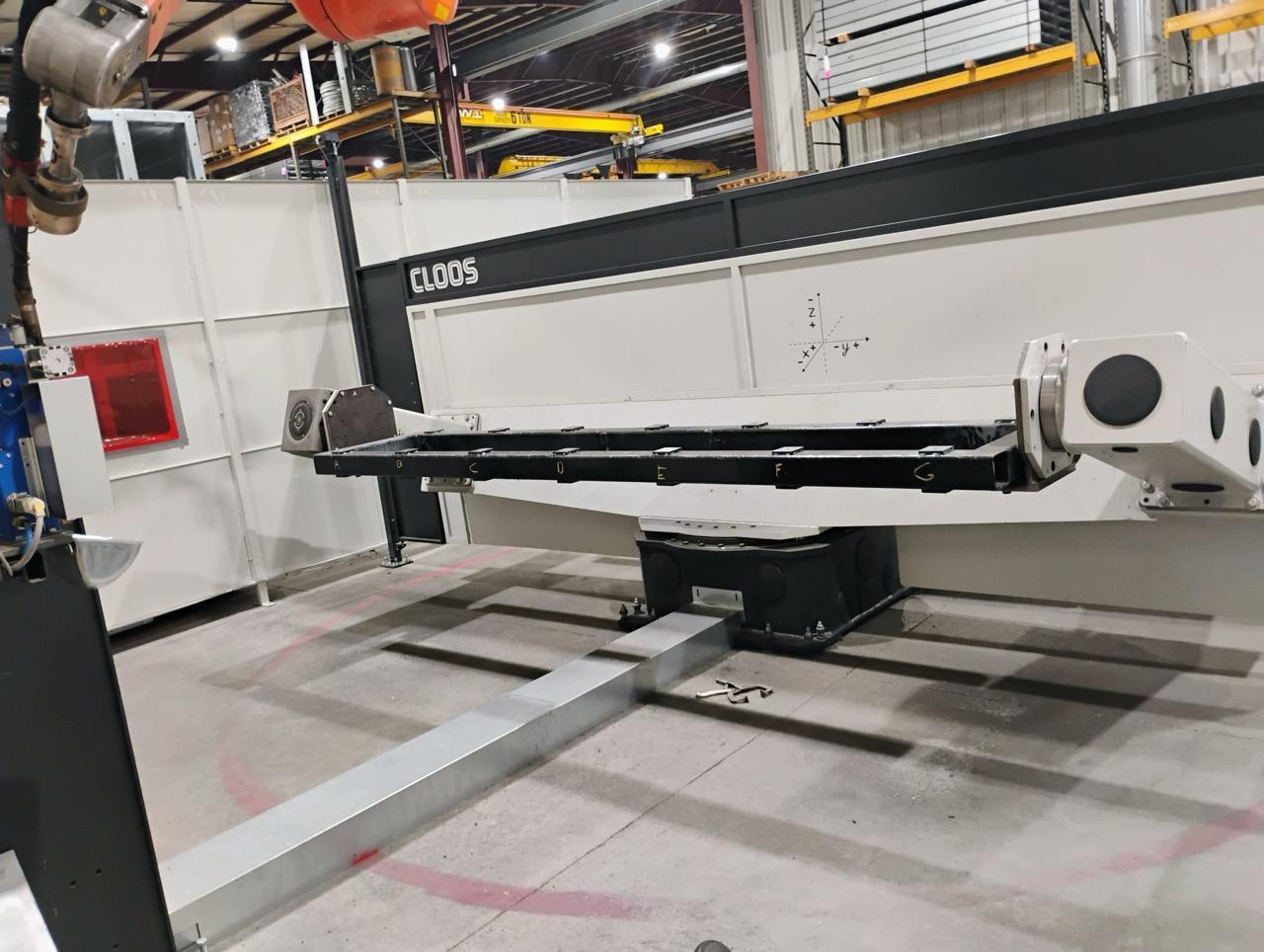

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Positioner: max. load per station in N: 10kN max. load per station in lbs: 2248 lbs max. nominal torque in Nm: 1000Nm max. tilting moment in Nm: 2450Nm mass moment of inertia: 150kgm2 max. turning speed: 120°/sec. face plate diameter 400x400mm clamping length in mm: 3500mm (137”) free turning radius in mm: 750mm (59”)

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Robot Specs: Pay load 10kg Swivel Speed Axis 1 184 Swivel Speed Axis 2 184 Swivel Speed Axis 3 177 Swivel Speed Axis 4 497 Swivel Speed Axis 5 542 Swivel Speed Axis 6 528 Swivel Speed Axis 7 90 Operating Range: 6100 mm

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
