Tilting of Arbor: 0-45.5°
Cutting Length: 122″
Rip Capacity: 51″
Cutting Depth Max – 90° : 4.8″
Cutting Depth Max – 45° : 3.34″
Main Saw Motor: 7.5 hp
Saw Speed: 3000/4000/5000 rpm
Standard Main Blade: 305 mm x 3.2 mm x 30 mm
Main Blade Arbor: 30 mm with 2 pin holes
Max Blade Size: 16″
Scoring Saw Motor: 1 hp | 8000 rpm
Scoring Blade Diameter: 120 mm
Dust Extraction: 800 cfm – (2) 3.9” Ø (100 mm)
Electrical: 230V: 14.75A | 460V: 8.5A
Approx. Weight: 3000 lbs

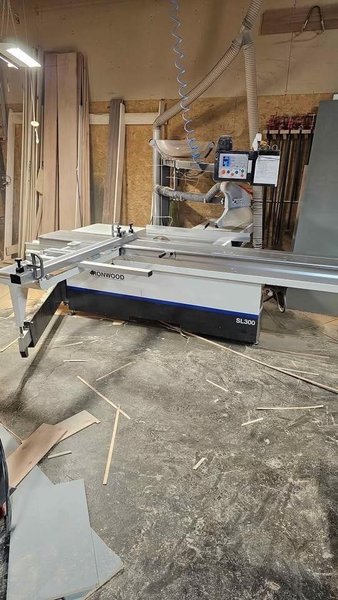

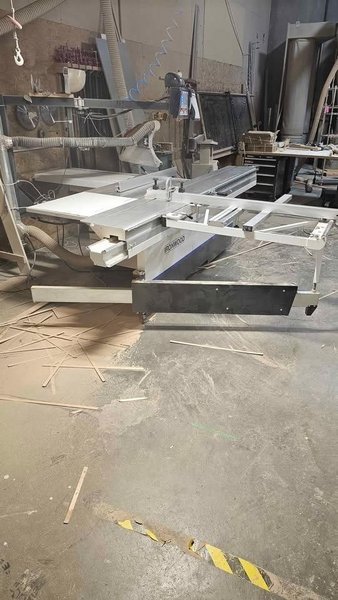

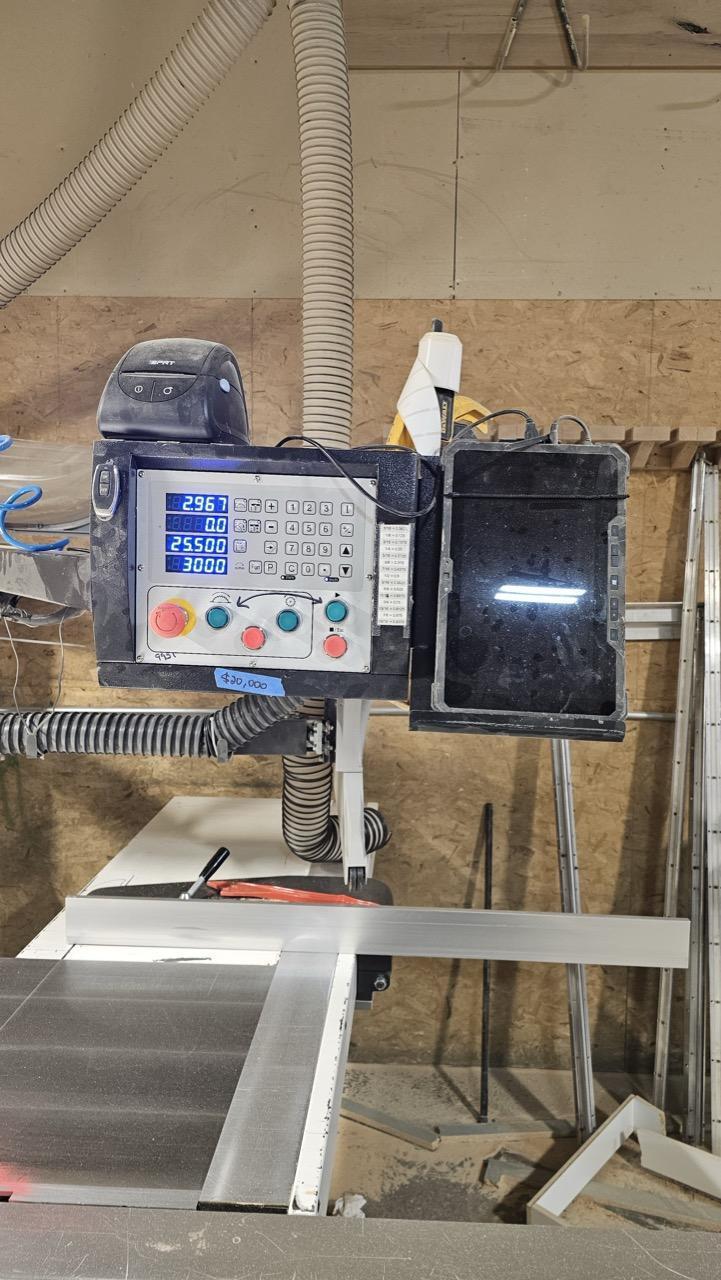

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Full Length Bridge Clamp Dell Tough Book & Label Printer Dust Collector Booster (on remote switch) Blades & Scoring Blades All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
