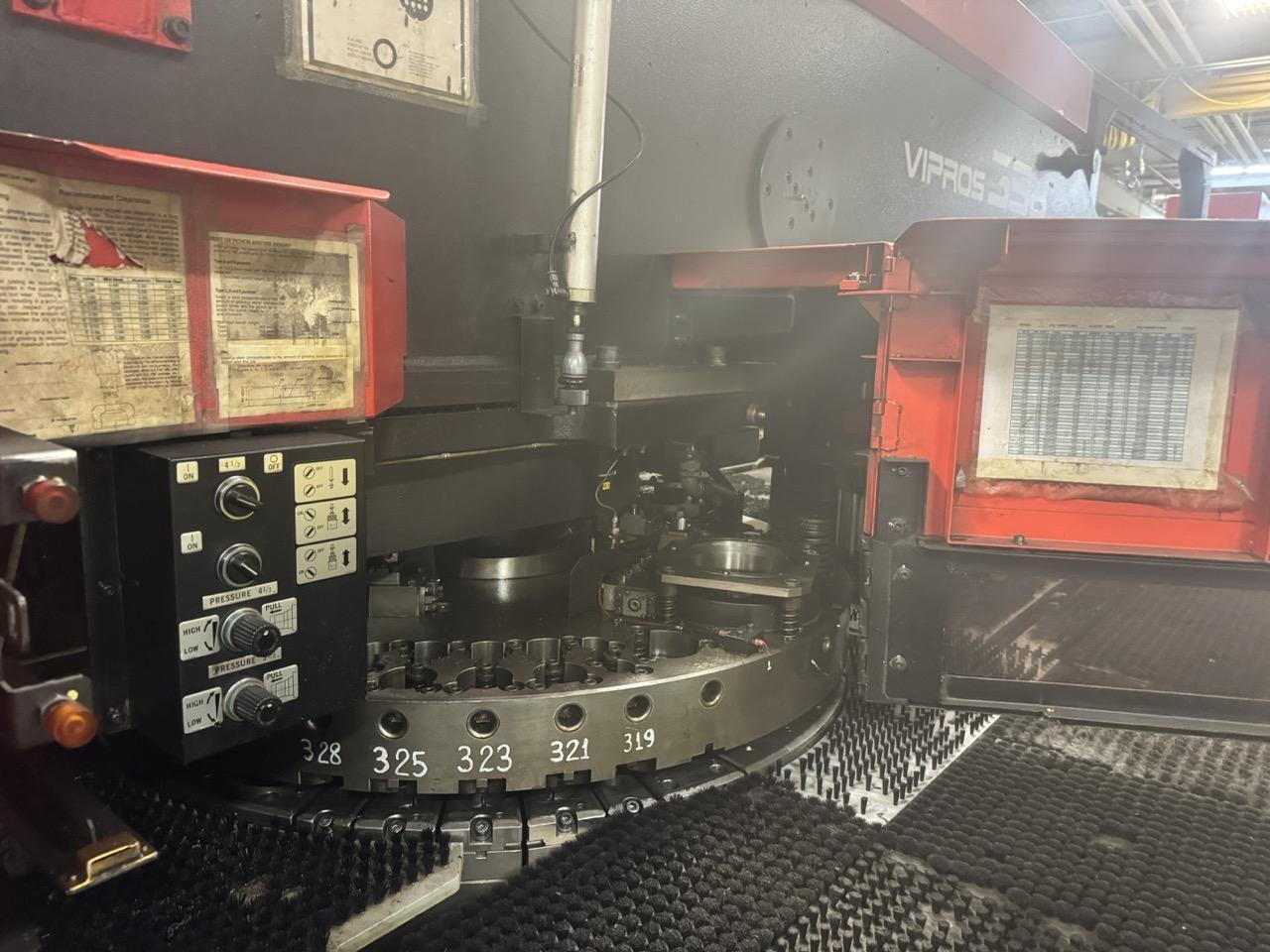

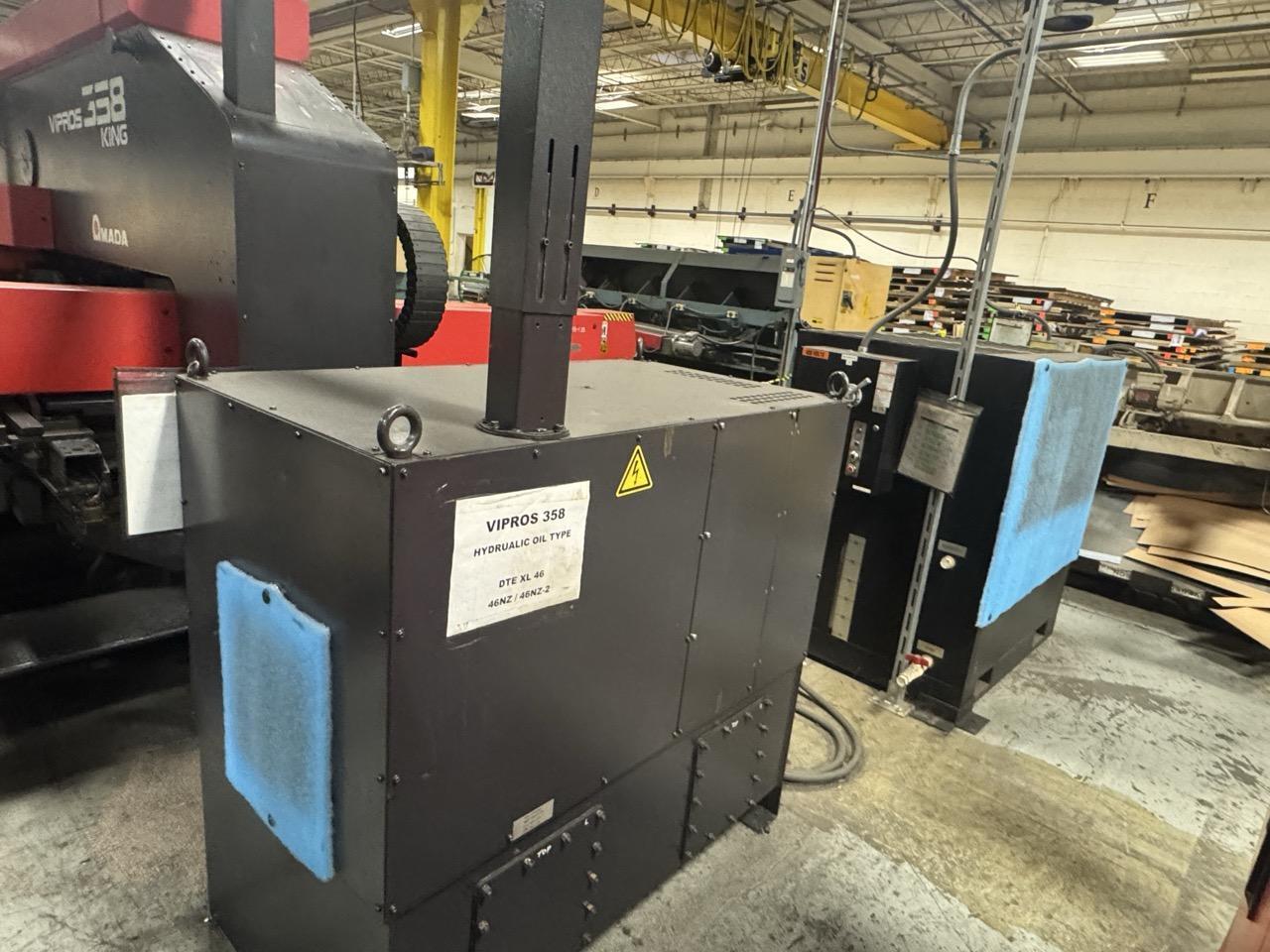

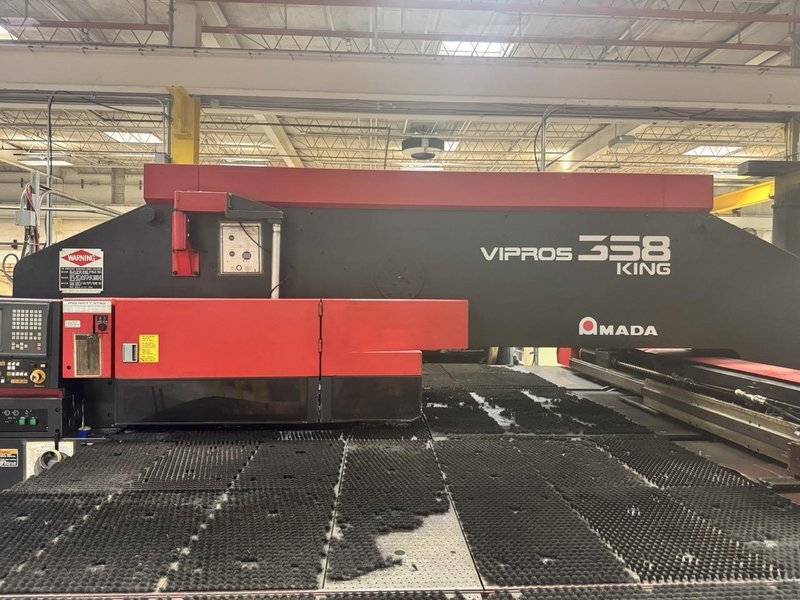

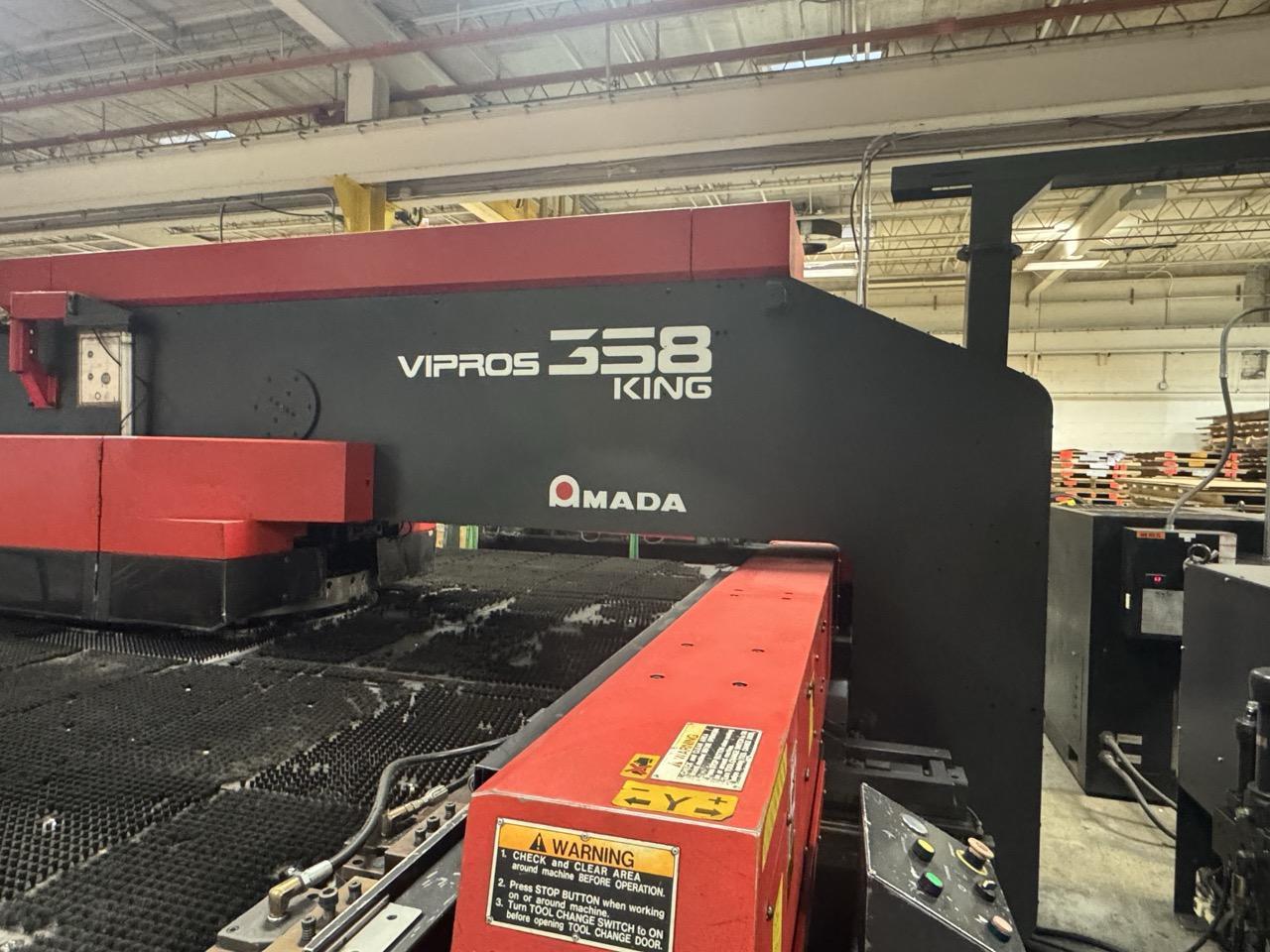

33 Ton Amada Vipros 358 King Turret Punch, 1998 – Fanuc Control

Brand

AMADA

Location

Not specified

REQUEST FINANCING

Specifications
Files & Videos

Capacity: 33 Ton Press Stroke: 1.256″ Travels: 50″ x 78.74″ Maximum Sheet Size (w/ Repositioning): 50″ x 157.5″ Maximum Material Thickness: 0.125″ Maximum Sheet Weight: 110 Lbs Maximum Hole Diameter: 4.5″ Turret Stations: 58 (4 Auto-Index) Turret Rotation Speed: 25 RPM Max Linear Table Speed: 3150 IPM Punching Accuracy: +/- 0.004″ Positioning Accuracy: +/- 0.001″ Repeatability: +/- 0.001″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

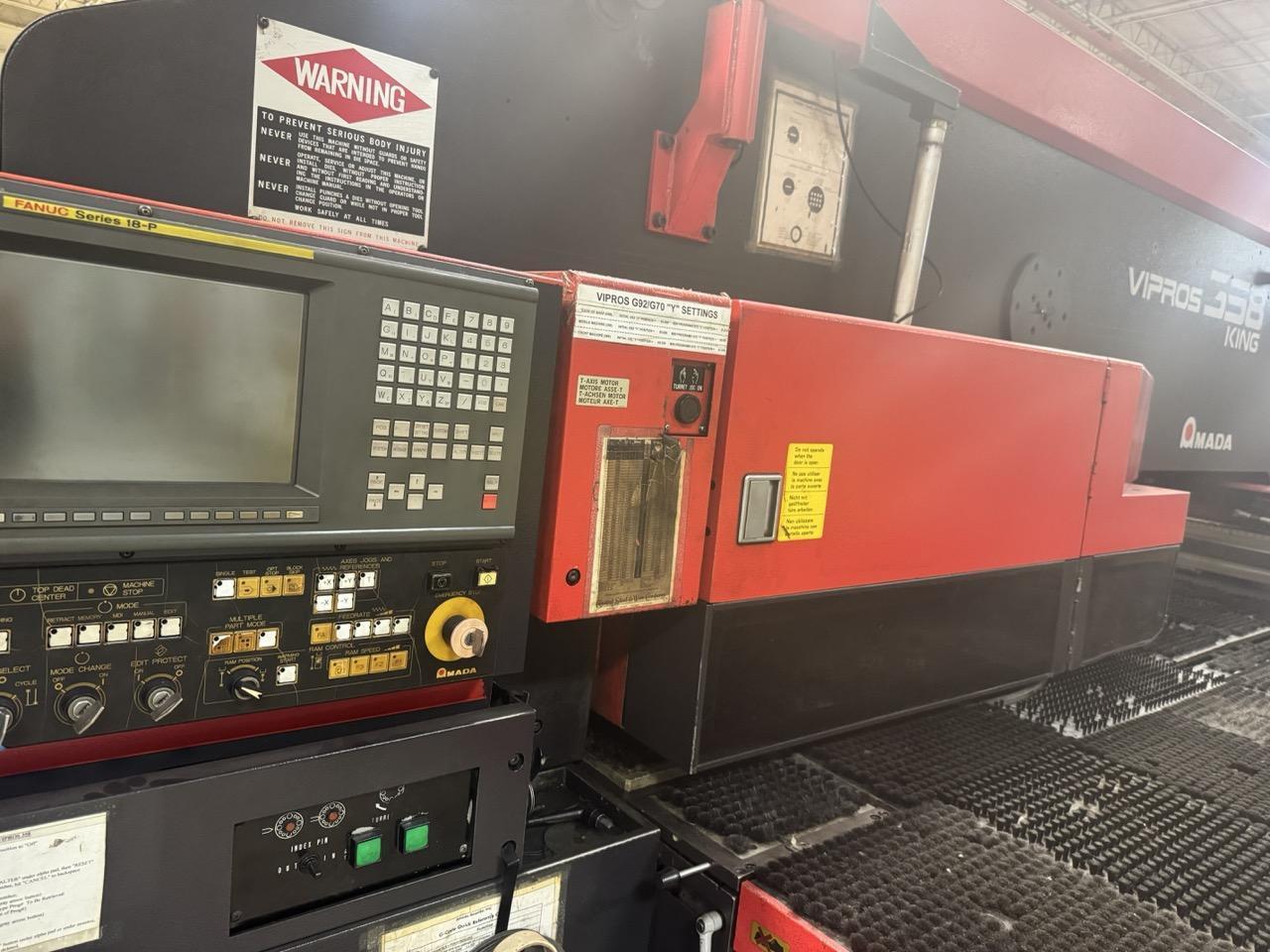

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Fanuc Series 18-P Control

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
