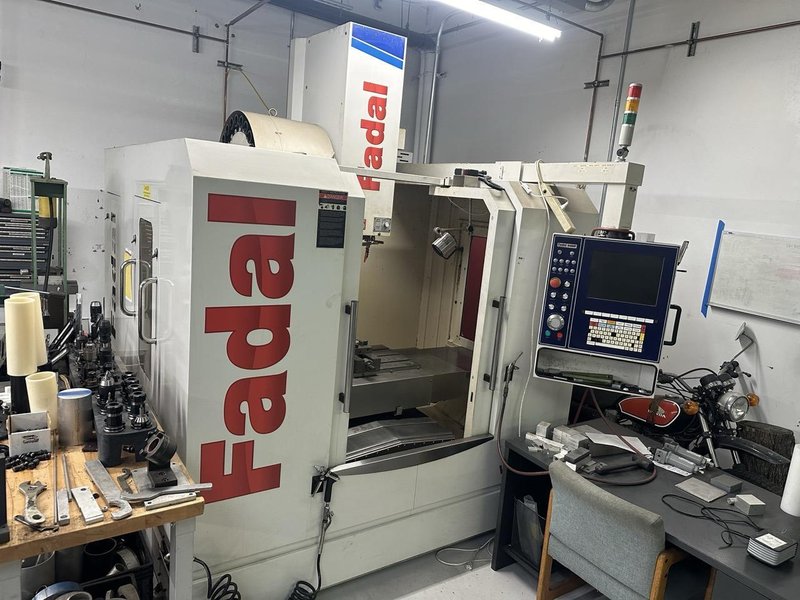

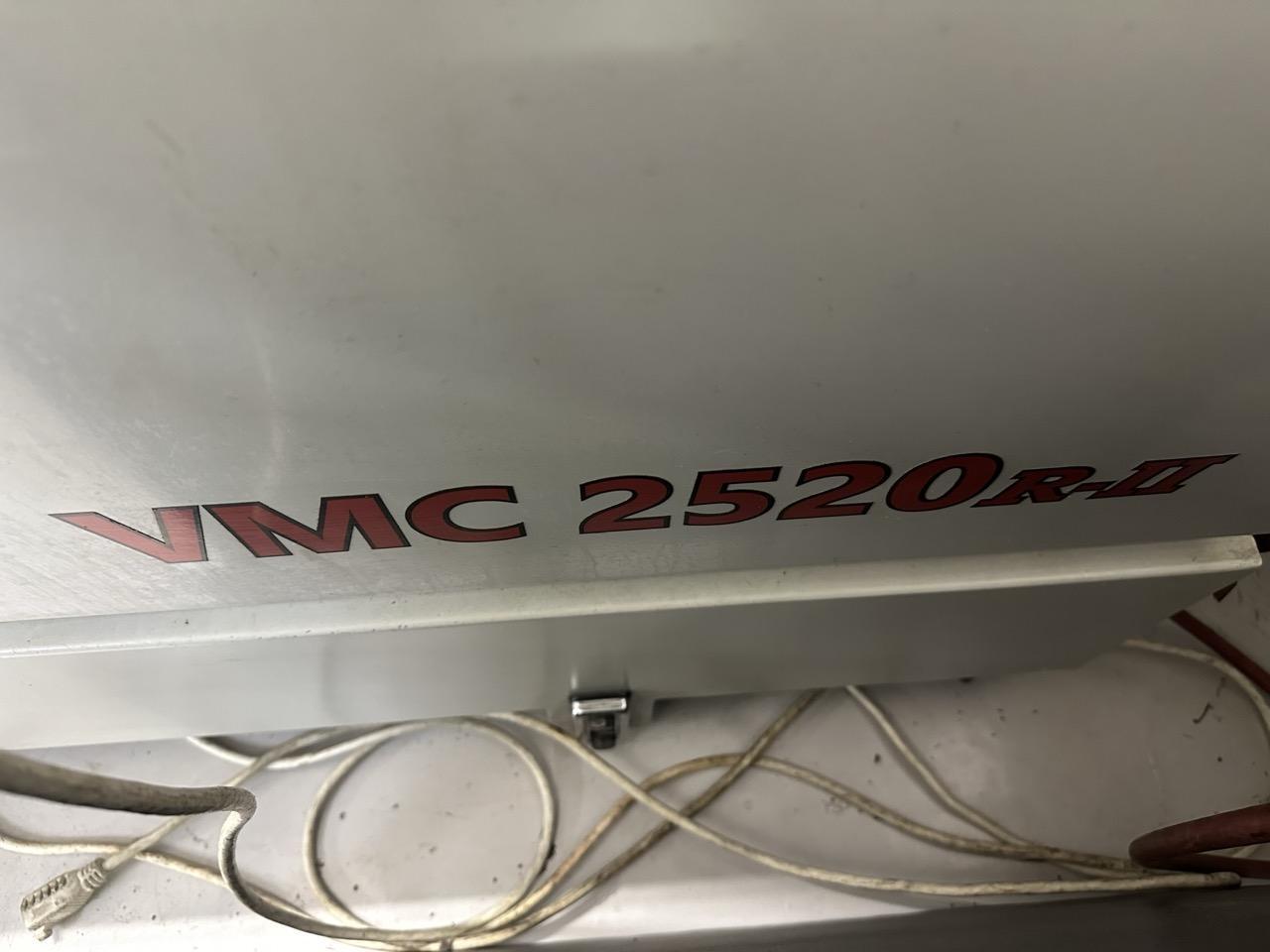

Fadal VMC 2520 R-II VMC, 2017 – 24 ATC, Available Immediately

X-Axis Travel: 25.5″ Y-Axis Travel: 20″ Z-Axis Travel: 20″ Table Size: 31.6″ x 17.75″ Max Table Load: 990 Lbs

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Spindle Taper: CAT40 Spindle Speed: 10,000 RPM Spindle Motor HP: 15 Automatic Tool Changer: 24 Positions Rapid Traverse (X, Y, Z): 1,187 IPM Accuracy Positioning: .0002 Accuracy Repeatability: .0001

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Electrical Requirements: 220 V; 3 Ph; 60 Hz Approx Weight: 11,000 Lbs Approx Dimensions: 100″ x 96″ x 104″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

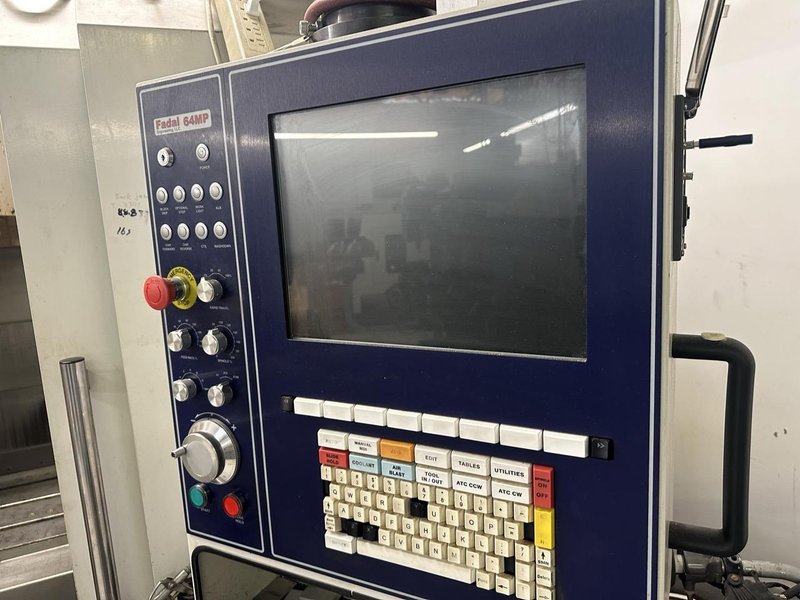

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FADAL 64MP CNC Control Rigid Tapping 24 Positions Side Mount Tool Changer Linear Roller Bearing Ways Spindle Oil Cooler LED Lighting Spindle Air Blast Auto Lube System

All specifications are assumed to be correct but must be confirmed by the purchasing entity.
