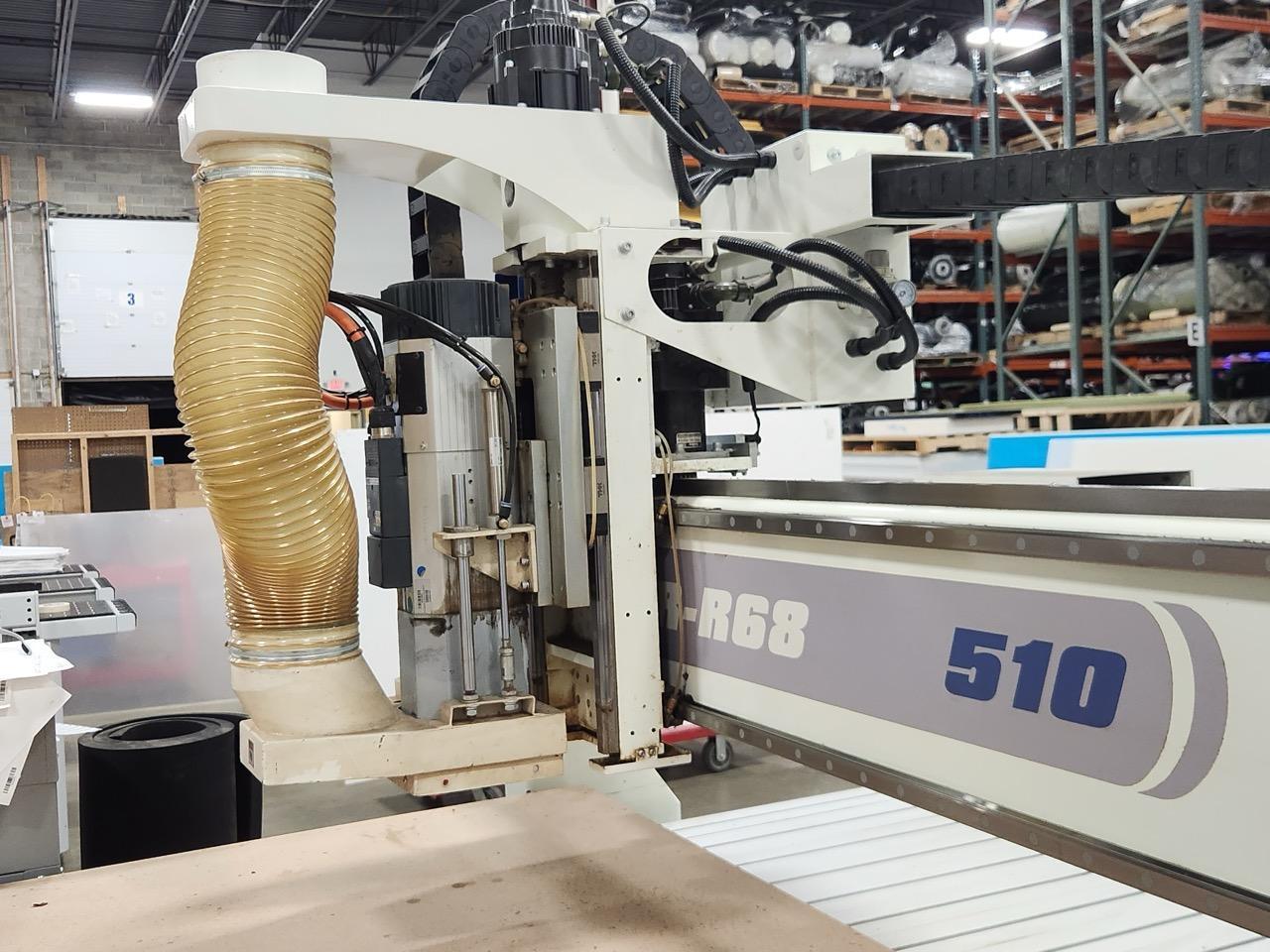

Hendrick HSR R68 510 CNC Router, 2020 – 24K RPM, 8 Station Tool Changer, Vacuum Table
Brand
Category
Type
Model
HSR R68 510
Stock #
984594
Year
2020
Condition
Not specified
Location
Not specified
|
X-Axis Travel: 61.8″
Y-Axis Travel: 122.0″
Z-Axis Travel: 7.9″
Workpiece Size: 61.0″ x 121.2″ x 7.0″
Table Size: 61.4″ x 122.0″
Spindle Power: 6 hp / 12 hp
Spindle Speed: 1,000 to 24,000 RPM
Travel Speed: 1378 IPM
Cutting Speed: 787 IPM
Tool Carousel Positions: 8
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,EQUIPPED WITH: All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Osai OPENcontrol CNC Control Vacuum Table X/Y Helical Rack and Pinion Drive System Z Ball Screw Drive All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
