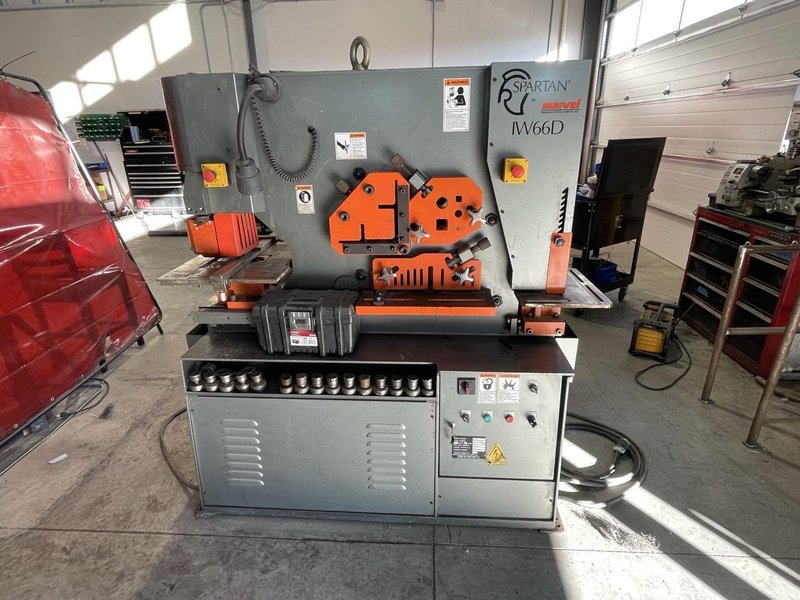

66 Ton Marvel Spartan IW66D Ironworker, 2014 – Dies Included

Nominal Tonnage: 66 Punch Diameter x Plate thickness: 1-1/16″ x 3/4″ with Special Tooling 6″ in 1/8″ material Depth of Throat: 12″ Strokes/min: (0.60 in) 30 Stroke Depth adjustable. Adjustable Back Stop Two Piece Gauging Table.

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,FLAT BAR SHEARING CAPACITY: Length of Blade 14⅛” Flat Bar Shear: 14″ in 9/16″, or 12″ in 3/4″ Angle Flange Trim: 4″ ANGLE SHEARING: 90° 5″ x 5″ x 1/2″ 45° 2½” x 2½” x 5/162″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,ROUND and SQUARE BAR SHEAR: Round thru 1½” Squares thru 1½” x 1½” Channels and H-Beams 5″

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,RECTANGLE NOTCHING 2″ x 3½” x 3/8″ 90 degree Notcher 3½” x 3½” x 3/8″ Pipe Notcher 1½” – 40

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,V-Notcher, Capacity Only 5¾” x 5¾” in 5/16″ Squaring Guides

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,MOTOR DRIVE: Wired 440 volts, 3-phase To Hydraulic Pump 7½ hp. 22/0440 volts Machine Weight: 4,000 LBS

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With:

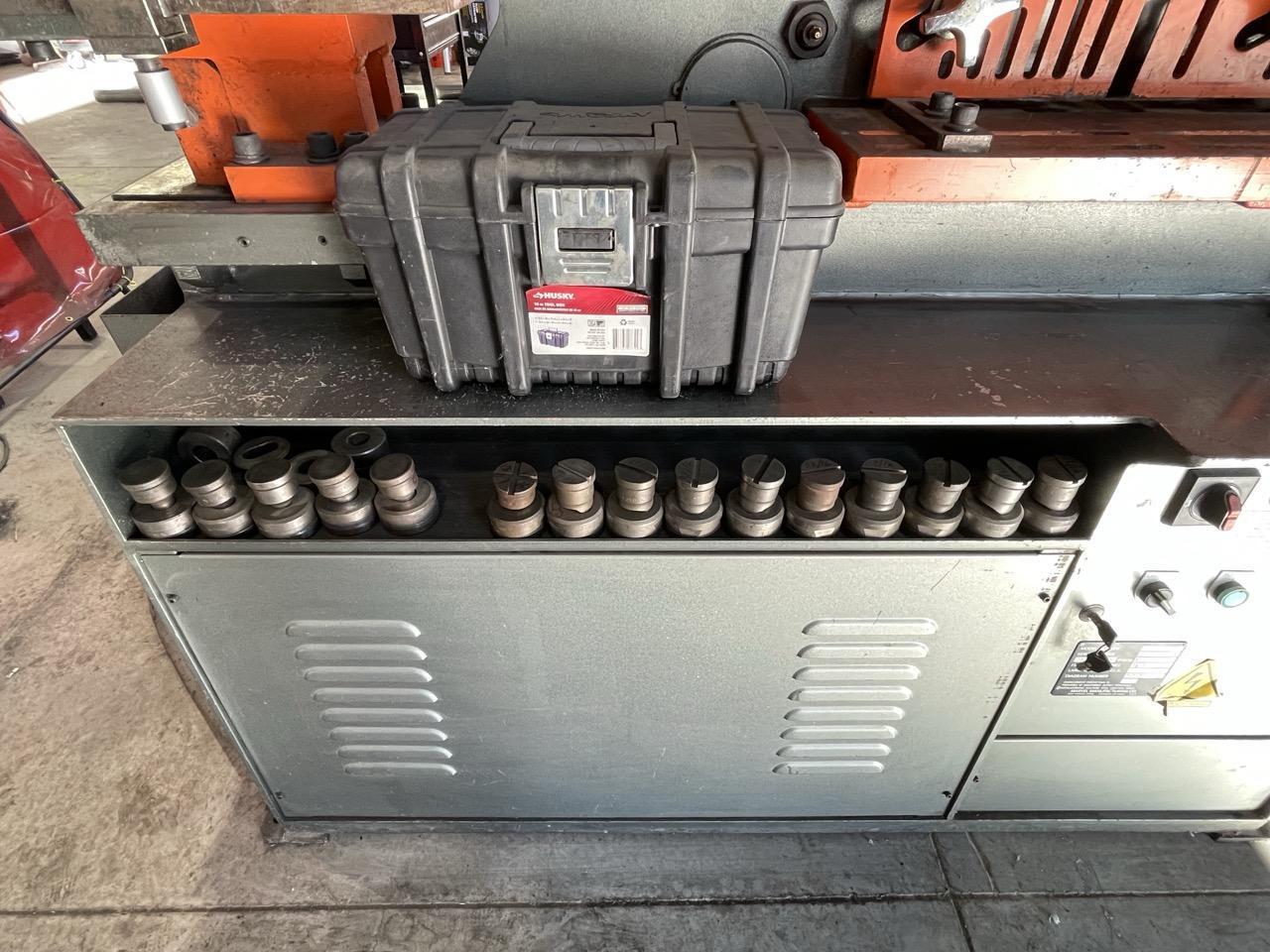

All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Foot Pedals 3’ Back Gauge with Electronic Stop for Angle and Rod Shearing. 1-Magnetic Base Work Light COMPLETE FACTORY SAFETY GUARDS Assortment of dies
