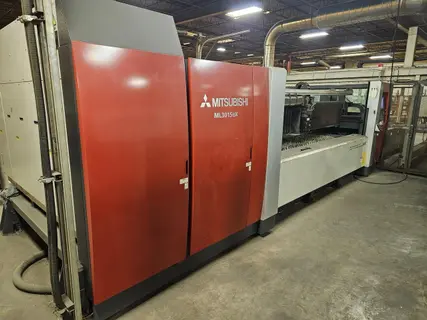

4500 Watt Mitsubishi ML3015 EX CO2 Laser, 2012 – 5′ x 10′ Table – Dual Pallet, Chiller
Brand
Category
Type
Model
ML3015 EX
Stock #
566371
Year
2012
Condition
Not specified
Location
Not specified
|
Resonator Wattage: 4500 Watts
Maximum Workpiece Size: 60″ X 120″
Motion Drive System: Helical Rack & Pinion
Proc. Lens Focal Dist: 5.0″/7.5″/10.0″
No. Of Controled Axes: 3
Table Pass Height: 34.6″
Rapid Travel Speed (X-Y) Single Axis: 3940″
Rapid Travel Speed (X-Y) Simultaneous: 5550″
Max. Proc. Feedrate: 1970″
Pos. Precision (X-Y): 0.0019″/20″
Pos. Precision Z: 0.0039″/4″
Rep. Accuracy (X-Y): +/-0.00039″
Foot Print: 566.9″ X 344.4″
Max. Workpiece Weight: 2050 Lbs
All specifications are assumed to be correct but must be confirmed by the purchasing entity.,Equipped With: Mitsubishi CNC Control Dual Pallet System Chiller All specifications are assumed to be correct but must be confirmed by the purchasing entity. |
